105488-0335 ZEXEL F 019 Z1E 642 BOSCH GOVERNOR f019z1e642 1054880335 1910196674

Information governor

BOSCH F 019 Z1E 642 f019z1e642

ZEXEL 105488-0335 1054880335

NISSAN-DIESEL 1910196674 1910196674

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105488-0335 zexel genuine, new aftermarket engine parts with delivery

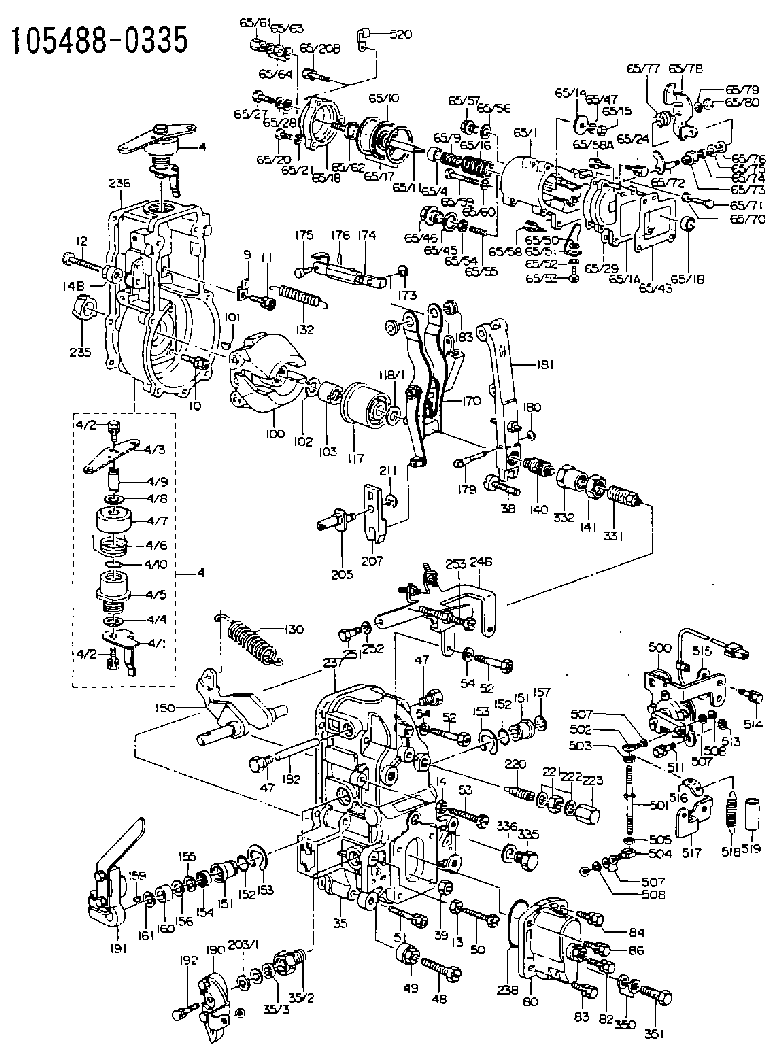

Scheme ###:

1.	[1]	154004-0100	GOVERNOR HOUSING
4.	[1]	154304-0920	CONTROL LEVER
4.	[1]	154304-0920	CONTROL LEVER
4/1.	[1]	154304-0100	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154304-0900	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-7500	BLEEDER SCREW M8P1.25L50
12B.	[1]	154010-7400	BLEEDER SCREW M8P1.25L55
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154514-2820	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-1900	CAPSULE
47.	[2]	154036-1900	CAPSULE
48.	[1]	154010-7900	BLEEDER SCREW M10P1.25L58
48B.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[2]	010006-6040	BLEEDER SCREW
52.	[2]	010006-6040	BLEEDER SCREW
53.	[1]	154010-8700	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154417-8321	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-9520	GOVERNOR HOUSING
65/1A.	[1]	154412-0201	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/4.	[1]	154413-0500	BUSHING
65/9.	[1]	154402-3900	COILED SPRING
65/10.	[1]	154400-8220	DIAPHRAGM
65/11.	[1]	154412-4101	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154402-4200	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20B.	[1]	020106-4540	BLEEDER SCREW M6P1.0L45
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-2200	GASKET
65/43.	[1]	154390-2300	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154412-9800	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55.	[1]	154404-1500	FLAT-HEAD SCREW L22.00
65/55B.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[2]	020106-2840	BLEEDER SCREW
65/58A.	[1]	020106-1440	BLEEDER SCREW M6P1.0L14
65/59.	[1]	010006-7040	BLEEDER SCREW M6P1L70
65/60.	[1]	014110-6440	LOCKING WASHER
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	013030-6040	UNION NUT M6P1H3.6
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
65/70.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/71.	[1]	029000-6290	BLEEDER SCREW M6P1.0L19
65/72.	[1]	154413-0021	LEVER SHAFT
65/73.	[1]	154413-0100	BUSHING
65/74.	[1]	139608-0000	PACKING RING
65/75.	[1]	154413-0200	PLAIN WASHER
65/76.	[0]	029310-8030	SHIM D13.5&8T0.1
65/76B.	[0]	029310-8040	SHIM D13.5&8T0.2
65/77.	[1]	154413-0301	COILED SPRING
65/78.	[1]	154413-0400	CONTROL LEVER
65/79.	[1]	014110-8440	LOCKING WASHER
65/80.	[1]	013020-8140	UNION NUT M8P1.25H6.5
66.	[1]	026524-3040	GASKET
80.	[1]	154063-8620	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-9400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-2420	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5601	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154216-1820	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-5320	STRAP
175.	[1]	159231-4900	BEARING PIN
176.	[1]	155402-3800	SAFETY PIN
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5200	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
190.	[1]	154363-5720	CONTROL LEVER
191.	[1]	154347-7720	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3400	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-1220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
248.	[1]	154370-2221	BRACKET
251.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
252.	[1]	014110-5440	LOCKING WASHER
253.	[1]	010065-1240	BLEEDER SCREW M5P0.8L12
331.	[1]	154179-5120	HEADLESS SCREW
332.	[1]	139218-0200	UNION NUT
335.	[1]	154352-2600	CAPSULE
336.	[1]	029331-6030	GASKET
350.	[2]	029331-2120	GASKET
351.	[1]	029731-2040	EYE BOLT
500.	[1]	154600-7421	LOAD SENSOR ASSY
501.	[1]	154604-2500	LEVER SHAFT
502.	[1]	154604-1700	BEARING PIN
503.	[1]	013020-5240	UNION NUT M5P0.8H4
504.	[1]	154604-1800	BEARING PIN
505.	[1]	029200-5130	UNION NUT
507.	[4]	029310-5280	SHIM D10.5&5T0.5
507.	[4]	029310-5280	SHIM D10.5&5T0.5
507.	[4]	029310-5280	SHIM D10.5&5T0.5
508.	[2]	016010-0540	LOCKING WASHER
508.	[2]	016010-0540	LOCKING WASHER
511.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
513.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
514.	[2]	020018-1640	BLEEDER SCREW M8P1.25L16 4T
515.	[1]	154604-4400	PLATE
516.	[1]	154359-0820	PLATE
517.	[1]	154359-0720	PLATE
518.	[1]	154317-3200	COILED SPRING
519.	[1]	154156-1300	TUBE
520.	[2]	154370-6820	PLATE
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-0224 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105488-0335

F 019 Z1E 642

1910196674 NISSAN-DIESEL

GOVERNOR
* K

Information:

Parts Location
Illustration 2 g01631813
(A) Flywheel (B) Fender Group (C) Tank Group (1) 319-8929 Diesel Particulate Filter Gp (2) 329-1696 Tube (3) 329-1701 Tube As (4) 295-3044 Exhaust Support Gp (5) 8T-4223 Hard Washer (6) 8T-4183 Bolt (7) 270-0112 Bellows (8) 7E-3870 Muffler Clamp (9) 247-5011 Pipe Clamp (10) 9Y-8315 Pipe Clamp (11) 8S-5120 Extension Pipe (12) 7S-4994 Rain Cap As (13) 241-6170 Plug (14) 8T-6765 Pipe Plug Installation Procedure
Diesel Particulate Filter Installation
Illustration 3 g01630053
(4) 295-3044 Exhaust Support Gp (Lower half) (5) 8T-4223 Hard Washer (6) 8T-4183 Bolt
Install the lower half of each new 295-3044 Exhaust Support Gp (4) on top of the hood, towards the right side of the cab, by using four new 8T-4183 Bolts (6), and four new 8T-4223 Hard Washers (5). Refer to Illustration 3.
Illustration 4 g01630056
(1) 319-8929 Diesel Particulate Filter Gp
Install the new 319-8929 Diesel Particulate Filter Gp (1) onto the lower half of exhaust support group (4). Refer to Illustration 4.
Illustration 5 g01630074
(4a) Upper half (Exhaust support group) (4b) Bolt (4c) Hard washer (4d) Weld nut
Install the upper half (4a) of exhaust support group by using two bolts (4b), two hard washers (4c), and two weld nuts (4d). Repeat for the other exhaust support group. Refer to Illustration 5.
Illustration 6 g01630094
(2) 329-1696 Tube (3) 329-1701 Tube As (7) 270-0112 Bellows (8) 7E-3870 Muffler Clamp
Install the new 329-1696 Tube (2) to the inlet module tube of the diesel particulate filter group by using one new 7E-3870 Muffler Clamp (8). Refer to Illustration 6.
Install the new 270-0112 Bellows (7) to tube (2) by using one new 7E-3870 Muffler Clamp (8). Refer to Illustration 6.
Install the new 329-1701 Tube Assembly (3) to bellows (7) by using one new 7E-3870 Muffler Clamp (8). Refer to Illustration 6.
Illustration 7 g01630133
(9) 247-5011 Pipe Clamp (11) 8S-5120 Extension Pipe
Install 8S-5120 Extension Pipe (11) to the outlet module tube of the diesel particulate filter group by using a new 247-5011 Pipe Clamp (9). Refer to Illustration 7.
Illustration 8 g01630173
(12) 7S-4994 Rain Cap As
Install the new 7S-4994 Rain Cap Assembly (12) on extension pipe (11). Refer to Illustration 8.
Illustration 9 g01630234
(13) 241-6170 Plug (14) 8T-6765 Pipe Plug
Install a new 241-6170 Plug (13) and a new 8T-6765 Pipe Plug (14) on tube assembly (3) at the respective slots provided. Refer to Illustration 9.
Reconnect the drain lines.Exhaust Monitor Installation
Refer to Special Instruction, REHS5606, "Installation and Operation of the Caterpillar Diesel Particulate Filter (DPF) and the Diagnostic Module for Non-Road Machine Applications (Non-California Applications)" for information regarding the installation and the operation of the exhaust monitor.The exhaust monitor is a device designed to monitor the Caterpillar DPF system continuously. The exhaust monitor provides critical information to the vehicle operator and maintenance
