105488-0132 ZEXEL F 019 Z2F 252 BOSCH GOVERNOR f019z2f252 1054880132

Information governor

BOSCH F 019 Z2F 252 f019z2f252

ZEXEL 105488-0132 1054880132

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105488-0132 zexel genuine, new aftermarket engine parts with delivery

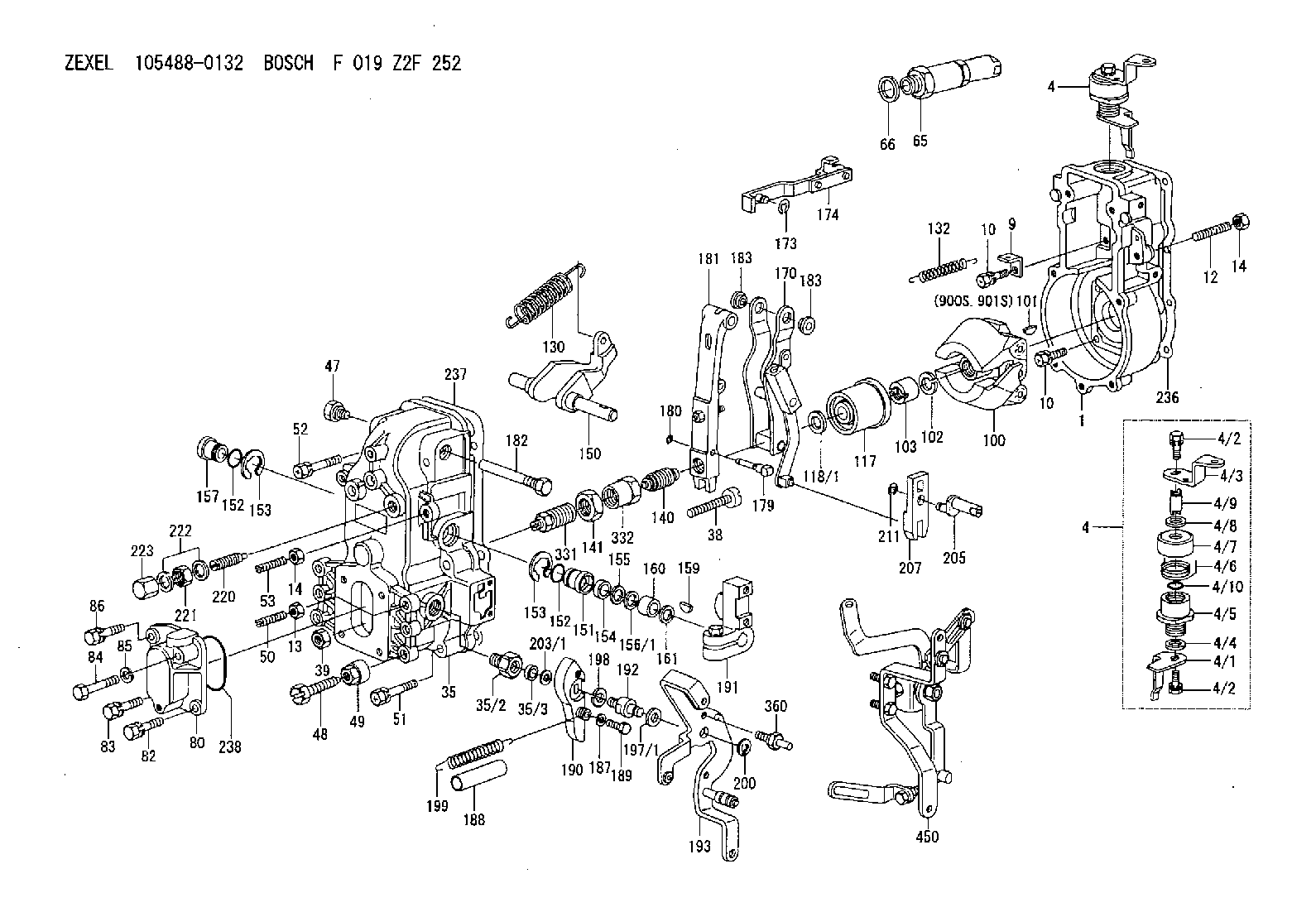

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154364-8820	CONTROL LEVER
4.	[1]	154364-8820	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154364-8800	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[2]	154011-0100	HEXAGON NUT
14.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154513-1420	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
48.	[1]	154010-5500	BLEEDER SCREW M10P1.25L42
49.	[1]	154011-2100	UNION NUT
50.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
65.	[1]	153043-4320	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154060-7900	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6220	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0420	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7200	GOVERNOR SPRING
132.	[1]	154154-0200	COILED SPRING
140.	[1]	154175-1520	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3801	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7720	GUIDE LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4920	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
183.	[2]	154237-0600	BUSHING
187.	[1]	014110-6440	LOCKING WASHER
188.	[1]	154156-1500	TUBE
189.	[1]	154357-6320	BLEEDER SCREW
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-0020	CONTROL LEVER
192.	[1]	154357-6401	BLEEDER SCREW
193.	[1]	154363-2720	CONTROL LEVER
197/1.	[0]	029310-8610	SHIM D10.5&8.5T0.1
197/1.	[0]	029310-8620	SHIM D10.5&8.5T0.15
197/1.	[0]	029310-8630	SHIM D10.5&8.5T0.2
197/1.	[0]	029310-8650	SHIM D10.5&8.5T0.5
198.	[1]	014110-8440	LOCKING WASHER
199.	[1]	154317-0900	COILED SPRING
200.	[1]	016010-0740	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3000	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	139512-0000	GASKET D17.2&12.2T1.0
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154179-2620	HEADLESS SCREW
332.	[1]	029201-6220	UNION NUT
360.	[1]	154357-6900	BEARING PIN
450.	[1]	154399-3820	LEVER GROUP
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106693-1262 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105488-0132

F 019 Z2F 252

GOVERNOR
* K

Information:

Introduction
Do not perform any procedure in this Special Instruction until you have read the information and you understand the information.The actuator and pump groups of these fuel injectors are sensitive to debris in the oil. The injector may malfunction due to debris in the oil, causing seizure, or high leaks in components.
Table 1
Revision Table
Revision Summary of Changes
3 Added serial numbers. Improvement Procedure
Clean oil rail after pump failure.Reference: Refer to Special Instruction, REHS3819 for the procedure to clean the oil rail after engine failure to avoid debris in the oil system.
Use clean oil and clean filters.The life of the injector depends on the oil quality. It can be increased if good cleaning practices are performed before installing the injectors.Reference: Refer to Operation and Maintenance Manual, SEBU6250 and Operation and Maintenance Manual, SEBU6251 for direction on oil sampling intervals and optimizing engine oil life.
Illustration 1 g06207717
(1) Actuator
(2) Pump Group
(3) Valve Seat Damage Due to Debris in the Oil SystemInjector Failure Due To Damage From Debris In The Oil May Not Be A Warrantable Failure
Illustration 2 g06244961
