105487-7702 ZEXEL F 01G 29N 0JP BOSCH GOVERNOR f01g29n0jp 1054877702 me756538

Information governor

BOSCH F 01G 29N 0JP f01g29n0jp

ZEXEL 105487-7702 1054877702

MITSUBISHI ME756538 me756538

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-7702 zexel genuine, new aftermarket engine parts with delivery

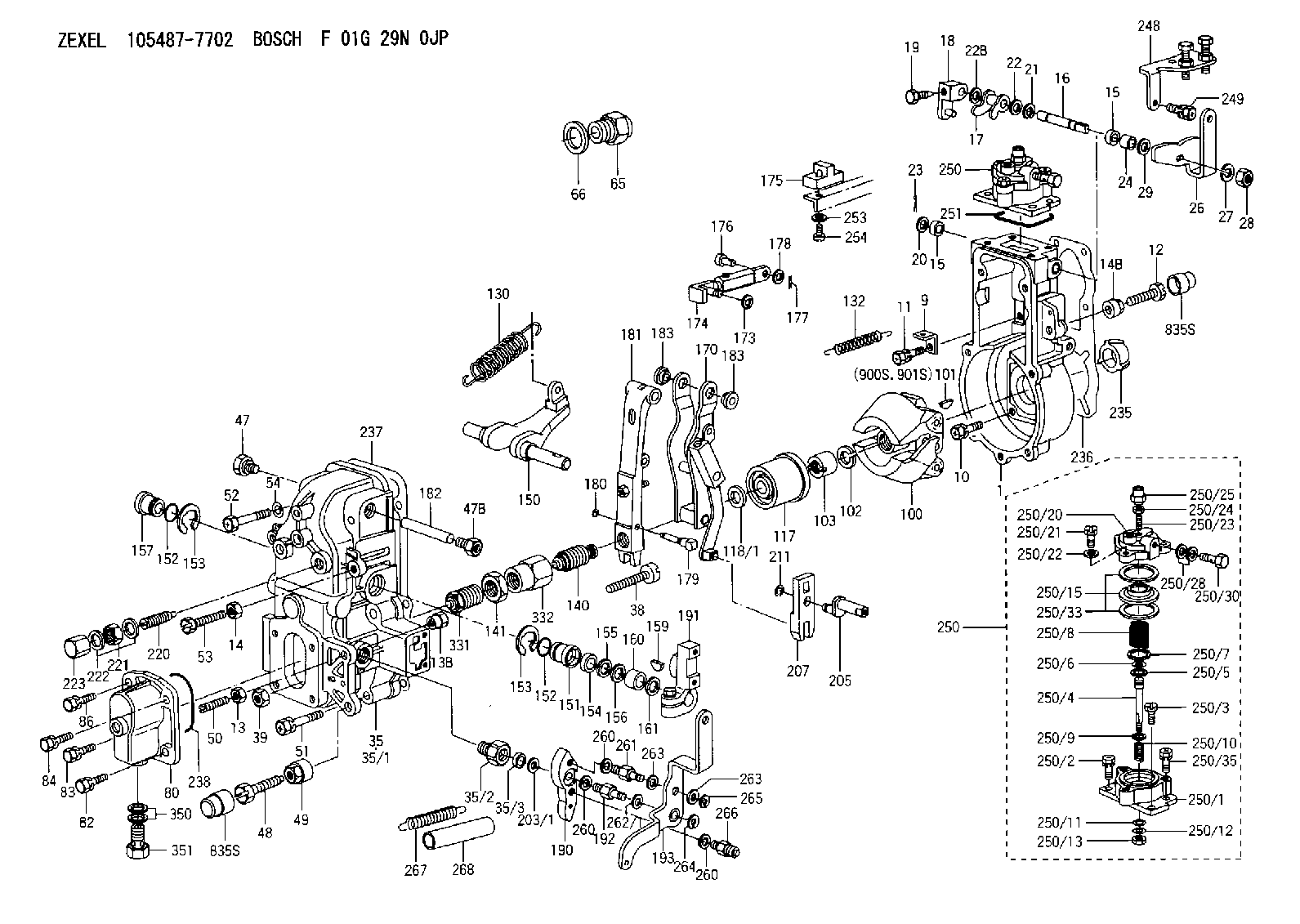

Scheme ###:

1.	[1]	154004-1022	GOVERNOR HOUSING
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW
11.	[4]	020106-1840	BLEEDER SCREW
12.	[1]	154013-0600	BLEEDER SCREW
13.	[1]	013020-6040	UNION NUT
13B.	[1]	154011-1400	UNION NUT
14.	[1]	013020-8040	UNION NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	029620-8050	PACKING RING
15.	[2]	029620-8050	PACKING RING
16.	[1]	155004-3301	LEVER SHAFT
17.	[1]	154408-1520	CONTROL LEVER
18.	[1]	155003-1920	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
21.	[1]	016010-0740	LOCKING WASHER
22.	[0]	029310-8040	SHIM D13.5&8T0.2
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-5400	BUSHING
26.	[1]	154383-3200	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
28.	[1]	013020-8040	UNION NUT
29.	[1]	139408-1400	SHIM D16&8T0.2
29B.	[0]	139408-1400	SHIM D16&8T0.2
29C.	[0]	139408-1500	SHIM D16&8T0.5
35.	[1]	154516-6520	GOVERNOR COVER
35/1.	[1]	154516-6500	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[1]	154036-1800	CAPSULE
47B.	[1]	154036-1900	CAPSULE
48.	[1]	154010-7900	BLEEDER SCREW M10P1.25L58
48B.	[1]	154010-6000	BLEEDER SCREW M10P1.25L55
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-4200	FLAT-HEAD SCREW
51.	[5]	020106-4540	BLEEDER SCREW
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-7300	BLEEDER SCREW
54.	[2]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154063-6121	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY 13 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-9000	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154189-2820	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5401	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154216-1920	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-8520	STRAP
175.	[1]	154232-1220	PLATE
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
178.	[1]	029310-5170	SHIM
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5200	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	154371-8300	BLEEDER SCREW
193.	[1]	154387-1920	CONTROL LEVER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-7720	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT
222.	[2]	026512-1540	GASKET
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
248.	[1]	154376-2220	BRACKET
249.	[1]	020106-1240	BLEEDER SCREW
250.	[1]	154422-5620	MANIFOLD-PRESSURE COMP.
250.	[1]	154422-5620	MANIFOLD-PRESSURE COMP.
250/1.	[1]	154408-6220	DIAPHRAGM HOUSING
250/2.	[2]	020106-1640	BLEEDER SCREW
250/3.	[1]	029020-6260	BLEEDER SCREW
250/4.	[1]	154400-5101	STOP PIN
250/5.	[1]	153400-0900	SLOTTED WASHER
250/6.	[1]	016010-0740	LOCKING WASHER
250/7.	[0]	029312-0180	SHIM D25.5&20T0.5
250/7B.	[0]	029312-0210	SHIM D25.5&20T0.2
250/8.	[1]	154402-0600	COILED SPRING
250/9.	[0]	154355-3900	SHIM D18&12.5T0.10
250/9B.	[0]	154355-4000	SHIM D18&12.5T0.20
250/9C.	[0]	154355-4100	SHIM D18&12.5T0.30
250/10.	[1]	154411-1000	COILED SPRING
250/11.	[1]	153400-0800	SPRING SEAT
250/12.	[1]	014110-5440	LOCKING WASHER
250/13.	[1]	013030-5240	UNION NUT
250/15.	[1]	154400-9320	DIAPHRAGM
250/20.	[1]	154404-5100	COVER
250/21.	[3]	029010-6310	BLEEDER SCREW
250/22.	[3]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
250/23.	[1]	154404-5300	FLAT-HEAD SCREW
250/24.	[1]	023040-6040	UNION NUT
250/25.	[1]	154406-7800	CAP NUT
250/28.	[2]	026510-1340	GASKET
250/30.	[1]	029731-0180	EYE BOLT
250/33.	[2]	154413-2600	GASKET
250/35.	[1]	020106-2040	BLEEDER SCREW
251.	[1]	154358-2500	SEAL RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW
260.	[3]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
260.	[3]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
260.	[3]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
261.	[1]	154376-5800	BLEEDER SCREW
262/1.	[0]	029310-8610	SHIM D10.5&8.5T0.1
262/1.	[0]	029310-8620	SHIM D10.5&8.5T0.15
262/1.	[0]	029310-8630	SHIM D10.5&8.5T0.2
262/1.	[0]	029310-8650	SHIM D10.5&8.5T0.5
263.	[2]	029310-6130	SHIM
263.	[2]	029310-6130	SHIM
264.	[1]	159238-4200	LOCKING WASHER
265.	[1]	016010-0640	LOCKING WASHER
266.	[1]	154357-6320	BLEEDER SCREW
267.	[1]	154317-2000	COILED SPRING
268.	[1]	154156-1500	TUBE
331.	[1]	154188-1320	HEADLESS SCREW
332.	[1]	139218-0700	UNION NUT
350.	[2]	026512-1840	GASKET
351.	[1]	153556-4800	EYE BOLT
835S.	[2]	154062-1700	CAP
835S.	[2]	154062-1700	CAP
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106676-2344 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-7702

F 01G 29N 0JP
NP-EP/RFD200/1250PF62DZR

ME756538 MITSUBISHI

GOVERNOR
A

Information:

ACTION REQUIRED
Refer to the Service Manual if/as necessary.
Inspect the engine for 20R-1282 Fuel Injectors with serial numbers LESS THAN 1240557.
If the engine has 20R-1282 Fuel Injectors with serial numbers LESS THAN 1240557, replace only the 20R-1282 Fuel Injectors with serial numbers LESS THAN 1240557 with 392-0222 Fuel Injectors.
Refer to Image 1 for the part number and serial number locations.
Record the serial number(s) and part number for the injector(s) removed.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-4380 hrs,
0-6 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 1.0-hour job for Group 1
If there has been a previous repair, part age/hours will apply. Retain a copy of the previous repair invoice in the dealer's records for audit purposes, and specify repair date and machine hours in the "Additional Comments" section of the warranty claim.
The serial number(s) and part number for the injector(s) removed must be included in the claim story.
1.0 hour will be allowed for inspecting for suspect injectors.
1.0 hour will be allowed for replacing each 20R-1282 Fuel Injector in the engine with a 392-0222 Fuel Injector.
Reasonable travel time and mileage will be allowed.
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-4380 hrs,
0-6 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 2.0-hour job for Group 2
If there has been a previous repair, part age/hours will apply. Retain a copy of the previous repair invoice in the dealer's records for audit purposes, and specify repair date and machine hours in the "Additional Comments" section of the warranty claim.
The serial number(s) and part number for the injector(s) removed must be included in the claim story.
2.0 hours will be allowed for inspecting for suspect injectors.
1.0 hour will be allowed for replacing each 20R-1282 Fuel Injector in the engine with a 392-0222 Fuel Injector.
Reasonable travel time and mileage will be allowed.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
