105487-7550 ZEXEL F 019 Z3E 718 BOSCH GOVERNOR f019z3e718 1054877550 1910196463




Information governor

BOSCH F 019 Z3E 718 f019z3e718
ZEXEL 105487-7550 1054877550
NISSAN-DIESEL 1910196463 1910196463
105487-7550 GOVERNOR
Rating:
26
Buy GOVERNOR 105487-7550 zexel genuine, new aftermarket engine parts with delivery

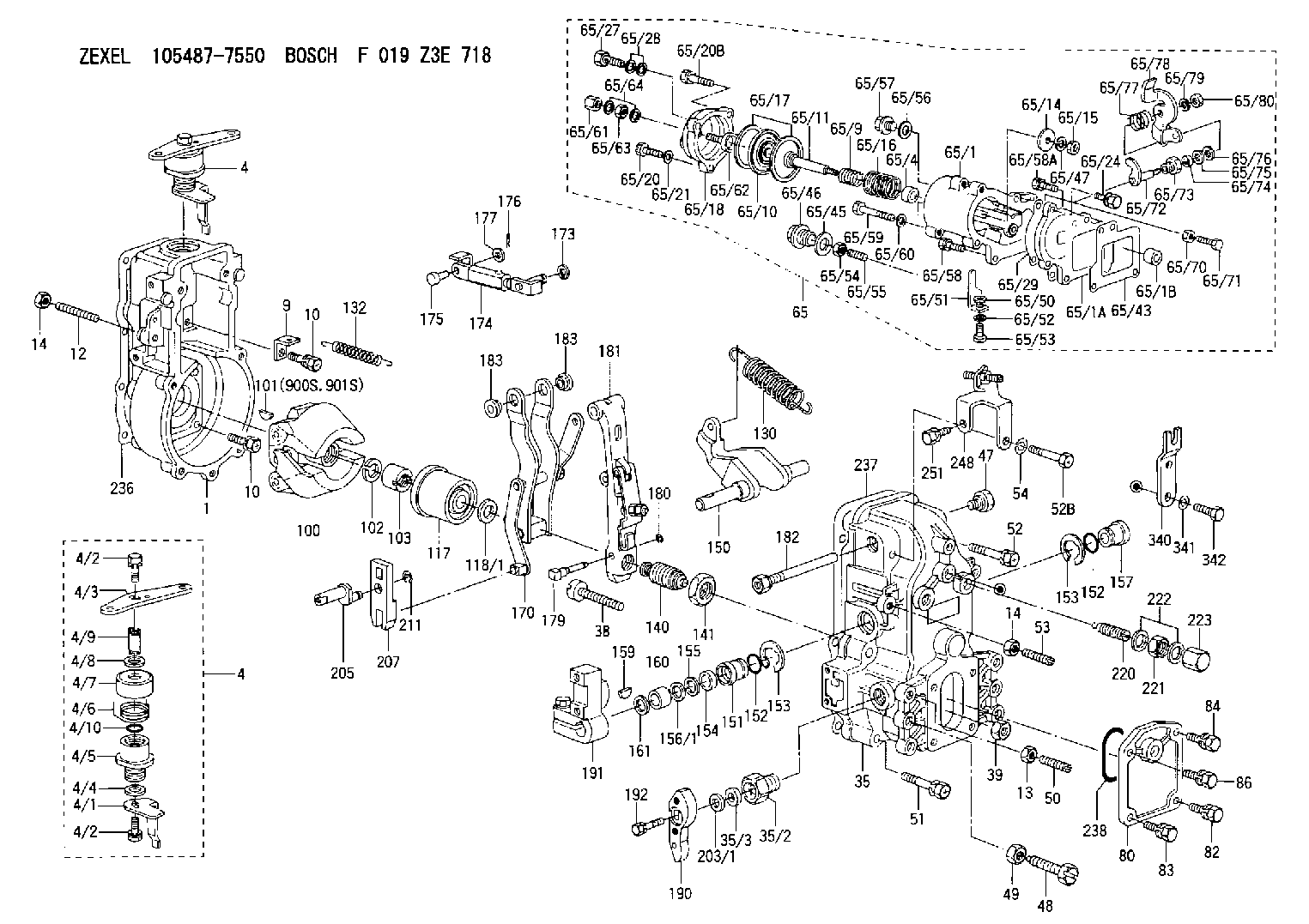

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-4700 GOVERNOR HOUSING
4. [1] 154365-3120 CONTROL LEVER
4. [1] 154365-3120 CONTROL LEVER
4/1. [1] 154304-6200 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154304-0900 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-2901 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [2] 154011-0100 HEXAGON NUT
14. [2] 154011-0100 HEXAGON NUT
35. [1] 154513-1220 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3500 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-1200 CAPSULE
48. [1] 154010-5500 BLEEDER SCREW M10P1.25L42
49. [1] 154011-2100 UNION NUT
50. [1] 155615-1100 FLAT-HEAD SCREW M6P1.0L37
51. [4] 020106-3840 BLEEDER SCREW
52. [1] 020106-5040 BLEEDER SCREW
52B. [1] 029010-6850 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
54. [1] 014110-6440 LOCKING WASHER
65. [1] 154421-2021 MANIFOLD-PRESSURE COMP.
65/1. [1] 154412-9520 GOVERNOR HOUSING
65/1A. [1] 154412-0201 SPACER BUSHING
65/1B. [1] 134009-0000 SPACER BUSHING
65/4. [1] 154413-0500 BUSHING
65/9. [1] 154402-3900 COILED SPRING
65/10. [1] 154400-9420 DIAPHRAGM
65/11. [1] 154412-4101 STOP PIN
65/14. [1] 154406-5500 SLOTTED WASHER
65/15. [1] 013020-6040 UNION NUT M6P1H5
65/16. [1] 154416-0200 COILED SPRING
65/17. [2] 154413-2600 GASKET
65/18. [1] 154404-5000 COVER
65/20. [2] 029010-6310 BLEEDER SCREW
65/20B. [1] 020106-4540 BLEEDER SCREW M6P1.0L45
65/21. [2] 014110-6440 LOCKING WASHER
65/24. [2] 020106-2040 BLEEDER SCREW M6P1L20
65/27. [1] 029731-0180 EYE BOLT
65/28. [2] 026510-1340 GASKET D13.4&10.2T1
65/29. [1] 154390-2200 GASKET
65/43. [1] 154390-2300 GASKET
65/45. [1] 029331-8040 GASKET
65/46. [1] 154406-5800 FLAT-HEAD SCREW
65/47. [1] 014110-6440 LOCKING WASHER
65/50. [1] 154406-6800 PLAIN WASHER
65/51. [1] 154412-9800 CONTROL LEVER
65/52. [1] 014110-4440 LOCKING WASHER
65/53. [1] 010234-0820 HEX-SOCKET-HEAD CAP SCREW
65/54. [1] 013030-6040 UNION NUT M6P1H3.6
65/55. [1] 154404-1500 FLAT-HEAD SCREW L22.00
65/55B. [1] 154404-1600 FLAT-HEAD SCREW L26.00
65/56. [1] 029331-2130 GASKET
65/57. [1] 154406-6500 FLAT-HEAD SCREW
65/58. [2] 020106-2840 BLEEDER SCREW
65/58A. [1] 020106-1440 BLEEDER SCREW M6P1.0L14
65/59. [1] 010006-7040 BLEEDER SCREW M6P1L70
65/60. [1] 014110-6440 LOCKING WASHER
65/61. [1] 154035-1600 CAP NUT
65/62. [1] 154404-4400 FLAT-HEAD SCREW
65/63. [1] 013030-6040 UNION NUT M6P1H3.6
65/64. [2] 026506-1040 GASKET D9.9&6.2T1
65/70. [1] 029240-6010 UNION NUT M6P1.0H5*
65/71. [1] 153141-1600 BLEEDER SCREW
65/72. [1] 154413-0021 LEVER SHAFT
65/73. [1] 154413-0100 BUSHING
65/74. [1] 139608-0500 PACKING RING
65/75. [1] 154413-0200 PLAIN WASHER
65/76. [0] 029310-8030 SHIM D13.5&8T0.1
65/76B. [0] 029310-8040 SHIM D13.5&8T0.2
65/77. [1] 154413-0301 COILED SPRING
65/78. [1] 154413-0400 CONTROL LEVER
65/79. [1] 014110-8440 LOCKING WASHER
65/80. [1] 013020-8140 UNION NUT M8P1.25H6.5
80. [1] 154060-4900 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 029020-6210 BLEEDER SCREW
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6000 GOVERNOR SPRING
132. [1] 154154-4000 COILED SPRING
140. [1] 154180-6320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3701 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154211-7220 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-5020 STRAP
175. [1] 159231-4900 BEARING PIN
176. [1] 155402-3800 SAFETY PIN
177. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0301 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5300 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
183. [2] 154237-0600 BUSHING
190. [1] 154363-3500 CONTROL LEVER
191. [1] 154340-0020 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3000 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6820 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
248. [1] 154359-6520 BRACKET
251. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
340. [1] 154370-4700 PLATE
341. [2] 014110-8440 LOCKING WASHER
342. [2] 010008-1440 BLEEDER SCREW
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-5900 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105487-7550
F 019 Z3E 718
NP-EP/RFD200/1350PF7CGR
1910196463  NISSAN-DIESEL
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV




Information:


This Revised Service Letter replaces the 20Nov2008 Service Letter. Changes have been made to Parts Needed Description.
TERMINATION DATE
30Nov2010
PROBLEM
The existing governor linkage can separate at the riveted joint on certain C1.6 engines. If the existing governor linkage fails, it can result in loss of engine speed governing.
AFFECTED PRODUCT
Model Identification Number
C1.6 C1M00596-00703, 740-883
PARTS NEEDED
Qty
Part Number Description
1 2152619 GASKET
1 2908469 LEVER AS
1 2952235 GASKET
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 9% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Gain access to engine front cover and fuel pump. Replace the existing governor linkage using the following steps.
Refer to service manual module RENR2424.
Refer to the attached Rework Procedure.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-2000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 8.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Rework Procedure
Refer to service manual module RENR2424.
1. Remove fuel injection pump. Refer to SMCS 1251-011 (Fuel Injection Pump-Remove).
2. Remove crankshaft pulley. Refer to SMCS 1205-010 (Crankshaft Pulley-Remove and Install).
3. Remove engine front cover. Refer to SMCS 1151-011 (Housing (Front) Remove).
4. Remove fuel injection pump linkage from housing. Refer to SMCS 1151-015 (Housing (Front)-Disassemble).
5. Install new 290-8469 fuel injection pump linkage. Refer to 'Installation of fuel injection pump linkage' within SMCS 1151-016 (Housing (Front)-Assemble).
6. Install engine front cover with new gasket. Refer to SMCS 1151-012 (Housing (Front)-Install).
7. Install crankshaft pulley. Refer to SMCS 1205-010 (Crankshaft Pulley - Remove and Install).
8. Install fuel injection pump. Refer to SMCS 1251-012 (Fuel Injection Pump - Install).
9. Run engine to ensure correct operation. Check for any signs of leaks.
10. Check low and high idle, and reset appropriately.
11. Refit any machine parts that were removed to gain access to engine front cover and fuel pump.
