105487-7440 ZEXEL F 019 Z9E 247 BOSCH GOVERNOR f019z9e247 1054877440




Information governor

BOSCH F 019 Z9E 247 f019z9e247
ZEXEL 105487-7440 1054877440
105487-7440 GOVERNOR
Rating:
17
Buy GOVERNOR 105487-7440 zexel genuine, new aftermarket engine parts with delivery

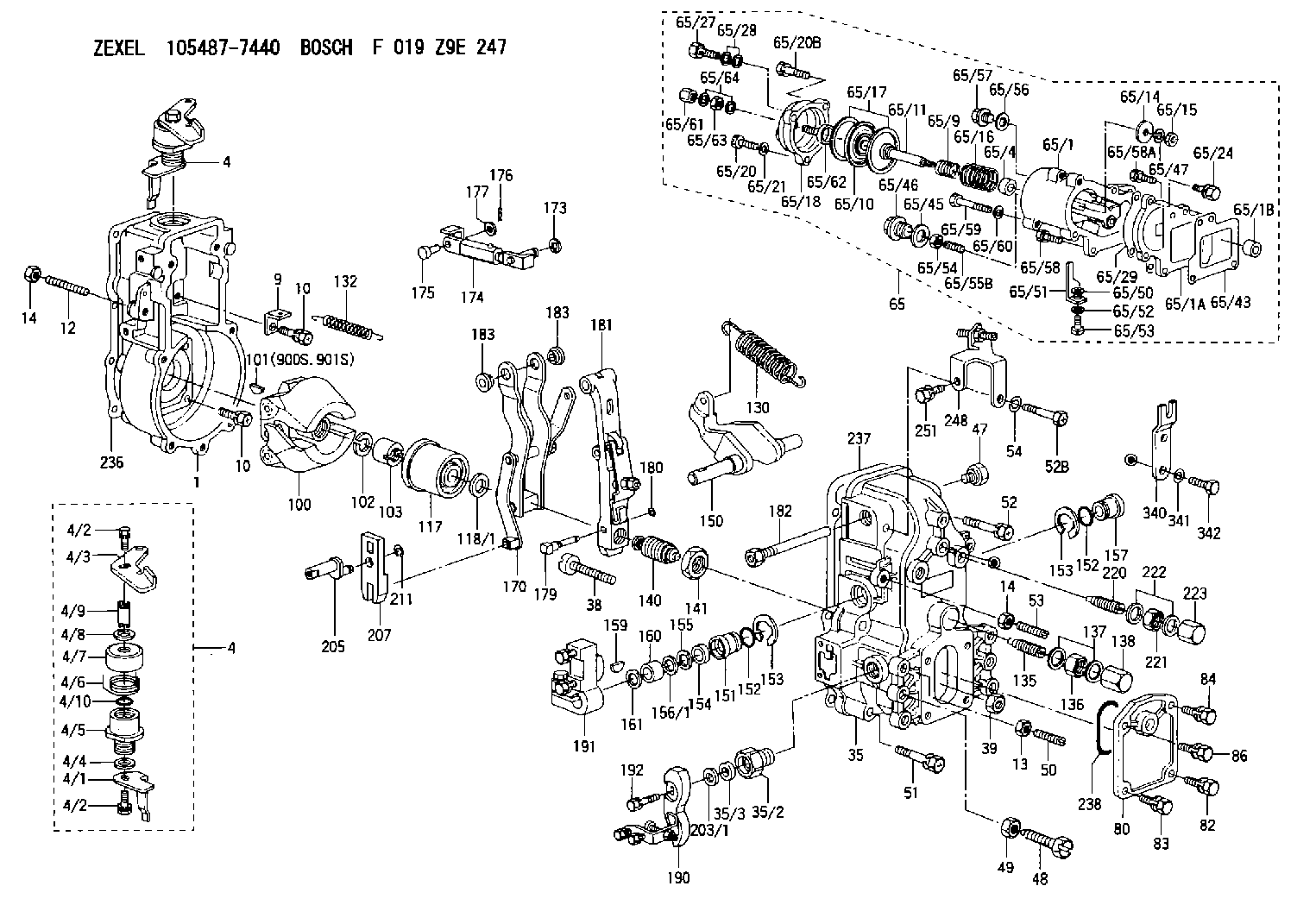

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-4700 GOVERNOR HOUSING
4. [1] 154367-8620 CONTROL LEVER
4. [1] 154367-8620 CONTROL LEVER
4/1. [1] 154304-6200 CONTROL LEVER
4/2. [2] 154352-2000 BLEEDER SCREW
4/2. [2] 154352-2000 BLEEDER SCREW
4/3. [1] 154367-8600 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-2901 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [2] 154011-0100 HEXAGON NUT
14. [2] 154011-0100 HEXAGON NUT
35. [1] 154513-6520 GOVERNOR COVER
35/2. [1] 154321-2300 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3500 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-1200 CAPSULE
48. [1] 154010-5500 BLEEDER SCREW M10P1.25L42
49. [1] 154011-2100 UNION NUT
50. [1] 155615-1100 FLAT-HEAD SCREW M6P1.0L37
51. [4] 020106-3840 BLEEDER SCREW
52. [1] 020106-5040 BLEEDER SCREW
52B. [1] 029010-6850 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
54. [1] 014110-6440 LOCKING WASHER
65. [1] 154422-2420 MANIFOLD-PRESSURE COMP.
65/1. [1] 154412-0122 GOVERNOR HOUSING
65/1A. [1] 154412-0201 SPACER BUSHING
65/1B. [1] 134009-0000 SPACER BUSHING
65/4. [1] 154413-0500 BUSHING
65/9. [1] 154414-8800 COILED SPRING
65/10. [1] 154400-8220 DIAPHRAGM
65/11. [1] 154412-4101 STOP PIN
65/14. [1] 154406-5500 SLOTTED WASHER
65/15. [1] 013020-6040 UNION NUT M6P1H5
65/16. [1] 154402-9500 COILED SPRING
65/17. [2] 154413-2600 GASKET
65/18. [1] 154404-5000 COVER
65/20. [2] 029010-6310 BLEEDER SCREW
65/20B. [1] 020106-4540 BLEEDER SCREW M6P1.0L45
65/21. [2] 014110-6440 LOCKING WASHER
65/24. [2] 020106-2040 BLEEDER SCREW M6P1L20
65/27. [1] 029731-0180 EYE BOLT
65/28. [2] 026510-1340 GASKET D13.4&10.2T1
65/29. [1] 154390-2200 GASKET
65/43. [1] 154390-2300 GASKET
65/45. [1] 029331-8040 GASKET
65/46. [1] 154406-5800 FLAT-HEAD SCREW
65/47. [1] 014110-6440 LOCKING WASHER
65/50. [1] 154406-6800 PLAIN WASHER
65/51. [1] 154412-3900 CONTROL LEVER
65/52. [1] 014110-4440 LOCKING WASHER
65/53. [1] 010234-0820 HEX-SOCKET-HEAD CAP SCREW
65/54. [1] 013030-6040 UNION NUT M6P1H3.6
65/55B. [1] 154404-1600 FLAT-HEAD SCREW L26.00
65/56. [1] 029331-2130 GASKET
65/57. [1] 154406-6500 FLAT-HEAD SCREW
65/58. [2] 020106-2840 BLEEDER SCREW
65/58A. [1] 020106-1440 BLEEDER SCREW M6P1.0L14
65/59. [1] 010006-7040 BLEEDER SCREW M6P1L70
65/60. [1] 014110-6440 LOCKING WASHER
65/61. [1] 154035-1600 CAP NUT
65/62. [1] 154404-4400 FLAT-HEAD SCREW
65/63. [1] 013030-6040 UNION NUT M6P1H3.6
65/64. [2] 026506-1040 GASKET D9.9&6.2T1
80. [1] 154060-4900 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 029020-6210 BLEEDER SCREW
86. [1] 029020-6210 BLEEDER SCREW
100. [1] 154100-9520 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6000 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
135. [1] 154158-0820 HEADLESS SCREW
136. [1] 029201-2130 UNION NUT M12P1.0H6
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154180-2820 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3701 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-0900 BUSHING
161. [1] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154217-4420 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-1620 STRAP
175. [1] 159231-4900 BEARING PIN
176. [1] 155402-3800 SAFETY PIN
177. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0301 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5300 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
183. [2] 154237-0600 BUSHING
190. [1] 154362-0120 CONTROL LEVER
191. [1] 154340-0320 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
203/1. [0] 139410-0200 SHIM D32&10.2T0.1
203/1. [0] 139410-0300 SHIM D32&10.2T0.3
203/1. [0] 139410-0400 SHIM D32&10.2T0.5
203/1. [0] 139410-0500 SHIM D32&10.2T0.9
205. [1] 154324-3100 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6820 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
248. [1] 154359-6520 BRACKET
251. [1] 020106-1240 BLEEDER SCREW M6P1.0L12
340. [1] 154370-4700 PLATE
341. [2] 014110-8440 LOCKING WASHER
342. [2] 010008-1440 BLEEDER SCREW
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-5840 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105487-7440
F 019 Z9E 247
NP-EP/RFD200/1350PF7CGR

GOVERNOR
K




Information:


Image1.1.1
3) Remove the sensor box bracket and heat shield from the sensor box. Keep the bolt hardware for re-use.
Image1.2.1
4) Install new sensor box bracket and existing heat shield. Tighten all 6 bolts to a torque of 12 +/- 3 Nm (106 +/- 27 lb-in).
Image1.3.1
5) Where applicable perform the DPF sensor line update, Service Letter REBE3397 at this step.
6) Install sensor box, pressure lines, and thermocouples onto DPF.
Reference appropriate Disassembly and Assembly manual for proper torque and use of anti-seize.
Image1.4.1
7) Start the engine and use CAT ET to ensure that the status parameter Diesel Particulate Trap #1 Differential Pressure has a value greater than zero. Also ensure status parameters Diesel Particulate Trap #1 Intake Temperature, and Diesel Particulate Trap #1 Outlet Temperature show reasonable values and increase with the rising exhaust temperatures.

Have questions with 105487-7440?





Group cross 105487-7440 ZEXEL

Mitsubishi

105487-7400
9 420 614 410
NP-EP/RFD200/1650PF78DSR
ME742784
GOVERNOR
105487-7410
F 019 Z4E 904
NP-EP/RFD200/1650PF78DSR
ME742785
GOVERNOR
105487-7420


GOVERNOR
105487-7421
F 019 Z2E 961
NP-EP/RFD200/1350PF36DSR

GOVERNOR
105487-7430



105487-7440
F 019 Z9E 247
NP-EP/RFD200/1350PF7CGR

GOVERNOR
105487-7450



Nissan-Diesel

105487-7460
F 019 Z4E 905
NP-EP/RFD200/1650PF9CCR
1910197461
GOVERNOR

Mitsubishi

105487-7470
9 420 611 748
NP-EP/RFD200/1300PF10DGR
ME748107
GOVERNOR

Isuzu

105487-7480
9 420 614 664
1157709950
GOVERNOR

Nissan-Diesel

105487-7490
9 420 614 613
NP-EP/RFD200/1300PF28DSR
1910196470
GOVERNOR
