105487-7090 ZEXEL F 019 Z4E 898 BOSCH GOVERNOR f019z4e898 1054877090 me741579




Information governor

BOSCH F 019 Z4E 898 f019z4e898
ZEXEL 105487-7090 1054877090
MITSUBISHI ME741579 me741579
105487-7090 GOVERNOR
Rating:
51
Buy GOVERNOR 105487-7090 zexel genuine, new aftermarket engine parts with delivery

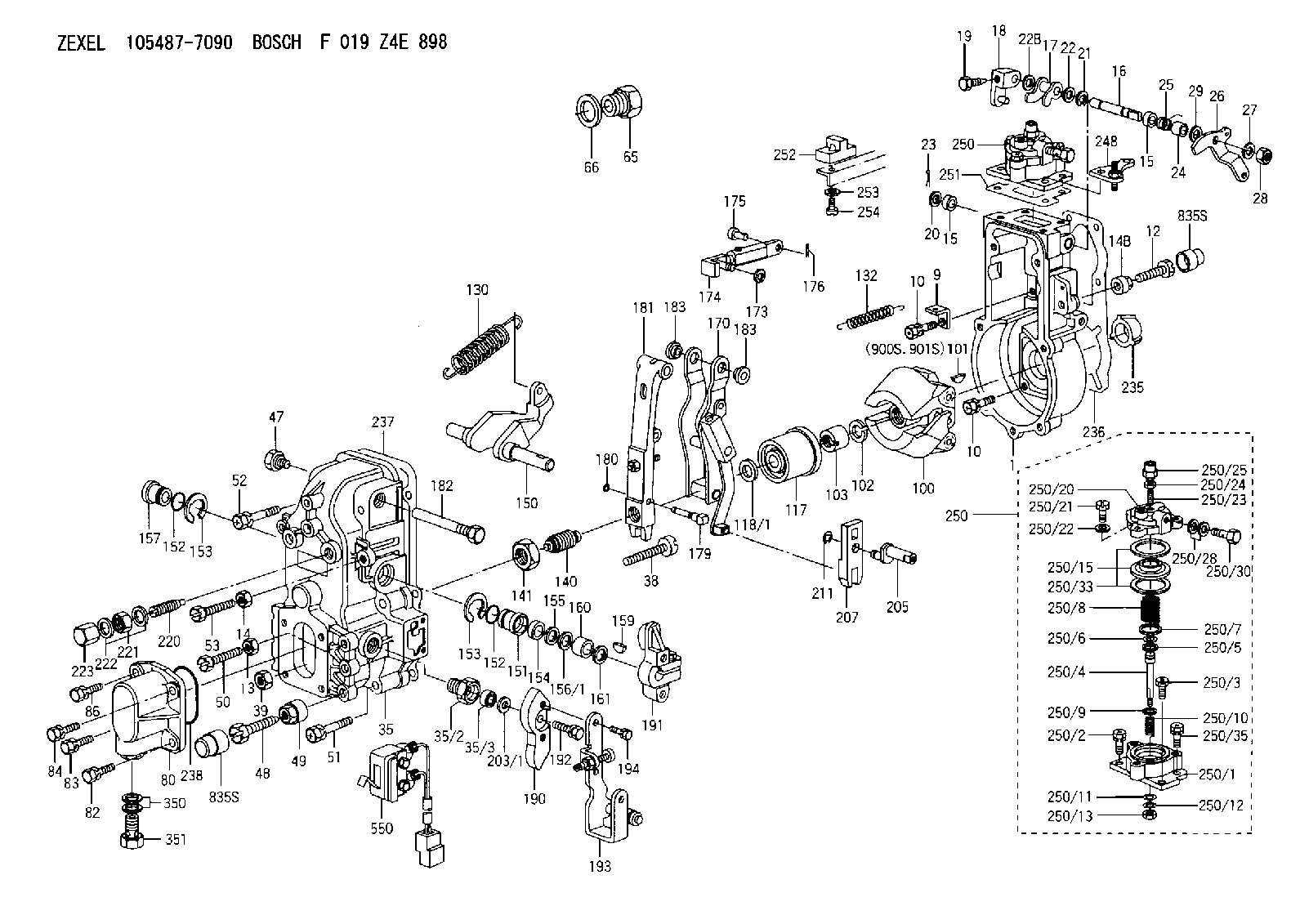

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-1720 GOVERNOR HOUSING
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW
10. [8] 020106-2040 BLEEDER SCREW
12. [1] 154010-7300 BLEEDER SCREW
13. [1] 013020-6040 UNION NUT
14. [1] 013020-8040 UNION NUT
14B. [1] 154011-2300 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3301 LEVER SHAFT
17. [1] 154408-1520 CONTROL LEVER
18. [1] 155003-1920 CONTROL LEVER
19. [1] 155006-0700 BLEEDER SCREW
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
21. [1] 016010-0740 LOCKING WASHER
22. [0] 029310-8040 SHIM D13.5&8T0.2
22B. [0] 029310-8050 SHIM D13.5&8T0.5
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-5200 COILED SPRING
26. [1] 154365-2500 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER D15.4&8.2T2
28. [1] 013020-8040 UNION NUT
29. [1] 139408-1400 SHIM D16&8T0.2
29B. [0] 139408-1400 SHIM D16&8T0.2
29C. [0] 139408-1500 SHIM D16&8T0.5
35. [1] 154513-9920 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3500 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
47. [1] 154036-0300 CAPSULE
48. [1] 154010-7100 BLEEDER SCREW M10P1.25L47
48B. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
49. [1] 154011-2200 UNION NUT
50. [1] 155615-1900 BLEEDER SCREW
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-7300 BLEEDER SCREW
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
80. [1] 154063-6021 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW
84. [1] 029020-6210 BLEEDER SCREW
86. [1] 020006-1640 BLEEDER SCREW
100. [1] 154100-9620 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY 13 MM
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14&10.1T0.5
118/1. [0] 139410-0100 SHIM D14&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6200 GOVERNOR SPRING
132. [1] 154154-0200 COILED SPRING
140. [1] 154178-2120 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-3801 SWIVELLING LEVER
151. [1] 154204-2001 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156/1. [0] 029311-1110 SHIM D17&11T0.1
156/1. [0] 029311-1120 SHIM D17&11T0.2
156/1. [0] 029311-1130 SHIM D17&11T0.3
157. [1] 154204-3400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY 13 MM
160. [1] 154206-0900 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154216-2520 GUIDE LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-9520 STRAP
175. [1] 159231-4900 BEARING PIN
176. [1] 155402-3800 SAFETY PIN
179. [1] 154238-0301 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5300 TENSIONING LEVER
182. [1] 154237-0900 BEARING PIN
183. [2] 154237-0600 BUSHING
183. [2] 154237-0600 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-0120 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW
193. [1] 154368-3120 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3000 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6220 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT
222. [2] 026512-1540 GASKET
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
248. [1] 154356-9320 BRACKET
250. [1] 154421-3520 MANIFOLD-PRESSURE COMP.
250. [1] 154421-3520 MANIFOLD-PRESSURE COMP.
250/1. [1] 154408-6220 DIAPHRAGM HOUSING
250/2. [2] 020106-1640 BLEEDER SCREW
250/3. [1] 029020-6260 BLEEDER SCREW
250/4. [1] 154400-5101 STOP PIN
250/5. [1] 153400-0900 SLOTTED WASHER
250/6. [1] 016010-0740 LOCKING WASHER
250/7. [0] 029312-0180 SHIM D25.5&20T0.5
250/7B. [0] 029312-0210 SHIM D25.5&20T0.2
250/8. [1] 154411-7200 COILED SPRING
250/9. [0] 154355-3900 SHIM D18&12.5T0.10
250/9B. [0] 154355-4000 SHIM D18&12.5T0.20
250/9C. [0] 154355-4100 SHIM D18&12.5T0.30
250/10. [1] 154411-2200 COILED SPRING
250/11. [1] 153400-0800 SPRING SEAT
250/12. [1] 014110-5440 LOCKING WASHER
250/13. [1] 013030-5240 UNION NUT
250/15. [1] 154400-9320 DIAPHRAGM
250/20. [1] 154404-5100 COVER
250/21. [3] 029010-6310 BLEEDER SCREW
250/22. [3] 014110-6440 LOCKING WASHER D12.2&6.1T1.5
250/23. [1] 154404-5300 FLAT-HEAD SCREW
250/24. [1] 023040-6040 UNION NUT
250/25. [1] 154406-7800 CAP NUT
250/28. [2] 026510-1340 GASKET
250/30. [1] 029731-0180 EYE BOLT
250/33. [2] 154413-2600 GASKET
250/35. [1] 020106-2040 BLEEDER SCREW
251. [1] 154390-2000 GASKET
252. [1] 154232-1220 PLATE
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW
350. [2] 026512-1840 GASKET
351. [1] 153556-4800 EYE BOLT
550. [1] 153169-5720 MICROSWITCH
835S. [2] 154062-1700 CAP
835S. [2] 154062-1700 CAP
900S. [1] 025803-1310 WOODRUFF KEY 13 MM
901S. [1] 025803-1610 WOODRUFF KEY 16 MM

Include in #1:

106651-2540 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105487-7090
F 019 Z4E 898
NP-EP/RFD200/1650PF9CGR
ME741579  MITSUBISHI
GOVERNOR
K




Information:


Information Release Memo REM04-23
Reman
August 2004 CATERPILLAR? REMANUFACTURED FUEL INJECTOR FOR 3126B AND C7 MARINE ENGINESAnnouncement The Caterpillar Remanufactured Products Group announces expansion of the remanufactured product line to include coverage for the fuel injectors in 3126B and C7 Marine Engine applications. CoverageThe addition of this injector provides dealers with an additional repair option to support 3126B and C7 Marine Engine. Please consult your NPR or Reman Cross Reference for exact model coverage.
New Part Number Reman Part Number Description Applications
222-5968 10R1306 Injector-Gp 3126B and C7 Marine Engines Features and Benefits
Cat? Remanufactured Fuel Injector Groups offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors by providing immediate, off-the-shelf availability at a fraction of the new price.
Features Benefits
This injector includes the necessary external seals and backup rings
No need to separately order seals & backup rings
All critical engineering changes and updates included
Improved reliability and performance
Worldwide availability through Caterpillar parts distribution system
Customer access regardless of location
Backed by Cat warranty
Consistent support
Core Acceptance
Core Acceptance Criteria for Caterpillar Remanufactured Fuel Injector Groups is simple, visual, and requires no special tools. Full core credit is issued when the core is complete, fully assembled, the housing is not cracked or broken and has an acceptable part number. Consult your Core Acceptance Guide for complete details.
Warranty
Please consult the appropriate warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all Reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail.
For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com.
If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman Customer Satisfaction Hot Line also toll free at (888) 88-REMAN or use our E-mail address--Reman_Help
PELJ0399 CATERPILLAR? ?2004 Caterpillar

Have questions with 105487-7090?





Group cross 105487-7090 ZEXEL

105487-7000



105487-7010
F 01G 29N 0KN
NP-EP/RFD200/1400PF57DZR


105487-7020



105487-7030

105487-7031
9 420 610 806

GOVERNOR
105487-7031
9 420 611 743
NP-EP/RFD200/1600PF27DGR

GOVERNOR

Mitsubishi

105487-7040
9 420 610 419
NP-EP/RFD200/1300PF28DSR
ME740822
GOVERNOR
105487-7050
F 019 Z4E 896
NP-EP/RFD200/1300PF28DSR
ME740842
GOVERNOR
105487-7060
F 019 Z4E 897
NP-EP/RFD200/1400PF31DSR
ME740845
GOVERNOR
105487-7070
9 420 610 420
NP-EP/RFD200/1300PF10DGR
ME740883
GOVERNOR
105487-7080
9 420 611 017
NP-EP/RFD200/1300PF10DGR
ME741569
GOVERNOR
105487-7090
F 019 Z4E 898
NP-EP/RFD200/1650PF9CGR
ME741579
GOVERNOR
