105487-7080 ZEXEL 9 420 611 017 BOSCH GOVERNOR 9420611017 1054877080 me741569




Information governor

BOSCH 9 420 611 017 9420611017
ZEXEL 105487-7080 1054877080
MITSUBISHI ME741569 me741569
105487-7080 GOVERNOR
Rating:
50
Buy GOVERNOR 105487-7080 zexel genuine, new aftermarket engine parts with delivery

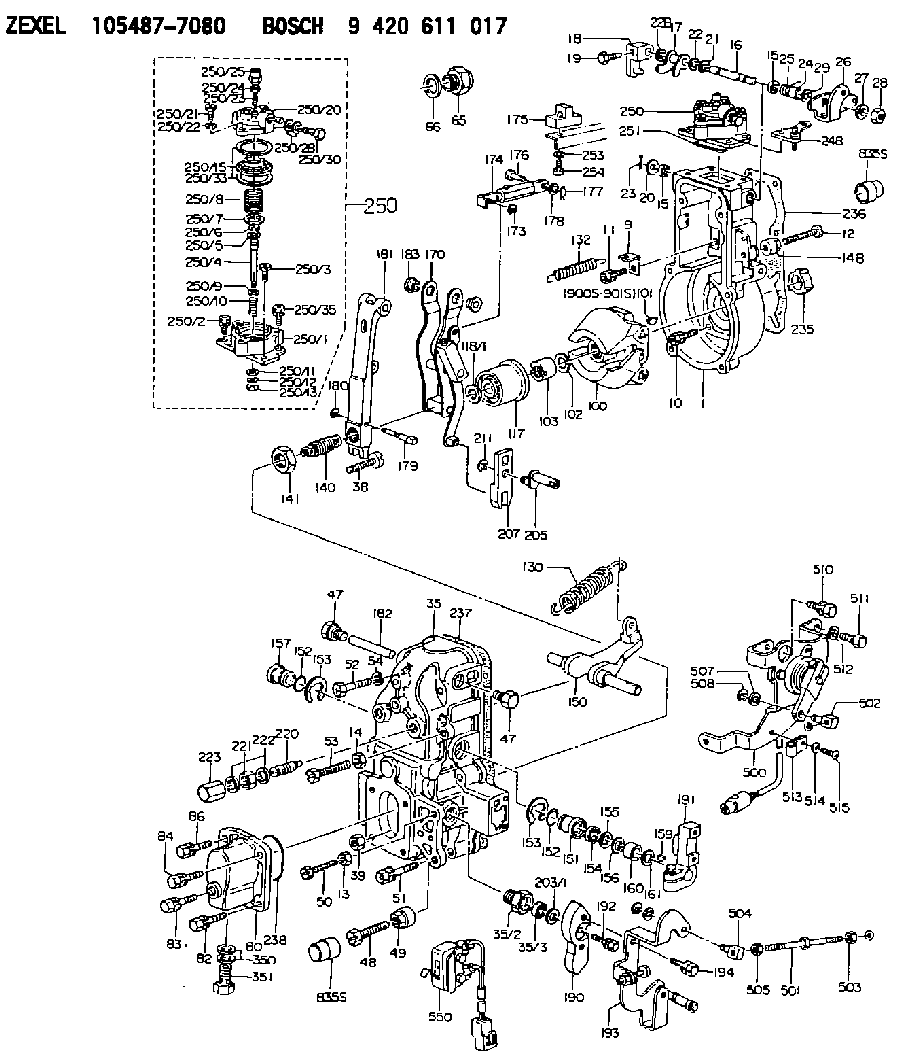

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-1022 GOVERNOR HOUSING
9. [1] 154350-6000 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 013020-8040 UNION NUT M8P1.25H7
14B. [1] 154011-2300 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3301 LEVER SHAFT
17. [1] 154408-1520 CONTROL LEVER
18. [1] 155003-1920 CONTROL LEVER
19. [1] 155006-0700 BLEEDER SCREW
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
21. [1] 016010-0740 LOCKING WASHER
22. [0] 029310-8040 SHIM D13.5&8T0.2
22B. [0] 029310-8050 SHIM D13.5&8T0.5
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-5200 COILED SPRING
26. [1] 154382-2400 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
29. [1] 139408-1400 SHIM
29B. [0] 139408-1400 SHIM
29C. [0] 139408-1500 SHIM
35. [1] 154513-5820 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
48B. [1] 154010-6000 BLEEDER SCREW M10P1.25L55
49. [1] 154011-2200 UNION NUT
50. [1] 155615-1900 BLEEDER SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
54. [2] 014110-6440 LOCKING WASHER
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
80. [1] 154063-6121 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6210 BLEEDER SCREW
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154189-1220 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5401 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2300 BUSHING
161. [0] 154206-2400 PLAIN WASHER D20.5&12.2T1
170. [1] 154216-1920 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154234-9920 STRAP
175. [1] 154232-1220 PLATE
176. [1] 159231-4900 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
178. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5200 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-1920 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-3620 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-4100 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6820 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
248. [1] 154356-9320 BRACKET
250. [1] 154421-2520 MANIFOLD-PRESSURE COMP.
250. [1] 154421-2520 MANIFOLD-PRESSURE COMP.
250/1. [1] 154408-6220 DIAPHRAGM HOUSING
250/2. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
250/3. [1] 029020-6260 BLEEDER SCREW
250/4. [1] 154400-5800 STOP PIN
250/5. [1] 153400-0900 SLOTTED WASHER
250/6. [1] 016010-0740 LOCKING WASHER
250/7. [0] 029312-0180 SHIM D25.5&20T0.5
250/7B. [0] 029312-0210 SHIM D25.5&20T0.2
250/8. [1] 154411-9800 COILED SPRING
250/9. [0] 154355-3900 SHIM D18&12.5T0.10
250/9B. [0] 154355-4000 SHIM D18&12.5T0.20
250/9C. [0] 154355-4100 SHIM D18&12.5T0.30
250/10. [1] 154411-2200 COILED SPRING
250/11. [1] 153400-0800 SPRING SEAT
250/12. [1] 014110-5440 LOCKING WASHER
250/13. [1] 013030-5240 UNION NUT M5P0.8H3.2
250/15. [1] 154400-9320 DIAPHRAGM
250/20. [1] 154404-5100 COVER
250/21. [3] 029010-6310 BLEEDER SCREW
250/22. [3] 014110-6440 LOCKING WASHER
250/23. [1] 154404-5300 FLAT-HEAD SCREW
250/24. [1] 023040-6040 UNION NUT
250/25. [1] 154406-7800 CAP NUT
250/28. [2] 026510-1340 GASKET D13.4&10.2T1
250/30. [1] 029731-0180 EYE BOLT
250/33. [2] 154413-2600 GASKET
250/35. [1] 020106-2040 BLEEDER SCREW M6P1L20
251. [1] 154358-2500 SEAL RING
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
350. [2] 026512-1840 GASKET D17.9&12.2T1.50
351. [1] 153556-4800 EYE BOLT
500. [1] 154600-6420 LOAD SENSOR ASSY
501. [1] 154604-2500 LEVER SHAFT
502. [1] 154604-1700 BEARING PIN
503. [1] 013020-5240 UNION NUT M5P0.8H4
504. [1] 154604-1800 BEARING PIN
505. [1] 029200-5130 UNION NUT
507. [4] 029310-5280 SHIM D10.5&5T0.5
508. [2] 016010-0540 LOCKING WASHER
510. [1] 020118-1440 BLEEDER SCREW
511. [1] 010010-1440 BLEEDER SCREW M10P1.5L14
512. [1] 014111-0440 LOCKING WASHER
513. [1] 154604-0200 CLAMPING BAND
514. [1] 014010-4140 PLAIN WASHER D10&4.5T0.8
515. [1] 012154-0640 FLAT-HEAD SCREW M4P0.7L6
550. [1] 153169-5821 MICROSWITCH
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106673-7241 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105487-7080
9 420 611 017
NP-EP/RFD200/1300PF10DGR
ME741569  MITSUBISHI
GOVERNOR
K




Information:


Information

Have questions with 105487-7080?





Group cross 105487-7080 ZEXEL

105487-7000



105487-7010
F 01G 29N 0KN
NP-EP/RFD200/1400PF57DZR


105487-7020



105487-7030

105487-7031
9 420 610 806

GOVERNOR
105487-7031
9 420 611 743
NP-EP/RFD200/1600PF27DGR

GOVERNOR

Mitsubishi

105487-7040
9 420 610 419
NP-EP/RFD200/1300PF28DSR
ME740822
GOVERNOR
105487-7050
F 019 Z4E 896
NP-EP/RFD200/1300PF28DSR
ME740842
GOVERNOR
105487-7060
F 019 Z4E 897
NP-EP/RFD200/1400PF31DSR
ME740845
GOVERNOR
105487-7070
9 420 610 420
NP-EP/RFD200/1300PF10DGR
ME740883
GOVERNOR
105487-7080
9 420 611 017
NP-EP/RFD200/1300PF10DGR
ME741569
GOVERNOR
105487-7090
F 019 Z4E 898
NP-EP/RFD200/1650PF9CGR
ME741579
GOVERNOR
