105487-7050 ZEXEL F 019 Z4E 896 BOSCH GOVERNOR f019z4e896 1054877050 me740842




Information governor

BOSCH F 019 Z4E 896 f019z4e896
ZEXEL 105487-7050 1054877050
MITSUBISHI ME740842 me740842
105487-7050 GOVERNOR
Rating:
47
Buy GOVERNOR 105487-7050 zexel genuine, new aftermarket engine parts with delivery

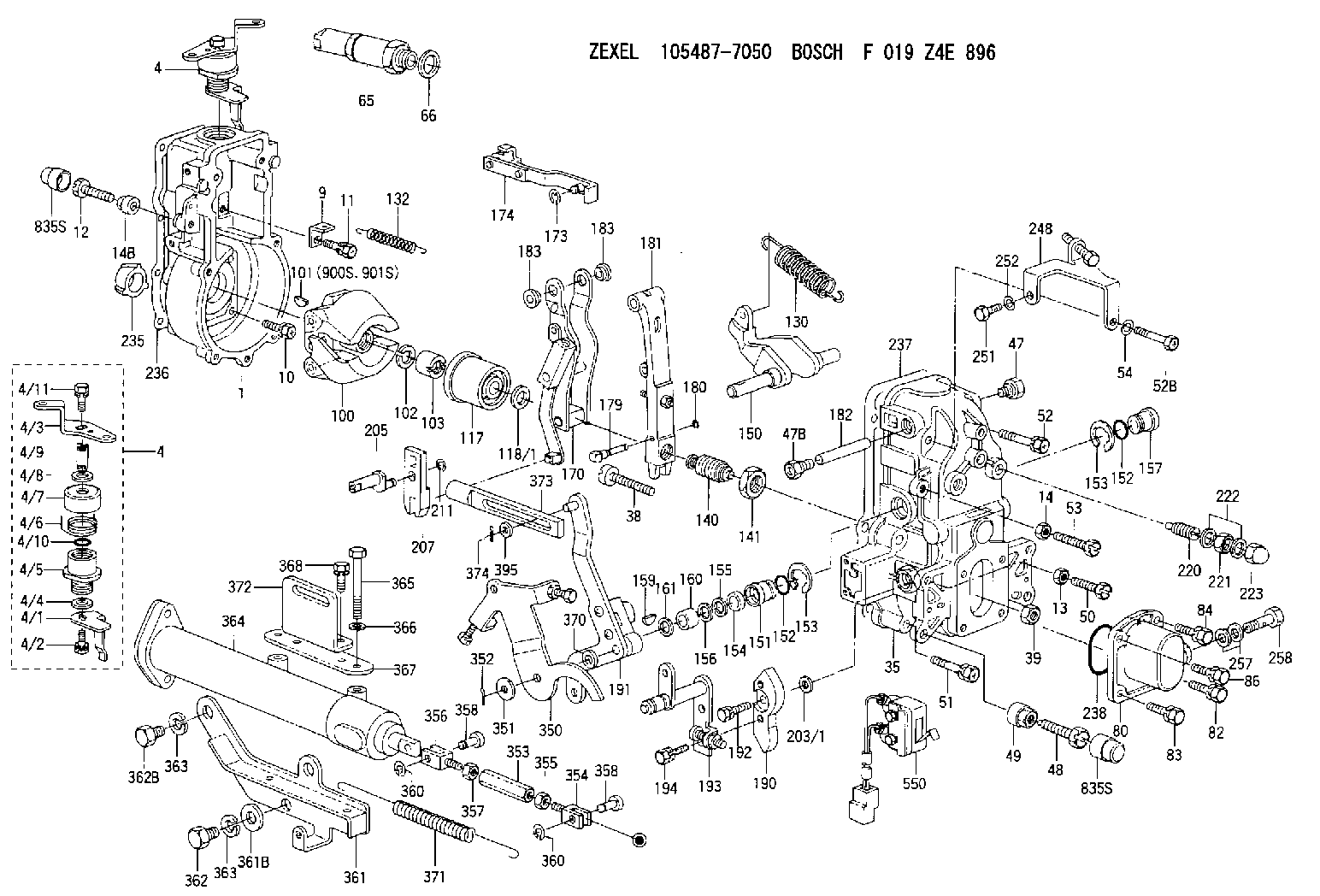

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-0100 GOVERNOR HOUSING
4. [1] 154366-2220 CONTROL LEVER
4. [1] 154366-2220 CONTROL LEVER
4/1. [1] 154304-6200 CONTROL LEVER
4/2. [1] 154352-2000 BLEEDER SCREW
4/3. [1] 154365-2200 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-6701 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0050 O-RING
4/11. [1] 020006-1240 BLEEDER SCREW M6P1L12 4T
9. [1] 154350-6000 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154013-0600 BLEEDER SCREW
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 013020-8040 UNION NUT M8P1.25H7
14B. [1] 154011-2300 UNION NUT
35. [1] 154516-4020 GOVERNOR COVER
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [1] 154036-1900 CAPSULE
47B. [1] 154036-1800 CAPSULE
48. [1] 154010-6000 BLEEDER SCREW M10P1.25L55
48B. [1] 154010-7900 BLEEDER SCREW M10P1.25L58
49. [1] 154011-2200 UNION NUT
50. [1] 155615-1900 BLEEDER SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [1] 010006-6040 BLEEDER SCREW
52B. [1] 029010-6850 BLEEDER SCREW
53. [1] 154010-7400 BLEEDER SCREW M8P1.25L55
54. [2] 014110-6440 LOCKING WASHER
65. [1] 153020-4320 STOPPING DEVICE
66. [1] 026524-3040 GASKET
80. [1] 154063-6521 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 029020-6210 BLEEDER SCREW
100. [1] 154100-9220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2720 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-9400 GOVERNOR SPRING
132. [1] 154154-0200 COILED SPRING
140. [1] 154183-5820 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5601 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0201 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2300 BUSHING
161. [0] 154206-2400 PLAIN WASHER D20.5&12.2T1
170. [1] 154216-1820 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-6620 STRAP
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5200 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
183. [2] 154237-1300 BUSHING
190. [1] 154360-2700 CONTROL LEVER
191. [1] 154395-5820 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-5620 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3400 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-3520 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-0100 CAP NUT
235. [1] 155412-5700 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
248. [1] 154357-9720 BRACKET
251. [1] 010065-1240 BLEEDER SCREW M5P0.8L12
252. [1] 014110-5440 LOCKING WASHER
257. [2] 026512-1840 GASKET D17.9&12.2T1.50
258. [1] 153556-4800 EYE BOLT
350. [1] 154372-7920 CONTROL LEVER
351. [2] 014011-0140 PLAIN WASHER D22&10.5T1.6
352. [1] 015320-1540 SPLIT PIN
353. [1] 154351-9200 UNION NUT M6P1H40
353B. [1] 154354-3800 UNION NUT M6P1H30
354. [1] 154373-2700 CLEVIS
355. [1] 013020-6040 UNION NUT M6P1H5
356. [1] 154373-2800 CLEVIS
357. [1] 029200-6210 UNION NUT
358. [2] 154373-2900 BEARING PIN
358. [2] 154373-2900 BEARING PIN
360. [2] 016010-0640 LOCKING WASHER
360. [2] 016010-0640 LOCKING WASHER
361. [1] 154375-4920 BRACKET
361B. [1] 139316-0100 PLAIN WASHER
362. [2] 139016-0400 BLEEDER SCREW
362B. [1] 029001-6050 BLEEDER SCREW
363. [3] 014111-6440 LOCKING WASHER
363. [3] 014111-6440 LOCKING WASHER
364. [1] 154354-6120 CONTROL CYLINDER
365. [2] 010110-8040 BLEEDER SCREW
366. [2] 014111-0440 LOCKING WASHER
367. [1] 154372-7600 PLATE
368. [2] 020106-1040 BLEEDER SCREW M6P1L12
370. [0] 029311-0570 SHIM D20.8&10.3T0.5
371. [1] 154338-9600 COILED SPRING
372. [1] 154372-8800 BRACKET
373. [1] 154352-4700 STRAP
374. [1] 154373-4500 SAFETY PIN
395. [0] 029310-7010 SHIM D14.5&7T0.1
395A. [0] 029310-7020 SHIM D14.5&7T0.3
395B. [0] 029310-7030 SHIM D14.5&7T0.5
550. [1] 153146-6120 MICROSWITCH
835S. [2] 154062-1700 CAP D20L32
835S. [2] 154062-1700 CAP D20L32
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106873-7460 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105487-7050
F 019 Z4E 896
NP-EP/RFD200/1300PF28DSR
ME740842  MITSUBISHI
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV




Information:


Information Release Memo REM03-30
Reman
November 2003 APPEARANCE CHANGE ON REMAN C10/C12 EUI INJECTORS Announcement The Caterpillar Remanufactured Products Group announces an appearance change on Cat Reman injector 0R8773 effective 11/01/03. In order to improve core utilization, Cat Reman will begin using Lucas injector bodies as well as Cat design injector bodies on Reman injector 0R8773. Currently, 0R8773 is produced using Cat Injector bodies only. Injector fit, function and performance is unchanged. Examples of the two injector body styles are shown below. Injector With Cat Body Design Injector With Lucas Body Design Features And Benefits Cat Remanufactured injectors offer excellent value to customers. Customers who want fast repair turn-around, superior quality and reliability, and lower repair costs will benefit from the use of these Remanufactured injectors. Cat Remanufactured injectors provide immediate, off-the-shelf availability at a fraction of the new price. Features
All critical engineering changes and updates included
Worldwide availability through Caterpillar? parts distribution system
Backed by Cat warranty Benefits
Improved reliability and performance
Customer access regardless of location
Consistent support Core Acceptance Core Acceptance Criteria for Caterpillar Remanufactured injectors is simple, visual, and requires no special tools. Full core credit is issued when the core is complete, fully assembled, and has an acceptable part number. Consult your Core Acceptance Guide for complete details. Warranty Please consult the appropriate warranty statement for your area. Core Management Please refer to the Caterpillar Core Management Information System (CMIS 2) Parts Information application describing all reman part/CAF and related information. Also refer to other CMIS 2 inquiry applications such as Customer Profiles, Inspection Reason Codes, Inspection Line Inquiry, Add Charge Information, Entitlement Activity, Entitlement Inquiry, CCR Inquiry, CCR Entry, Shipment Processing; Process Packaging Grief; and Reporting to properly manage core returns and monitor inspection performance. This information will be available to all dealers worldwide after your CMIS 2 conversion date. In the meantime, please continue to use the current CMIS Entitlement Parts Inquiry Screen describing the list of parts in a Core Acceptability Family (CAF) and related part number detail. For the latest updates of Reman Policies and Core Management (SELD0122), Core Management Systems & Operations Procedures (SELD0040), and Shipping Instructions (SELD0039), go to the Reman Dealer website https://reman.cat.com If you have any questions regarding core return processing, feel free to call Corinth toll free at (800) 537-2928. For assistance with technical questions, call the Peoria Reman Customer Satisfaction

Have questions with 105487-7050?





Group cross 105487-7050 ZEXEL

105487-7000



105487-7010
F 01G 29N 0KN
NP-EP/RFD200/1400PF57DZR


105487-7020



105487-7030

105487-7031
9 420 610 806

GOVERNOR
105487-7031
9 420 611 743
NP-EP/RFD200/1600PF27DGR

GOVERNOR

Mitsubishi

105487-7040
9 420 610 419
NP-EP/RFD200/1300PF28DSR
ME740822
GOVERNOR
105487-7050
F 019 Z4E 896
NP-EP/RFD200/1300PF28DSR
ME740842
GOVERNOR
105487-7060
F 019 Z4E 897
NP-EP/RFD200/1400PF31DSR
ME740845
GOVERNOR
105487-7070
9 420 610 420
NP-EP/RFD200/1300PF10DGR
ME740883
GOVERNOR
105487-7080
9 420 611 017
NP-EP/RFD200/1300PF10DGR
ME741569
GOVERNOR
105487-7090
F 019 Z4E 898
NP-EP/RFD200/1650PF9CGR
ME741579
GOVERNOR
