105487-6730 ZEXEL 9 420 613 495 BOSCH GOVERNOR 9420613495 1054876730 me738611




Information governor

BOSCH 9 420 613 495 9420613495
ZEXEL 105487-6730 1054876730
MITSUBISHI ME738611 me738611
105487-6730 GOVERNOR
Rating:
13
Buy GOVERNOR 105487-6730 zexel genuine, new aftermarket engine parts with delivery

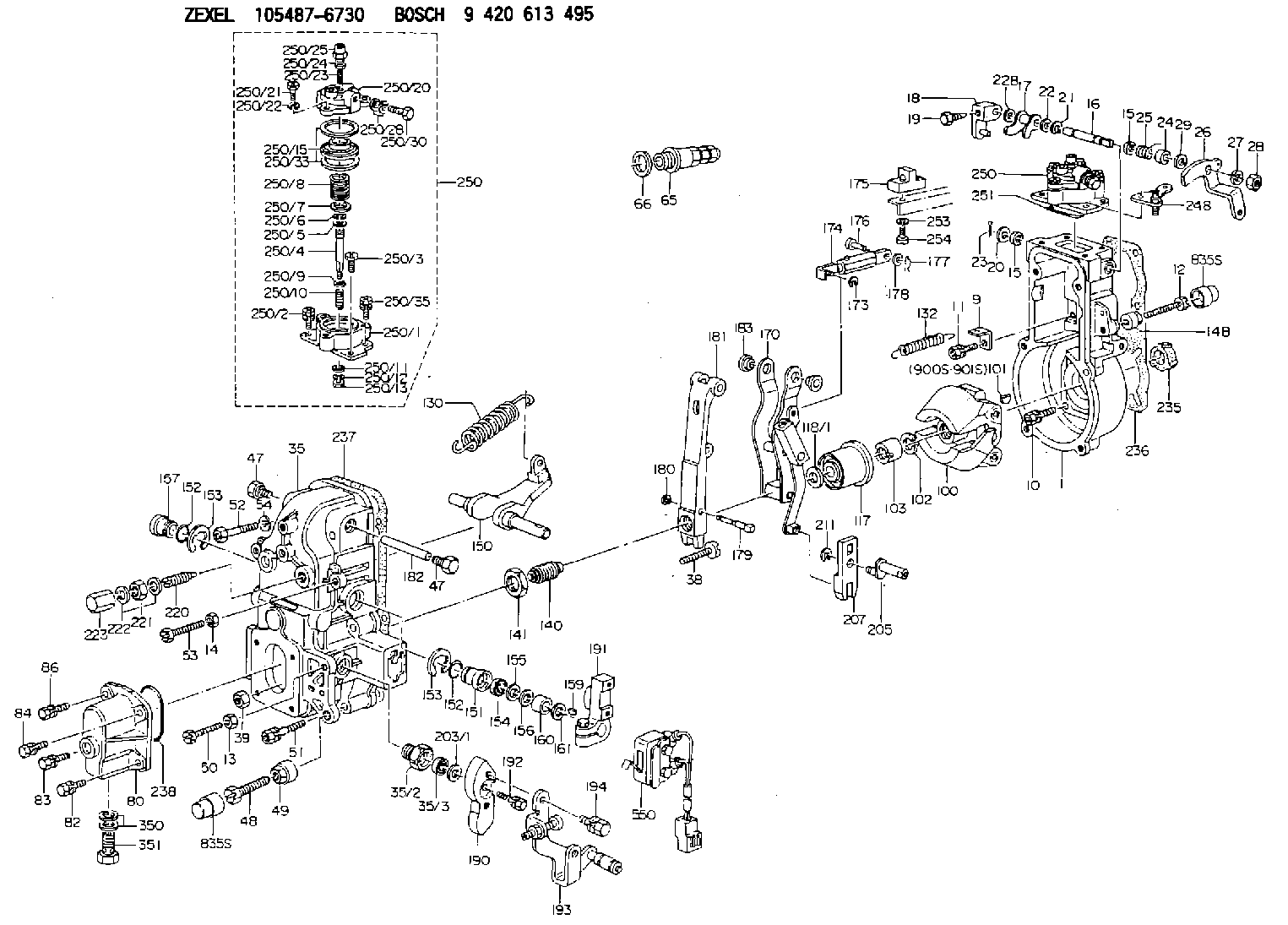

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-1022 GOVERNOR HOUSING
9. [1] 154350-6000 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 013020-8040 UNION NUT M8P1.25H7
14B. [1] 154011-2300 UNION NUT
15. [2] 029620-8050 PACKING RING
15. [2] 029620-8050 PACKING RING
16. [1] 155004-3301 LEVER SHAFT
17. [1] 154408-1520 CONTROL LEVER
18. [1] 155003-1920 CONTROL LEVER
19. [1] 155006-0700 BLEEDER SCREW
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
21. [1] 016010-0740 LOCKING WASHER
22. [0] 029310-8040 SHIM D13.5&8T0.2
22. [7] 139408-1400 SHIM
22B. [0] 029310-8050 SHIM D13.5&8T0.5
22B. [7] 139408-1500 SHIM
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-5200 COILED SPRING
26. [1] 154365-2400 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
29. [1] 139408-1400 SHIM
29B. [0] 139408-1400 SHIM
29C. [0] 139408-1500 SHIM
35. [1] 154513-5820 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-1800 CAPSULE
47. [2] 154036-1800 CAPSULE
48. [1] 154010-7700 BLEEDER SCREW M10P1.25L51
48B. [1] 154010-6000 BLEEDER SCREW M10P1.25L55
49. [1] 154011-2200 UNION NUT
50. [1] 155615-1900 BLEEDER SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [2] 029010-6850 BLEEDER SCREW
53. [1] 154010-7300 BLEEDER SCREW M8P1.25L60
54. [2] 014110-6440 LOCKING WASHER
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
80. [1] 154063-6121 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6210 BLEEDER SCREW
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
140. [1] 154183-8820 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5401 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2300 BUSHING
161. [0] 154206-2400 PLAIN WASHER D20.5&12.2T1
170. [1] 154216-1920 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-9220 STRAP
175. [1] 154232-1720 PLATE
176. [1] 159231-4900 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
178. [1] 029310-5170 SHIM D8&5.3T0.5
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5200 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
190. [1] 154360-2800 CONTROL LEVER
191. [1] 154340-1920 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-3520 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-4100 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-6820 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
248. [1] 154356-9320 BRACKET
250. [1] 154420-8020 MANIFOLD-PRESSURE COMP.
250. [1] 154420-8020 MANIFOLD-PRESSURE COMP.
250/1. [1] 154408-6220 DIAPHRAGM HOUSING
250/2. [2] 020106-1640 BLEEDER SCREW M6P1.0L14
250/3. [1] 029020-6260 BLEEDER SCREW
250/4. [1] 154400-5800 STOP PIN
250/5. [1] 153400-0900 SLOTTED WASHER
250/6. [1] 016010-0740 LOCKING WASHER
250/7. [0] 029312-0180 SHIM D25.5&20T0.5
250/7B. [0] 029312-0210 SHIM D25.5&20T0.2
250/8. [1] 154402-6400 COILED SPRING
250/9. [0] 154355-3900 SHIM D18&12.5T0.10
250/9B. [0] 154355-4000 SHIM D18&12.5T0.20
250/9C. [0] 154355-4100 SHIM D18&12.5T0.30
250/10. [1] 154411-2200 COILED SPRING
250/11. [1] 153400-0800 SPRING SEAT
250/12. [1] 014110-5440 LOCKING WASHER
250/13. [1] 013030-5240 UNION NUT M5P0.8H3.2
250/15. [1] 154400-9320 DIAPHRAGM
250/20. [1] 154404-5100 COVER
250/21. [3] 029010-6310 BLEEDER SCREW
250/22. [3] 014110-6440 LOCKING WASHER
250/23. [1] 154404-5300 FLAT-HEAD SCREW
250/24. [1] 023040-6040 UNION NUT
250/25. [1] 154406-7800 CAP NUT
250/28. [2] 026510-1340 GASKET D13.4&10.2T1
250/30. [1] 029731-0180 EYE BOLT
250/33. [2] 154413-2600 GASKET
250/35. [1] 020106-2040 BLEEDER SCREW M6P1L20
251. [1] 154358-2500 SEAL RING
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
350. [2] 026512-1840 GASKET D17.9&12.2T1.50
351. [1] 153556-4800 EYE BOLT
550. [1] 153169-5720 MICROSWITCH
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106673-2970 as GOVERNOR
106673-2971

Cross reference number

Zexel num
Bosch num
Firm num
Name
105487-6730
9 420 613 495
NP-EP/RFD200/1300PF10DGR
ME738611  MITSUBISHI
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV




Information:

1. Unscrew and remove filter (right hand thread). 2. Clean the filter housing base. Be sure all of old filter gasket is removed. 3. Lubricate the filter gasket with clean diesel fuel and fill the filter with clean diesel fuel. 4. Install the filter. Tighten filter by hand until gasket contacts base; then tighten 1/2 turn more.5. Prime the system. Priming Fuel System:1. Loosen the cap on the tee on top of fuel filter base. 2. Operate starter until the flow of fuel from the filter is continuous and free of bubbles.3. Tighten cap. If engine fails to start, misfires or smokes, further priming is necessary.4. Loosen each fuel line nut one at a time at

Have questions with 105487-6730?





Group cross 105487-6730 ZEXEL

Mitsubishi

105487-6700
9 420 612 246
NP-EP/RFD200/1300PF10DZR
ME738640
GOVERNOR
105487-6710
F 019 Z4E 889
NP-EP/RFD200/1300PF10DZR
ME738641
GOVERNOR
105487-6720
F 019 Z4E 890
NP-EP/RFD200/1300PF28DZR
ME738642
GOVERNOR
105487-6730
9 420 613 495
NP-EP/RFD200/1300PF10DGR
ME738611
GOVERNOR
105487-6740

105487-6741
9 420 614 195

GOVERNOR
105487-6741
9 420 614 406
NP-EP/RFD200/1300PF10DGR

GOVERNOR

Nissan-Diesel

105487-6770
F 019 Z4E 891
NP-EP/RFD200/1650PF25CJDR
1910197705
GOVERNOR

Mitsubishi

105487-6790
F 019 Z4E 892
NP-EP/RFD200/1400PF31DBR
ME738650
GOVERNOR
