105487-6460 ZEXEL 9 420 613 489 BOSCH GOVERNOR 9420613489 1054876460 me731620

Information governor

BOSCH 9 420 613 489 9420613489

ZEXEL 105487-6460 1054876460

MITSUBISHI ME731620 me731620

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-6460 zexel genuine, new aftermarket engine parts with delivery

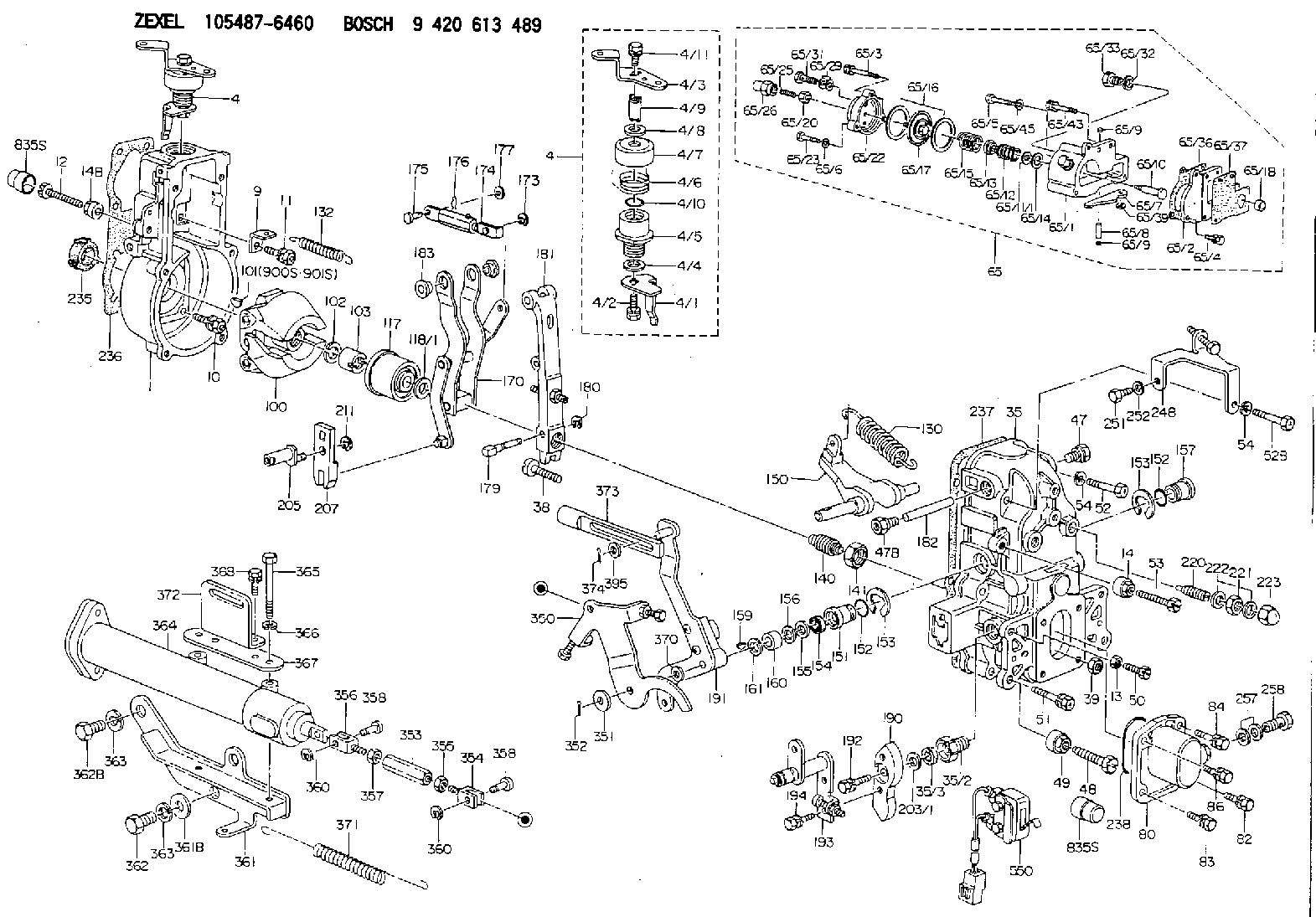

Scheme ###:

1.	[1]	154004-0100	GOVERNOR HOUSING
4.	[1]	154365-2120	CONTROL LEVER
4.	[1]	154365-2120	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[1]	154352-2000	BLEEDER SCREW
4/3.	[1]	154365-2100	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-6600	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
4/11.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154013-0600	BLEEDER SCREW
12B.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-1020	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[1]	154036-1900	CAPSULE
47B.	[1]	154036-1800	CAPSULE
48.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
48B.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[1]	010006-6040	BLEEDER SCREW
52B.	[1]	029010-6850	BLEEDER SCREW
53.	[1]	154010-7400	BLEEDER SCREW M8P1.25L55
54.	[2]	014110-6440	LOCKING WASHER
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154419-9620	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154408-6621	DIAPHRAGM HOUSING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/2.	[1]	154408-2400	SPACER BUSHING
65/3.	[2]	020106-2240	BLEEDER SCREW
65/4.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
65/5.	[1]	029010-6830	BLEEDER SCREW
65/6.	[1]	014110-6440	LOCKING WASHER
65/7.	[1]	154408-6700	CONTROL LEVER
65/8.	[1]	154406-5000	BEARING PIN
65/9.	[2]	154406-5100	CAPSULE
65/9.	[2]	154406-5100	CAPSULE
65/10.	[1]	154400-5700	STOP PIN
65/11/1.	[0]	029311-2190	SHIM D17.7&12T1.0
65/11/1.	[0]	029311-2200	SHIM D17.7&12T1.1
65/11/1.	[0]	029311-2210	SHIM D17.7&12T1.2
65/11/1.	[0]	029311-2220	SHIM D17.7&12T1.3
65/11/1.	[0]	029311-2230	SHIM D17.7&12T1.4
65/12.	[1]	154411-0500	COILED SPRING
65/13.	[1]	154406-5200	SLOTTED WASHER
65/14.	[0]	029312-0180	SHIM D25.5&20T0.5
65/14B.	[0]	029312-0210	SHIM D25.5&20T0.2
65/15.	[1]	154411-2900	COILED SPRING
65/16.	[2]	154413-2600	GASKET
65/17.	[1]	154400-7720	DIAPHRAGM
65/20.	[1]	023040-6040	UNION NUT
65/22.	[1]	154404-5000	COVER
65/23.	[1]	139006-0900	BLEEDER SCREW
65/25.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/26.	[1]	154406-7800	CAP NUT
65/29.	[2]	026510-1340	GASKET D13.4&10.2T1
65/31.	[1]	029731-0180	EYE BOLT
65/32.	[1]	026510-1340	GASKET D13.4&10.2T1
65/33.	[1]	154036-0300	CAPSULE
65/36.	[1]	154390-0800	GASKET
65/37.	[1]	154390-0900	GASKET
65/39.	[1]	029310-5160	SHIM D11.5&5.2T0.50
65/43.	[2]	020106-2540	BLEEDER SCREW M6P1L25
65/45.	[1]	014110-6440	LOCKING WASHER
80.	[1]	154063-6521	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-7820	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5801	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154216-1820	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-1820	STRAP
175.	[1]	159231-4900	BEARING PIN
176.	[1]	155402-3800	SAFETY PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5200	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154395-2420	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154368-5620	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-2900	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-0100	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
248.	[1]	154357-9720	BRACKET
251.	[1]	010065-1240	BLEEDER SCREW M5P0.8L12
252.	[1]	014110-5440	LOCKING WASHER
257.	[2]	026512-1840	GASKET D17.9&12.2T1.50
258.	[1]	153556-4800	EYE BOLT
350.	[1]	154373-4620	CONTROL LEVER
351.	[2]	014011-0140	PLAIN WASHER D22&10.5T1.6
352.	[1]	015320-1540	SPLIT PIN
353.	[1]	154351-9200	UNION NUT M6P1H40
353B.	[1]	154354-3800	UNION NUT M6P1H30
354.	[1]	154373-2700	CLEVIS
355.	[1]	013020-6040	UNION NUT M6P1H5
356.	[1]	154373-2800	CLEVIS
357.	[1]	029200-6210	UNION NUT
358.	[2]	154373-2900	BEARING PIN
358.	[2]	154373-2900	BEARING PIN
360.	[2]	016010-0640	LOCKING WASHER
360.	[2]	016010-0640	LOCKING WASHER
361.	[1]	154372-7520	BRACKET
361B.	[1]	139316-0100	PLAIN WASHER
362.	[2]	139016-0400	BLEEDER SCREW
362B.	[1]	029001-6050	BLEEDER SCREW
363.	[3]	014111-6440	LOCKING WASHER
363.	[3]	014111-6440	LOCKING WASHER
364.	[1]	154354-6120	CONTROL CYLINDER
365.	[2]	010110-8040	BLEEDER SCREW
366.	[2]	014111-0440	LOCKING WASHER
367.	[1]	154372-7600	PLATE
368.	[2]	020106-1040	BLEEDER SCREW M6P1L12
370.	[0]	029311-0570	SHIM D20.8&10.3T0.5
371.	[1]	154314-8800	COILED SPRING
372.	[1]	154372-8800	BRACKET
373.	[1]	154352-4700	STRAP
374.	[1]	154373-4500	SAFETY PIN
395.	[0]	029310-7010	SHIM D14.5&7T0.1
395A.	[0]	029310-7020	SHIM D14.5&7T0.3
395B.	[0]	029310-7030	SHIM D14.5&7T0.5
550.	[1]	153169-5620	MICROSWITCH
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106873-2840 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-6460

9 420 613 489
NP-EP/RFD200/1300PF10DGR

ME731620 MITSUBISHI

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV

Information:

Illustration 1 g06045444
Typical example
Illustration 2 g03821967
Typical example
(3) Existing fuel injection pump
(4) Existing advance boxA new fuel injection pump (1) has been introduced. The new fuel injection pump has an improved design of advance box (2) that is more robust against air in fuel.Adaptable To: New 483-2326 Fuel Injection Pump replaces 462-8111 Fuel Injection PumpNew 483-2329 Fuel Injection Pump replaces 248-2366 Fuel Injection Pump.To remove the existing fuel injection pump, refer to Disassembly and Assembly, "Fuel Injection Pump - Remove" for the correct procedure.To install a new fuel injection pump, refer to Disassembly and Assembly, "Fuel Injection Pump - Install" for the correct procedure.Ensure that the fuel system is primed. Refer to Service Magazine, SEPD1541, "Alternative Fuel System Prime Procedure for 3054C, C4.4 (Mech), and C3.3 Machine Engines with a Delphi Fuel Injection Pump Installed".
