105487-6191 ZEXEL 9 420 612 818 BOSCH GOVERNOR 9420612818 1054876191 75l47200a

Information governor

BOSCH 9 420 612 818 9420612818

ZEXEL 105487-6191 1054876191

NIIGATA-URAWA 75L47200A 75l47200a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-6191 zexel genuine, new aftermarket engine parts with delivery

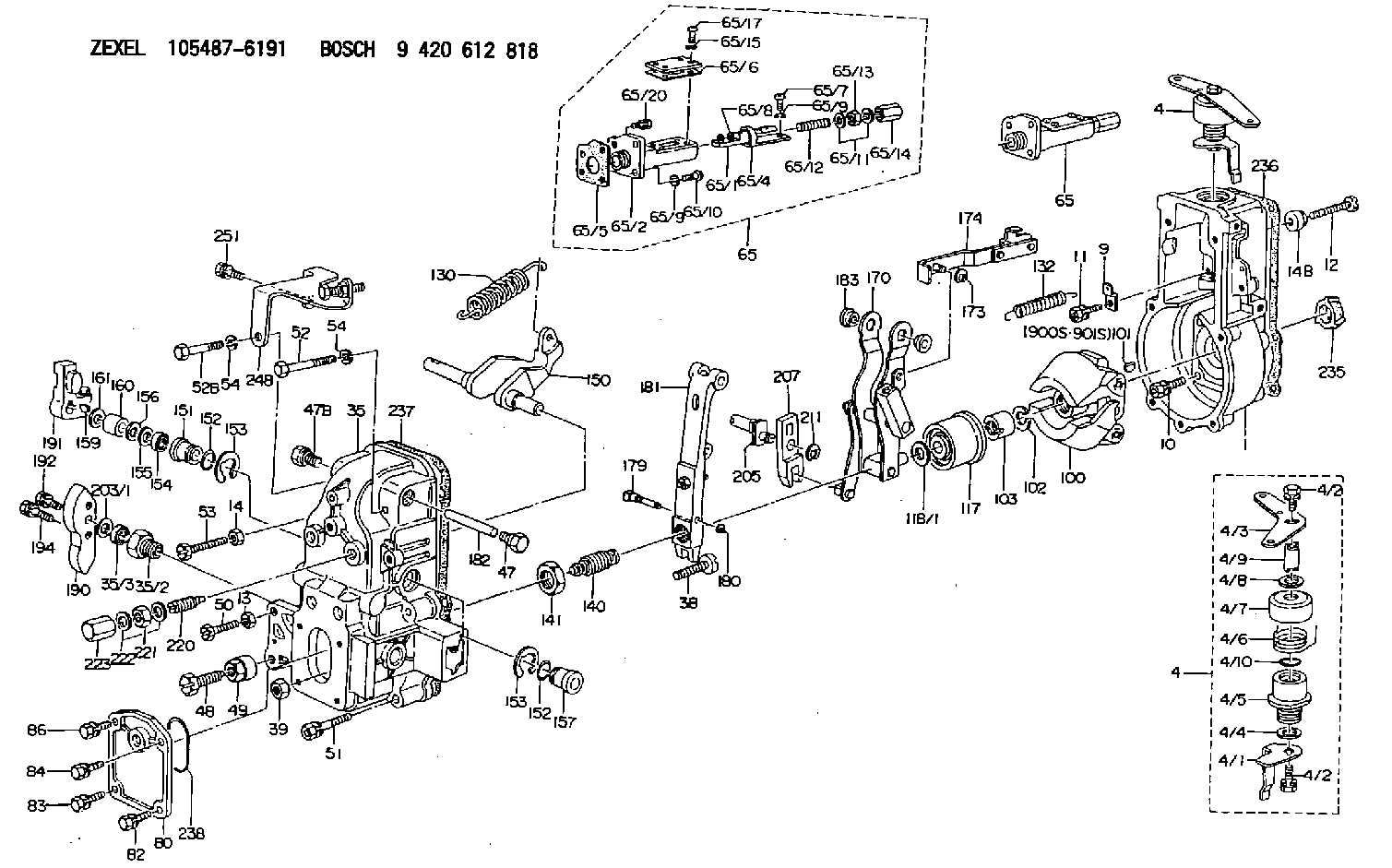

Scheme ###:

1.	[1]	154004-0100	GOVERNOR HOUSING
4.	[1]	154365-3120	CONTROL LEVER
4.	[1]	154365-3120	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154304-0900	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[4]	020106-2040	BLEEDER SCREW M6P1L20
11.	[4]	020106-1840	BLEEDER SCREW M6P1L18
12.	[1]	154010-2900	BLEEDER SCREW
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14B.	[1]	154011-0100	HEXAGON NUT
35.	[1]	154515-3320	GOVERNOR COVER
35/2.	[1]	154321-2000	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3401	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[1]	154036-1800	CAPSULE
47B.	[1]	154036-1900	CAPSULE
48.	[1]	154010-5500	BLEEDER SCREW M10P1.25L42
49.	[1]	154011-2100	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[5]	020106-4540	BLEEDER SCREW M6P1.0L45
52.	[1]	029010-6850	BLEEDER SCREW
52B.	[1]	010006-6040	BLEEDER SCREW
53.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
54.	[2]	014110-6440	LOCKING WASHER
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154050-9620	CONNECTOR
65.	[1]	154050-9620	CONNECTOR
65/1.	[1]	154355-6400	CONNECTOR
65/2.	[1]	154050-6500	ADAPTOR
65/4.	[1]	154355-6600	SCALE PLATE
65/5.	[1]	154355-6700	GASKET
65/6.	[1]	154355-6800	GASKET
65/7.	[1]	012154-0640	FLAT-HEAD SCREW M4P0.7L6
65/8.	[2]	010533-0640	FLAT-HEAD SCREW
65/9.	[5]	014110-4440	LOCKING WASHER
65/9.	[5]	014110-4440	LOCKING WASHER
65/10.	[3]	012154-1440	FLAT-HEAD SCREW M4P0.7L14
65/11.	[2]	026506-1040	GASKET D9.9&6.2T1
65/12.	[1]	154034-1600	FLAT-HEAD SCREW L30
65/13.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/14.	[1]	154035-1600	CAP NUT
65/15.	[4]	139504-0000	GASKET D8&4.2T1
65/17.	[4]	154355-6900	BLEEDER SCREW
65/20.	[1]	139004-0100	BLEEDER SCREW M4P0.7L14
80.	[1]	154063-2500	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-9220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	139212-0000	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-9400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154183-0220	HEADLESS SCREW
141.	[1]	139218-0100	UNION NUT
150.	[1]	154200-5801	SWIVELLING LEVER
151.	[1]	154200-5501	BUSHING
152.	[2]	139700-0000	O-RING
152.	[2]	139700-0000	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139610-0101	PACKING RING
155.	[1]	139411-0100	SHIM D22.0&12.0T0.40
156.	[0]	139411-0200	SHIM D18.0&12.0T0.10
156B.	[0]	139411-0300	SHIM D18.0&12.0T0.20
156C.	[0]	139411-0400	SHIM D18.0&12.0T0.30
157.	[1]	154204-3500	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2300	BUSHING
161.	[0]	154206-2400	PLAIN WASHER D20.5&12.2T1
170.	[1]	154216-1820	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-6620	STRAP
179.	[1]	154238-0201	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5200	TENSIONING LEVER
182.	[1]	154237-1200	BEARING PIN
183.	[2]	154237-1300	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-1920	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-2900	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0200	GASKET
238.	[1]	139700-0100	O-RING
248.	[1]	154359-6620	BRACKET
251.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-4971 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-6191

9 420 612 818
NP-EP/RFD200/1300PF28DSR

75L47200A NIIGATA-URAWA

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
