105487-6130 ZEXEL 9 420 613 274 BOSCH GOVERNOR 9420613274 1054876130 1910197662

Information governor

BOSCH 9 420 613 274 9420613274

ZEXEL 105487-6130 1054876130

NISSAN-DIESEL 1910197662 1910197662

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-6130 zexel genuine, new aftermarket engine parts with delivery

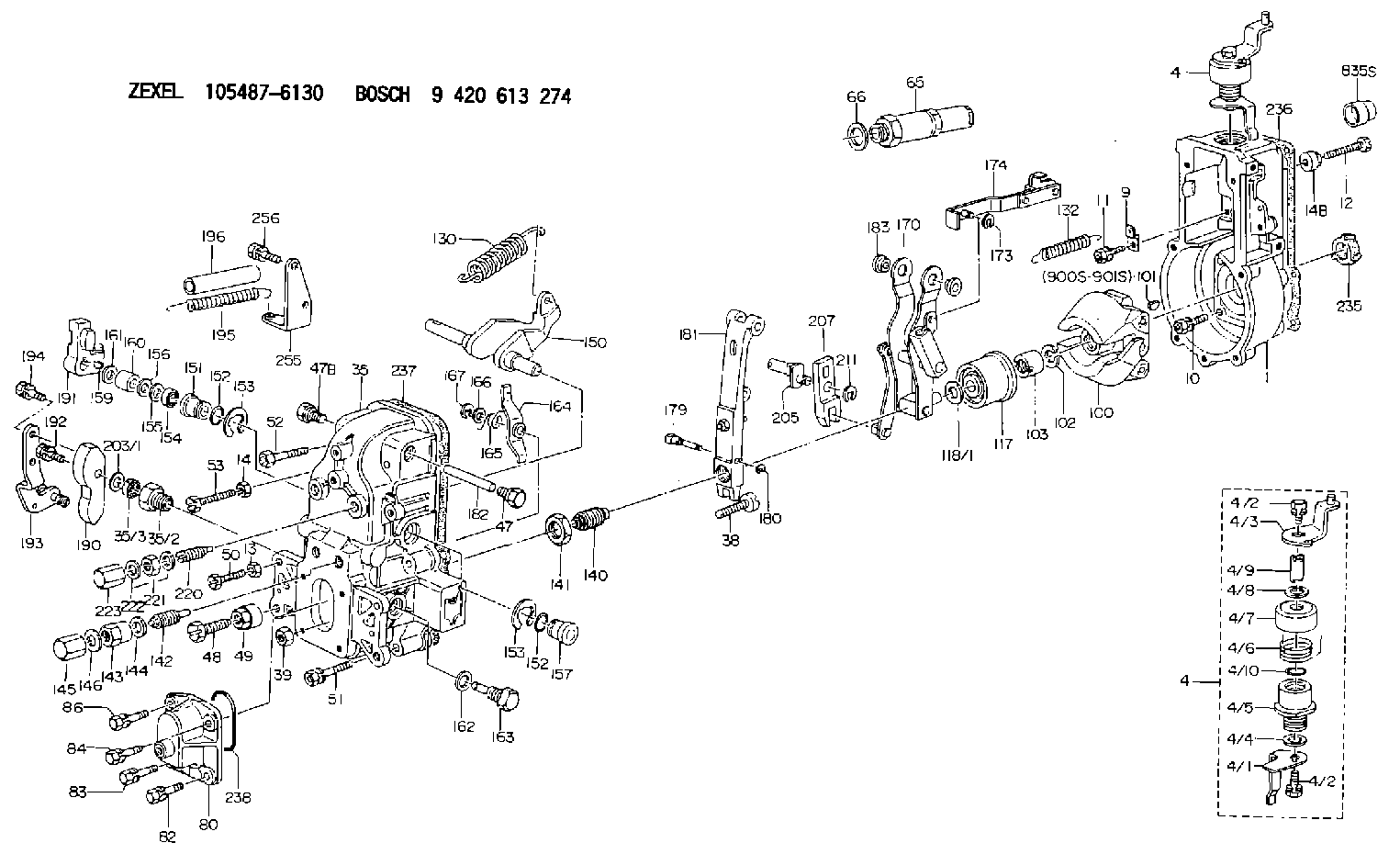

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154380-0521	CONTROL LEVER
4.	[1]	154380-0521	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154380-0511	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-6701	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154515-4220	GOVERNOR COVER
35/2.	[1]	154321-2300	BUSHING
35/3.	[1]	139610-1100	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-1200	CAPSULE
48.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
48B.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1600	BLEEDER SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-2900	BLEEDER SCREW
65.	[1]	153043-8020	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-4701	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7500	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
140.	[1]	154180-2920	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
142.	[1]	154242-3120	HEADLESS SCREW
143.	[1]	154242-3200	UNION NUT
144.	[1]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1800	CAP NUT
146.	[1]	029331-6130	GASKET
150.	[1]	154200-3701	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-6050	GASKET
163.	[1]	154401-3401	BLEEDER SCREW
164.	[1]	154243-0620	CONTROL LEVER
165.	[1]	154327-5400	COILED SPRING
166.	[1]	029310-8320	SHIM D16.5&8T0.2
167.	[1]	154356-3600	LOCKING WASHER
170.	[1]	154211-7220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4920	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-7021	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-5321	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154369-7220	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[2]	154317-8200	COILED SPRING
196.	[2]	154156-3000	TUBE
203/1.	[0]	139410-0200	SHIM D32&10.2T0.1
203/1.	[0]	139410-0300	SHIM D32&10.2T0.3
203/1.	[0]	139410-0400	SHIM D32&10.2T0.5
203/1.	[0]	139410-0500	SHIM D32&10.2T0.9
205.	[1]	154324-3100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154372-6220	BRACKET
256.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106871-5030 as GOVERNOR

106871-5031

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-6130

9 420 613 274
NP-EP/RFD200/1650PF25CAAR

1910197662 NISSAN-DIESEL

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
The DOC/DPF can become plugged if an NRS cooler failure occurs and coolant passes out the exhaust. Solution
If an engine has an NRS cooler failure, the DPF and DOC will need inspected for calcium deposits. In some cases calcium has partially filled the DPF and caused frequent regeneration issues, and erratic high soot loading readings.
Illustration 1 g03374496
Example of calcium deposits on DPF face
Illustration 2 g03374497
Example of calcium deposits on DPF faceThe calcium deposits will be a white and black powdery mixture on the face of the DPF and the DOC. Refer to Illustrations 1 and 2 for examples of a DPF with calcium plugging on the DPF face.Refer to Reuse And Salvage Guidelines, SEBF9223, "Inspection of Diesel Particulate Filters and Diesel Oxidation Catalysts for Tier 4 Machine and Industrial Engines" for further assistance.
