105487-5771 ZEXEL 9 420 611 448 BOSCH GOVERNOR 9420611448 1054875771 1910196264

Information governor

BOSCH 9 420 611 448 9420611448

ZEXEL 105487-5771 1054875771

NISSAN-DIESEL 1910196264 1910196264

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-5771 zexel genuine, new aftermarket engine parts with delivery

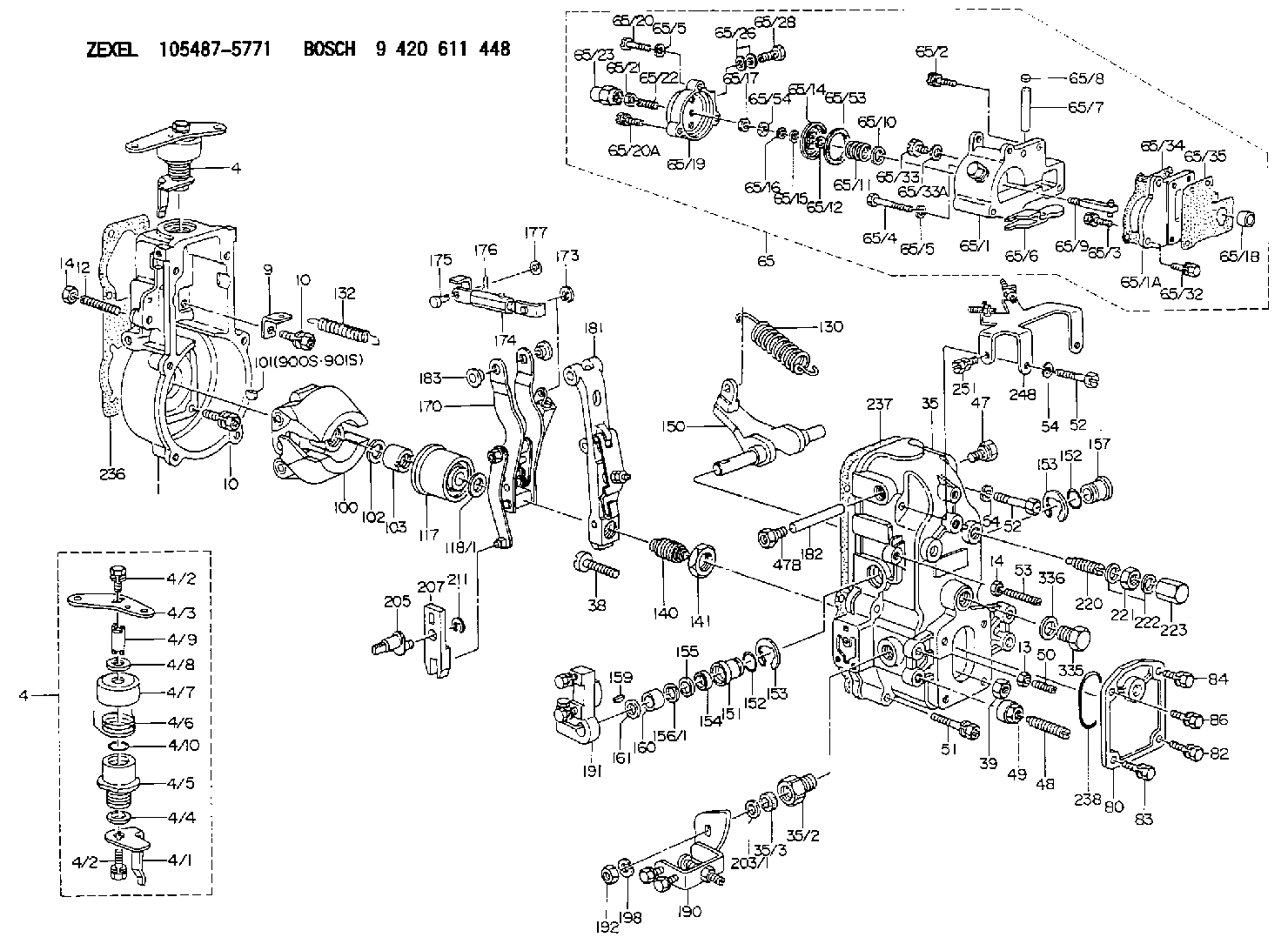

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154304-0920	CONTROL LEVER
4.	[1]	154304-0920	CONTROL LEVER
4/1.	[1]	154304-0100	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154304-0900	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[2]	154011-0100	HEXAGON NUT
14.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154512-6820	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3200	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
47B.	[1]	154036-1200	CAPSULE
48.	[1]	154010-0300	FLAT-HEAD SCREW
49.	[1]	029240-8000	UNION NUT
50.	[1]	155615-1000	FLAT-HEAD SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	029010-6850	BLEEDER SCREW
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154421-2220	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154408-6020	GOVERNOR HOUSING
65/1A.	[1]	154408-2400	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/2.	[2]	029010-6310	BLEEDER SCREW
65/3.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
65/4.	[1]	029010-6220	BLEEDER SCREW
65/5.	[5]	014110-6440	LOCKING WASHER
65/5.	[5]	014110-6440	LOCKING WASHER
65/6.	[1]	154408-1400	CONTROL LEVER
65/7.	[1]	029405-0110	BEARING PIN
65/8.	[2]	029140-8020	CAPSULE
65/9.	[1]	154400-4620	STOP PIN
65/10.	[0]	029312-0180	SHIM D25.5&20T0.5
65/10B.	[0]	029312-0210	SHIM D25.5&20T0.2
65/11.	[1]	154403-4300	COILED SPRING
65/12.	[1]	029300-8260	PLAIN WASHER
65/14.	[1]	154400-7420	DIAPHRAGM
65/15.	[1]	029310-8560	SHIM D14&8.4T0.7
65/16.	[1]	139505-0000	PLAIN WASHER
65/17.	[1]	013030-6040	UNION NUT M6P1H3.6
65/19.	[1]	154404-5200	COVER
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20A.	[1]	020106-2240	BLEEDER SCREW
65/21.	[1]	023040-6040	UNION NUT
65/22.	[1]	154404-1100	FLAT-HEAD SCREW
65/23.	[1]	154035-0320	CAP NUT
65/26.	[2]	026510-1340	GASKET D13.4&10.2T1
65/28.	[1]	029731-0120	EYE BOLT
65/32.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
65/33.	[1]	029011-0120	BLEEDER SCREW
65/33A.	[1]	026510-1340	GASKET D13.4&10.2T1
65/34.	[1]	154390-0800	GASKET
65/35.	[1]	154390-0900	GASKET
65/53.	[2]	154413-2600	GASKET
65/54.	[1]	139308-0700	LOCKING WASHER
80.	[1]	154060-4900	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-5020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6000	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
140.	[1]	154176-2120	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3701	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[1]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-1620	STRAP
175.	[1]	159231-4900	BEARING PIN
176.	[1]	155402-3800	SAFETY PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
181.	[1]	154236-1220	TENSIONING LEVER
182.	[1]	154237-0400	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154305-8920	CONTROL LEVER
191.	[1]	154340-0320	CONTROL LEVER
192.	[1]	013020-8040	UNION NUT M8P1.25H7
198.	[1]	014110-8440	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-1200	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
248.	[1]	154375-9120	BRACKET
251.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
335.	[1]	029111-2040	CAPSULE
336.	[1]	026512-1540	GASKET D15.4&12.2T1.50
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106661-5541 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-5771

9 420 611 448
NP-EP/RFD200/1350PF7BGR

1910196264 NISSAN-DIESEL

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV

Information:

Illustration 1 g02004767
(1) Ring for Identification (2) 228-7094 O-Ring Seal (3) 345-3399 Injector Sleeve An oversized injector sleeve will be introduced in order to improve the life cycle of the cylinder heads. The new sleeve has an oversized outside diameter, which does not allow the injector sleeve to fit the standard bore. The oversized sleeve will have an added ring that is located around the middle of the insert for identification. Also, the new sleeve will require a larger bottom O-ring. Refer to Illustration 1.
Illustration 2 g02004793
(4) Identification markThe remanufactured cylinder head has an identification mark that is located on the top of the cylinder head. This mark indicates the cylinders that have the oversized inserts.
