105487-5770 ZEXEL 9 420 613 270 BOSCH GOVERNOR 9420613270 1054875770

Information governor

BOSCH 9 420 613 270 9420613270

ZEXEL 105487-5770 1054875770

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-5770 zexel genuine, new aftermarket engine parts with delivery

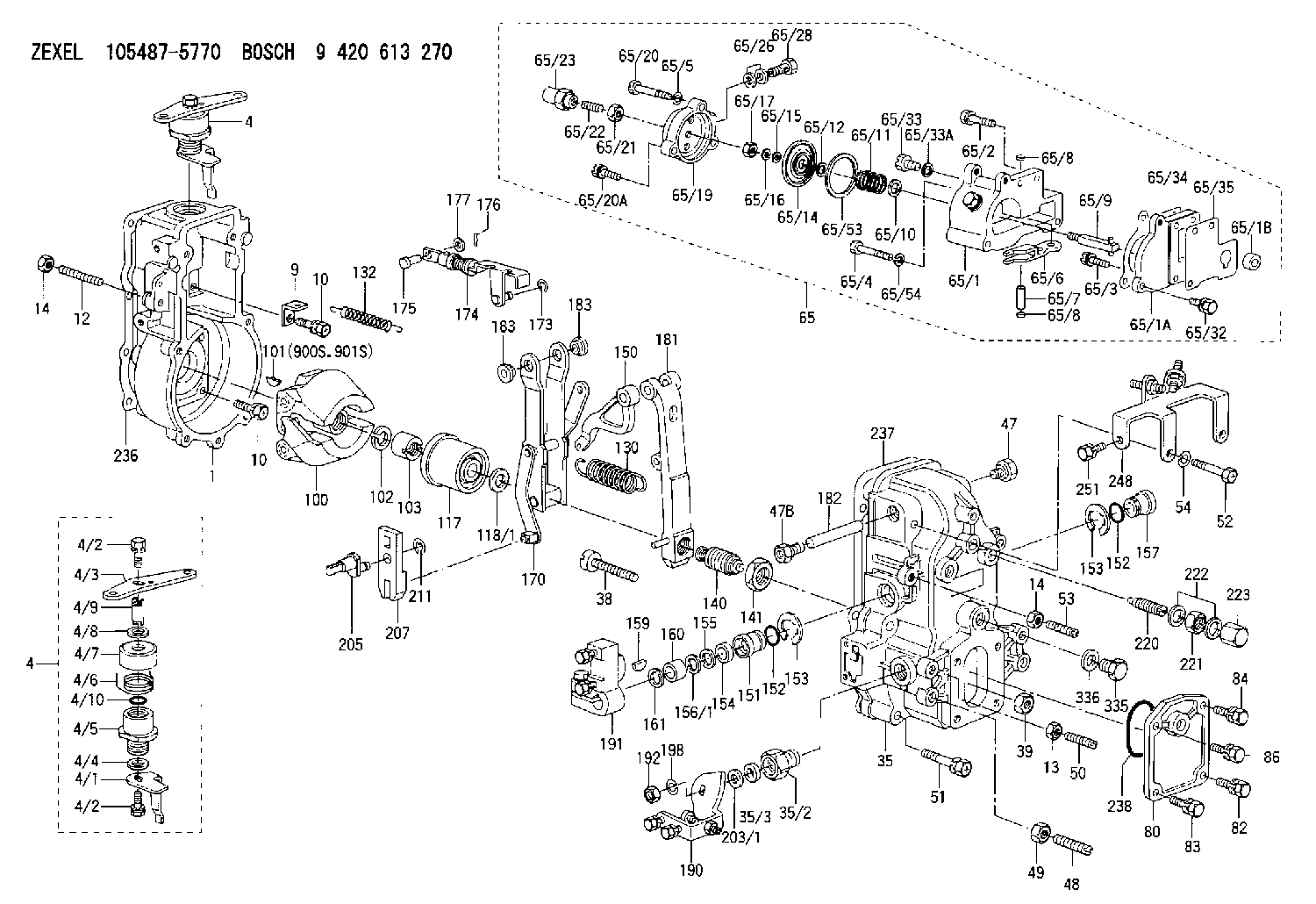

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154304-0920	CONTROL LEVER
4.	[1]	154304-0920	CONTROL LEVER
4/1.	[1]	154304-0100	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154304-0900	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[2]	154011-0100	HEXAGON NUT
14.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154512-6820	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3200	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
47B.	[1]	154036-1200	CAPSULE
48.	[1]	154010-0300	FLAT-HEAD SCREW
49.	[1]	029240-8000	UNION NUT
50.	[1]	155615-1000	FLAT-HEAD SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154419-9320	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154408-6020	GOVERNOR HOUSING
65/1A.	[1]	154408-2400	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/2.	[2]	029010-6310	BLEEDER SCREW
65/3.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
65/4.	[1]	029010-6220	BLEEDER SCREW
65/5.	[5]	014110-6440	LOCKING WASHER
65/6.	[1]	154408-1400	CONTROL LEVER
65/7.	[1]	029405-0110	BEARING PIN
65/8.	[2]	029140-8020	CAPSULE
65/8.	[2]	029140-8020	CAPSULE
65/9.	[1]	154400-4620	STOP PIN
65/10.	[0]	029312-0180	SHIM D25.5&20T0.5
65/10B.	[0]	029312-0210	SHIM D25.5&20T0.2
65/11.	[1]	154403-2800	COILED SPRING
65/12.	[1]	029300-8260	PLAIN WASHER
65/14.	[1]	154400-7420	DIAPHRAGM
65/15.	[1]	029310-8560	SHIM D14&8.4T0.7
65/16.	[1]	139505-0000	PLAIN WASHER
65/17.	[1]	013030-6040	UNION NUT M6P1H3.6
65/19.	[1]	154404-5200	COVER
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20A.	[1]	020106-2240	BLEEDER SCREW
65/21.	[1]	023040-6040	UNION NUT
65/22.	[1]	154404-1100	FLAT-HEAD SCREW
65/23.	[1]	154035-0320	CAP NUT
65/26.	[2]	026510-1340	GASKET D13.4&10.2T1
65/28.	[1]	029731-0120	EYE BOLT
65/32.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
65/33.	[1]	029011-0120	BLEEDER SCREW
65/33A.	[1]	026510-1340	GASKET D13.4&10.2T1
65/34.	[1]	154390-0800	GASKET
65/35.	[1]	154390-0900	GASKET
65/53.	[2]	154413-2600	GASKET
65/54.	[1]	139308-0700	LOCKING WASHER
80.	[1]	154060-4900	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-5020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6000	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
140.	[1]	154176-2120	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3701	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[1]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-1620	STRAP
175.	[1]	159231-4900	BEARING PIN
176.	[1]	155402-3800	SAFETY PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
181.	[1]	154236-1220	TENSIONING LEVER
182.	[1]	154237-0400	BEARING PIN
183.	[2]	154237-0600	BUSHING
183.	[2]	154237-0600	BUSHING
190.	[1]	154305-8920	CONTROL LEVER
191.	[1]	154340-0320	CONTROL LEVER
192.	[1]	013020-8040	UNION NUT M8P1.25H7
198.	[1]	014110-8440	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-1200	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
248.	[1]	154316-9120	BRACKET
251.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
335.	[1]	029111-2040	CAPSULE
336.	[1]	026512-1540	GASKET D15.4&12.2T1.50
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106661-5540 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-5770
105487-5771

9 420 613 270

GOVERNOR
* K

Information:

Table 4
Cat Specification for Neat (B100) Biodiesel Blending Fuel
Property Test Method, United States Test Method, International Units Limits, B100 Blending Fuel
Density at 15°C “ASTM D1298” “ISO 3675” g/cm3 0.86-0.90
Viscosity at 40°C “ASTM D445” “ISO 3104” mm2/s (cSt) 1.9-6.0
Flash Point “ASTM D93” “ISO 3679” °C 93 minimum
Pour Point - - - 6 °C (10 °F) minimum below ambient temperature
- Summer “ASTM D97” “ISO 3016” °C
- Winter
Cloud Point “ASTM D2500” °C Report
Sulfur Content(1) “ASTM D5453” “ISO 20846” “ISO 20884” percent weight 0.0015(2) maximum
Distillation - - - -
T90 “ASTM D86” “ISO 3924” °C 360
Cetane Number “ASTM D613” “ISO 5165” % evaporation 45 minimum
Sulfated Ash “ASTM D874” “ISO 3987” or "ISO 6245" percent weight 0.02 maximum
Water and Sediment “ASTM D2709” “ISO 12937” percent volume 0.05 maximum
Water "ASTM D1796" "EN ISO 12937" % m/m -
Copper Corrosion, 3 hours at 50oC “ASTM D130” “ISO 2160” - No. 1
Oxidation Stability “EN 14112” or "EN 15751" “EN 14112” or "EN 15751" hours 3 minimum
Ramsbottom Carbon Residue on 10% bottoms "ASTM D524" “ISO 10370” %-m/m 0.30 maximum
Carbon Residue, Conradson (CCR) “ASTM D4530” - percent weight 0.05 maximum
Esterification "ASTM D 7806" or "ASTM D 7371" “EN 14103” percent volume 97.5 minimum
Total Acid Number “ASTM D664” “EN 14104” mg KOH/g 0.5 maximum
Methanol Content “EN 14110” “EN 14110” percent weight 0.2 maximum
Monoglycerides “ASTM D6584” “EN 14105” percent weight 0.8 maximum
Diglycerides “ASTM D6584” “EN 14105” percent weight 0.2 maximum
Triglycerides “ASTM D6584” “EN 14105” percent weight 0.2 maximum
Free Glycerin “ASTM D6584” “EN 14105” percent weight 0.02 maximum
Total Glycerin “ASTM D6584” “EN 14105” percent weight 0.240 maximum
Phosphorus Content “ASTM D4951” “EN 14107” percent weight 0.001 maximum
Calcium plus Magnesium “EN 14538” “EN 14538” ppm 5 maximum
Sodium plus Potassium “EN 14538” “EN 14538” ppm 5 maximum
Cold Soak Filterability “ASTM D7501” – seconds 360 maximum
Cleanliness “ASTM D7619” “ISO 4406” – (3)
Total contamination "EN 12662" "EN 12662" mg/kg 24 maximum
Appearance "ASTM D4176" - - Clear and Bright
(1) Methods for testing S are based on the sulfur content in diesel fuel used for blending. Consult with the fuel supplier and ensure the correct method has been used
(2) Sulfur level must be per local regulations. Higher S levels may be used where allowed.
(3) Recommended cleanliness level for fuel as dispensed into the engine fuel tank is ISO 18/16/13 or cleaner per the test methods listed. Refer to the contamination control Chapter for more details.Note: Fuels that meet the most current revision level of "ASTM D6751" or "EN 14214" may be used for blending with an acceptable distillate fuel. The conditions, recommendations, and limits that are noted in this Biodiesel section apply.Referenced Documents
Refer to the “Reference Material - Fuel” section of this Special Publication for the reference material for the information in this section.
