105487-5712 ZEXEL 9 420 613 827 BOSCH GOVERNOR 9420613827 1054875712 me731921




Information governor

BOSCH 9 420 613 827 9420613827
ZEXEL 105487-5712 1054875712
MITSUBISHI ME731921 me731921
105487-5712 GOVERNOR
Rating:
20
Buy GOVERNOR 105487-5712 zexel genuine, new aftermarket engine parts with delivery

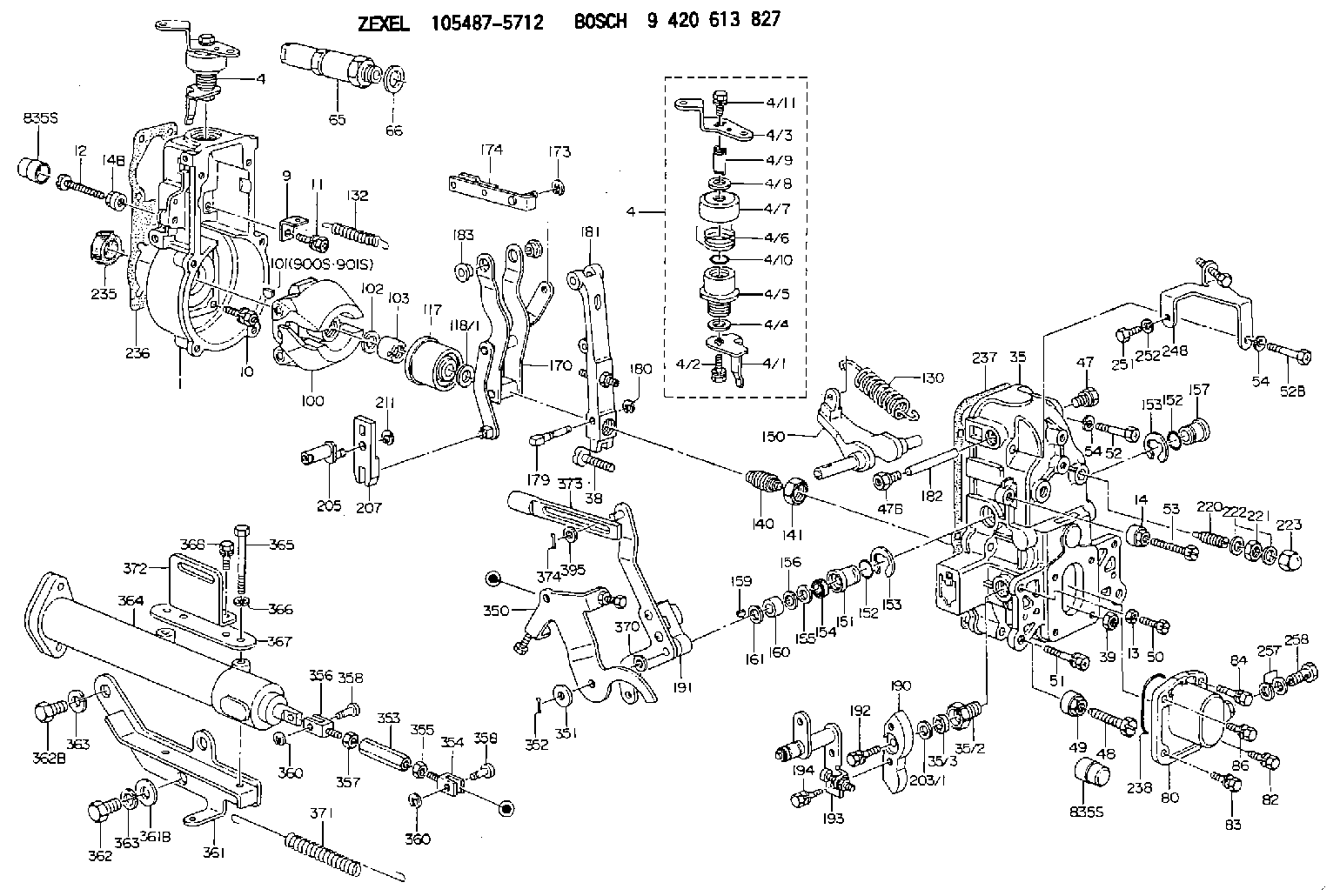

Scheme ###:

1. [1] 154004-0100 GOVERNOR HOUSING
4. [1] 154365-2220 CONTROL LEVER
4. [1] 154365-2220 CONTROL LEVER
4/1. [1] 154304-6200 CONTROL LEVER
4/2. [1] 154352-2000 BLEEDER SCREW
4/3. [1] 154365-2200 CONTROL LEVER
4/4. [1] 029311-0230 SHIM D18&10.3T0.5
4/5. [1] 154321-1500 BUSHING
4/6. [1] 154327-6701 COILED SPRING
4/7. [1] 154322-0100 CAP
4/8. [1] 029311-0220 SHIM D18&10.3T0.2
4/9. [1] 154324-2700 LEVER SHAFT
4/10. [1] 029631-0030 O-RING &9.8W2.3
4/11. [1] 020006-1240 BLEEDER SCREW M6P1L12 4T
9. [1] 154350-6000 PLATE
10. [4] 020106-2040 BLEEDER SCREW M6P1L20
11. [4] 020106-1840 BLEEDER SCREW M6P1L18
12. [1] 154010-7400 BLEEDER SCREW M8P1.25L55
13. [1] 013020-6040 UNION NUT M6P1H5
14. [1] 013020-8040 UNION NUT M8P1.25H7
14B. [1] 154011-2300 UNION NUT
35. [1] 154513-1020 GOVERNOR COVER
35/2. [1] 154321-2000 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3401 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [1] 154036-1900 CAPSULE
47B. [1] 154036-1800 CAPSULE
48. [1] 154010-6000 BLEEDER SCREW M10P1.25L55
48B. [1] 154010-7900 BLEEDER SCREW M10P1.25L58
49. [1] 154011-2200 UNION NUT
50. [1] 155615-1900 BLEEDER SCREW
51. [5] 020106-4540 BLEEDER SCREW M6P1.0L45
52. [1] 010006-6040 BLEEDER SCREW
52B. [1] 029010-6850 BLEEDER SCREW
53. [1] 154010-7400 BLEEDER SCREW M8P1.25L55
54. [2] 014110-6440 LOCKING WASHER
54. [2] 014110-6440 LOCKING WASHER
65. [1] 153020-4320 STOPPING DEVICE
66. [1] 026524-3040 GASKET
80. [1] 154063-6521 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 029020-6210 BLEEDER SCREW
100. [1] 154100-9220 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 139212-0000 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-9400 GOVERNOR SPRING
132. [1] 154154-0200 COILED SPRING
140. [1] 154183-5820 HEADLESS SCREW
141. [1] 139218-0100 UNION NUT
150. [1] 154200-5601 SWIVELLING LEVER
151. [1] 154200-5501 BUSHING
152. [2] 139700-0000 O-RING
152. [2] 139700-0000 O-RING
153. [2] 154354-3900 LOCKING WASHER
153. [2] 154354-3900 LOCKING WASHER
154. [1] 139610-0101 PACKING RING
155. [1] 139411-0100 SHIM D22.0&12.0T0.40
156. [0] 139411-0200 SHIM D18.0&12.0T0.10
156B. [0] 139411-0300 SHIM D18.0&12.0T0.20
156C. [0] 139411-0400 SHIM D18.0&12.0T0.30
157. [1] 154204-3500 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2300 BUSHING
161. [0] 154206-2400 PLAIN WASHER D20.5&12.2T1
170. [1] 154216-1820 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-6620 STRAP
179. [1] 154238-0201 BEARING PIN
180. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-5200 TENSIONING LEVER
182. [1] 154237-1200 BEARING PIN
183. [2] 154237-1300 BUSHING
190. [1] 154360-2700 CONTROL LEVER
191. [1] 154395-2520 CONTROL LEVER
192. [1] 020006-1670 BLEEDER SCREW M6P1L16 7T
193. [1] 154368-5620 CONTROL LEVER
194. [2] 020006-1240 BLEEDER SCREW M6P1L12 4T
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-3400 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-3520 HEADLESS SCREW
221. [1] 029201-2130 UNION NUT M12P1.0H6
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-0100 CAP NUT
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0200 GASKET
238. [1] 139700-0100 O-RING
248. [1] 154357-9720 BRACKET
251. [1] 010065-1240 BLEEDER SCREW M5P0.8L12
252. [1] 014110-5440 LOCKING WASHER
257. [2] 026512-1840 GASKET D17.9&12.2T1.50
258. [1] 153556-4800 EYE BOLT
350. [1] 154372-7920 CONTROL LEVER
351. [2] 014011-0140 PLAIN WASHER D22&10.5T1.6
352. [1] 015320-1540 SPLIT PIN
353. [1] 154351-9200 UNION NUT M6P1H40
353B. [1] 154354-3800 UNION NUT M6P1H30
354. [1] 154373-2700 CLEVIS
355. [1] 013020-6040 UNION NUT M6P1H5
356. [1] 154373-2800 CLEVIS
357. [1] 029200-6210 UNION NUT
358. [2] 154373-2900 BEARING PIN
358. [2] 154373-2900 BEARING PIN
360. [2] 016010-0640 LOCKING WASHER
360. [2] 016010-0640 LOCKING WASHER
361. [1] 154372-7520 BRACKET
361B. [1] 139316-0100 PLAIN WASHER
362. [2] 139016-0400 BLEEDER SCREW
362B. [1] 029001-6050 BLEEDER SCREW
363. [3] 014111-6440 LOCKING WASHER
363. [3] 014111-6440 LOCKING WASHER
364. [1] 154354-6120 CONTROL CYLINDER
365. [2] 010110-8040 BLEEDER SCREW
366. [2] 014111-0440 LOCKING WASHER
367. [1] 154372-7600 PLATE
368. [2] 020106-1040 BLEEDER SCREW M6P1L12
370. [0] 029311-0570 SHIM D20.8&10.3T0.5
371. [1] 154317-1500 COILED SPRING
372. [1] 154372-7400 BRACKET
373. [1] 154352-4700 STRAP
374. [1] 154373-4500 SAFETY PIN
395. [0] 029310-7010 SHIM D14.5&7T0.1
395A. [0] 029310-7020 SHIM D14.5&7T0.3
395B. [0] 029310-7030 SHIM D14.5&7T0.5
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106873-2600 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105487-5712
9 420 613 827
NP-EP/RFD200/1300PF28DSR
ME731921  MITSUBISHI
GOVERNOR
K




Information:

Use Again - if wear on contact surfaces cannot be felt with a seal pick.
Illustration 46 g06346577
Rack control and limiting sleeve.
Use Again - if wear on contact surfaces cannot be felt with a seal pick.Riser Shaft and Pin
Illustration 47 g06346580
Riser shaft.
Use Again - if there is no wear step on the shaft, which can be felt with a seal pick. If a step is present, it will generally occur near the center of the shaft.
Illustration 48 g06346583
Normal wear on pin at end of riser shaft.
Use Again
Illustration 49 g06346588
Pin with material eroded away near the center relief.
Do Not Use AgainFlyweight and Dowel
Illustration 50 g06346593
Flyweight toe with gouges near dowel hole.
Do Not Use Again - if wear marks can be felt with a seal pick.
Illustration 51 g06346599
Flyweight toe wear.
Do Not Use Again
Illustration 52 g06346602
Flyweight toe wear.
Do Not Use Again - if there are any signs of "flat spots". Worn flyweight toes may be highly polished so that flat spots are difficult to feel. Hold the flyweight toe surface in bright light and watch for changes in reflection in worn areas. Use a new flyweight toe for comparison.
Illustration 53 g06346609
Acceptable wear on flyweight dowel.
Use Again - if wear cannot be felt with a seal pick.
Illustration 54 g06346611
Heavy wear on flyweight dowel.
Do Not Use AgainNote: Examine the dowel seating area on the flyweight carrier. If there is any apparent wear, reinstall dowels in the unused positions, 90 degrees from original position.Bearing Assembly
Illustration 55 g06346614
The bearing (white collar) shown in position on the FARC diaphragm retainer (Type V, VI, and VII Governors) shows wear.
Do Not Use AgainGovernor Spring Seat
Illustration 56 g06346615
Governor spring seat with typical wear.
Use Again - if there are no gouges to surfaces (1) on the spring seating area.Spring Pack
Illustration 57 g06346618
End view of governor spring pack.
Use Again - after realignment.Note the off-center position of the internal springs with respect to the outside spring. This can cause governor instability, which results in surging. Rotate the springs on their seat so that the inner springs are aligned (centered) with respect to the outer spring. Remove sharp edges (A) from the inside diameter of the flat surface on the springs to ensure springs seat properly.
