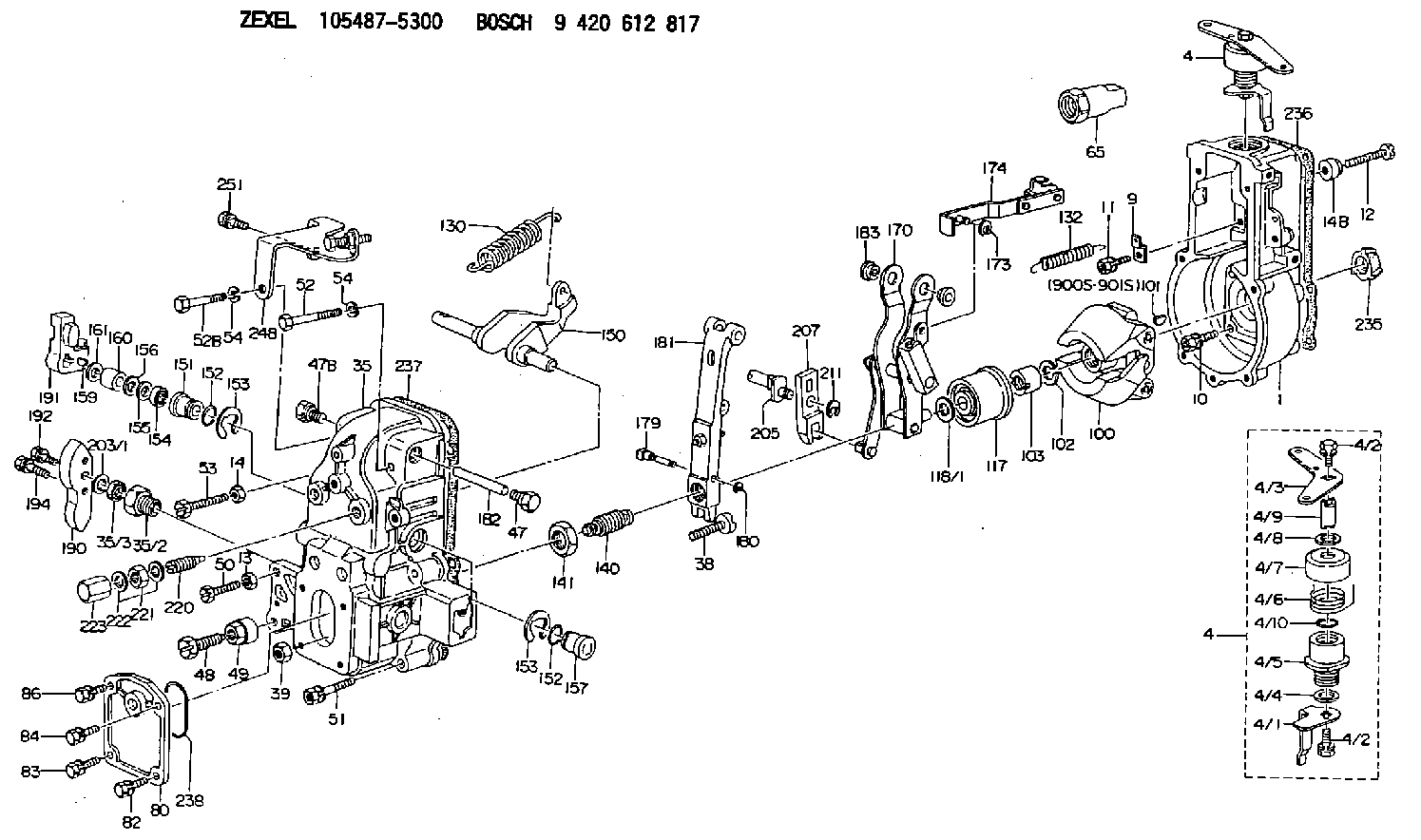

105487-5300 ZEXEL 9 420 612 817 BOSCH GOVERNOR 9420612817 1054875300

Specifications
Illustration 42 g03135400
Table 13
Fuel Injection Pump Camshaft
Model Dimension A Dimension B Dimension C Dimension D Dimension E
3064
3066 40.72 0.25 mm (1.603 0.010 inch) 20.003 0.005 mm (0.7875 0.0002 inch) 11.13 0.25 mm (0.438 0.010 inch) 16.955 0.005 mm (0.6675 0.0002 inch) 16.26 0.25 mm (0.640 0.010 inch) Note: All sprayed edges should be rounded with a 0.795 mm (0.0313 inch) radius.Storage Procedures
Proper protection of the components from corrosion is important. Corrosion will start in as little as one hour after the components have been cleaned.When the components will not be inspected for one hour or less the components should be coated with a rust or corrosion inhibitor or coated with clean engine oil. The components should be individually wrapped to prevent contamination, and should be stored in a protected area to avoid damage. See Illustration 43.When the components will not be inspected in two days or more the components should be coated with a rust or corrosion inhibitor or coated with clean engine oil and should be placed in a container which is clean and structurally solid. The container should be covered or wrapped in plastic to prevent damage and contamination to the components. See Illustration 44.Refer to SEHS9031Special Instruction, "Storage Procedure for Caterpillar Products" for more information.
Illustration 43 g06278538
Example of protection for a component that is stored for a shorter term
Illustration 44 g06278539
Example of protection for a component that is stored for a longer period
