105487-5250 ZEXEL 9 420 612 301 BOSCH GOVERNOR 9420612301 1054875250 me727234

Information governor

BOSCH 9 420 612 301 9420612301

ZEXEL 105487-5250 1054875250

MITSUBISHI ME727234 me727234

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-5250 zexel genuine, new aftermarket engine parts with delivery

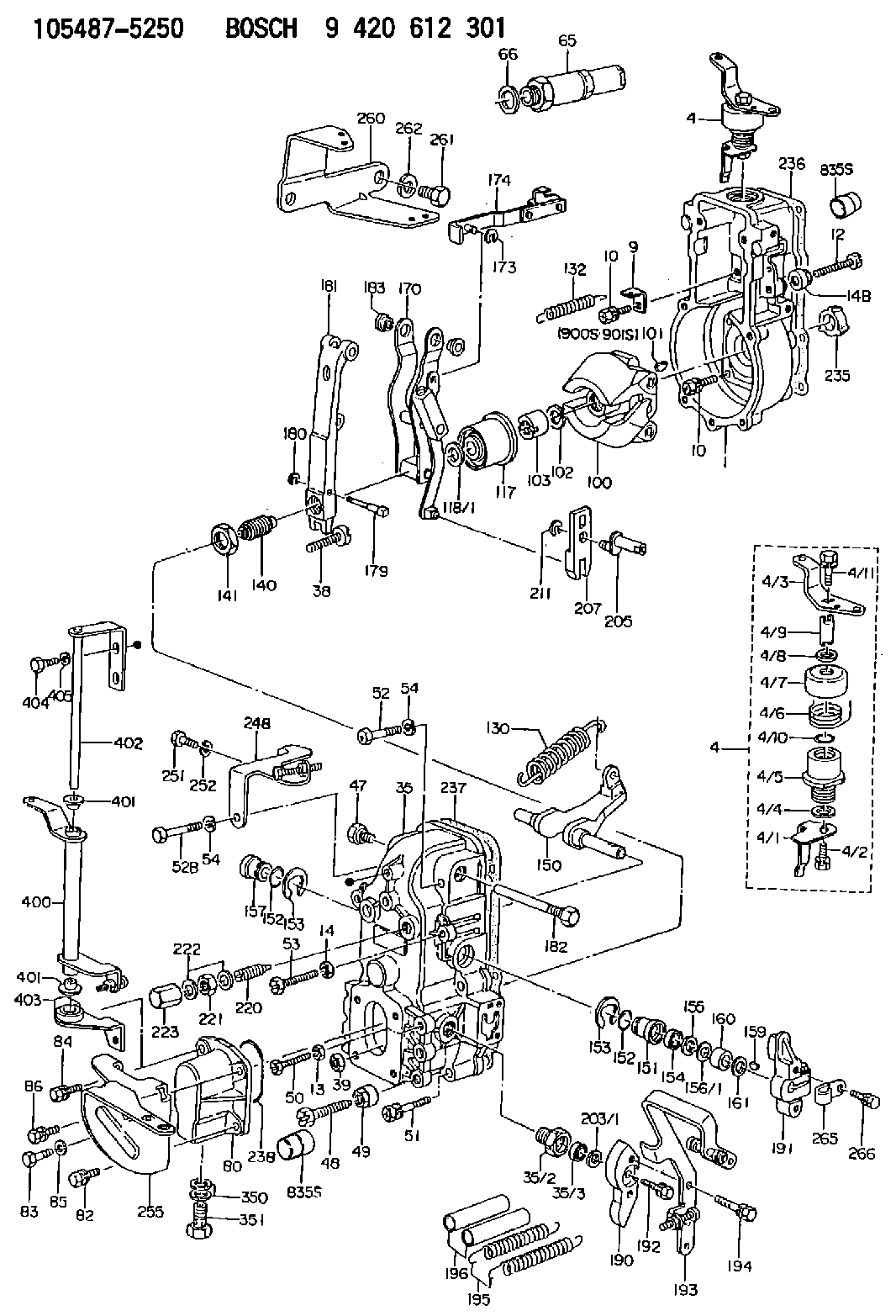

Scheme ###:

1.	[1]	154004-2420	GOVERNOR HOUSING
4.	[1]	154365-6021	CONTROL LEVER
4.	[1]	154365-6021	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[1]	154352-2000	BLEEDER SCREW
4/3.	[1]	154365-6001	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
4/11.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-7800	BLEEDER SCREW
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-9920	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
48.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
48B.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[1]	010006-5540	BLEEDER SCREW M6P1L55 4T
52B.	[1]	010006-5040	BLEEDER SCREW M6P1L50
53.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
54.	[2]	014110-6440	LOCKING WASHER
54.	[2]	014110-6440	LOCKING WASHER
65.	[1]	153043-6420	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-6021	COVER
82.	[1]	020006-2240	BLEEDER SCREW M6P1L22
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-2240	BLEEDER SCREW M6P1L22
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020506-2240	BLEEDER SCREW
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-8000	GOVERNOR SPRING
132.	[1]	154154-0200	COILED SPRING
140.	[1]	154178-4120	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3801	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7720	GUIDE LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4920	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-0120	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154369-6320	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[2]	154317-6700	COILED SPRING
196.	[2]	154156-2800	TUBE
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-4500	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6820	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
248.	[1]	154358-5420	BRACKET
251.	[1]	010065-1240	BLEEDER SCREW M5P0.8L12
252.	[1]	014110-5440	LOCKING WASHER
255.	[1]	154372-5020	BRACKET
260.	[1]	154371-1300	BRACKET
261.	[2]	139016-0100	BLEEDER SCREW
262.	[2]	014111-6440	LOCKING WASHER
265.	[1]	155402-6320	PLATE
266.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
350.	[2]	026512-1840	GASKET D17.9&12.2T1.50
351.	[1]	153556-4800	EYE BOLT
400.	[1]	154355-1520	CONTROL LEVER
401.	[2]	154354-7800	BUSHING
401.	[2]	154354-7800	BUSHING
402.	[1]	154355-1610	TENSIONING BRACKET
403.	[1]	154355-1710	BRACKET
404.	[2]	010038-1240	BLEEDER SCREW
405.	[2]	014110-8440	LOCKING WASHER
835S.	[2]	154062-1700	CAP D20L32
835S.	[2]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106673-2251 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-5250

9 420 612 301
NP-EP/RFD200/1350PF71CSR

ME727234 MITSUBISHI

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
