105487-4790 ZEXEL 9 420 613 388 BOSCH GOVERNOR 9420613388 1054874790 1910196968

Information governor

BOSCH 9 420 613 388 9420613388

ZEXEL 105487-4790 1054874790

NISSAN-DIESEL 1910196968 1910196968

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-4790 zexel genuine, new aftermarket engine parts with delivery

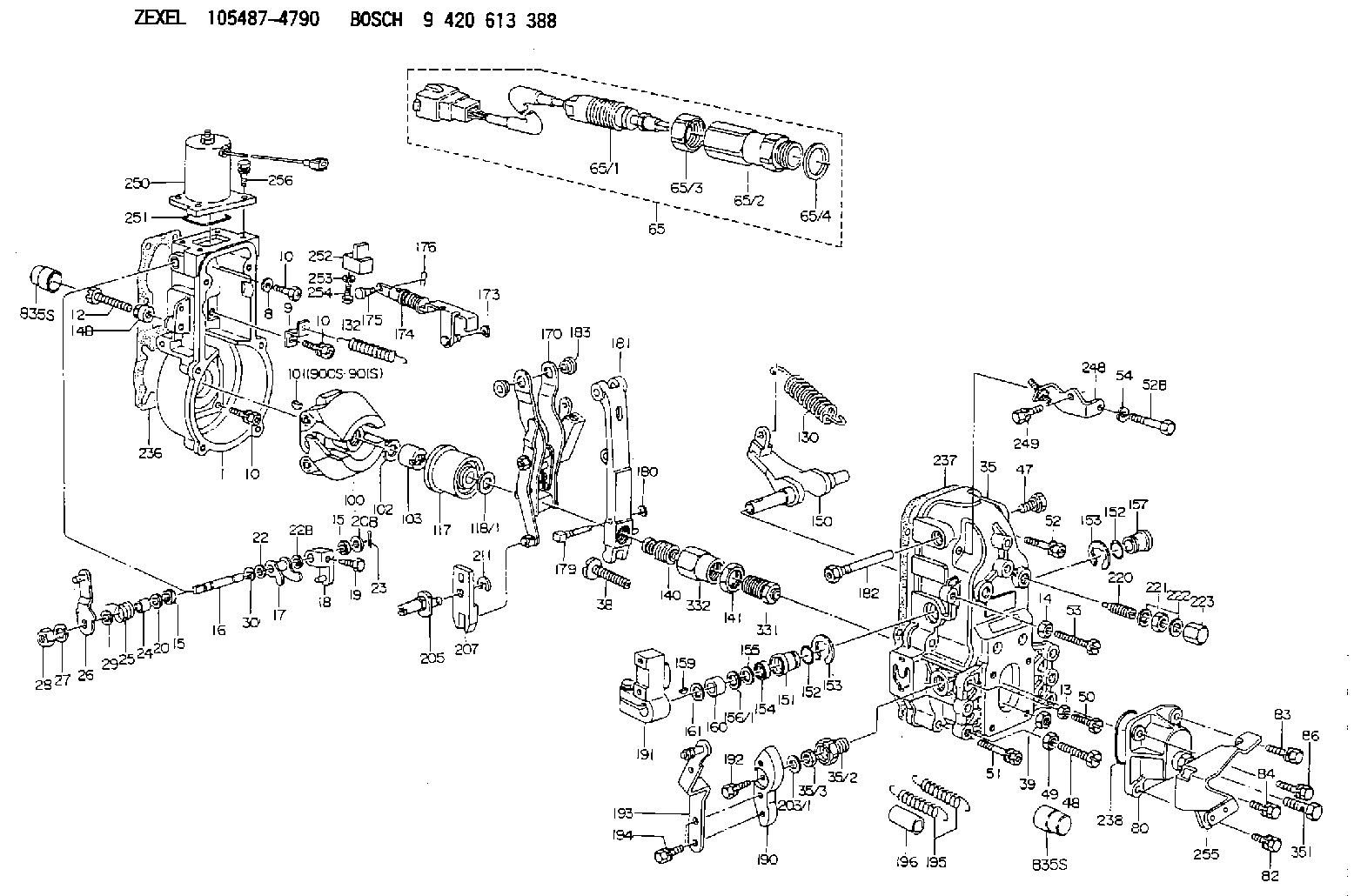

Scheme ###:

1.	[1]	154004-2822	GOVERNOR HOUSING
8.	[1]	139506-0100	GASKET D12.0&6.2T1.0
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-7200	BLEEDER SCREW M8P1.25L62
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
15.	[2]	029620-8050	PACKING RING
15.	[2]	029620-8050	PACKING RING
16.	[1]	155004-5000	LEVER SHAFT
17.	[1]	154419-2020	CONTROL LEVER
18.	[1]	155003-2101	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
22.	[1]	029310-8050	SHIM D13.5&8T0.5
22B.	[0]	029310-8050	SHIM D13.5&8T0.5
22B.	[7]	139408-1500	SHIM
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-3600	COILED SPRING
26.	[1]	154380-2021	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1400	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
30.	[1]	016010-0740	LOCKING WASHER
35.	[1]	154515-0820	GOVERNOR COVER
35/2.	[1]	154321-2300	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-1200	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1900	BLEEDER SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[1]	020106-5040	BLEEDER SCREW
52B.	[1]	029010-6850	BLEEDER SCREW
53.	[1]	154010-3100	BLEEDER SCREW
54.	[1]	014110-6440	LOCKING WASHER
65.	[1]	154610-2821	RACK SENSOR ASSY
65/1.	[1]	479743-8621	RACK SENSOR ASSY
65/2.	[1]	154614-2500	JOINT CONNECTION
65/3.	[1]	154614-1900	UNION NUT
65/4.	[1]	026524-3040	GASKET
80.	[1]	154063-4320	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6240	BLEEDER SCREW
84.	[1]	020006-1840	BLEEDER SCREW M6P1L18
86.	[1]	029020-6240	BLEEDER SCREW
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6200	GOVERNOR SPRING
132.	[1]	154154-0200	COILED SPRING
140.	[1]	154180-4420	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3701	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154235-0020	STRAP
175.	[1]	159231-4900	BEARING PIN
176.	[1]	155402-3800	SAFETY PIN
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2700	CONTROL LEVER
191.	[1]	154340-0020	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154369-7020	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
195.	[2]	159243-9600	COILED SPRING
196.	[2]	154156-2900	TUBE
203/1.	[0]	139410-0200	SHIM D32&10.2T0.1
203/1.	[0]	139410-0300	SHIM D32&10.2T0.3
203/1.	[0]	139410-0400	SHIM D32&10.2T0.5
203/1.	[0]	139410-0500	SHIM D32&10.2T0.9
205.	[1]	154324-3100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6920	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
248.	[1]	154372-3220	BRACKET
249.	[1]	020006-1240	BLEEDER SCREW M6P1L12 4T
250.	[1]	154410-3721	SOLENOID
251.	[1]	154358-2500	SEAL RING
252.	[1]	154232-2820	CONNECTOR
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154372-5920	BRACKET
256.	[4]	020106-1640	BLEEDER SCREW M6P1.0L14
331.	[1]	154185-5020	HEADLESS SCREW
332.	[1]	029201-6220	UNION NUT
351.	[1]	027412-2440	EYE BOLT
835S.	[2]	154062-1700	CAP D20L32
835S.	[2]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-0900 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-4790

9 420 613 388
NP-EP/RFD200/1650PF9CZR

1910196968 NISSAN-DIESEL

GOVERNOR
K

Information:

Table 2
Specifications for Pressure Loss
Direct Injection Fuel Systems
Nozzle pressure must not drop below a gauge reading of
3450 kPa (500 psi) during a 5 second time interval.
Nozzle pressure must drop below a gauge reading of
1380 kPa (200 psi) after an additional 25 second time interval. (1)
( 1 ) A gauge reading of 0 kPa (0 psi) is acceptable after the first 5 second time interval has elapsed.
Illustration 3 g00923167
If the fuel nozzle is not within specifications, stop the test and do not use the fuel nozzle.Valve Opening Pressure Test
Slowly increase the pressure until fluid begins to flow from the tip of the fuel nozzle. Record this pressure as the VOP of the fuel nozzle.
Compare the test results to the specifications for the type of fuel nozzle that is being tested. Refer to Table 3, or Table 4.For precombustion chamber fuel systems, use these specifications:
Table 3
Specifications for Valve Opening Pressure
Precombustion Chamber Fuel Systems
2760 to 5170 kPa (400 to 750 psi)
Illustration 4 g00934108
If the VOP is not within specifications, stop the test and do not use the fuel nozzle.For direct injection fuel systems, use these specifications:
Table 4
Specifications for Valve Opening Pressure
Direct Injection Fuel Systems
16500 to 21400 kPa (2400 to 3100 psi)
Illustration 5 g00923174
If the VOP is not within specifications, stop the test and do not use the fuel nozzle.Tip Leakage Test (Direct Injection Fuel Systems)
Note: Fuel nozzles for precombustion chamber fuel systems can not be tested for tip leakage accurately. Do not perform this test on fuel nozzles for a precombustion
