Information governor
BOSCH
9 420 611 971
9420611971
ZEXEL
105487-3880
1054873880
NISSAN-DIESEL
1910196873
1910196873

Rating:

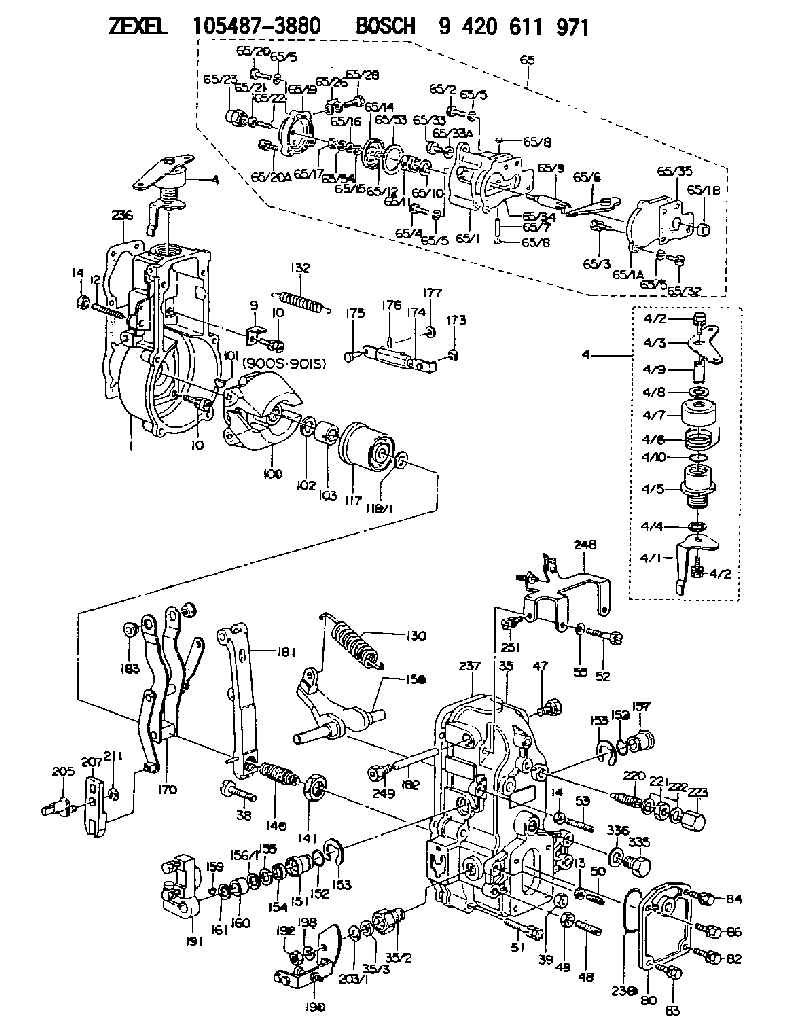

Scheme ###:
1. | [1] | 154000-4700 | GOVERNOR HOUSING |
4. | [1] | 154304-0920 | CONTROL LEVER |
4. | [1] | 154304-0920 | CONTROL LEVER |
4/1. | [1] | 154304-0100 | CONTROL LEVER |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/3. | [1] | 154304-0900 | CONTROL LEVER |
4/4. | [1] | 029311-0230 | SHIM D18&10.3T0.5 |
4/5. | [1] | 154321-1500 | BUSHING |
4/6. | [1] | 154327-2901 | COILED SPRING |
4/7. | [1] | 154322-0100 | CAP |
4/8. | [1] | 029311-0220 | SHIM D18&10.3T0.2 |
4/9. | [1] | 154324-2700 | LEVER SHAFT |
4/10. | [1] | 029631-0030 | O-RING &9.8W2.3 |
9. | [1] | 154350-6000 | PLATE |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
12. | [1] | 154010-0100 | FLAT-HEAD SCREW |
13. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
14. | [2] | 154011-0100 | HEXAGON NUT |
14. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154512-6820 | GOVERNOR COVER |
35/2. | [1] | 154321-1800 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
38. | [1] | 154031-3200 | FLAT-HEAD SCREW |
39. | [1] | 154011-1600 | UNION NUT |
47. | [1] | 154036-0300 | CAPSULE |
48. | [1] | 154010-0300 | FLAT-HEAD SCREW |
49. | [1] | 029240-8000 | UNION NUT |
50. | [1] | 155615-1000 | FLAT-HEAD SCREW |
51. | [4] | 020106-3840 | BLEEDER SCREW |
52. | [2] | 029010-6850 | BLEEDER SCREW |
53. | [1] | 154010-0100 | FLAT-HEAD SCREW |
55. | [2] | 014110-6440 | LOCKING WASHER |
65. | [1] | 154407-3723 | MANIFOLD-PRESSURE COMP. |
65/1. | [1] | 154408-6020 | GOVERNOR HOUSING |
65/1A. | [1] | 154408-2400 | SPACER BUSHING |
65/1B. | [1] | 134009-0000 | SPACER BUSHING |
65/2. | [2] | 029010-6310 | BLEEDER SCREW |
65/3. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
65/4. | [1] | 029010-6220 | BLEEDER SCREW |
65/5. | [5] | 014110-6440 | LOCKING WASHER |
65/5. | [5] | 014110-6440 | LOCKING WASHER |
65/5. | [5] | 014110-6440 | LOCKING WASHER |
65/5. | [5] | 014110-6440 | LOCKING WASHER |
65/6. | [1] | 154408-1400 | CONTROL LEVER |
65/7. | [1] | 029405-0110 | BEARING PIN |
65/8. | [2] | 029140-8020 | CAPSULE |
65/8. | [2] | 029140-8020 | CAPSULE |
65/9. | [1] | 154400-4620 | STOP PIN |
65/10. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
65/10B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
65/11. | [1] | 154403-3400 | COILED SPRING |
65/12. | [1] | 029300-8260 | PLAIN WASHER |
65/14. | [1] | 154400-7420 | DIAPHRAGM |
65/15. | [1] | 029310-8560 | SHIM D14&8.4T0.7 |
65/16. | [1] | 139505-0000 | PLAIN WASHER |
65/17. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
65/19. | [1] | 154404-5200 | COVER |
65/20. | [2] | 029010-6310 | BLEEDER SCREW |
65/20A. | [1] | 020106-2240 | BLEEDER SCREW |
65/21. | [1] | 023040-6040 | UNION NUT |
65/22. | [1] | 154404-1100 | FLAT-HEAD SCREW |
65/23. | [1] | 154035-0320 | CAP NUT |
65/26. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
65/28. | [1] | 029731-0120 | EYE BOLT |
65/32. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
65/33. | [1] | 029011-0120 | BLEEDER SCREW |
65/33A. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
65/34. | [1] | 154390-0800 | GASKET |
65/35. | [1] | 154390-0900 | GASKET |
65/53. | [2] | 154413-2600 | GASKET |
65/54. | [1] | 139308-0700 | LOCKING WASHER |
80. | [1] | 154060-4900 | COVER |
82. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
83. | [1] | 029020-6210 | BLEEDER SCREW |
84. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
86. | [1] | 029020-6210 | BLEEDER SCREW |
100. | [1] | 154100-5020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-0420 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-6000 | GOVERNOR SPRING |
132. | [1] | 154154-4000 | COILED SPRING |
140. | [1] | 154178-2020 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-3701 | SWIVELLING LEVER |
151. | [1] | 154204-2001 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 154354-3900 | LOCKING WASHER |
153. | [2] | 154354-3900 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156/1. | [0] | 029311-1110 | SHIM D17&11T0.1 |
156/1. | [0] | 029311-1120 | SHIM D17&11T0.2 |
156/1. | [0] | 029311-1130 | SHIM D17&11T0.3 |
157. | [1] | 154204-3400 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-0900 | BUSHING |
161. | [1] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154211-6220 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-5920 | STRAP |
175. | [1] | 159231-4900 | BEARING PIN |
176. | [1] | 155402-3800 | SAFETY PIN |
177. | [1] | 029310-5170 | SHIM D8&5.3T0.5 |
181. | [1] | 154236-1220 | TENSIONING LEVER |
182. | [1] | 154237-0400 | BEARING PIN |
183. | [2] | 154237-0600 | BUSHING |
190. | [1] | 154305-8920 | CONTROL LEVER |
191. | [1] | 154340-0320 | CONTROL LEVER |
192. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
198. | [1] | 014110-8440 | LOCKING WASHER |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-1200 | LEVER SHAFT |
207. | [1] | 154326-0300 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-1220 | HEADLESS SCREW |
221. | [1] | 029201-2140 | UNION NUT |
222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
223. | [1] | 154159-1200 | CAP NUT |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
248. | [1] | 154371-9520 | BRACKET |
249. | [1] | 154036-1200 | CAPSULE |
251. | [1] | 029010-6740 | BLEEDER SCREW |
335. | [1] | 029111-2040 | CAPSULE |
336. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
