105487-1252 ZEXEL 9 420 613 164 BOSCH GOVERNOR 9420613164 1054871252 1910196602

Information governor

BOSCH 9 420 613 164 9420613164

ZEXEL 105487-1252 1054871252

NISSAN-DIESEL 1910196602 1910196602

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-1252 zexel genuine, new aftermarket engine parts with delivery

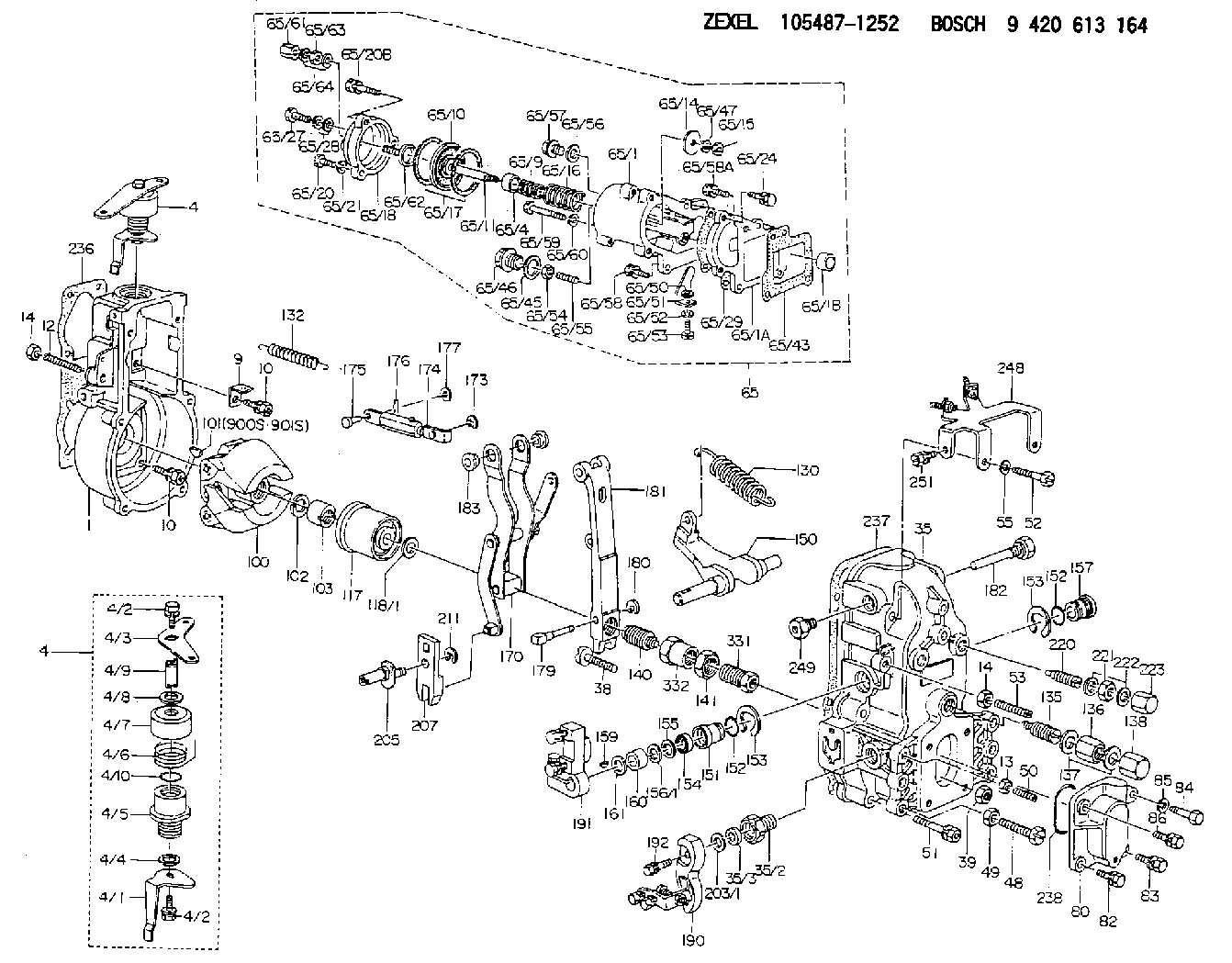

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154304-0920	CONTROL LEVER
4.	[1]	154304-0920	CONTROL LEVER
4/1.	[1]	154304-0100	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154304-0900	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[2]	154011-0100	HEXAGON NUT
14.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154514-1420	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
48.	[1]	154010-5500	BLEEDER SCREW M10P1.25L42
49.	[1]	154011-2100	UNION NUT
50.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	029010-6850	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
55.	[2]	014110-6440	LOCKING WASHER
65.	[1]	154417-1221	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154412-0122	GOVERNOR HOUSING
65/1A.	[1]	154412-0201	SPACER BUSHING
65/1B.	[1]	134009-0000	SPACER BUSHING
65/4.	[1]	154413-0500	BUSHING
65/9.	[1]	154412-4300	COILED SPRING
65/10.	[1]	154400-8220	DIAPHRAGM
65/11.	[1]	154412-4101	STOP PIN
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154403-7200	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-5000	COVER
65/20.	[2]	029010-6310	BLEEDER SCREW
65/20B.	[1]	020106-4540	BLEEDER SCREW M6P1.0L45
65/21.	[2]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-2040	BLEEDER SCREW M6P1L20
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-2200	GASKET
65/43.	[1]	154390-2300	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154406-5800	FLAT-HEAD SCREW
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6800	PLAIN WASHER
65/51.	[1]	154412-3900	CONTROL LEVER
65/52.	[1]	014110-4440	LOCKING WASHER
65/53.	[1]	010234-0820	HEX-SOCKET-HEAD CAP SCREW
65/54.	[1]	013030-6040	UNION NUT M6P1H3.6
65/55.	[1]	154404-1500	FLAT-HEAD SCREW L22.00
65/55B.	[1]	154404-1600	FLAT-HEAD SCREW L26.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[2]	020106-2840	BLEEDER SCREW
65/58A.	[1]	020106-1440	BLEEDER SCREW M6P1.0L14
65/59.	[1]	010006-7040	BLEEDER SCREW M6P1L70
65/60.	[1]	014110-6440	LOCKING WASHER
65/61.	[1]	154035-1600	CAP NUT
65/62.	[1]	154404-4400	FLAT-HEAD SCREW
65/63.	[1]	013030-6040	UNION NUT M6P1H3.6
65/64.	[2]	026506-1040	GASKET D9.9&6.2T1
80.	[1]	154060-7900	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6220	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0420	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6000	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154180-0720	HEADLESS SCREW
141.	[1]	029201-6210	UNION NUT
150.	[1]	154200-3701	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[1]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154234-3520	STRAP
175.	[1]	159231-4900	BEARING PIN
176.	[1]	155402-3800	SAFETY PIN
177.	[1]	029310-5170	SHIM D8&5.3T0.5
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154362-0120	CONTROL LEVER
191.	[1]	154340-0320	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3000	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-1220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
248.	[1]	154316-9120	BRACKET
249.	[1]	154036-1200	CAPSULE
251.	[1]	029010-6740	BLEEDER SCREW
331.	[1]	154172-7420	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106661-0922 as GOVERNOR

106661-0924

106661-0925

106661-0926

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-1252

9 420 613 164
NP-EP/RFD200/1350PF7CZRN52

1910196602 NISSAN-DIESEL

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV

Information:

TECHNICAL INFORMATION BULLETIN November 30, 2005
This Technical Information Bulletin replaces the November 11, 2005 TIB "System Malfunctions Related To The Injection Actuation Pressure Sensors In Excavators, Wheel Loaders, Engines, Track-Type Tractors and Track Loaders". Disregard the November 11, 2005 TIB. Refer to the following information.
Excavators 322C (EMR215-523,MAR165-468)
325C (CRB650-1677,CSJ800-1486)
(DTF276-285,JLC283-306)
(JLD313-348)
330C (CAP950-2085,CGZ444-889)
(JCD285-351,MKM308-316)
330CL(JNK238-343)
Wheel Loaders 938GII (PHN550-2023)
950GII (AYB693-1086)
(AYL1039-2384)
962GII (AYE530-695,BAB437-758)
Engines C9 (C9B1-266,CSN1-1070)
(JLW1-279,JSC1-395)
(MTB1-1550,X9X1-258)
Track-Type Tractors D6N LGP (ALR1-715)
(ALY1-1932)
(CCG1-261)
(CCS1-402)
D6N XL (AKM1-1694,ALH1-794)
(CBF1-309,CBJ1-448)
(CBL1-400,CCK1-623)
D6RII (AEM1-117,BPM1-104)
(BRJ1-201,CAD1-257)
(FDT1-362)
D6RII LGP (ACJ1-113)
(ADE1-1016)
(AFD1-98)
(BNC1-433)
(BPP1-502)
(BPZ1-532)
D6RII XL (AAX1-139)
(AGM1-111)
(BMJ1-166)
(BMY1-479)
(BPS1-503)
(BRZ1-537)
D6RII XW (AEP1-711)
(BRE1-501)
(DAE1-192)
D6RIII LGP (WCB1-111,WRG1-157)
D6RIII XW (HDC1-132,MRT1-1)
Track Loader 963C (BBD1-2311)
Component Code 1925SUBJECT: System Malfunctions Related To The Injection Actuation Pressure Sensors In Excavators, Wheel Loaders, Engines, Track-Type Tractors and Track Loaders
PROBLEM:
The Injection Actuation Pressure (IAP) sensors are being replaced on machine applications with C7/3126 engines. Some C9 engine models are also affected. The system event code 164-11 or 164-02 leads the technician to replace the sensor. Many of these sensors are no fault found. The result of these failures is loss of production due to unscheduled downtime.
SOLUTION:
Follow current troubleshooting guidelines for highway trucks to troubleshoot the part causing the failure. This will aid the technician in finding the correct part causing the failure. Report any troubleshooting guidelines errors using the feedback function in the Service Information System (SIS Web).
COPYRIGHT 2005 CATERPILLAR
ALL RIGHTS RESERVED
