105487-0984 ZEXEL 9 420 611 963 BOSCH GOVERNOR 9420611963 1054870984 1910197163

Information governor

BOSCH 9 420 611 963 9420611963

ZEXEL 105487-0984 1054870984

NISSAN-DIESEL 1910197163 1910197163

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-0984 zexel genuine, new aftermarket engine parts with delivery

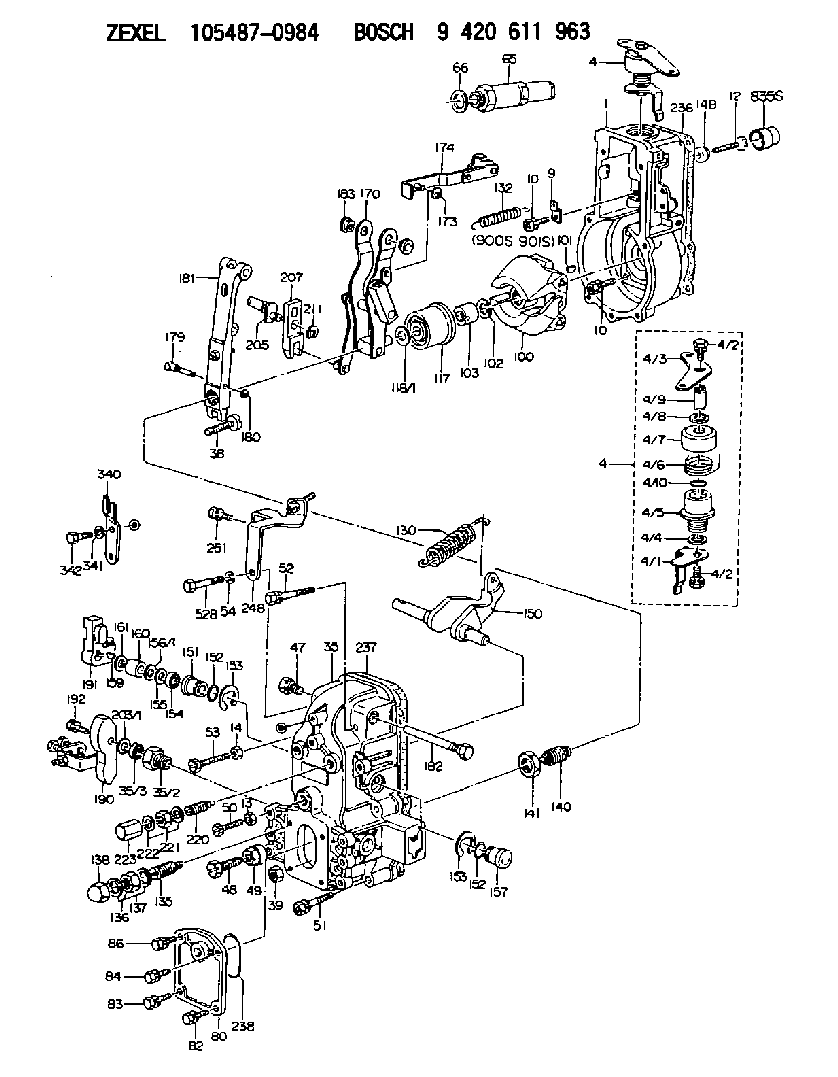

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
4.	[1]	154365-3120	CONTROL LEVER
4.	[1]	154365-3120	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154304-0900	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154013-0600	BLEEDER SCREW
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	154011-0100	HEXAGON NUT
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-6520	GOVERNOR COVER
35/2.	[1]	154321-2300	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-1200	CAPSULE
48.	[1]	154010-7100	BLEEDER SCREW M10P1.25L47
48B.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1600	BLEEDER SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[1]	020106-5040	BLEEDER SCREW
52B.	[1]	029010-6850	BLEEDER SCREW
53.	[1]	154010-2900	BLEEDER SCREW
54.	[1]	014110-6440	LOCKING WASHER
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154060-4900	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9520	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0420	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6000	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
135.	[1]	154157-5120	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-0100	CAP NUT
140.	[1]	154176-7720	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3701	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7220	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4920	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154362-7020	CONTROL LEVER
191.	[1]	154340-0020	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
203/1.	[0]	139410-0200	SHIM D32&10.2T0.1
203/1.	[0]	139410-0300	SHIM D32&10.2T0.3
203/1.	[0]	139410-0400	SHIM D32&10.2T0.5
203/1.	[0]	139410-0500	SHIM D32&10.2T0.9
205.	[1]	154324-3100	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-7220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
248.	[1]	154359-6520	BRACKET
251.	[1]	020106-1240	BLEEDER SCREW M6P1.0L12
340.	[1]	154370-4700	PLATE
341.	[2]	014110-8440	LOCKING WASHER
342.	[2]	010008-1440	BLEEDER SCREW
835S.	[2]	154062-1700	CAP D20L32
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106871-0124 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-0984

9 420 611 963
NP-EP/RFD200/1350PF7CSRN36

1910197163 NISSAN-DIESEL

GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
