Information governor
BOSCH
9 420 611 961
9420611961
ZEXEL
105487-0882
1054870882
Rating:

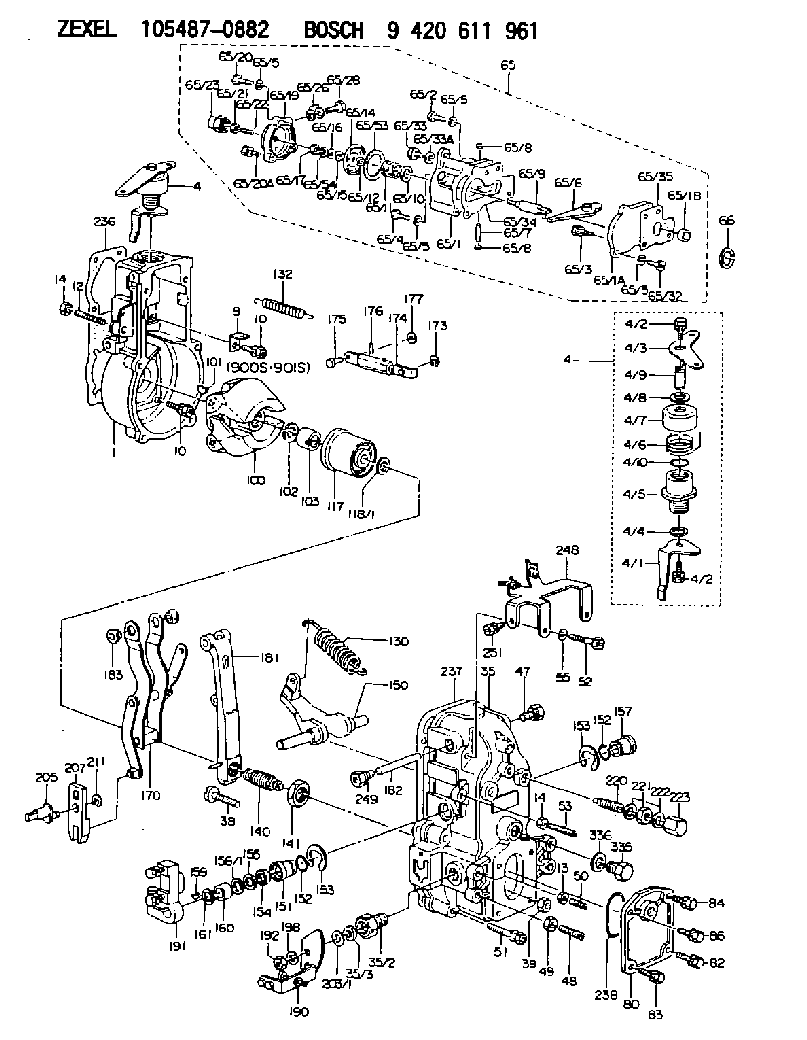

Scheme ###:
| 1. | [1] | 154000-4700 | GOVERNOR HOUSING |
| 4. | [1] | 154304-0920 | CONTROL LEVER |
| 4. | [1] | 154304-0920 | CONTROL LEVER |
| 4/1. | [1] | 154304-0100 | CONTROL LEVER |
| 4/2. | [2] | 154352-2000 | BLEEDER SCREW |
| 4/2. | [2] | 154352-2000 | BLEEDER SCREW |
| 4/3. | [1] | 154304-0900 | CONTROL LEVER |
| 4/4. | [1] | 029311-0230 | SHIM D18&10.3T0.5 |
| 4/5. | [1] | 154321-1500 | BUSHING |
| 4/6. | [1] | 154327-2901 | COILED SPRING |
| 4/7. | [1] | 154322-0100 | CAP |
| 4/8. | [1] | 029311-0220 | SHIM D18&10.3T0.2 |
| 4/9. | [1] | 154324-2700 | LEVER SHAFT |
| 4/10. | [1] | 029631-0030 | O-RING &9.8W2.3 |
| 9. | [1] | 154350-6000 | PLATE |
| 10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
| 10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
| 12. | [1] | 154010-0100 | FLAT-HEAD SCREW |
| 13. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
| 14. | [2] | 154011-0100 | HEXAGON NUT |
| 14. | [2] | 154011-0100 | HEXAGON NUT |
| 35. | [1] | 154512-6820 | GOVERNOR COVER |
| 35/2. | [1] | 154321-1800 | BUSHING |
| 35/3. | [1] | 029621-0080 | PACKING RING |
| 38. | [1] | 154031-3200 | FLAT-HEAD SCREW |
| 39. | [1] | 154011-1600 | UNION NUT |
| 47. | [1] | 154036-0300 | CAPSULE |
| 48. | [1] | 154010-0300 | FLAT-HEAD SCREW |
| 49. | [1] | 029240-8000 | UNION NUT |
| 50. | [1] | 155615-1000 | FLAT-HEAD SCREW |
| 51. | [4] | 020106-3840 | BLEEDER SCREW |
| 52. | [2] | 029010-6850 | BLEEDER SCREW |
| 53. | [1] | 154010-0100 | FLAT-HEAD SCREW |
| 55. | [2] | 014110-6440 | LOCKING WASHER |
| 65. | [1] | 154407-6722 | MANIFOLD-PRESSURE COMP. |
| 65/1. | [1] | 154408-6020 | GOVERNOR HOUSING |
| 65/1A. | [1] | 154408-2400 | SPACER BUSHING |
| 65/1B. | [1] | 134009-0000 | SPACER BUSHING |
| 65/2. | [2] | 029010-6310 | BLEEDER SCREW |
| 65/3. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 65/4. | [1] | 029010-6220 | BLEEDER SCREW |
| 65/5. | [5] | 014110-6440 | LOCKING WASHER |
| 65/5. | [5] | 014110-6440 | LOCKING WASHER |
| 65/5. | [5] | 014110-6440 | LOCKING WASHER |
| 65/5. | [5] | 014110-6440 | LOCKING WASHER |
| 65/6. | [1] | 154408-1400 | CONTROL LEVER |
| 65/7. | [1] | 029405-0110 | BEARING PIN |
| 65/8. | [2] | 029140-8020 | CAPSULE |
| 65/8. | [2] | 029140-8020 | CAPSULE |
| 65/9. | [1] | 154400-4620 | STOP PIN |
| 65/10. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
| 65/10B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
| 65/11. | [1] | 154402-0300 | COILED SPRING |
| 65/12. | [1] | 029300-8260 | PLAIN WASHER |
| 65/14. | [1] | 154400-7420 | DIAPHRAGM |
| 65/15. | [1] | 029310-8560 | SHIM D14&8.4T0.7 |
| 65/16. | [1] | 139505-0000 | PLAIN WASHER |
| 65/17. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
| 65/19. | [1] | 154404-5200 | COVER |
| 65/20. | [2] | 029010-6310 | BLEEDER SCREW |
| 65/20A. | [1] | 020106-2240 | BLEEDER SCREW |
| 65/21. | [1] | 023040-6040 | UNION NUT |
| 65/22. | [1] | 154404-1100 | FLAT-HEAD SCREW |
| 65/23. | [1] | 154035-0320 | CAP NUT |
| 65/26. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
| 65/28. | [1] | 029731-0120 | EYE BOLT |
| 65/32. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 65/33. | [1] | 029011-0120 | BLEEDER SCREW |
| 65/33A. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
| 65/34. | [1] | 154390-0800 | GASKET |
| 65/35. | [1] | 154390-0900 | GASKET |
| 65/53. | [2] | 154413-2600 | GASKET |
| 65/54. | [1] | 139308-0700 | LOCKING WASHER |
| 66. | [1] | 026524-3040 | GASKET |
| 80. | [1] | 154060-4900 | COVER |
| 82. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 83. | [1] | 029020-6210 | BLEEDER SCREW |
| 84. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
| 86. | [1] | 029020-6210 | BLEEDER SCREW |
| 100. | [1] | 154100-5020 | FLYWEIGHT ASSEMBLY |
| 101. | [1] | 025803-1310 | WOODRUFF KEY |
| 102. | [1] | 029321-2020 | LOCKING WASHER |
| 103. | [1] | 029231-2030 | UNION NUT |
| 117. | [1] | 154123-0420 | SLIDING PIECE |
| 118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
| 118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
| 118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
| 118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
| 118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
| 118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
| 118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
| 118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
| 118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
| 130. | [1] | 154150-6000 | GOVERNOR SPRING |
| 132. | [1] | 154154-4000 | COILED SPRING |
| 140. | [1] | 154176-2120 | HEADLESS SCREW |
| 141. | [1] | 029201-6010 | UNION NUT |
| 150. | [1] | 154200-3701 | SWIVELLING LEVER |
| 151. | [1] | 154204-2001 | BUSHING |
| 152. | [2] | 029631-8020 | O-RING |
| 152. | [2] | 029631-8020 | O-RING |
| 153. | [2] | 154354-3900 | LOCKING WASHER |
| 153. | [2] | 154354-3900 | LOCKING WASHER |
| 154. | [1] | 139611-0000 | PACKING RING |
| 155. | [1] | 139411-0000 | SHIM |
| 156/1. | [0] | 029311-1110 | SHIM D17&11T0.1 |
| 156/1. | [0] | 029311-1120 | SHIM D17&11T0.2 |
| 156/1. | [0] | 029311-1130 | SHIM D17&11T0.3 |
| 157. | [1] | 154204-3400 | BUSHING |
| 159. | [1] | 025803-1310 | WOODRUFF KEY |
| 160. | [1] | 154206-0900 | BUSHING |
| 161. | [1] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
| 170. | [1] | 154211-6220 | FORK LEVER |
| 173. | [1] | 016010-0540 | LOCKING WASHER |
| 174. | [1] | 154230-5920 | STRAP |
| 175. | [1] | 159231-4900 | BEARING PIN |
| 176. | [1] | 155402-3800 | SAFETY PIN |
| 177. | [1] | 029310-5170 | SHIM D8&5.3T0.5 |
| 181. | [1] | 154236-1220 | TENSIONING LEVER |
| 182. | [1] | 154237-0400 | BEARING PIN |
| 183. | [2] | 154237-0600 | BUSHING |
| 190. | [1] | 154305-8920 | CONTROL LEVER |
| 191. | [1] | 154340-0320 | CONTROL LEVER |
| 192. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
| 198. | [1] | 014110-8440 | LOCKING WASHER |
| 203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
| 203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
| 203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
| 203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
| 203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
| 203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
| 203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
| 203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
| 203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
| 203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
| 203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
| 205. | [1] | 154324-1200 | LEVER SHAFT |
| 207. | [1] | 154326-0300 | CONTROL LEVER |
| 211. | [1] | 016010-0840 | LOCKING WASHER |
| 220. | [1] | 154050-1220 | HEADLESS SCREW |
| 221. | [1] | 029201-2140 | UNION NUT |
| 222. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 223. | [1] | 154159-1200 | CAP NUT |
| 236. | [1] | 154371-5600 | GASKET |
| 237. | [1] | 154390-0300 | GASKET |
| 238. | [1] | 029635-2020 | O-RING |
| 248. | [1] | 154316-9120 | BRACKET |
| 249. | [1] | 154036-1200 | CAPSULE |
| 251. | [1] | 029010-6740 | BLEEDER SCREW |
| 335. | [1] | 029111-2040 | CAPSULE |
| 336. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
| 900S. | [1] | 025803-1310 | WOODRUFF KEY |
| 901S. | [1] | 025803-1610 | WOODRUFF KEY |
Cross reference number
Zexel num
Bosch num
Firm num
Name
