105487-0550 ZEXEL F 019 Z1E 413 BOSCH GOVERNOR f019z1e413 1054870550 me056076

Information governor

BOSCH F 019 Z1E 413 f019z1e413

ZEXEL 105487-0550 1054870550

MITSUBISHI ME056076 me056076

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105487-0550 zexel genuine, new aftermarket engine parts with delivery

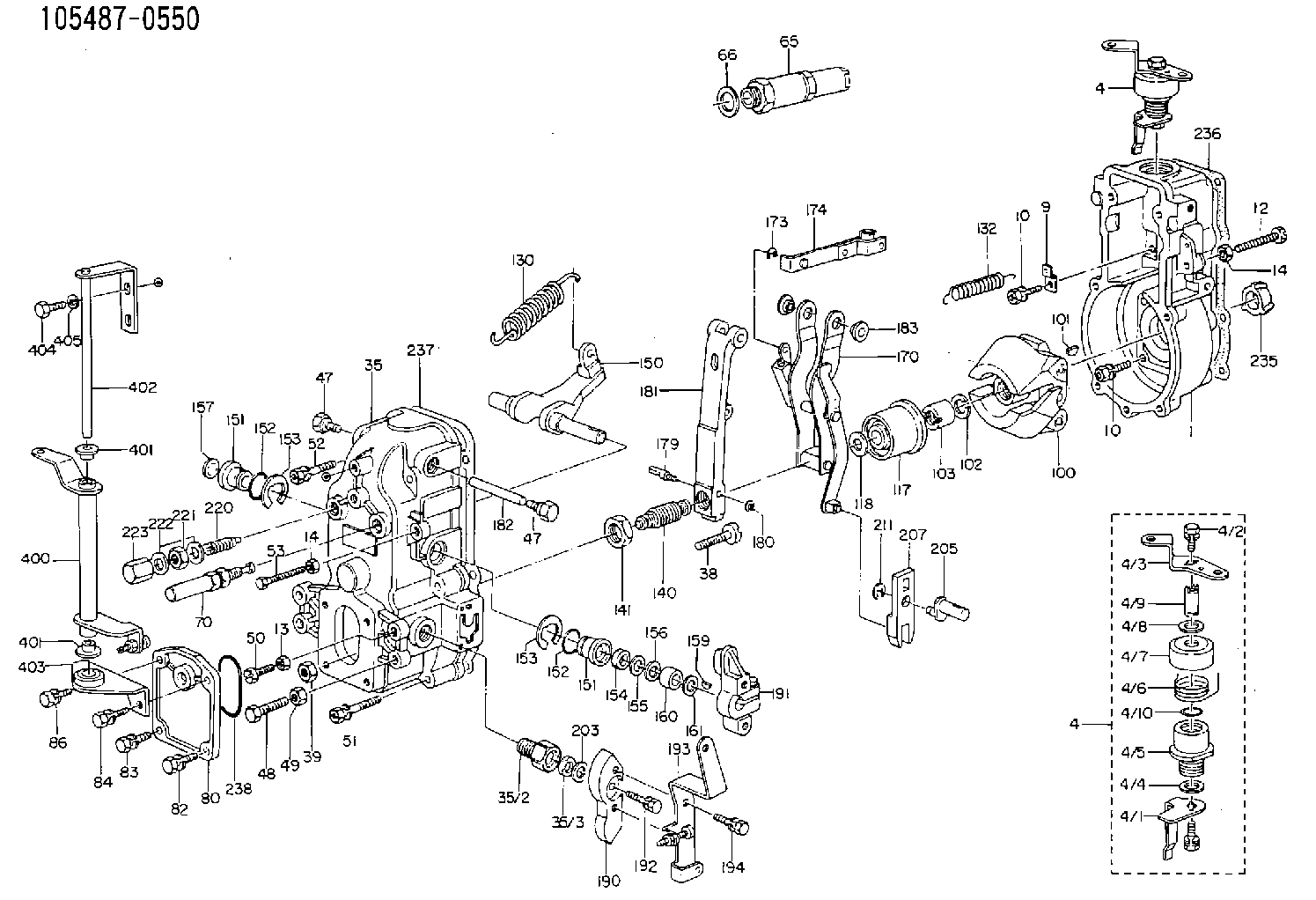

Scheme ###:

1.	[1]	154000-5720	GOVERNOR HOUSING
4.	[1]	154364-2721	CONTROL LEVER
4.	[1]	154364-2721	CONTROL LEVER
4/1.	[1]	154304-6200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154364-2701	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2901	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-7500	BLEEDER SCREW M8P1.25L50
13.	[1]	013020-6040	UNION NUT M6P1H5
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14.	[1]	013020-8040	UNION NUT M8P1.25H7
14B.	[1]	154011-2300	UNION NUT
35.	[1]	154513-2020	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3500	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[1]	154036-0300	CAPSULE
47.	[1]	154036-0300	CAPSULE
48.	[1]	154010-7700	BLEEDER SCREW M10P1.25L51
49.	[1]	154011-2200	UNION NUT
50.	[1]	155615-1600	BLEEDER SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-7300	BLEEDER SCREW M8P1.25L60
65.	[1]	153020-4320	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154060-4900	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9620	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-8000	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
140.	[1]	154178-4120	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-3801	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154216-2520	GUIDE LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4920	STRAP
179.	[1]	154238-0301	BEARING PIN
180.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-5300	TENSIONING LEVER
182.	[1]	154237-0900	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154360-2800	CONTROL LEVER
191.	[1]	154340-0120	CONTROL LEVER
192.	[1]	020006-1670	BLEEDER SCREW M6P1L16 7T
193.	[1]	154360-6422	CONTROL LEVER
194.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-3000	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-6220	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT M12P1.0H6
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-2210 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105487-0550

F 019 Z1E 413
NP-EP/RFD200/1700PF37CSRN5

ME056076 MITSUBISHI

GOVERNOR
K

Information:

TERMINATION DATE
30Sep2015
PROBLEM
The existing 375-5244 or early production 379-0150 common rail fuel injection pumps may fail on certain 336E Excavators. If the existing common rail fuel injection pump fails the engine may exhibit no start, hard starting or loss of power.
AFFECTED PRODUCT
Model Identification Number
336E L BZY00328, 409, 432, 434, 440, 459, 534, 536, 792, 875, 1266, 1319, 1321, 1335
PARTS NEEDED
Qty
Part Number Description
1 6V8260 SEAL-O-RING
1 2287102 SEAL-O-RING-STOR
1 3790150 PUMP GP-FUEL
1 4154991 VALVE AS-RELIEF
1 4286096 KIT-F PUMP LINE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 32% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
1. Refer to Special Instruction, REHS5023, "Replacing the Fuel Injection Pump on Certain C9.3 Engines". Replace the existing 375-5244 or early production 379-0150 common rail fuel injection pump with the new production 379-0150 common rail fuel injection pump and new gasket 6V-8260. Install a new 356-5214 fuel line from the common rail fuel injection pump to the fuel rail.
2. Refer to C9.3 Disassembly and Assembly, KENR8149 "Engines for Caterpillar Built Machines". Replace the prior 362-0770 Pressure Relief Valve with 415-4991 Pressure Relief Valve, and 228-7102 O-ring.
3. Refer to Service Magazine, SEPD1928, "An Improved Fuel Injection Pump Group Is Used on Certain C9.3 Machine Engines", in order to record the common rail fuel injection pump serial number. This serial number must be entered into the containment service letter claim story.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-5000 hrs,
0-48 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 12.0-hour job
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
