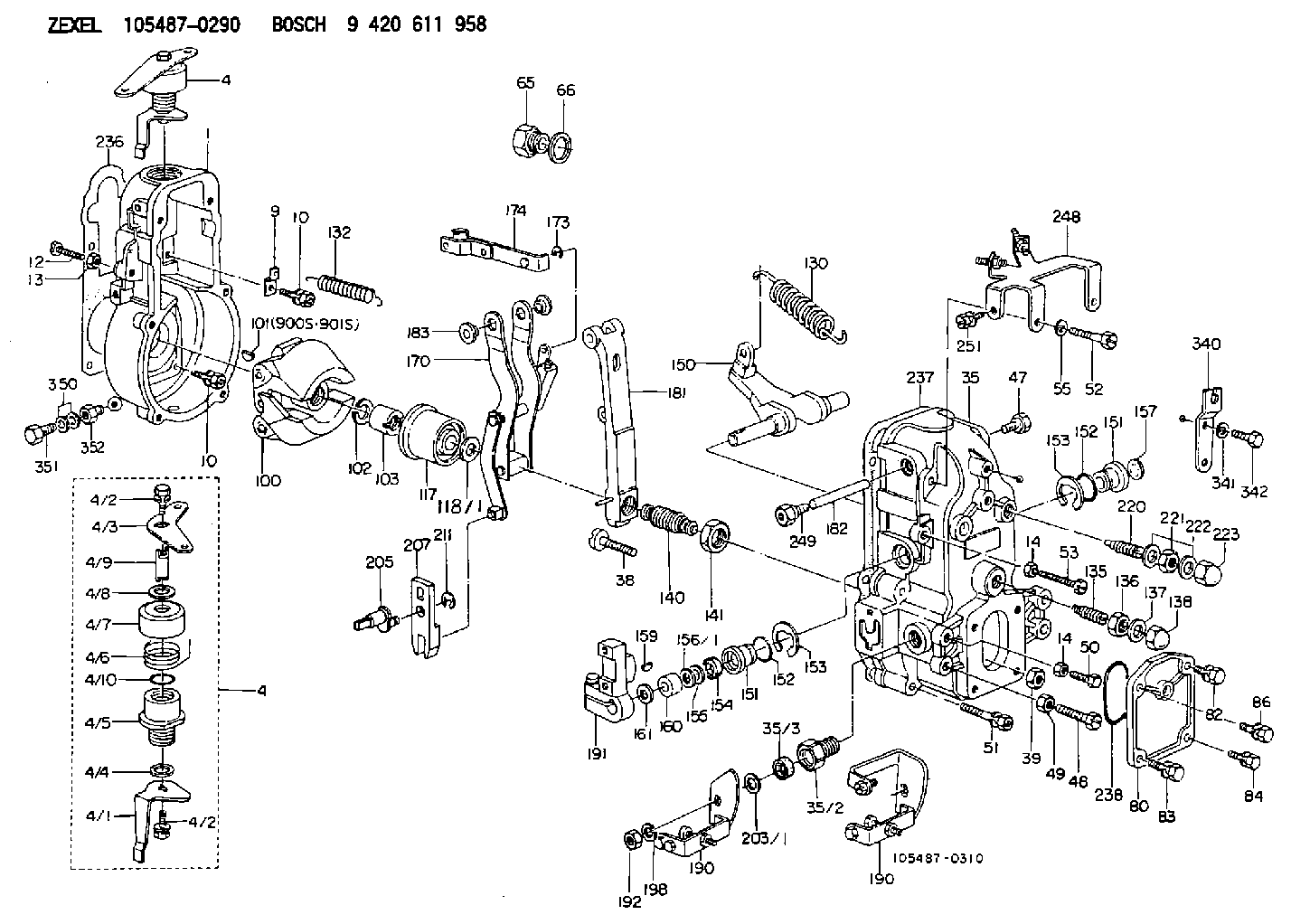

105487-0290 ZEXEL 9 420 611 958 BOSCH GOVERNOR 9420611958 1054870290 1910197111

September 13, 2003
(Revised October 2003)
U-250
A-177
D-181
O-210
beforeor
after failure PRODUCT SUPPORT PROGRAM FOR REPLACINGTHE INJECTION ACTUATION PRESSURE SENSOR ON CERTAIN 938G-II, 950G-II, 962G-IIWHEEL LOADERS AND IT62G-II, IT38G-II INTEGRATED TOOLCARRIERS
1925 PS41385
This Program can be administered eitherbefore or after failure. In either case the decision whether to apply theProgram is made by the dealer. When reporting the repair, use "PS41385"as the Part number and "7755" as the Group Number. If administered beforefailure, use "56" as the Warranty Claim Description Code and use "T" asthe SIMS Description Code. If administered after failure, use "96" as theWarranty Claim Description Code and use "Z" as the SIMS Description Code. The information supplied in this serviceletter may not be valid after the termination date of this program. Donot perform the work outlined in this Service Letter after the terminationdate without first contacting your Caterpillar product analyst. This Revised Service Letter replacesthe September 13, 2003 Service Letter. Changes have been made to the Titleand Affected Product.TERMINATION DATE
September 30, 2005PROBLEM
The injection actuation pressure sensor needsto be replaced on certain 938G-II, 950G-II, 962G-II Wheel Loaders and IT38G-IIIntegrated Toolcarriers. The 1946726 sensor may leak so it needs to bereplaced with the 2244536 sensor.AFFECTED PRODUCT
Model IdentificationNumber
938G II CRD1-435PHN1-549
950G II AXR1-243AXX1-386AYL1-1038AYB1-692AYD227-228AYS111-160BAA111-320
962G II AXY1-258AXS364-375AYE1-529AYG364-370BAB1-436BAC213-235BAD213-265
IT62G II AYA109-145
IT38G II CSX1-349PARTS NEEDED
Qty
Part Number Description
1 2244536 SENSOR GP-PRACTION REQUIRED
Remove 1946726 injection actuation pressure sensor.
Replace with 2244536 injection actuation pressuresensor.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts Labor Hrs Parts Labor Hrs Parts Labor Hrs
0-4000 hrs
0-24 mos 100% 1.0 0 0 0 0
This is a 1.0?hr job.PARTS DISPOSITION
Handle the parts in accordance with your WarrantyBulletin on warranty parts handling.
