105480-0370 ZEXEL F 019 Z1E 294 BOSCH GOVERNOR f019z1e294 1054800370 223001460a

Information governor

BOSCH F 019 Z1E 294 f019z1e294

ZEXEL 105480-0370 1054800370

HINO 223001460A 223001460a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105480-0370 zexel genuine, new aftermarket engine parts with delivery

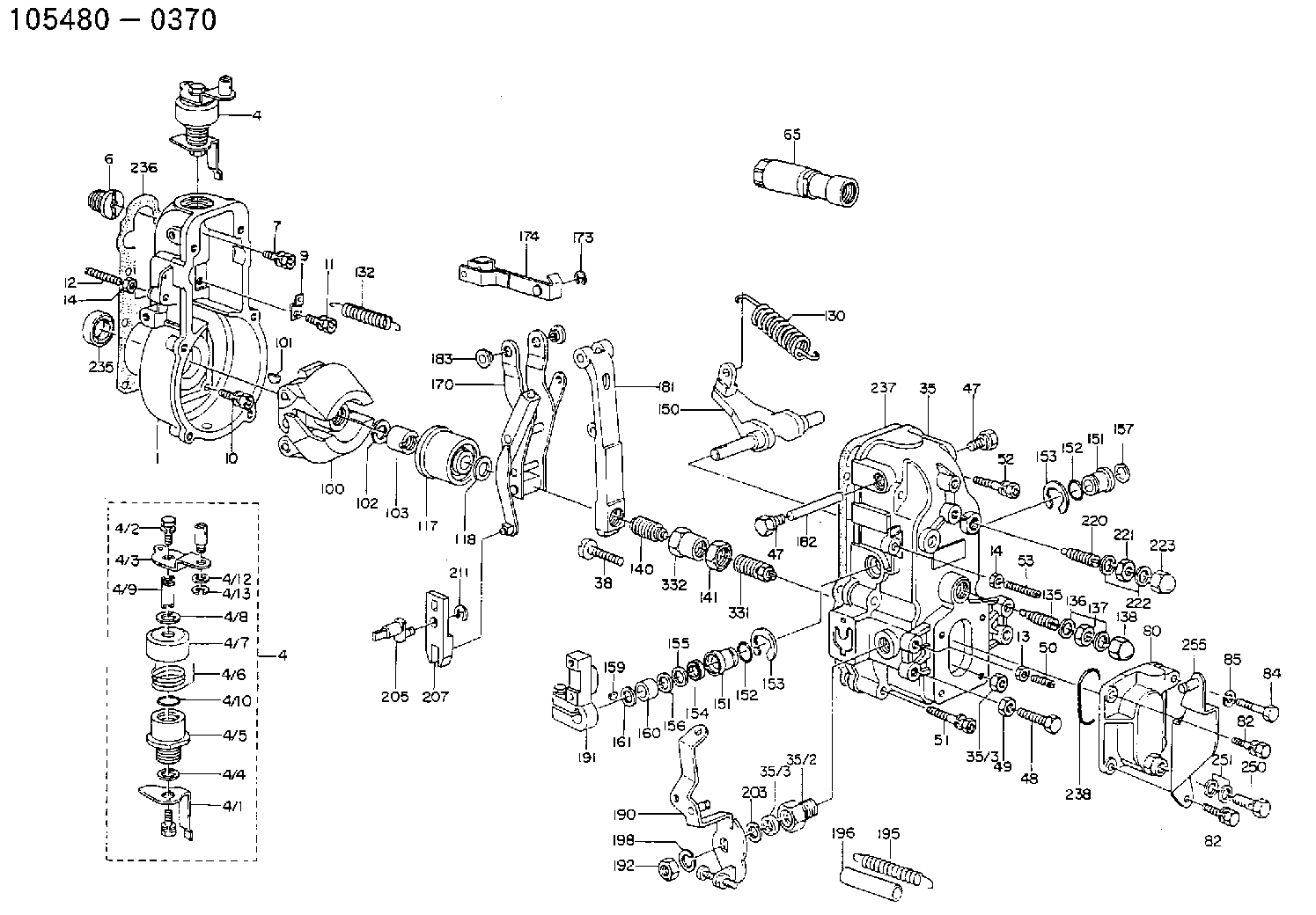

Scheme ###:

1.	[1]	154000-7400	GOVERNOR HOUSING
4.	[1]	154304-3221	CONTROL LEVER
4.	[1]	154304-3221	CONTROL LEVER
4/1.	[1]	154304-3200	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154304-3300	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM D18&10.3T0.5
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-2300	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM D18&10.3T0.2
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING &9.8W2.3
4/11.	[1]	154353-3701	BEARING PIN
4/12.	[1]	014010-6140	PLAIN WASHER D13&6.5T1
4/12B.	[0]	029310-6040	SHIM
4/13.	[1]	016010-0540	LOCKING WASHER
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-2040	BLEEDER SCREW M8P1.25L20 4T
8.	[1]	154353-4400	PLATE
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
12.	[1]	154010-0200	FLAT-HEAD SCREW
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
14.	[2]	154011-0100	HEXAGON NUT
14.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154512-6120	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3200	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154010-2400	BLEEDER SCREW
49.	[1]	029240-8000	UNION NUT
50.	[1]	155615-1100	FLAT-HEAD SCREW M6P1.0L37
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
65.	[1]	153020-3720	STOPPING DEVICE
80.	[1]	154063-1020	COVER
82.	[1]	029020-6210	BLEEDER SCREW
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6240	BLEEDER SCREW
84.	[1]	029000-6800	BLEEDER SCREW
86.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
100.	[1]	154100-5020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1420	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6200	GOVERNOR SPRING
132.	[1]	154154-1300	COILED SPRING
140.	[1]	154176-9320	HEADLESS SCREW
141.	[1]	029201-6220	UNION NUT
150.	[1]	154200-3701	SWIVELLING LEVER
151.	[1]	154204-2001	BUSHING
151.	[1]	154204-2001	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	154354-3900	LOCKING WASHER
153.	[2]	154354-3900	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156/1.	[0]	029311-1110	SHIM D17&11T0.1
156/1.	[0]	029311-1120	SHIM D17&11T0.2
156/1.	[0]	029311-1130	SHIM D17&11T0.3
157.	[1]	154204-3400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-0900	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-7520	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-5420	STRAP
181.	[1]	154236-1220	TENSIONING LEVER
182.	[1]	154237-0400	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154306-9220	CONTROL LEVER
191.	[1]	154340-0020	CONTROL LEVER
192.	[1]	013020-8040	UNION NUT M8P1.25H7
195.	[2]	154314-6000	COILED SPRING
196.	[2]	154156-0600	TUBE
198.	[1]	014110-8440	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-1200	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-2320	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
235.	[1]	029621-7010	PACKING RING
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
250.	[1]	027412-2440	EYE BOLT
251.	[2]	139512-0600	GASKET
255.	[1]	154213-6220	BRACKET
331.	[1]	154176-0520	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT

Cross reference number

Zexel num

Bosch num

Firm num

Name

105480-0370

F 019 Z1E 294
NP-EP/RFD200/1650AF9BSRN212

223001460A HINO

GOVERNOR
* K

Information:

Caterpillar: Confidential Yellow
PSP FOR REPLACING UNIT INJECTOR RETURN SPRINGS ON CERTAIN D11N TRACTORS; 776B TRACTORS; 777B, 785, 789 TRUCKS; 3508, 3512, 351 6 ENGINES - PS4591 - MAILED US AND CANADA, CACO, COFA, CFEL, COSA, MARINE TEPS
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
May 30, 1991 U-110 A-78 AU-66 E-69 O-82 TM-9 PRODUCT SUPPORT PROGRAM FOR REPLACING UNIT INJECTOR RETURN SPRINGS ON CERTAIN D11N TRACTORS; 776B TRACTORS; 777B, 785, AND 789 TRUCKS; AND 3508, 3512, AND 3516 ENGINES. 1290 PS4591 This Program can be administered either before or after a failure. In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS4591" as Part Number, "7755" as Group Number, and "96" as Description Code. Although this Program is to be administered as described above on the Affected Product, parts stock should be reworked as soon as possible. Termination Date
May 31, 1992
Problem
The return springs for Type 2 unit injectors on certain D11N Tractors; 776B Tractors; 777B, 785, and 789 Trucks; and 3508, 3512, and 3516 Engines may fail in some applications. Type 2 injectors are described on
