105472-1280 ZEXEL F 019 Z1E 962 BOSCH GOVERNOR f019z1e962 1054721280

Information governor

BOSCH F 019 Z1E 962 f019z1e962

ZEXEL 105472-1280 1054721280

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105472-1280 zexel genuine, new aftermarket engine parts with delivery

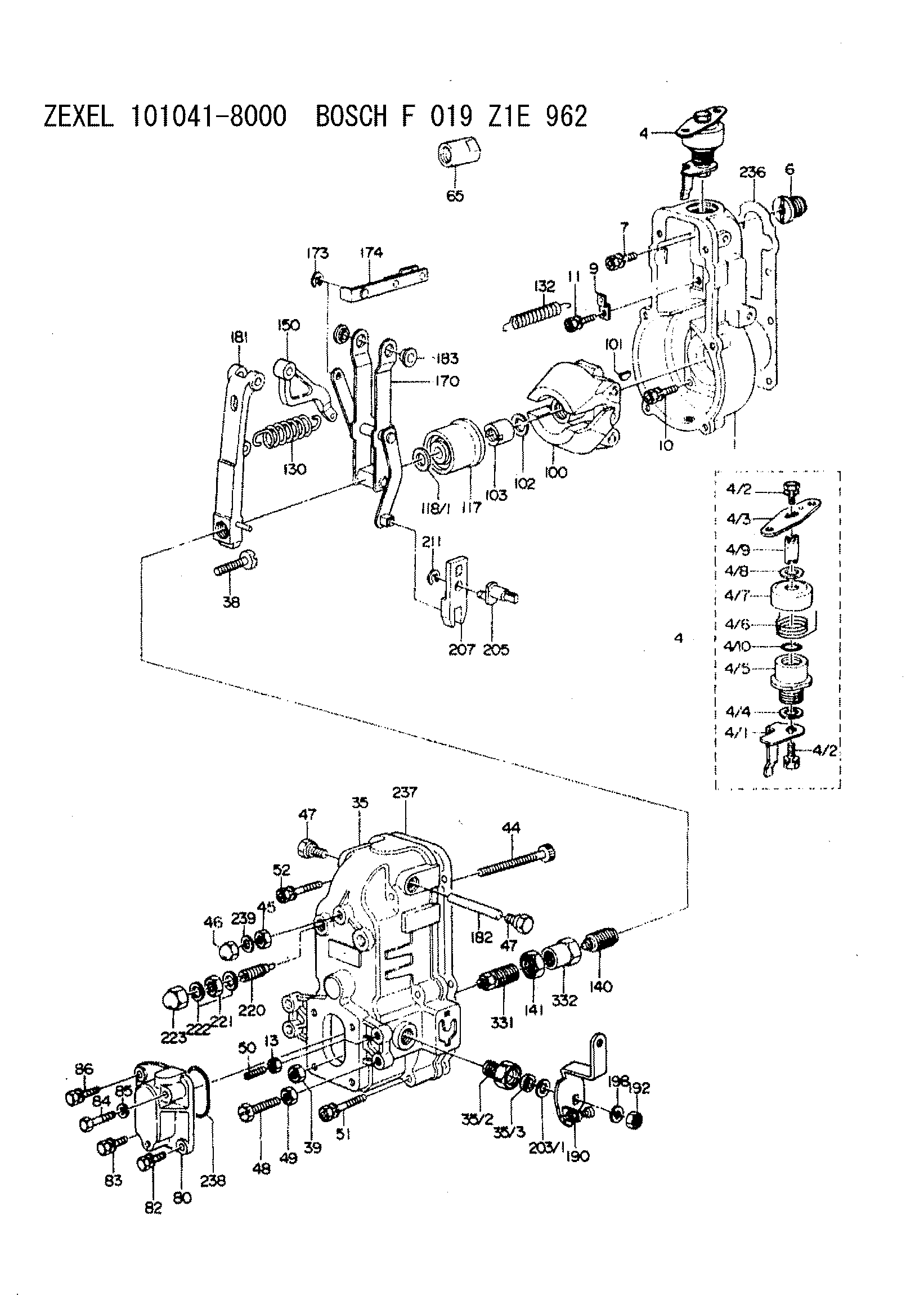

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
4.	[1]	154382-2820	CONTROL LEVER
4.	[1]	154382-2820	CONTROL LEVER
4/1.	[1]	154304-3500	CONTROL LEVER
4/2.	[2]	154352-2000	BLEEDER SCREW
4/2.	[2]	154352-2000	BLEEDER SCREW
4/3.	[1]	154302-6300	CONTROL LEVER
4/4.	[1]	029311-0230	SHIM
4/5.	[1]	154321-1500	BUSHING
4/6.	[1]	154327-4600	COILED SPRING
4/7.	[1]	154322-0100	CAP
4/8.	[1]	029311-0220	SHIM
4/9.	[1]	154324-2700	LEVER SHAFT
4/10.	[1]	029631-0030	O-RING
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW
13.	[1]	029240-6010	UNION NUT
35.	[1]	154510-9620	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3200	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
44.	[1]	154034-0600	FLAT-HEAD SCREW
45.	[1]	029200-8500	UNION NUT
46.	[1]	154035-1700	CAP NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154010-2500	BLEEDER SCREW
49.	[1]	029240-8000	UNION NUT
50.	[1]	155615-1000	FLAT-HEAD SCREW M6.P1.0.L32
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
65.	[1]	155404-3600	CAP
80.	[1]	154060-7900	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	020006-1640	BLEEDER SCREW
84.	[1]	029020-6220	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
86.	[1]	020006-1640	BLEEDER SCREW
100.	[1]	154100-9420	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY 16 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2200	GOVERNOR SPRING
132.	[1]	154154-1300	COILED SPRING
140.	[1]	154175-8920	HEADLESS SCREW
141.	[1]	029201-6220	UNION NUT
150.	[1]	154200-2300	CONTROL LEVER
170.	[1]	154211-8420	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-4720	STRAP
181.	[1]	154236-1120	TENSIONING LEVER
182.	[1]	154237-0400	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154386-6820	CONTROL LEVER
192.	[1]	013020-8040	UNION NUT
198.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-1200	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-9720	HEADLESS SCREW
221.	[1]	029201-2130	UNION NUT
222.	[2]	026512-1540	GASKET
223.	[1]	154159-1200	CAP NUT
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
239.	[1]	026508-1240	GASKET D11.9&8.2T1.0
331.	[1]	154172-4120	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT

Include in #1:

101605-9300 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105472-1280

F 019 Z1E 962
NP-EP/RAD200/1300AP1BCL

GOVERNOR
K

Information:

(1) Inside diameter of rod for small end bushing ... 38.8938 to 38.9192 mm (1.53125 to 1.53225 in)(2) Outside diameter of bushing for piston pin ... 38.989 to 39.027 mm (1.5350 to 1.5365 in) Inside diameter of bushing for piston pin (after reaming) ... 34.9441 to 34.9631 mm (1.37575 to 1.37650 in)Clearance between small end bushing and piston pin ... 0.0191 to 0.0432 mm (.00075 to .00170 in)(3) Distance between center of piston pin and center of crankshaft bearing ... 219.05 to 219.10 mm (8.624 to 8.626 in)(4) Outside diameter of connecting rod bearing ... 67.221 mm (2.6465 in) Inside diameter of connecting rod bearing (standard) ... 63.520 to 63.548 mm (2.5008 to 2.5019 in)Bearings available for reground (machined) journals of crankshaft with undersize ... 0.25, 0.51 and 0.76 mm (.010, .020 and .030 in)Shell thickness ... 1.836 to 1.844 mm (.0723 to .0726 in)(5) Inside diameter of rod for big end bearing ... 67.208 to 67.221 mm (2.6460 to 2.6465 in)(6) Torque for connecting rod nuts: Cadmium plated nuts (silver color) ... 100 N m (75 lb ft)Phosphated nuts (dull black color) ... 130 N m (95 lb ft)C4.236 Engines
(1) Inside diameter of rod for small end bushing ... 42.0688 to 42.0942 mm (1.65625 to 1.65725 in)(2) Outside diameter of bushing for piston pin ... 42.1577 to 42.1958 mm (1.65975 to 1.66125 in) Inside diameter of bushing for piston pin (after reaming) ... 38.1191 to 38.1381 mm (1.50075 to 1.50150 in)Clearance between small end bushing and piston pin ... 0.0191 to 0.0432 mm (.00075 to .00170 in)(3) Distance between center of piston pin and center of crankshaft bearing ... 219.05 to 219.10 mm (8.624 to 8.626 in)(4) Outside diameter of connecting rod bearing ... 67.221 mm (2.6465 in) Inside diameter of connecting rod bearing (standard) ... 63.520 to 63.548 mm (2.5008 to 2.5019 in)Bearing available for reground (machined) journals of crankshaft with undersize ... 0.25, 0.51 and 0.76 mm (.010, .020 and .030 in)Shell thickness ... 1.836 to 1.844 mm (.0723 to .0726 in)(5) Inside diameter of rod for big end bearing ... 67.208 to 67.221 mm (2.6460 to 2.6465 in)(6) Torque for connecting rod nuts: Cadmium plated nuts (silver color) ... 100 N m (75 lb ft)Phosphated nuts (dull black color) ... 130 N m (95 lb ft)
