Information governor
BOSCH
F 019 Z4E 664
f019z4e664
ZEXEL
105472-1210
1054721210
ISUZU
1157209700
1157209700

Rating:

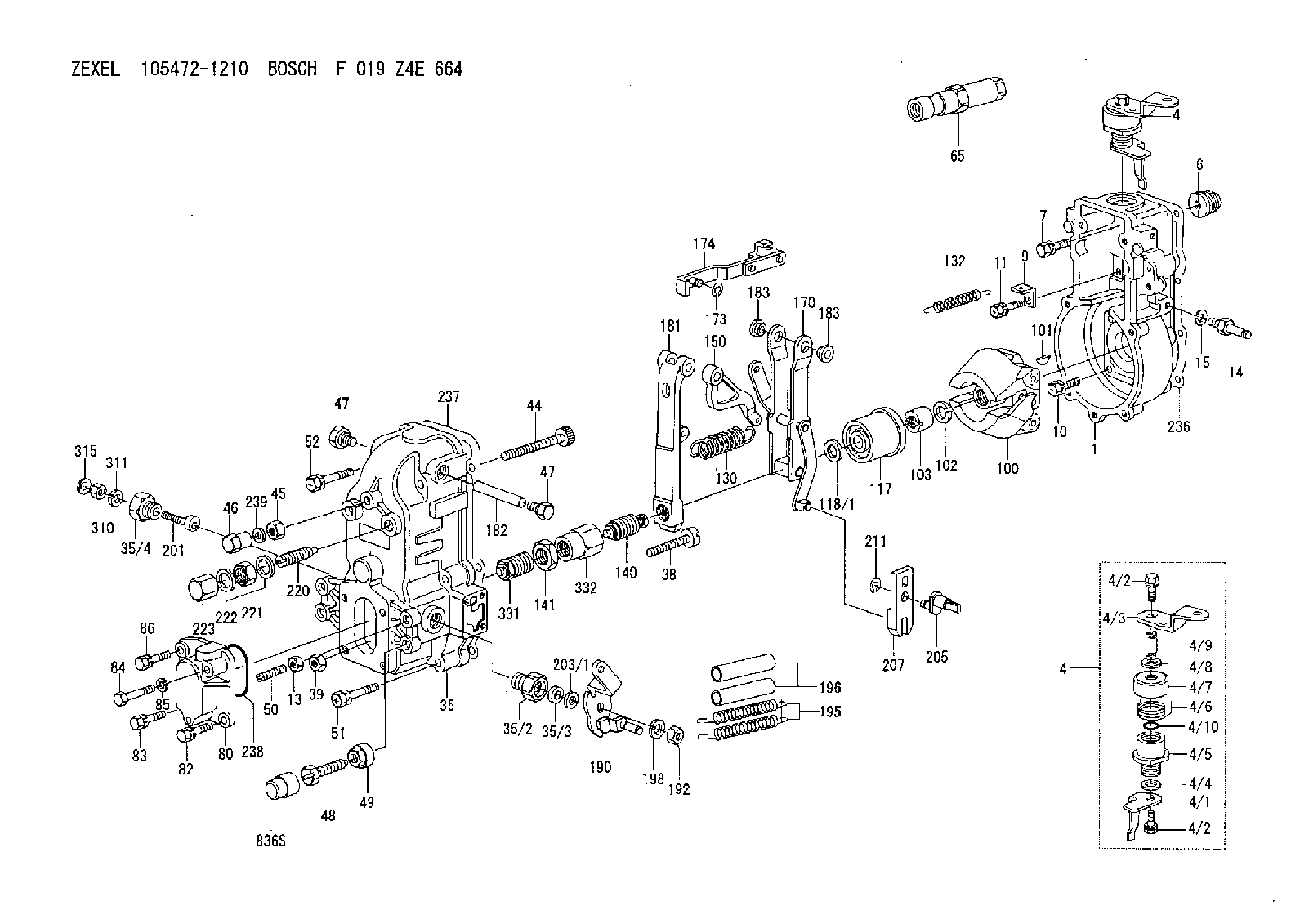

Scheme ###:
1. | [1] | 154000-6400 | GOVERNOR HOUSING |
4. | [1] | 154367-3220 | CONTROL LEVER |
4. | [1] | 154367-3220 | CONTROL LEVER |
4/1. | [1] | 154304-3500 | CONTROL LEVER |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/2. | [2] | 154352-2000 | BLEEDER SCREW |
4/3. | [1] | 154367-3200 | CONTROL LEVER |
4/4. | [1] | 029311-0230 | SHIM D18&10.3T0.5 |
4/5. | [1] | 154321-1500 | BUSHING |
4/6. | [1] | 154327-3500 | COILED SPRING |
4/7. | [1] | 154322-0100 | CAP |
4/8. | [1] | 029311-0220 | SHIM D18&10.3T0.2 |
4/9. | [1] | 154324-2700 | LEVER SHAFT |
4/10. | [1] | 029631-0030 | O-RING &9.8W2.3 |
6. | [1] | 154007-0200 | ADAPTOR |
7. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
9. | [1] | 154350-1800 | PLATE |
10. | [5] | 029010-6810 | BLEEDER SCREW |
11. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
13. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
14. | [1] | 154352-3020 | BLEEDER SCREW |
15. | [1] | 014110-8440 | LOCKING WASHER |
35. | [1] | 154510-8620 | GOVERNOR COVER |
35/2. | [1] | 154321-1800 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
35/4. | [1] | 154321-2400 | BUSHING |
38. | [1] | 154031-3200 | FLAT-HEAD SCREW |
39. | [1] | 154011-1600 | UNION NUT |
44. | [1] | 154034-2300 | FLAT-HEAD SCREW |
45. | [1] | 154011-2500 | UNION NUT |
46. | [1] | 154035-2100 | CAP NUT |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
48. | [1] | 154010-4400 | BLEEDER SCREW |
49. | [1] | 029240-8000 | UNION NUT |
50. | [1] | 155615-1000 | FLAT-HEAD SCREW |
51. | [4] | 020106-3840 | BLEEDER SCREW |
52. | [2] | 020106-5040 | BLEEDER SCREW |
65. | [1] | 153043-6820 | STOPPING DEVICE |
80. | [1] | 154060-0020 | COVER |
82. | [1] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
84. | [1] | 029020-6220 | BLEEDER SCREW |
85. | [1] | 014110-6440 | LOCKING WASHER |
86. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154101-0520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-1420 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-2400 | GOVERNOR SPRING |
132. | [1] | 154154-1300 | COILED SPRING |
140. | [1] | 154176-8820 | HEADLESS SCREW |
141. | [1] | 029201-6220 | UNION NUT |
150. | [1] | 154200-2300 | CONTROL LEVER |
170. | [1] | 154216-9720 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-4720 | STRAP |
181. | [1] | 154236-1120 | TENSIONING LEVER |
182. | [1] | 154237-0400 | BEARING PIN |
183. | [2] | 154237-0600 | BUSHING |
183. | [2] | 154237-0600 | BUSHING |
190. | [1] | 154305-6120 | CONTROL LEVER |
192. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
195. | [2] | 154332-1800 | COILED SPRING |
196. | [2] | 154156-0600 | TUBE |
198. | [1] | 014110-8440 | LOCKING WASHER |
201. | [1] | 154324-4420 | LEVER SHAFT |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-1200 | LEVER SHAFT |
207. | [1] | 154326-0300 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-6820 | HEADLESS SCREW |
221. | [1] | 029201-2130 | UNION NUT M12P1.0H6 |
222. | [2] | 139512-0000 | GASKET D17.2&12.2T1.0 |
223. | [1] | 154159-1200 | CAP NUT |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
239. | [1] | 026508-1240 | GASKET D11.9&8.2T1 |
310. | [1] | 013010-6040 | UNION NUT M6P1H5 |
311. | [1] | 014110-6440 | LOCKING WASHER |
315. | [1] | 154357-5700 | CAP |
331. | [1] | 154179-0220 | HEADLESS SCREW |
332. | [1] | 029201-6010 | UNION NUT |
836S. | [1] | 154062-1700 | CAP D20L32 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
