105472-0891 ZEXEL F 019 Z1E 291 BOSCH GOVERNOR f019z1e291 1054720891 223001681a

Information governor

BOSCH F 019 Z1E 291 f019z1e291

ZEXEL 105472-0891 1054720891

HINO 223001681A 223001681a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105472-0891 zexel genuine, new aftermarket engine parts with delivery

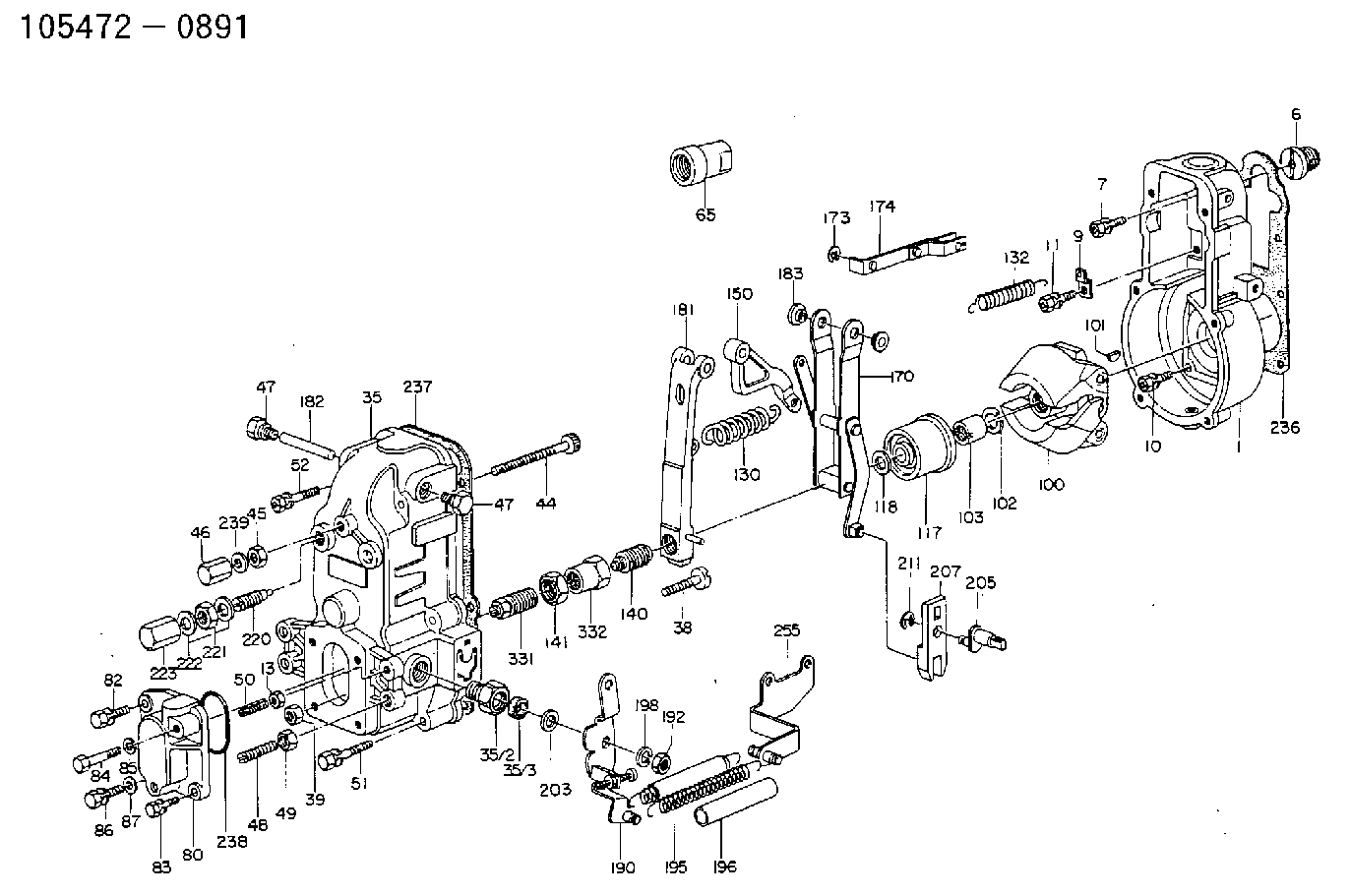

Scheme ###:

1.	[1]	154000-7800	GOVERNOR HOUSING
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
13.	[1]	029240-6010	UNION NUT M6P1.0H5*
35.	[1]	154510-2220	GOVERNOR COVER
35/2.	[1]	154321-1800	BUSHING
35/3.	[1]	029621-0080	PACKING RING
38.	[1]	154031-3200	FLAT-HEAD SCREW
39.	[1]	154011-1600	UNION NUT
44.	[1]	154034-0600	FLAT-HEAD SCREW
45.	[1]	029200-8500	UNION NUT
46.	[1]	154035-1700	CAP NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154010-2300	FLAT-HEAD SCREW
49.	[1]	029240-8000	UNION NUT
50.	[1]	155615-0300	FLAT-HEAD SCREW
51.	[4]	020106-3840	BLEEDER SCREW
52.	[2]	020106-5040	BLEEDER SCREW
65.	[1]	154050-1720	STOPPING DEVICE
80.	[1]	154060-7900	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	029000-6800	BLEEDER SCREW
86.	[1]	029020-6210	BLEEDER SCREW
100.	[1]	154100-5020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0420	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2200	GOVERNOR SPRING
132.	[1]	154154-1300	COILED SPRING
140.	[1]	154175-8920	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-2300	CONTROL LEVER
170.	[1]	154210-8120	FORK LEVER
173.	[1]	016010-0540	LOCKING WASHER
174.	[1]	154230-3920	STRAP
181.	[1]	154236-1120	TENSIONING LEVER
182.	[1]	154237-0400	BEARING PIN
183.	[2]	154237-0600	BUSHING
190.	[1]	154361-2420	CONTROL LEVER
192.	[1]	013020-8040	UNION NUT M8P1.25H7
195.	[2]	154314-9100	COILED SPRING
196.	[2]	154156-0900	TUBE
198.	[1]	014110-8440	LOCKING WASHER
203/1.	[0]	029311-0640	SHIM D26.0&10.2T0.95
203/1.	[0]	029311-0650	SHIM D26.0&10.2T0.20
203/1.	[0]	029311-0660	SHIM D26.0&10.2T0.25
203/1.	[0]	029311-0670	SHIM D26.0&10.2T0.30
203/1.	[0]	029311-0680	SHIM D26.0&10.2T0.35
203/1.	[0]	029311-0690	SHIM D26.0&10.2T0.40
203/1.	[0]	029311-0700	SHIM D26.0&10.2T0.50
203/1.	[0]	139410-1400	SHIM D26&10.2T0.7
203/1.	[0]	139410-1500	SHIM D26&10.2T0.9
203/1.	[0]	139410-1600	SHIM D26&10.2T0.8
203/1.	[0]	139410-2700	SHIM D26&10.2T0.6
205.	[1]	154324-1200	LEVER SHAFT
207.	[1]	154326-0300	CONTROL LEVER
211.	[1]	016010-0840	LOCKING WASHER
220.	[1]	154050-1220	HEADLESS SCREW
221.	[1]	029201-2140	UNION NUT
222.	[2]	026512-1540	GASKET D15.4&12.2T1.50
223.	[1]	154159-1200	CAP NUT
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
239.	[1]	026508-1240	GASKET D11.9&8.2T1
255.	[1]	154213-7120	BRACKET
331.	[1]	154172-4020	HEADLESS SCREW
332.	[1]	029201-6130	UNION NUT

Include in #1:

101693-2731 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105472-0891

F 019 Z1E 291
NP-EP/RAD200/1300AP1BDLN93

223001681A HINO

GOVERNOR
K

105472-0891

F 019 Z1E 291
NP-EP/RAD200/1300AP1BDLN93

223002490A HINO

GOVERNOR
A K
