105472-0610 ZEXEL F 019 Z1E 290 BOSCH GOVERNOR f019z1e290 1054720610 223001520a




Information governor

BOSCH F 019 Z1E 290 f019z1e290
ZEXEL 105472-0610 1054720610
HINO 223001520A 223001520a
105472-0610 GOVERNOR
Rating:
24
Buy GOVERNOR 105472-0610 zexel genuine, new aftermarket engine parts with delivery

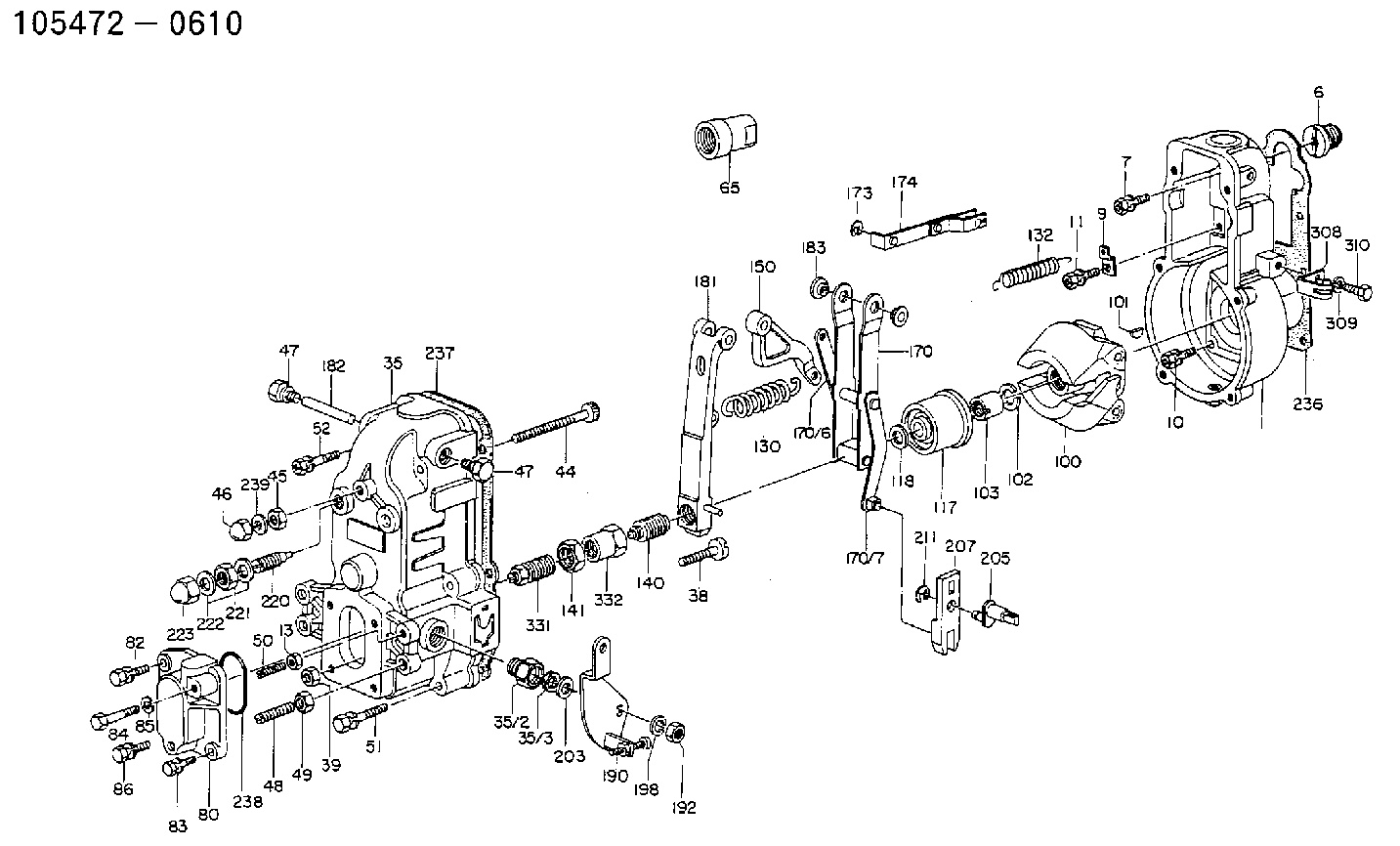

Scheme ###:

1. [1] 154000-8400 GOVERNOR HOUSING
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
13. [1] 029240-6010 UNION NUT M6P1.0H5*
35. [1] 154510-2220 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3200 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
44. [1] 154034-0600 FLAT-HEAD SCREW
45. [1] 029200-8500 UNION NUT
46. [1] 154035-1700 CAP NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
48. [1] 154010-2300 FLAT-HEAD SCREW
49. [1] 029240-8000 UNION NUT
50. [1] 155615-0300 FLAT-HEAD SCREW
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
80. [1] 154060-7900 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6220 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-5020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0420 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2200 GOVERNOR SPRING
132. [1] 154154-1300 COILED SPRING
140. [1] 154175-8920 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-2300 CONTROL LEVER
170. [1] 154210-8120 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-3920 STRAP
181. [1] 154236-1120 TENSIONING LEVER
182. [1] 154237-0400 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154301-1520 CONTROL LEVER
192. [1] 013020-8040 UNION NUT M8P1.25H7
198. [1] 014110-8440 LOCKING WASHER
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-1200 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-1220 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 026512-1540 GASKET D15.4&12.2T1.50
223. [1] 154159-1200 CAP NUT
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
239. [1] 026508-1240 GASKET D11.9&8.2T1
308. [1] 153017-0700 CLAMPING BAND
309. [1] 014110-8440 LOCKING WASHER
310. [1] 020308-1240 BLEEDER SCREW
331. [1] 154172-4020 HEADLESS SCREW
332. [1] 029201-6130 UNION NUT

Include in #1:

101693-2560 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105472-0610
F 019 Z1E 290
223001520A  HINO
GOVERNOR
* K 14JL GOV RAD GOV




Information:


SEPTEMBER 2009
INFORMATION RELEASE MEMO
Reman
PELJ1080 ?2009 Caterpillar
CAT REMAN ANNOUNCES THE INTRODUCTION OF AN UPGRADE TO NEW INJECTOR KIT FOR CERTAIN HIGH DISPLACEMENT 3500 ENGINES IN MINING APPLICATIONS
Announcement
Some mining customers have expressed a preference to use new fuel injectors during an engine rebuild as part of a bill of materials designed to produce a "zero" hour rebuilt engine standard. To provide an economical option to those customers, Cat Reman announces the introduction of an Upgrade to New (UTN) fuel injector kit option for certain 3500 engines in mining applications. This option will meet the customer need while enabling Cat Reman to capture the cores of those customers using new injectors.
These fuel injector kits will provide dealers and customers with an additional fuel injector replacement and repair option and come complete with four new fuel injectors and corresponding hold down bolts. Refer to the following table for part number details.
甀
Availability and Ordering
To support availability of these UTN kits for planned rebuilds, we ask dealers to place Future Dated Orders (FDOs) whenever possible.
Core Acceptance
Core Acceptance Criteria for CatP?PFuel Injectors is simple, visual, and requires no special tools. Consult the Unit Injectors ? Electronic Core Acceptance Criteria SELD0226 for complete details. The purchase of an UTN Kit establishes core entitlements at the consist part level quantity. For example, purchase of a kit of four UTN Injectors establishes four individual core injector entitlements.
Warranty
Please consult the appropriate CatP Pparts warranty statement for your area.
Core Management
Please refer to the Caterpillar Core Management Information System (CMIS 2) related to the parts information application that describes all Reman part/Core Acceptability Family (CAF) and other related information. Also refer to other CMIS 2 inquiry applications such as: Dealer Customer Profile, Inspection Reason Codes, Inspection Line Inquiry, Dealer Add Charges, Dealer Entitlement Activity, Dealer CCR Inquiry, Dealer CCR Entry, Dealer Shipment Processing, Dealer Process Packaging Grief and Reporting. This information is available to all dealers worldwide that have been converted to CMIS 2.
Please go to the Reman web site https://catreman.cat.com for your assigned Core Help Line Contact Information; the latest policy and procedural updates that are available to all dealers worldwide explaining policy and procedural information such as Policy and Core Management SELD0122 -10, "Core Management Systems and Operations Procedures SELD0040-14, "Reman Core Return Packaging Instructions And Guidelines SELD0300-00 and "Shipping Instructions" SELD0039-14.
If you have any questions regarding Reman Core Management or Core Management Information Systems (CMIS2), feel free to call your Corinth Dealer Service Representative toll free at (800) 537-2928. Outside the US please refer to the Core section of the Reman website for appropriate contact information for your region.
For assistance with technical questions, call the Peoria Reman Technical Help Line toll free at (888) 88-REMAN (outside the US call non-toll free +1-309-494-4342), or use our E-mail address--Reman_Help.

Have questions with 105472-0610?





Group cross 105472-0610 ZEXEL

Hino


223001190A

105472-0610
F 019 Z1E 290
223001520A
GOVERNOR
