105470-0791 ZEXEL 9 420 613 667 BOSCH GOVERNOR 9420613667 1054700791




Information governor

BOSCH 9 420 613 667 9420613667
ZEXEL 105470-0791 1054700791
105470-0791 GOVERNOR
Rating:
32
Buy GOVERNOR 105470-0791 zexel genuine, new aftermarket engine parts with delivery

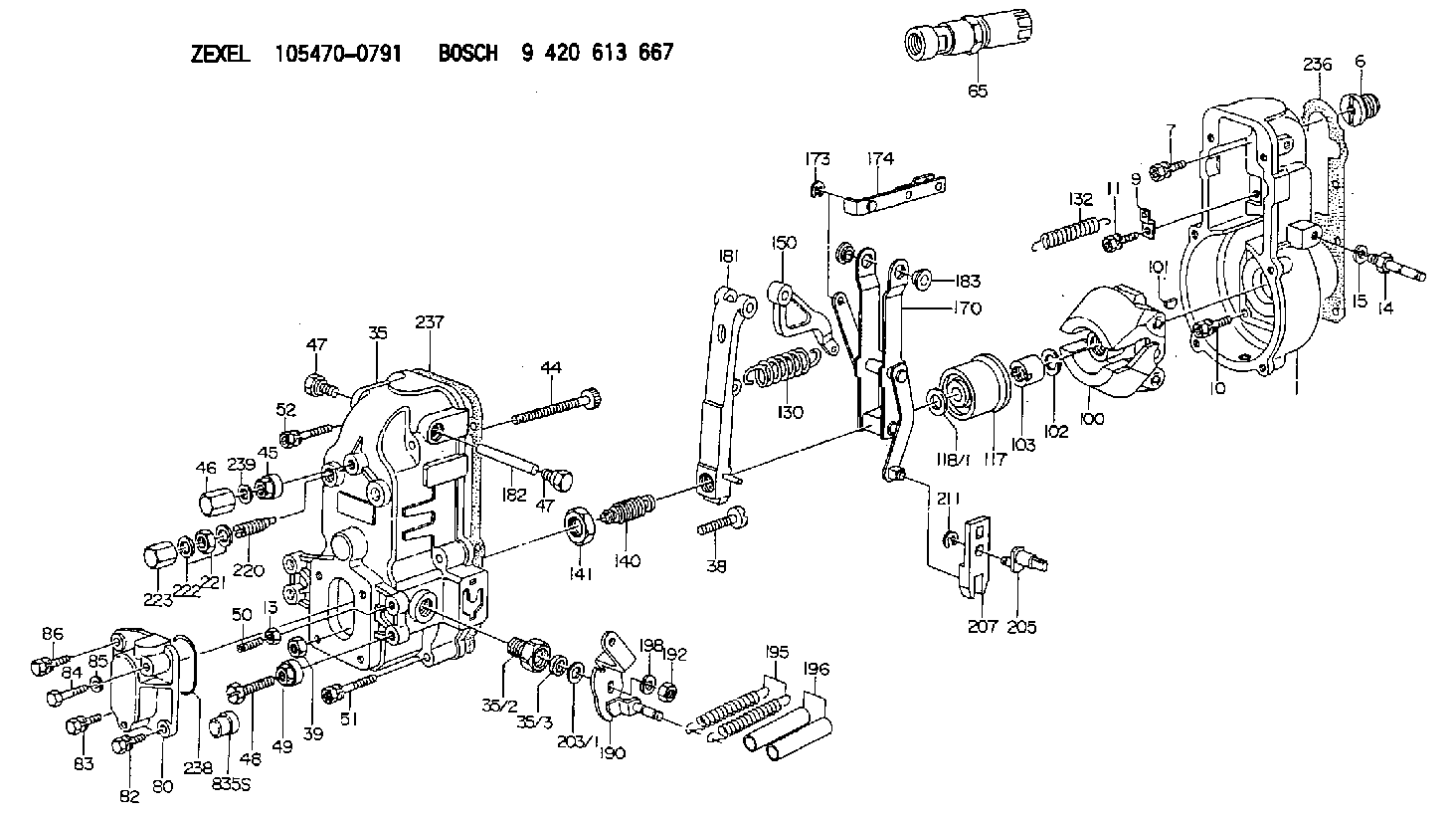

Scheme ###:

1. [1] 154000-7800 GOVERNOR HOUSING
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
13. [1] 029240-6010 UNION NUT M6P1.0H5*
14. [1] 154352-3020 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER
35. [1] 154510-2120 GOVERNOR COVER
35/2. [1] 154321-1800 BUSHING
35/3. [1] 029621-0080 PACKING RING
38. [1] 154031-3200 FLAT-HEAD SCREW
39. [1] 154011-1600 UNION NUT
44. [1] 154034-2300 FLAT-HEAD SCREW
45. [1] 154011-2500 UNION NUT
46. [1] 154035-2100 CAP NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
48. [1] 154013-0000 BLEEDER SCREW M8P1.25L45
49. [1] 154011-2300 UNION NUT
50. [1] 155615-1000 FLAT-HEAD SCREW
51. [4] 020106-3840 BLEEDER SCREW
52. [2] 020106-5040 BLEEDER SCREW
65. [1] 153043-4520 STOPPING DEVICE
80. [1] 154060-0020 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6220 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-4020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-1420 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2400 GOVERNOR SPRING
132. [1] 154154-1300 COILED SPRING
140. [1] 154176-2720 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-2300 CONTROL LEVER
170. [1] 154211-0520 FORK LEVER
173. [1] 016010-0540 LOCKING WASHER
174. [1] 154230-3920 STRAP
181. [1] 154236-1120 TENSIONING LEVER
182. [1] 154237-0400 BEARING PIN
183. [2] 154237-0600 BUSHING
190. [1] 154305-6120 CONTROL LEVER
192. [1] 013020-8040 UNION NUT M8P1.25H7
195. [2] 154332-1800 COILED SPRING
196. [2] 154156-0600 TUBE
198. [1] 014110-8440 LOCKING WASHER
203/1. [0] 029311-0640 SHIM D26.0&10.2T0.95
203/1. [0] 029311-0650 SHIM D26.0&10.2T0.20
203/1. [0] 029311-0660 SHIM D26.0&10.2T0.25
203/1. [0] 029311-0670 SHIM D26.0&10.2T0.30
203/1. [0] 029311-0680 SHIM D26.0&10.2T0.35
203/1. [0] 029311-0690 SHIM D26.0&10.2T0.40
203/1. [0] 029311-0700 SHIM D26.0&10.2T0.50
203/1. [0] 139410-1400 SHIM D26&10.2T0.7
203/1. [0] 139410-1500 SHIM D26&10.2T0.9
203/1. [0] 139410-1600 SHIM D26&10.2T0.8
203/1. [0] 139410-2700 SHIM D26&10.2T0.6
205. [1] 154324-1200 LEVER SHAFT
207. [1] 154326-0300 CONTROL LEVER
211. [1] 016010-0840 LOCKING WASHER
220. [1] 154050-1220 HEADLESS SCREW
221. [1] 029201-2140 UNION NUT
222. [2] 139512-0000 GASKET D17.2&12.2T1.0
223. [1] 154159-1200 CAP NUT
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
239. [1] 026508-1240 GASKET D11.9&8.2T1
835S. [2] 154062-1700 CAP D20L32

Include in #1:

101601-7451 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105470-0791
9 420 613 667
NP-EP/RAD220/1830AP12B0LN13

GOVERNOR
K
