Information governor
BOSCH
F 019 Z1E 622
f019z1e622
ZEXEL
105461-0110
1054610110
NISSAN-DIESEL
19200Z5609
19200z5609

Rating:
Scheme ###:

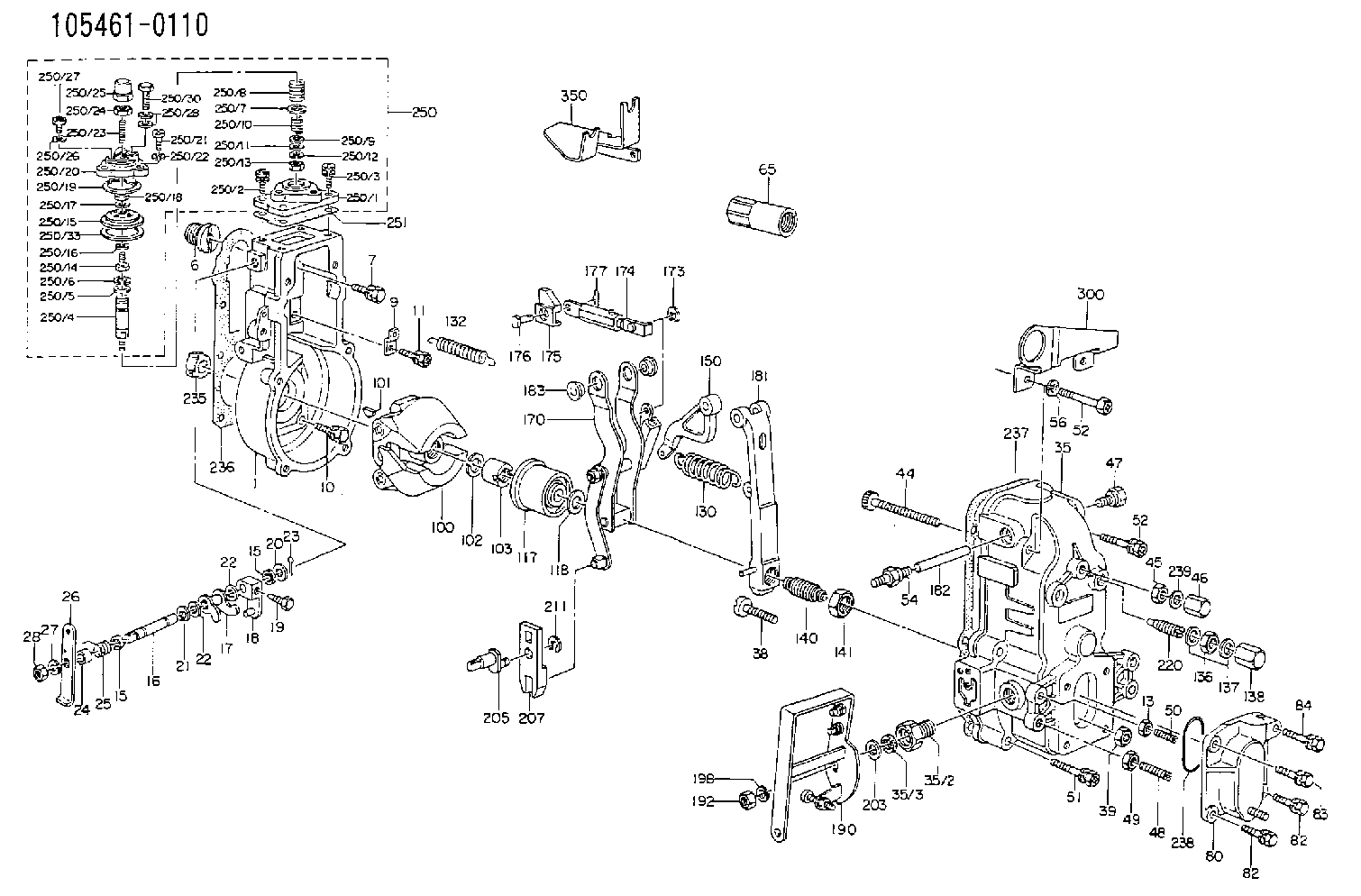

1. | [1] | 154004-0620 | GOVERNOR HOUSING |
6. | [1] | 154007-0200 | ADAPTOR |
7. | [1] | 020018-1640 | BLEEDER SCREW M8P1.25L16 4T |
9. | [1] | 154350-1800 | PLATE |
10. | [5] | 029010-6810 | BLEEDER SCREW |
11. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
13. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
15. | [2] | 029620-8050 | PACKING RING |
15. | [2] | 029620-8050 | PACKING RING |
16. | [1] | 155004-3200 | LEVER SHAFT |
17. | [1] | 154408-1520 | CONTROL LEVER |
18. | [1] | 155003-1920 | CONTROL LEVER |
19. | [1] | 155006-0700 | BLEEDER SCREW |
20. | [1] | 139308-0900 | PLAIN WASHER D16&8T1 |
20B. | [1] | 139308-1000 | PLAIN WASHER D16&8T1.5 |
21. | [1] | 016010-0740 | LOCKING WASHER |
22. | [0] | 029310-8040 | SHIM D13.5&8T0.2 |
22. | [0] | 029310-8040 | SHIM D13.5&8T0.2 |
22B. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
23. | [1] | 025520-1210 | SPLIT PIN |
24. | [1] | 154206-2000 | BUSHING |
25. | [1] | 154327-3600 | COILED SPRING |
26. | [1] | 154364-7200 | CONTROL LEVER |
27. | [1] | 014110-8440 | LOCKING WASHER |
28. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
35. | [1] | 154510-2020 | GOVERNOR COVER |
35/2. | [1] | 154321-1800 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
38. | [1] | 154031-3200 | FLAT-HEAD SCREW |
39. | [1] | 154011-1600 | UNION NUT |
44. | [1] | 154034-0600 | FLAT-HEAD SCREW |
45. | [1] | 029200-8500 | UNION NUT |
46. | [1] | 154035-1700 | CAP NUT |
47. | [1] | 154036-0300 | CAPSULE |
48. | [1] | 154010-5400 | FLAT-HEAD SCREW |
49. | [1] | 029240-8000 | UNION NUT |
50. | [1] | 155615-1000 | FLAT-HEAD SCREW |
51. | [4] | 020106-3840 | BLEEDER SCREW |
52. | [2] | 139106-0900 | BLEEDER SCREW |
52. | [2] | 139106-0900 | BLEEDER SCREW |
54. | [1] | 154036-1100 | CAPSULE |
56. | [2] | 014110-6440 | LOCKING WASHER |
65. | [1] | 155404-5700 | CAP |
80. | [1] | 154060-0020 | COVER |
82. | [2] | 029020-6210 | BLEEDER SCREW |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
84. | [1] | 029000-6800 | BLEEDER SCREW |
100. | [1] | 154100-5020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-1020 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-2400 | GOVERNOR SPRING |
132. | [1] | 154154-1300 | COILED SPRING |
136. | [1] | 029201-2140 | UNION NUT |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154176-8820 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-2300 | CONTROL LEVER |
170. | [1] | 154216-0120 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-5620 | STRAP |
175. | [1] | 154232-1100 | CONNECTOR |
176. | [1] | 154222-5800 | BEARING PIN |
177. | [1] | 155402-3800 | SAFETY PIN |
181. | [1] | 154236-1220 | TENSIONING LEVER |
182. | [1] | 154237-0400 | BEARING PIN |
183. | [2] | 154237-0600 | BUSHING |
190. | [1] | 154305-6720 | CONTROL LEVER |
192. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
198. | [1] | 014110-8440 | LOCKING WASHER |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-1200 | LEVER SHAFT |
207. | [1] | 154326-0300 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-1220 | HEADLESS SCREW |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
239. | [1] | 026508-1240 | GASKET D11.9&8.2T1 |
250. | [1] | 154407-8720 | MANIFOLD-PRESSURE COMP. |
250/1. | [1] | 154408-6220 | DIAPHRAGM HOUSING |
250/2. | [3] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
250/3. | [1] | 029020-6210 | BLEEDER SCREW |
250/4. | [1] | 154400-5101 | STOP PIN |
250/5. | [1] | 153400-0700 | SLOTTED WASHER |
250/6. | [1] | 016010-0740 | LOCKING WASHER |
250/7. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
250/7B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
250/8. | [1] | 154403-6200 | COILED SPRING |
250/9. | [0] | 029310-8010 | PLAIN WASHER D15&8.4T0.2 |
250/9B. | [0] | 029310-8020 | PLAIN WASHER D15&8.4T0.3 |
250/10. | [1] | 154411-0200 | COILED SPRING |
250/11. | [1] | 153400-0800 | SPRING SEAT |
250/12. | [1] | 014110-5440 | LOCKING WASHER |
250/13. | [1] | 013030-5240 | UNION NUT M5P0.8H3.2 |
250/14. | [1] | 154400-5200 | BLEEDER SCREW |
250/15. | [1] | 154400-0620 | DIAPHRAGM |
250/16. | [1] | 029330-8080 | GASKET |
250/17. | [1] | 014110-6440 | LOCKING WASHER |
250/18. | [1] | 023040-6040 | UNION NUT |
250/19. | [1] | 154404-3100 | PLATE |
250/20. | [1] | 154404-3900 | COVER |
250/21. | [3] | 029010-6310 | BLEEDER SCREW |
250/22. | [3] | 014110-6440 | LOCKING WASHER |
250/23. | [1] | 154404-1100 | FLAT-HEAD SCREW |
250/24. | [1] | 023040-6040 | UNION NUT |
250/25. | [1] | 154406-7800 | CAP NUT |
250/26. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
250/27. | [1] | 029010-6010 | CAPSULE M6P1.0L7 |
250/28. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
250/30. | [1] | 029731-0180 | EYE BOLT |
250/33. | [3] | 154413-2600 | GASKET |
251. | [1] | 154390-2000 | GASKET |
300. | [1] | 154356-1500 | BRACKET |
350. | [1] | 154356-3400 | BRACKET |
Include in #1:
101681-9331
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
Information:
Removing And Fitting A Starter Gear Ring
It is assumed that the flywheel is dismantled.Removing:
6-1Cut through the starter gear ring with a hard chisel and remove.Fig. 6-1Refitting:
1. Heat the starter gear ring to a temperature of 120 deg. C. Place the starter gear ring with the bevelled side of the teeth facing away from flywheel.
6-22. Locate the starter gear ring on the flywheel and tap it into position so that it seats against the shoulder.Fig. 6-2Removing And Fitting A Radial Sealing Ring On The Flywheel Side
It is assumed that the flywheel has been dismantled. Removing:
6-3Apply puller No. 142700 and draw off radial sealing ring.Fig. 6-3Refitting:
6-41. Mount guide-piece of device onto crankshaft.Fig. 6-4
6-52. Lightly grease the sealing lip of the new radial seal. Place seal on guide-piece with lip facing towards crankcase and press in with device No. 142530.Fig. 6-5 Inspect crankshaft in the zone of radial seal contact. If a friction groove has been formed by the radial seal, displace the complete cover by adding gaskets accordingly.Dismantling, Installing And Sealing The Cover On The Flywheel Side (As from 3-cylinder engine)
The flywheel has already been removed.Dismantling:
1. Remove the bolts in the oil sump securing the cover on the flywheel side and the bolts securing the cover to the crankcase. Remove cover and gasket. Renew radial sealing ring. Inspect crankshaft in the zone of radial seal contact. If a friction groove has been formed by the radial seal, displace the latter in the cover.Installing:
6-112. Adhere new gasket to crankcase. Trim off the portion of gasket projecting beyond the joint surface of the sump. Fig. 6-113. Apply coat of Deutz DW 48 jointing compound to the oil sump gasket in the region of the cover.
6-124. Press new radial seal into the rear cover so that the outside surface is flush (arrow).Fig. 6-12 Prior to fitting, heat cover "hand-warm" and coat radial seal with jointing compound.
6-135. Place cover in position. Lightly pretighten cover bolts in crankcase. Fully tighten sump bolts in cover, then fully tighten bolts in crankcase.Fig. 6-13Exploded Views
