Information governor
BOSCH
F 019 Z1E 620
f019z1e620
ZEXEL
105461-0040
1054610040

Rating:

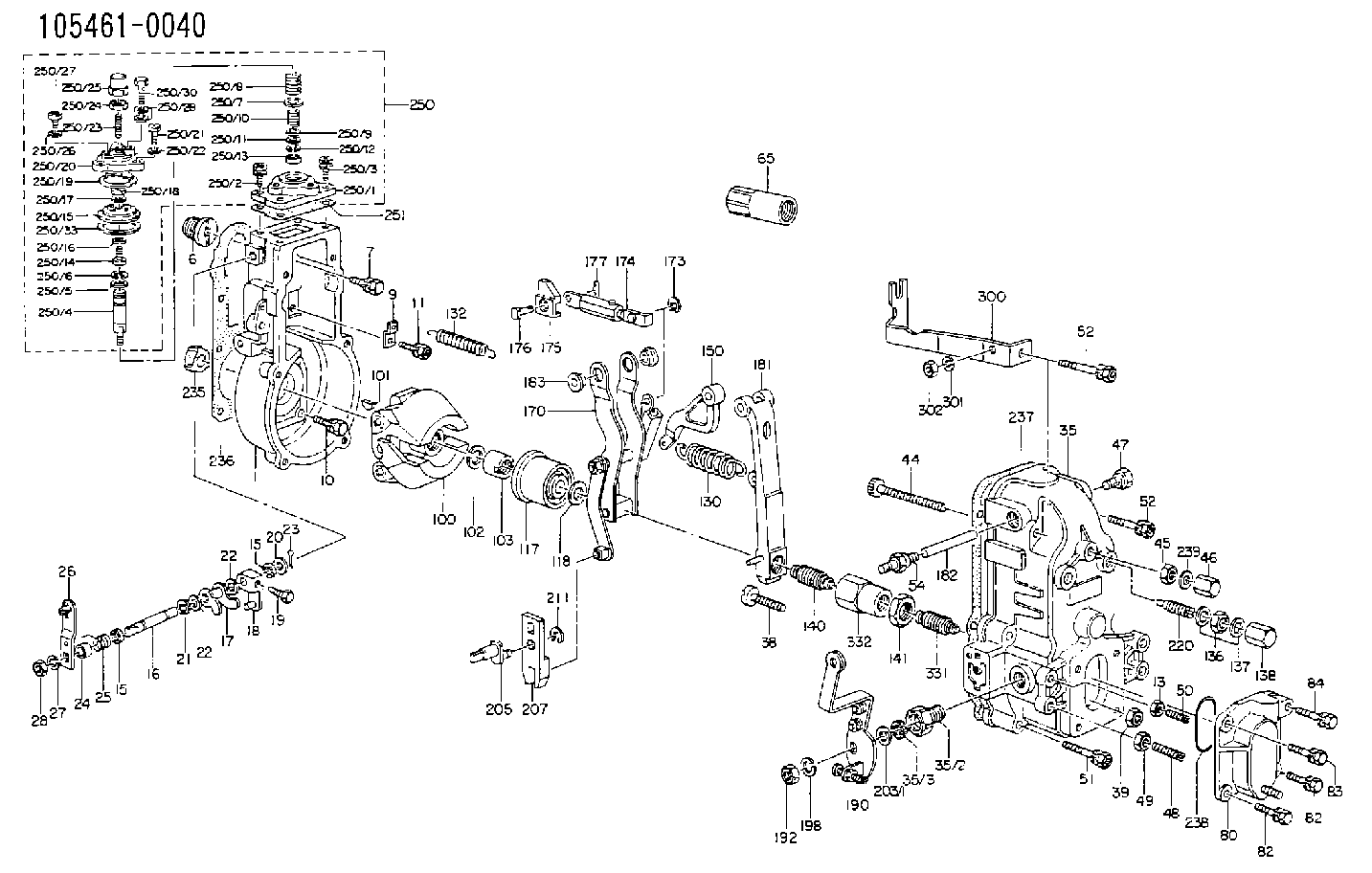

Scheme ###:
1. | [1] | 154000-8020 | GOVERNOR HOUSING |
6. | [1] | 154007-0200 | ADAPTOR |
7. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
9. | [1] | 154350-1800 | PLATE |
10. | [5] | 029010-6810 | BLEEDER SCREW |
11. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
13. | [1] | 029240-6010 | UNION NUT M6P1.0H5* |
15. | [2] | 029620-8050 | PACKING RING |
15. | [2] | 029620-8050 | PACKING RING |
16. | [1] | 155004-3200 | LEVER SHAFT |
17. | [1] | 154408-1520 | CONTROL LEVER |
18. | [1] | 155003-1920 | CONTROL LEVER |
19. | [1] | 155006-0100 | BLEEDER SCREW |
20. | [1] | 139308-0900 | PLAIN WASHER D16&8T1 |
20B. | [1] | 139308-1000 | PLAIN WASHER D16&8T1.5 |
21. | [1] | 016010-0740 | LOCKING WASHER |
22. | [0] | 029310-8040 | SHIM D13.5&8T0.2 |
22. | [0] | 029310-8040 | SHIM D13.5&8T0.2 |
22B. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
23. | [1] | 025520-1210 | SPLIT PIN |
24. | [1] | 154206-2000 | BUSHING |
25. | [1] | 154327-3600 | COILED SPRING |
26. | [1] | 154304-3820 | CONTROL LEVER |
27. | [1] | 014110-8440 | LOCKING WASHER |
28. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
35. | [1] | 154510-2020 | GOVERNOR COVER |
35/2. | [1] | 154321-1800 | BUSHING |
35/3. | [1] | 029621-0080 | PACKING RING |
38. | [1] | 154031-3200 | FLAT-HEAD SCREW |
39. | [1] | 154011-1600 | UNION NUT |
44. | [1] | 154034-0600 | FLAT-HEAD SCREW |
45. | [1] | 029200-8500 | UNION NUT |
46. | [1] | 154035-1700 | CAP NUT |
47. | [1] | 154036-0300 | CAPSULE |
48. | [1] | 154010-4100 | FLAT-HEAD SCREW |
49. | [1] | 029240-8000 | UNION NUT |
50. | [1] | 155615-1000 | FLAT-HEAD SCREW |
51. | [4] | 020106-3840 | BLEEDER SCREW |
52. | [1] | 020106-5040 | BLEEDER SCREW |
52. | [1] | 020106-5040 | BLEEDER SCREW |
54. | [1] | 154036-1100 | CAPSULE |
55. | [1] | 139106-0900 | BLEEDER SCREW |
56. | [1] | 014110-6440 | LOCKING WASHER |
65. | [1] | 155404-5700 | CAP |
80. | [1] | 154060-0020 | COVER |
82. | [2] | 029020-6210 | BLEEDER SCREW |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
84. | [1] | 029000-6800 | BLEEDER SCREW |
100. | [1] | 154100-5020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-1420 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-2400 | GOVERNOR SPRING |
132. | [1] | 154154-1300 | COILED SPRING |
136. | [1] | 029201-2140 | UNION NUT |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154176-6420 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-2300 | CONTROL LEVER |
170. | [1] | 154216-0120 | FORK LEVER |
173. | [1] | 016010-0540 | LOCKING WASHER |
174. | [1] | 154230-5620 | STRAP |
175. | [1] | 154232-1100 | CONNECTOR |
176. | [1] | 154222-5800 | BEARING PIN |
177. | [1] | 155402-3800 | SAFETY PIN |
181. | [1] | 154236-1220 | TENSIONING LEVER |
182. | [1] | 154237-0400 | BEARING PIN |
183. | [2] | 154237-0600 | BUSHING |
190. | [1] | 154306-1620 | CONTROL LEVER |
192. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
198. | [1] | 014110-8440 | LOCKING WASHER |
203/1. | [0] | 029311-0640 | SHIM D26.0&10.2T0.95 |
203/1. | [0] | 029311-0650 | SHIM D26.0&10.2T0.20 |
203/1. | [0] | 029311-0660 | SHIM D26.0&10.2T0.25 |
203/1. | [0] | 029311-0670 | SHIM D26.0&10.2T0.30 |
203/1. | [0] | 029311-0680 | SHIM D26.0&10.2T0.35 |
203/1. | [0] | 029311-0690 | SHIM D26.0&10.2T0.40 |
203/1. | [0] | 029311-0700 | SHIM D26.0&10.2T0.50 |
203/1. | [0] | 139410-1400 | SHIM D26&10.2T0.7 |
203/1. | [0] | 139410-1500 | SHIM D26&10.2T0.9 |
203/1. | [0] | 139410-1600 | SHIM D26&10.2T0.8 |
203/1. | [0] | 139410-2700 | SHIM D26&10.2T0.6 |
205. | [1] | 154324-1200 | LEVER SHAFT |
207. | [1] | 154326-0300 | CONTROL LEVER |
211. | [1] | 016010-0840 | LOCKING WASHER |
220. | [1] | 154050-1220 | HEADLESS SCREW |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
239. | [1] | 026508-1240 | GASKET D11.9&8.2T1 |
250. | [1] | 154407-3220 | MANIFOLD-PRESSURE COMP. |
250/1. | [1] | 154408-6220 | DIAPHRAGM HOUSING |
250/2. | [3] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
250/3. | [1] | 029020-6210 | BLEEDER SCREW |
250/4. | [1] | 154400-5101 | STOP PIN |
250/5. | [1] | 153400-0700 | SLOTTED WASHER |
250/6. | [1] | 016010-0740 | LOCKING WASHER |
250/7. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
250/7B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
250/8. | [1] | 154403-5100 | COILED SPRING |
250/9. | [0] | 029310-8010 | PLAIN WASHER D15&8.4T0.2 |
250/9B. | [0] | 029310-8020 | PLAIN WASHER D15&8.4T0.3 |
250/10. | [1] | 154411-0200 | COILED SPRING |
250/11. | [1] | 153400-0800 | SPRING SEAT |
250/12. | [1] | 014110-5440 | LOCKING WASHER |
250/13. | [1] | 013030-5240 | UNION NUT M5P0.8H3.2 |
250/14. | [1] | 154400-5200 | BLEEDER SCREW |
250/15. | [1] | 154400-0620 | DIAPHRAGM |
250/16. | [1] | 029330-8050 | GASKET |
250/17. | [1] | 014110-6440 | LOCKING WASHER |
250/18. | [1] | 023040-6040 | UNION NUT |
250/19. | [1] | 154404-3100 | PLATE |
250/20. | [1] | 154404-3900 | COVER |
250/21. | [3] | 029010-6310 | BLEEDER SCREW |
250/22. | [3] | 014110-6440 | LOCKING WASHER |
250/23. | [1] | 154404-1100 | FLAT-HEAD SCREW |
250/24. | [1] | 023040-6040 | UNION NUT |
250/25. | [1] | 154406-7800 | CAP NUT |
250/26. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
250/27. | [1] | 029010-6010 | CAPSULE M6P1.0L7 |
250/28. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
250/30. | [1] | 029731-0180 | EYE BOLT |
250/33. | [3] | 154413-2600 | GASKET |
251. | [1] | 154390-2000 | GASKET |
300. | [1] | 154353-4700 | BRACKET |
301. | [1] | 014110-6440 | LOCKING WASHER |
302. | [1] | 013020-6040 | UNION NUT M6P1H5 |
331. | [1] | 154185-1320 | HEADLESS SCREW |
332. | [1] | 029201-6220 | UNION NUT |
Include in #1:
101681-9050
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105461-0040
F 019 Z1E 620
GOVERNOR
* K
