105455-1000 ZEXEL F 019 Z1E 895 BOSCH GOVERNOR f019z1e895 1054551000

Information governor

BOSCH F 019 Z1E 895 f019z1e895

ZEXEL 105455-1000 1054551000

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105455-1000 zexel genuine, new aftermarket engine parts with delivery

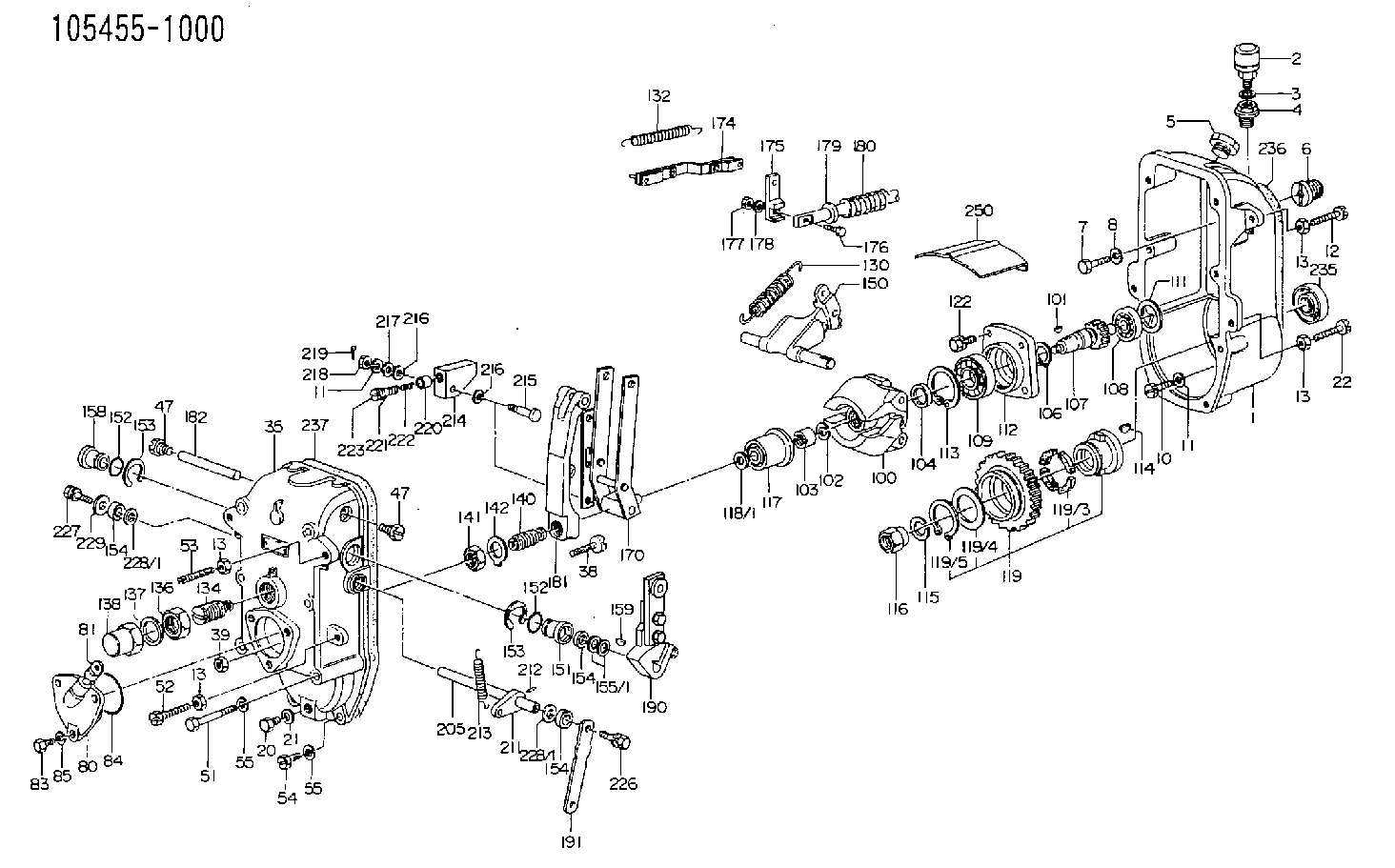

Scheme ###:

1.	[1]	154003-1120	GOVERNOR HOUSING
2.	[1]	155406-0620	AIR FILTER
3.	[1]	026512-1540	GASKET D15.4&12.2T1.50
4.	[1]	154007-0100	ADAPTOR
5.	[1]	154007-1400	CAPSULE
6.	[1]	154007-0500	ADAPTOR
7.	[1]	010038-1840	BLEEDER SCREW M8P1.25L18
8.	[1]	014110-8440	LOCKING WASHER
10.	[10]	010038-2840	BLEEDER SCREW
11.	[10]	014110-8440	LOCKING WASHER
11.	[10]	014110-8440	LOCKING WASHER
12.	[1]	154034-2600	BLEEDER SCREW
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
20.	[1]	029111-0030	CAPSULE
21.	[1]	026510-1340	GASKET D13.4&10.2T1
22.	[1]	154034-0400	BLEEDER SCREW
35.	[1]	154522-0120	GOVERNOR COVER
38.	[1]	154031-0400	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-2200	CAPSULE
47.	[2]	154036-2200	CAPSULE
51.	[6]	010038-9140	BLEEDER SCREW M8P1.25L95
52.	[1]	154034-0400	BLEEDER SCREW
53.	[1]	154010-1800	FLAT-HEAD SCREW
54.	[2]	010038-2840	BLEEDER SCREW
55.	[8]	014110-8410	LOCKING WASHER
55.	[8]	014110-8410	LOCKING WASHER
80.	[1]	154060-0520	COVER
81.	[1]	133030-0520	LEVEL INDICATOR
83.	[3]	020508-1840	BLEEDER SCREW M8P1.25L18
84.	[1]	029635-5010	O-RING
85.	[3]	014110-8410	LOCKING WASHER
100.	[1]	154102-1720	FLYWEIGHT ASSEMBLY
101.	[1]	025804-1610	WOODRUFF KEY
102.	[1]	029321-4010	LOCKING WASHER
103.	[1]	131325-2600	UNION NUT
104.	[1]	154120-0200	PLAIN WASHER
106.	[1]	016020-2510	LOCKING WASHER
107.	[1]	154121-0700	TOOTHED GEAR
108.	[1]	016630-2640	BEARING PLATE
109.	[1]	028102-5010	BEARING PLATE
111.	[1]	029313-2010	SHIM D39.8&32T1
111A.	[1]	029313-2020	SHIM D39.8&32T0.2
112.	[1]	154122-0200	COVER
113.	[1]	016110-5210	LOCKING WASHER
114.	[1]	025805-1910	WOODRUFF KEY
115.	[1]	023641-8410	LOCKING WASHER
116.	[1]	154011-0200	UNION NUT
117.	[1]	154123-1820	SLIDING PIECE
118/1.	[0]	029311-5020	SHIM D20.5&15T0.05
118/1.	[0]	029311-5030	SHIM D20.5&15T0.1
118/1.	[0]	029311-5050	SHIM D20.5&15T0.2
118/1.	[0]	029311-5060	SHIM D20.5&15T0.4
118/1.	[0]	029311-5080	SHIM D20.5&15T0.5
118/1.	[0]	029311-5120	SHIM D20.5&15T0.3
119.	[1]	154130-0720	TOOTHED GEAR
119/1.	[1]	154130-0710	TOOTHED GEAR
119/2.	[1]	154132-0220	HOLDER
119/3.	[4]	153251-0200	DAMPER
119/4.	[1]	153321-0100	PLAIN WASHER
119/5.	[1]	016020-4010	LOCKING WASHER
130.	[1]	154150-4700	GOVERNOR SPRING
132.	[1]	154154-1800	COILED SPRING
134.	[1]	154157-0520	HEADLESS SCREW
136.	[1]	029203-0010	UNION NUT
137.	[2]	026530-3640	GASKET
138.	[1]	154159-0200	CAP NUT
140.	[1]	154170-0320	HEADLESS SCREW
141.	[1]	139220-0400	UNION NUT
150.	[1]	154200-9420	SWIVELLING LEVER
151.	[1]	154204-0301	BUSHING
152.	[2]	029632-1010	O-RING
152.	[2]	029632-1010	O-RING
153.	[2]	016010-2010	LOCKING WASHER
153.	[2]	016010-2010	LOCKING WASHER
154.	[3]	029621-4000	PACKING RING
154.	[3]	029621-4000	PACKING RING
154.	[3]	029621-4000	PACKING RING
155/1.	[0]	029311-4040	SHIM D26&14.2T0.3
155/1.	[0]	029311-4050	SHIM D26&14.2T0.4
155/1.	[0]	029311-4060	SHIM D26&14.2T0.5
155/1.	[0]	029311-4080	SHIM D26&14.2T0.1
158.	[1]	154204-3800	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154211-4920	FORK LEVER
174.	[1]	154230-1620	STRAP
175.	[1]	154232-0100	CONNECTOR
176.	[1]	010006-1840	BLEEDER SCREW M6P1L18 4T
177.	[1]	013020-6040	UNION NUT M6P1H5
178.	[2]	154233-0100	TAB WASHER
179.	[1]	153400-0200	SLOTTED WASHER
180.	[1]	153401-0300	COILED SPRING
181.	[1]	154236-0800	TENSIONING LEVER
182.	[1]	154237-0300	BEARING PIN
190.	[1]	154303-4520	CONTROL LEVER
191.	[1]	154300-0300	CONTROL LEVER
205.	[1]	154330-1400	LEVER SHAFT
211.	[1]	154331-0100	CONTROL LEVER
212.	[1]	024330-2030	BEARING PIN
213.	[1]	154332-0100	COILED SPRING
214.	[1]	154333-0200	CONTROL LEVER
215.	[1]	154334-0100	BEARING PIN
216.	[2]	029301-0030	PLAIN WASHER
216.	[2]	029301-0030	PLAIN WASHER
217.	[1]	029300-8070	PLAIN WASHER
218.	[1]	013020-8020	UNION NUT M8P1.25H7
219.	[1]	025520-1210	SPLIT PIN
220.	[1]	154335-0100	SLOTTED WASHER
221.	[1]	154336-0100	COILED SPRING
222.	[1]	154336-0200	COILED SPRING
223.	[1]	154337-0100	CAPSULE
226.	[1]	021306-1540	FLAT-HEAD SCREW
227.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
228/1.	[0]	029311-4040	SHIM D26&14.2T0.3
228/1.	[0]	029311-4040	SHIM D26&14.2T0.3
228/1.	[0]	029311-4050	SHIM D26&14.2T0.4
228/1.	[0]	029311-4060	SHIM D26&14.2T0.5
228/1.	[0]	029311-4080	SHIM D26&14.2T0.1
229.	[1]	154350-0700	PLATE
235.	[1]	029622-5010	PACKING RING
236.	[1]	154390-3000	GASKET
237.	[1]	154390-3300	GASKET
250.	[1]	154351-0520	PLATE

Include in #1:

103672-0400 as GOVERNOR

103672-0401

Cross reference number

Zexel num

Bosch num

Firm num

Name

105455-1000

F 019 Z1E 895
NP-EP/RSUV200-770ZWQ32/301

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
