105455-0632 ZEXEL 9 420 614 045 BOSCH GOVERNOR 9420614045 1054550632 3746503021

Information governor

BOSCH 9 420 614 045 9420614045

ZEXEL 105455-0632 1054550632

MITSUBISHI-HEAV 3746503021 3746503021

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105455-0632 zexel genuine, new aftermarket engine parts with delivery

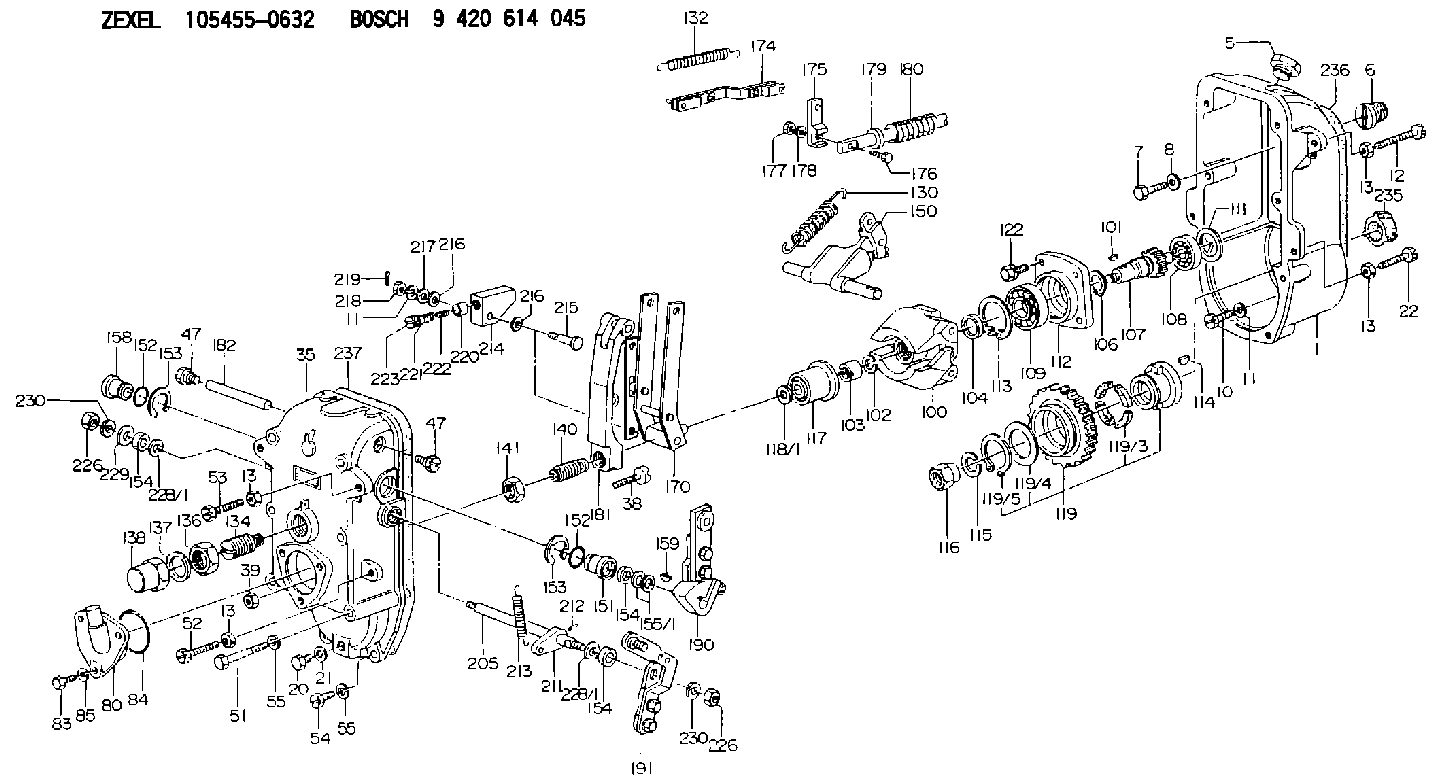

Scheme ###:

1.	[1]	154003-1320	GOVERNOR HOUSING
5.	[1]	154007-1400	CAPSULE
6.	[1]	154007-0500	ADAPTOR
7.	[1]	010038-1840	BLEEDER SCREW M8P1.25L18
8.	[1]	154008-0100	TAB WASHER
10.	[4]	010508-2540	FLAT-HEAD SCREW M8P1.25L25
11.	[9]	014110-8410	LOCKING WASHER
11.	[9]	014110-8410	LOCKING WASHER
12.	[1]	154010-6200	BLEEDER SCREW
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
20.	[1]	029111-0030	CAPSULE
21.	[1]	026510-1340	GASKET D13.4&10.2T1
22.	[1]	154034-0400	BLEEDER SCREW
35.	[1]	154522-0020	GOVERNOR COVER
38.	[1]	154031-0400	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
47.	[2]	154036-0400	CAPSULE
47.	[2]	154036-0400	CAPSULE
51.	[6]	010038-9140	BLEEDER SCREW M8P1.25L95
52.	[1]	154034-0400	BLEEDER SCREW
53.	[1]	154010-6200	BLEEDER SCREW
54.	[2]	010038-2840	BLEEDER SCREW
55.	[8]	014110-8410	LOCKING WASHER
55.	[8]	014110-8410	LOCKING WASHER
80.	[1]	154060-8200	COVER
83.	[3]	020508-1840	BLEEDER SCREW M8P1.25L18
84.	[1]	029635-5010	O-RING
85.	[3]	014110-8410	LOCKING WASHER
100.	[1]	154102-1820	FLYWEIGHT ASSEMBLY
101.	[1]	025804-1610	WOODRUFF KEY
102.	[1]	029321-4010	LOCKING WASHER
103.	[1]	131325-2600	UNION NUT
104.	[1]	154120-0200	PLAIN WASHER
106.	[1]	016020-2510	LOCKING WASHER
107.	[1]	154121-0700	TOOTHED GEAR
108.	[1]	016630-2640	BEARING PLATE
109.	[1]	028102-5010	BEARING PLATE
111.	[1]	029313-2010	SHIM D39.8&32T1
111A.	[1]	029313-2020	SHIM D39.8&32T0.2
112.	[1]	154122-0200	COVER
113.	[1]	016110-5210	LOCKING WASHER
114.	[1]	025805-1910	WOODRUFF KEY
115.	[1]	023641-8410	LOCKING WASHER
116.	[1]	154011-0200	UNION NUT
117.	[1]	154123-1820	SLIDING PIECE
118/1.	[0]	029311-5020	SHIM D20.5&15T0.05
118/1.	[0]	029311-5030	SHIM D20.5&15T0.1
118/1.	[0]	029311-5050	SHIM D20.5&15T0.2
118/1.	[0]	029311-5060	SHIM D20.5&15T0.4
118/1.	[0]	029311-5080	SHIM D20.5&15T0.5
118/1.	[0]	029311-5120	SHIM D20.5&15T0.3
119.	[1]	154130-0720	TOOTHED GEAR
119/3.	[4]	153251-0200	DAMPER
119/4.	[1]	153321-0100	PLAIN WASHER
119/5.	[1]	016020-4010	LOCKING WASHER
122.	[4]	020308-2540	BLEEDER SCREW M8P1.25L25
130.	[1]	154150-4700	GOVERNOR SPRING
132.	[1]	154154-3600	COILED SPRING
134.	[1]	154157-0520	HEADLESS SCREW
136.	[1]	029203-0010	UNION NUT
137.	[2]	026530-3640	GASKET
138.	[1]	154159-0200	CAP NUT
140.	[1]	154186-0020	HEADLESS SCREW
141.	[1]	139220-0400	UNION NUT
150.	[1]	154200-1521	SWIVELLING LEVER
151.	[1]	154204-0301	BUSHING
152.	[2]	139721-0100	O-RING
152.	[2]	139721-0100	O-RING
153.	[2]	016010-2010	LOCKING WASHER
153.	[2]	016010-2010	LOCKING WASHER
154.	[3]	139614-0400	PACKING RING
154.	[3]	139614-0400	PACKING RING
154.	[3]	139614-0400	PACKING RING
155/1.	[0]	029311-4040	SHIM D26&14.2T0.3
155/1.	[0]	029311-4050	SHIM D26&14.2T0.4
155/1.	[0]	029311-4060	SHIM D26&14.2T0.5
155/1.	[0]	029311-4080	SHIM D26&14.2T0.1
158.	[1]	154204-3800	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154211-4920	FORK LEVER
174.	[1]	154230-1520	STRAP
175.	[1]	154232-0100	CONNECTOR
176.	[1]	010006-1840	BLEEDER SCREW M6P1L18 4T
177.	[1]	013020-6040	UNION NUT M6P1H5
178.	[2]	154233-0100	TAB WASHER
179.	[1]	153400-0200	SLOTTED WASHER
180.	[1]	153401-0300	COILED SPRING
181.	[1]	154236-0800	TENSIONING LEVER
182.	[1]	154237-0300	BEARING PIN
190.	[1]	154303-4520	CONTROL LEVER
191.	[1]	154300-2200	CONTROL LEVER
205.	[1]	154330-1200	LEVER SHAFT
211.	[1]	154331-0100	CONTROL LEVER
212.	[1]	024330-2030	BEARING PIN
213.	[1]	154332-0100	COILED SPRING
214.	[1]	154333-0200	CONTROL LEVER
215.	[1]	154334-0100	BEARING PIN
216.	[2]	029301-0030	PLAIN WASHER
216.	[2]	029301-0030	PLAIN WASHER
217.	[1]	029300-8070	PLAIN WASHER
218.	[1]	013020-8020	UNION NUT M8P1.25H7
219.	[4]	025520-1210	SPLIT PIN
220.	[1]	154335-0100	SLOTTED WASHER
221.	[1]	154336-0100	COILED SPRING
222.	[1]	154336-0200	COILED SPRING
223.	[1]	154337-0100	CAPSULE
226.	[2]	013020-8040	UNION NUT M8P1.25H7
226.	[2]	013020-8040	UNION NUT M8P1.25H7
228/1.	[0]	029311-4010	SHIM D19.5&14.2T0.30
228/1.	[0]	029311-4020	SHIM D19.5&14.2T0.40
228/1.	[0]	029311-4020	SHIM D19.5&14.2T0.40
228/1.	[0]	029311-4030	SHIM D19.5&14.2T0.50
229.	[1]	154351-0600	BUSHING
230.	[2]	014110-8410	LOCKING WASHER
230.	[2]	014110-8410	LOCKING WASHER
235.	[1]	155412-5600	IMPELLER WHEEL
236.	[1]	154350-1000	GASKET
237.	[1]	154390-3300	GASKET

Include in #1:

103662-2072 as GOVERNOR

103862-0202

103862-0303

103862-0371

Cross reference number

Zexel num

Bosch num

Firm num

Name

105455-0632

9 420 614 045
NP-EP/RSUV200-770ZQ32/301

3746503021 MITSUBISHI-HEAV

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
