105455-0541 ZEXEL 9 420 610 256 BOSCH GOVERNOR 9420610256 1054550541




Information governor

BOSCH 9 420 610 256 9420610256
ZEXEL 105455-0541 1054550541
105455-0541 GOVERNOR
Rating:
58
Buy GOVERNOR 105455-0541 zexel genuine, new aftermarket engine parts with delivery

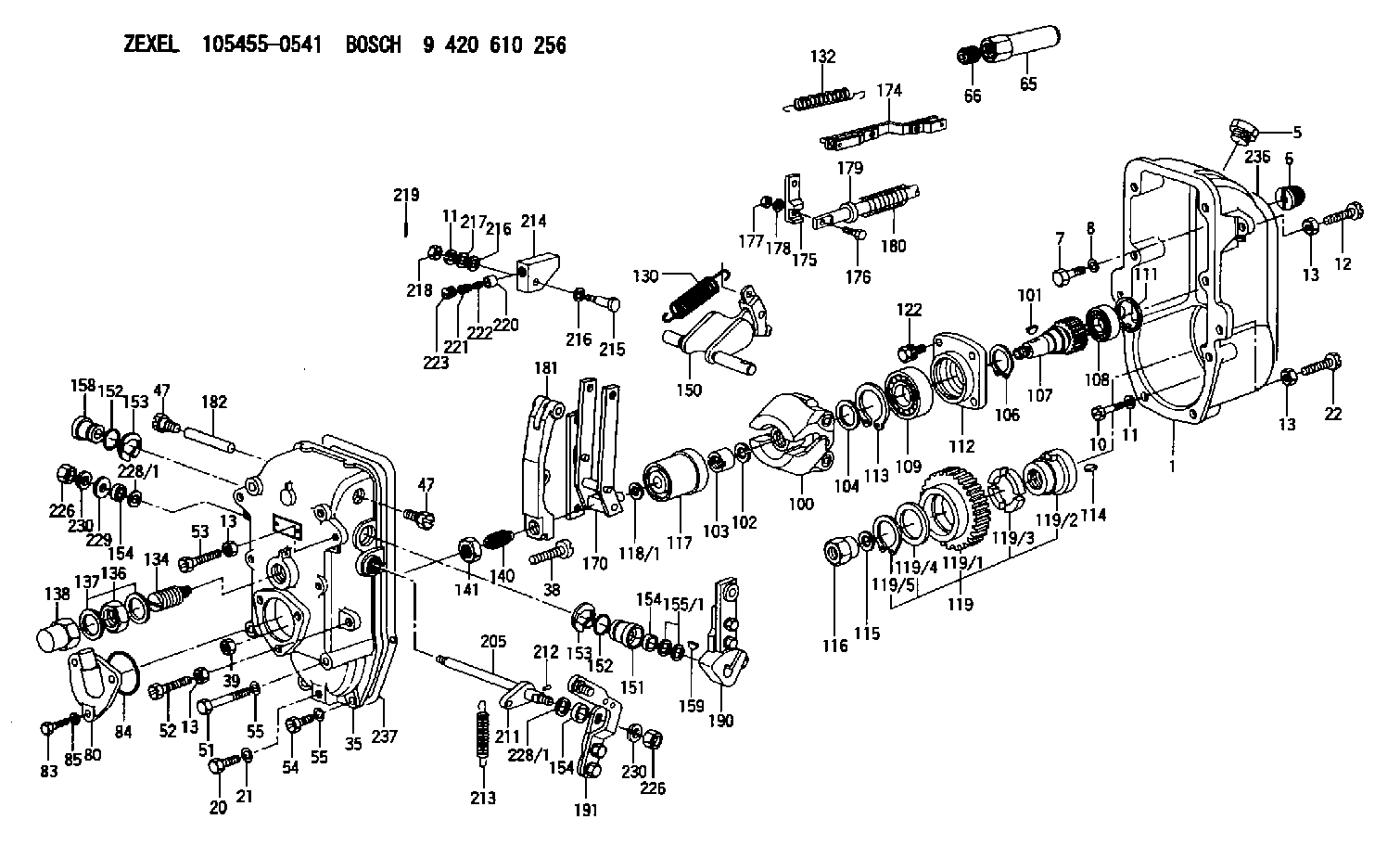

Scheme ###:

GOVERNOR HOUSING
1. [1] 154003-1320 GOVERNOR HOUSING
5. [1] 154007-1400 CAPSULE
6. [1] 154007-0500 ADAPTOR
7. [1] 010038-1840 BLEEDER SCREW M8P1.25L18
8. [1] 154008-0100 TAB WASHER
10. [4] 010508-2540 FLAT-HEAD SCREW M8P1.25L25
11. [9] 014110-8440 LOCKING WASHER
12. [1] 154010-6200 BLEEDER SCREW
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
20. [1] 029111-0030 CAPSULE
21. [1] 026510-1340 GASKET D13.4&10.2T1
22. [1] 154034-0400 BLEEDER SCREW
35. [1] 154522-0020 GOVERNOR COVER
38. [1] 154031-0400 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-0400 CAPSULE
47. [2] 154036-0400 CAPSULE
51. [6] 010038-9140 BLEEDER SCREW M8P1.25L95
52. [1] 154034-0400 BLEEDER SCREW
53. [1] 154010-6200 BLEEDER SCREW
54. [2] 010038-2840 BLEEDER SCREW
55. [8] 014110-8440 LOCKING WASHER
55. [8] 014110-8440 LOCKING WASHER
65. [1] 154050-5300 CAP
66. [1] 154007-0700 BUSHING
80. [1] 154060-8200 COVER
83. [3] 020508-1840 BLEEDER SCREW M8P1.25L18
84. [1] 029635-5010 O-RING
85. [3] 014110-8440 LOCKING WASHER
100. [1] 154102-1820 FLYWEIGHT ASSEMBLY
101. [1] 025804-1610 WOODRUFF KEY
102. [1] 029321-4010 LOCKING WASHER
103. [1] 131325-2600 UNION NUT
104. [1] 154120-0200 PLAIN WASHER
106. [1] 016020-2510 LOCKING WASHER
107. [1] 154121-0900 TOOTHED GEAR
108. [1] 016630-2640 BEARING PLATE
109. [1] 028102-5010 BEARING PLATE
111. [1] 029313-2010 SHIM D39.8&32T1
111A. [1] 029313-2020 SHIM D39.8&32T0.2
112. [1] 154122-0200 COVER
113. [1] 016110-5210 LOCKING WASHER
114. [1] 025805-1910 WOODRUFF KEY
115. [1] 023641-8410 LOCKING WASHER
116. [1] 154011-0200 UNION NUT
117. [1] 154123-1820 SLIDING PIECE
118/1. [0] 029311-5020 SHIM D20.5&15T0.05
118/1. [0] 029311-5030 SHIM D20.5&15T0.1
118/1. [0] 029311-5050 SHIM D20.5&15T0.2
118/1. [0] 029311-5060 SHIM D20.5&15T0.4
118/1. [0] 029311-5080 SHIM D20.5&15T0.5
118/1. [0] 029311-5120 SHIM D20.5&15T0.3
119. [1] 154130-0920 TOOTHED GEAR
119/1. [1] 154130-0910 TOOTHED GEAR
119/2. [1] 154132-0220 HOLDER
119/3. [4] 153251-0200 DAMPER
119/4. [1] 153321-0100 PLAIN WASHER
119/5. [1] 016020-4010 LOCKING WASHER
122. [4] 020308-2540 BLEEDER SCREW M8P1.25L25
130. [1] 154150-4700 GOVERNOR SPRING
132. [1] 154154-3600 COILED SPRING
134. [1] 154157-0520 HEADLESS SCREW
136. [1] 029203-0010 UNION NUT
137. [2] 026530-3640 GASKET
138. [1] 154159-0200 CAP NUT
140. [1] 154186-0020 HEADLESS SCREW
141. [1] 139220-0400 UNION NUT
150. [1] 154200-1521 SWIVELLING LEVER
151. [1] 154204-0301 BUSHING
152. [2] 029632-1010 O-RING
152. [2] 029632-1010 O-RING
153. [2] 016010-2010 LOCKING WASHER
153. [2] 016010-2010 LOCKING WASHER
154. [3] 029621-4000 PACKING RING
154. [3] 029621-4000 PACKING RING
154. [3] 029621-4000 PACKING RING
155/1. [0] 029311-4040 SHIM D26&14.2T0.3
155/1. [0] 029311-4050 SHIM D26&14.2T0.4
155/1. [0] 029311-4060 SHIM D26&14.2T0.5
155/1. [0] 029311-4080 SHIM D26&14.2T0.1
158. [1] 154204-3800 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154211-4920 FORK LEVER
174. [1] 154230-1520 STRAP
175. [1] 154232-0100 CONNECTOR
176. [1] 010006-1840 BLEEDER SCREW M6P1L18 4T
177. [1] 013020-6040 UNION NUT M6P1H5
178. [2] 154233-0100 TAB WASHER
179. [1] 153400-0200 SLOTTED WASHER
180. [1] 153401-0300 COILED SPRING
181. [1] 154236-0800 TENSIONING LEVER
182. [1] 154237-0300 BEARING PIN
190. [1] 154303-4520 CONTROL LEVER
191. [1] 154300-2620 CONTROL LEVER
205. [1] 154330-1200 LEVER SHAFT
211. [1] 154331-0100 CONTROL LEVER
212. [1] 024330-2030 BEARING PIN
213. [1] 154332-0100 COILED SPRING
214. [1] 154333-0200 CONTROL LEVER
215. [1] 154334-0100 BEARING PIN
216. [2] 029301-0030 PLAIN WASHER
216. [2] 029301-0030 PLAIN WASHER
217. [1] 029300-8070 PLAIN WASHER
218. [1] 013020-8020 UNION NUT M8P1.25H7
219. [1] 025520-1210 SPLIT PIN
220. [1] 154335-0100 SLOTTED WASHER
221. [1] 154336-0100 COILED SPRING
222. [1] 154336-0200 COILED SPRING
223. [1] 154337-0100 CAPSULE
226. [2] 013020-8040 UNION NUT M8P1.25H7
226. [2] 013020-8040 UNION NUT M8P1.25H7
228/1. [0] 029311-4040 SHIM D26&14.2T0.3
228/1. [0] 029311-4040 SHIM D26&14.2T0.3
228/1. [0] 029311-4050 SHIM D26&14.2T0.4
228/1. [0] 029311-4060 SHIM D26&14.2T0.5
228/1. [0] 029311-4080 SHIM D26&14.2T0.1
229. [1] 154351-0600 BUSHING
230. [2] 014110-8440 LOCKING WASHER
230. [2] 014110-8440 LOCKING WASHER
236. [1] 154350-1000 GASKET
237. [1] 154390-3300 GASKET

Include in #1:

103662-2031 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105455-0541
9 420 610 256
NP-EP/RSUV250-1050ZQ33/301NP38

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV




Information:


Illustration 1 g06545921
Typical view inside the DEF pump
(1) Internal heater blanket
Illustration 2 g06545997
Typical view of the DEF pump heater blanket
(2) Pump head heater (top)
(3) Positioning blocksAdaptable To:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Illustration 3 g06546003
Typical view of the DEF pump identification label
(4) Part number
(5) Serial number
(6) Date code
Table 1
Part Number Description Serial Number Date Code
466-8285 Diesel Exhaust Fluid Pump Gp (12 V) 19357001 19D357
533-2738 Diesel Exhaust Fluid Pump Gp (24 V) 20058030 20D058 Refer to Table 1 for the effective serial number and date code of the improved heater blanket. Refer to Illustration 3 for the location of the DEF pump identification label.
