105455-0420 ZEXEL F 019 Z1E 888 BOSCH GOVERNOR f019z1e888 1054550420 223432040a




Information governor

BOSCH F 019 Z1E 888 f019z1e888
ZEXEL 105455-0420 1054550420
HINO 223432040A 223432040a
105455-0420 GOVERNOR
Rating:
51
Buy GOVERNOR 105455-0420 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

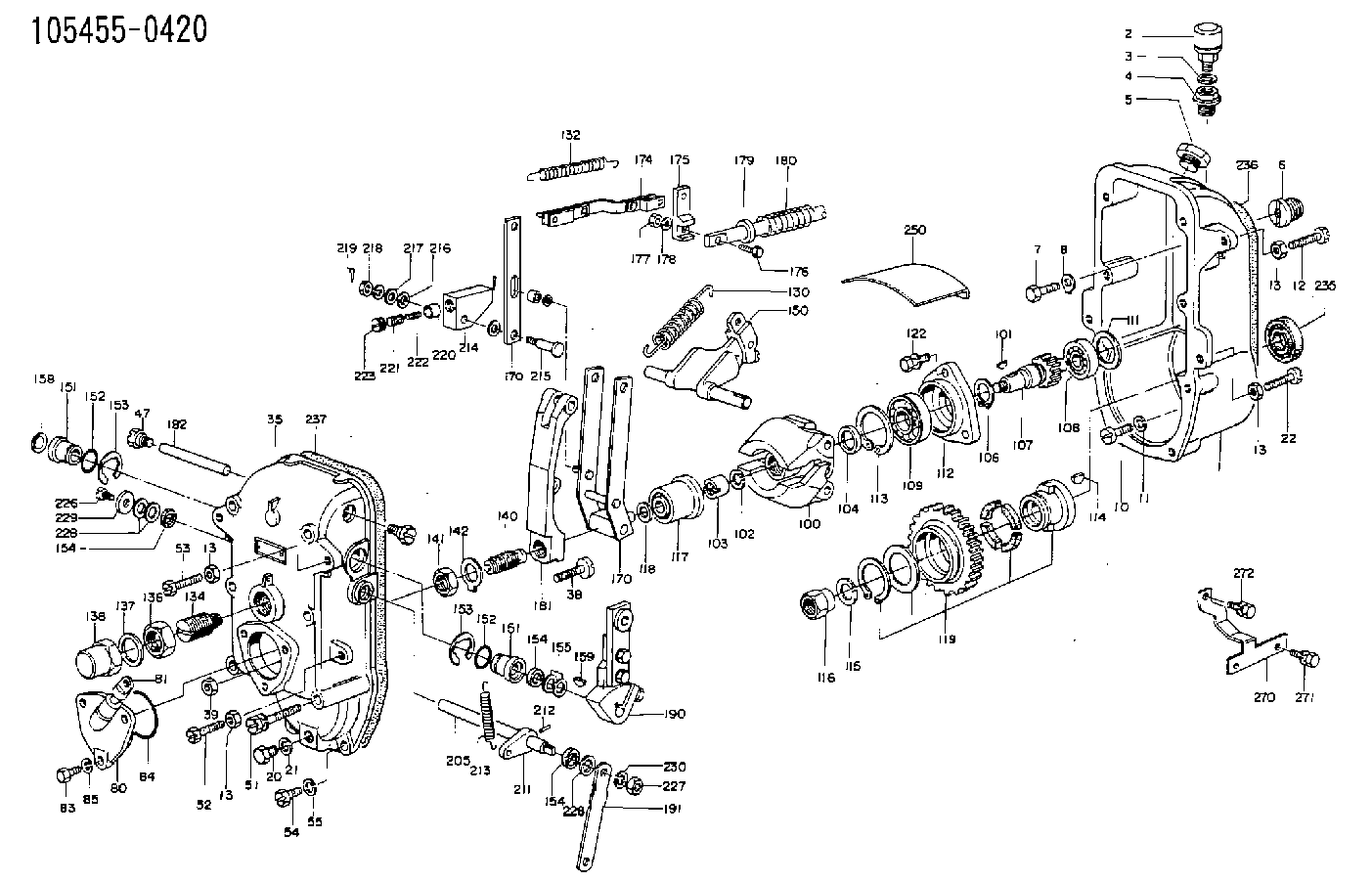

GOVERNOR HOUSING
1. [1] 154003-0920 GOVERNOR HOUSING
2. [1] 155406-0620 AIR FILTER
3. [1] 026512-1540 GASKET D15.4&12.2T1.50
4. [1] 154007-0100 ADAPTOR
5. [1] 154007-1400 CAPSULE
6. [1] 154007-0500 ADAPTOR
7. [1] 010038-1840 BLEEDER SCREW M8P1.25L18
8. [1] 154008-0100 TAB WASHER
10. [4] 010508-2540 FLAT-HEAD SCREW M8P1.25L25
11. [9] 014110-8410 LOCKING WASHER
12. [1] 154010-6200 BLEEDER SCREW
13. [5] 029241-0020 UNION NUT
13. [5] 029241-0020 UNION NUT
13. [5] 029241-0020 UNION NUT
13. [5] 029241-0020 UNION NUT
20. [1] 029111-0030 CAPSULE
21. [1] 026510-1340 GASKET D13.4&10.2T1
22. [1] 154034-0400 BLEEDER SCREW
35. [1] 154522-0020 GOVERNOR COVER
38. [1] 154031-0400 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-0400 CAPSULE
51. [6] 010038-9140 BLEEDER SCREW M8P1.25L95
52. [2] 154034-0400 BLEEDER SCREW
53. [1] 154010-1800 FLAT-HEAD SCREW
54. [2] 010038-2840 BLEEDER SCREW
55. [8] 014110-8410 LOCKING WASHER
80. [1] 154060-0520 COVER
81. [1] 133030-0520 LEVEL INDICATOR
83. [3] 020508-1840 BLEEDER SCREW M8P1.25L18
84. [1] 029635-5010 O-RING
85. [3] 014110-8410 LOCKING WASHER
100. [1] 154102-1920 FLYWEIGHT ASSEMBLY
101. [1] 025804-1610 WOODRUFF KEY
102. [1] 029321-4010 LOCKING WASHER
103. [1] 131325-2600 UNION NUT
104. [1] 154120-0200 PLAIN WASHER
106. [1] 016020-2510 LOCKING WASHER
107. [1] 154121-0800 TOOTHED GEAR
108. [1] 016630-2640 BEARING PLATE
109. [1] 028102-5010 BEARING PLATE
111. [1] 029313-2010 SHIM D39.8&32T1
111A. [1] 029313-2020 SHIM D39.8&32T0.2
112. [1] 154122-0200 COVER
113. [1] 016110-5210 LOCKING WASHER
114. [1] 025805-1910 WOODRUFF KEY
115. [1] 023641-8410 LOCKING WASHER
116. [1] 154011-0200 UNION NUT
117. [1] 154123-1820 SLIDING PIECE
118/1. [0] 029311-5020 SHIM D20.5&15T0.05
118/1. [0] 029311-5030 SHIM D20.5&15T0.1
118/1. [0] 029311-5050 SHIM D20.5&15T0.2
118/1. [0] 029311-5060 SHIM D20.5&15T0.4
118/1. [0] 029311-5080 SHIM D20.5&15T0.5
118/1. [0] 029311-5120 SHIM D20.5&15T0.3
119. [1] 154130-0820 TOOTHED GEAR
119/1. [1] 154130-0810 TOOTHED GEAR
119/2. [1] 154132-0220 HOLDER
119/3. [4] 153251-0200 DAMPER
119/4. [1] 153321-0100 PLAIN WASHER
119/5. [1] 016020-4010 LOCKING WASHER
122. [4] 020308-2540 BLEEDER SCREW M8P1.25L25
130. [1] 154150-4700 GOVERNOR SPRING
132. [1] 154154-1800 COILED SPRING
134. [1] 154157-0520 HEADLESS SCREW
136. [1] 029203-0010 UNION NUT
137. [2] 026530-3640 GASKET
138. [1] 154159-0200 CAP NUT
150. [1] 154200-1521 SWIVELLING LEVER
151. [1] 154204-0301 BUSHING
151. [1] 154204-0301 BUSHING
152. [2] 029632-1010 O-RING
152. [2] 029632-1010 O-RING
153. [2] 016010-2010 LOCKING WASHER
153. [2] 016010-2010 LOCKING WASHER
154. [3] 029621-4000 PACKING RING
154. [3] 029621-4000 PACKING RING
154. [3] 029621-4000 PACKING RING
155/1. [0] 029311-4040 SHIM D26&14.2T0.3
155/1. [0] 029311-4050 SHIM D26&14.2T0.4
155/1. [0] 029311-4060 SHIM D26&14.2T0.5
155/1. [0] 029311-4080 SHIM D26&14.2T0.1
158. [1] 154204-3800 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154211-4920 FORK LEVER
170. [1] 154211-4920 FORK LEVER
174. [1] 154230-1520 STRAP
175. [1] 154232-0100 CONNECTOR
175. [1] 154232-0100 CONNECTOR
176. [1] 010006-1840 BLEEDER SCREW M6P1L18 4T
177. [1] 013020-6040 UNION NUT M6P1H5
178. [2] 154233-0100 TAB WASHER
179. [1] 153400-0200 SLOTTED WASHER
180. [1] 153401-0300 COILED SPRING
181. [1] 154236-1700 TENSIONING LEVER
182. [1] 154237-0300 BEARING PIN
190. [1] 154303-4520 CONTROL LEVER
191. [1] 154300-1700 CONTROL LEVER
205. [1] 154330-0300 LEVER SHAFT
211. [1] 154331-0100 CONTROL LEVER
212. [1] 024330-2030 BEARING PIN
213. [1] 154332-0100 COILED SPRING
214. [1] 154333-0200 CONTROL LEVER
215. [1] 154334-0100 BEARING PIN
216. [2] 029301-0030 PLAIN WASHER
217. [1] 029300-8070 PLAIN WASHER
218. [1] 013020-8020 UNION NUT M8P1.25H7
219. [1] 025520-1210 SPLIT PIN
220. [1] 154335-0100 SLOTTED WASHER
221. [1] 154336-0100 COILED SPRING
222. [1] 154336-0200 COILED SPRING
223. [1] 154337-0100 CAPSULE
226. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
228/1. [0] 029311-4040 SHIM D26&14.2T0.3
228/1. [0] 029311-4050 SHIM D26&14.2T0.4
228/1. [0] 029311-4060 SHIM D26&14.2T0.5
228/1. [0] 029311-4080 SHIM D26&14.2T0.1
228/1. [0] 029311-4080 SHIM D26&14.2T0.1
229. [1] 154300-2000 CONTROL LEVER
230. [2] 014110-8410 LOCKING WASHER
235. [1] 029622-5010 PACKING RING
236. [1] 154350-1000 GASKET
237. [1] 154390-3300 GASKET
250. [1] 154351-0520 PLATE
600. [1] 154157-0720 HEADLESS SCREW

Include in #1:

103662-1260 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105455-0420
F 019 Z1E 888
223432040A  HINO
GOVERNOR
