105455-0380 ZEXEL F 019 Z1E 887 BOSCH GOVERNOR f019z1e887 1054550380




Information governor

BOSCH F 019 Z1E 887 f019z1e887
ZEXEL 105455-0380 1054550380
105455-0380 GOVERNOR
Rating:
48
Buy GOVERNOR 105455-0380 zexel genuine, new aftermarket engine parts with delivery

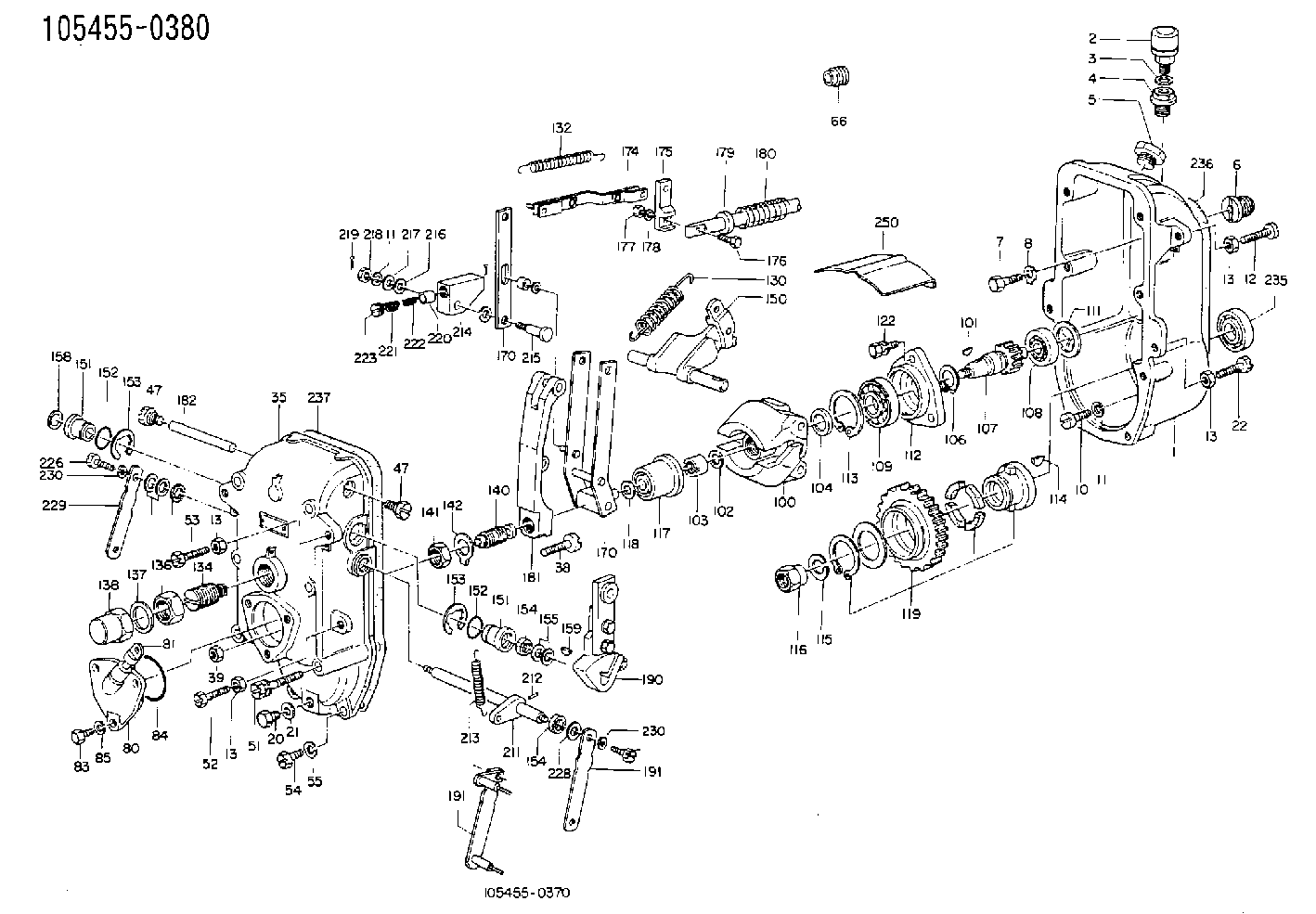

Scheme ###:

GOVERNOR HOUSING
1. [1] 154003-1120 GOVERNOR HOUSING
2. [1] 155406-0620 AIR FILTER
3. [1] 026512-1540 GASKET D15.4&12.2T1.50
4. [1] 154007-0100 ADAPTOR
5. [1] 154007-1400 CAPSULE
6. [1] 154007-0500 ADAPTOR
7. [1] 010038-1840 BLEEDER SCREW M8P1.25L18
8. [1] 014110-8440 LOCKING WASHER
10. [10] 010038-2840 BLEEDER SCREW
11. [10] 014110-8440 LOCKING WASHER
11. [10] 014110-8440 LOCKING WASHER
12. [1] 154010-6200 BLEEDER SCREW
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
20. [1] 029111-0030 CAPSULE
21. [1] 026510-1340 GASKET D13.4&10.2T1
22. [1] 154034-0400 BLEEDER SCREW
35. [1] 154522-0120 GOVERNOR COVER
38. [1] 154031-0400 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-0400 CAPSULE
47. [2] 154036-0400 CAPSULE
51. [6] 010038-9140 BLEEDER SCREW M8P1.25L95
52. [1] 154034-0400 BLEEDER SCREW
53. [1] 154010-1800 FLAT-HEAD SCREW
54. [2] 010038-2840 BLEEDER SCREW
55. [8] 014110-8410 LOCKING WASHER
80. [1] 154060-0520 COVER
81. [1] 133030-0520 LEVEL INDICATOR
83. [3] 020508-1840 BLEEDER SCREW M8P1.25L18
84. [1] 029635-5010 O-RING
85. [3] 014110-8410 LOCKING WASHER
100. [1] 154102-1720 FLYWEIGHT ASSEMBLY
101. [1] 025804-1610 WOODRUFF KEY
102. [1] 029321-4010 LOCKING WASHER
103. [1] 131325-2600 UNION NUT
104. [1] 154120-0200 PLAIN WASHER
106. [1] 016020-2510 LOCKING WASHER
107. [1] 154121-0600 TOOTHED GEAR
108. [1] 016630-2640 BEARING PLATE
109. [1] 028102-5010 BEARING PLATE
111. [1] 029313-2010 SHIM D39.8&32T1
111A. [1] 029313-2020 SHIM D39.8&32T0.2
112. [1] 154122-0200 COVER
113. [1] 016110-5210 LOCKING WASHER
114. [1] 025805-1910 WOODRUFF KEY
115. [1] 023641-8410 LOCKING WASHER
116. [1] 154011-0200 UNION NUT
117. [1] 154123-1820 SLIDING PIECE
118/1. [0] 029311-5020 SHIM D20.5&15T0.05
118/1. [0] 029311-5030 SHIM D20.5&15T0.1
118/1. [0] 029311-5050 SHIM D20.5&15T0.2
118/1. [0] 029311-5060 SHIM D20.5&15T0.4
118/1. [0] 029311-5080 SHIM D20.5&15T0.5
118/1. [0] 029311-5120 SHIM D20.5&15T0.3
119. [1] 154130-0620 TOOTHED GEAR
119/2. [1] 154132-0220 HOLDER
119/3. [4] 153251-0200 DAMPER
119/4. [1] 153321-0100 PLAIN WASHER
119/5. [1] 016020-4010 LOCKING WASHER
130. [1] 154150-4700 GOVERNOR SPRING
132. [1] 154154-1800 COILED SPRING
134. [1] 154157-0520 HEADLESS SCREW
136. [1] 029203-0010 UNION NUT
137. [2] 026530-3640 GASKET
138. [1] 154159-0200 CAP NUT
140. [1] 154170-0320 HEADLESS SCREW
141. [1] 139220-0400 UNION NUT
150. [1] 154200-1521 SWIVELLING LEVER
151. [1] 154204-0301 BUSHING
151. [1] 154204-0301 BUSHING
152. [2] 029632-1010 O-RING
152. [2] 029632-1010 O-RING
153. [2] 016010-2010 LOCKING WASHER
153. [2] 016010-2010 LOCKING WASHER
154. [3] 029621-4000 PACKING RING
154. [3] 029621-4000 PACKING RING
155/1. [0] 029311-4040 SHIM D26&14.2T0.3
155/1. [0] 029311-4050 SHIM D26&14.2T0.4
155/1. [0] 029311-4060 SHIM D26&14.2T0.5
155/1. [0] 029311-4080 SHIM D26&14.2T0.1
158. [1] 154204-3800 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154211-4920 FORK LEVER
170. [1] 154211-4920 FORK LEVER
174. [1] 154230-1620 STRAP
175. [1] 154232-0100 CONNECTOR
176. [1] 010006-1840 BLEEDER SCREW M6P1L18 4T
177. [1] 013020-6040 UNION NUT M6P1H5
178. [2] 154233-0100 TAB WASHER
179. [1] 153400-0200 SLOTTED WASHER
180. [1] 153401-0300 COILED SPRING
181. [1] 154236-0800 TENSIONING LEVER
182. [1] 154237-0300 BEARING PIN
190. [1] 154303-4520 CONTROL LEVER
191. [1] 154300-0300 CONTROL LEVER
191. [1] 154300-0300 CONTROL LEVER
205. [1] 154330-1400 LEVER SHAFT
211. [1] 154331-0100 CONTROL LEVER
212. [1] 024330-2030 BEARING PIN
213. [1] 154332-0100 COILED SPRING
214. [1] 154333-0200 CONTROL LEVER
215. [1] 154334-0100 BEARING PIN
216. [2] 029301-0030 PLAIN WASHER
217. [1] 029300-8070 PLAIN WASHER
218. [1] 013020-8020 UNION NUT M8P1.25H7
219. [1] 025520-1210 SPLIT PIN
220. [1] 154335-0100 SLOTTED WASHER
221. [1] 154336-0100 COILED SPRING
222. [1] 154336-0200 COILED SPRING
223. [1] 154337-0100 CAPSULE
226. [1] 021306-1540 FLAT-HEAD SCREW
227. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
228/1. [0] 029311-4040 SHIM D26&14.2T0.3
228/1. [0] 029311-4050 SHIM D26&14.2T0.4
228/1. [0] 029311-4060 SHIM D26&14.2T0.5
228/1. [0] 029311-4080 SHIM D26&14.2T0.1
229. [1] 154350-0700 PLATE
235. [1] 029622-5010 PACKING RING
236. [1] 154390-3000 GASKET
237. [1] 154390-3300 GASKET
250. [1] 154351-0520 PLATE

Include in #1:

103682-0370 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105455-0380
F 019 Z1E 887

GOVERNOR
* K




Information:

Tooling, Test, and Bulk Ground Fill Support Equipment
Diesel Exhaust Fluid (DEF)
Two container sizes of DEF are available through the Cat® dealers in North America. DEF must meet ISO 22241-1 specifications.
Table 1
Tool Part Number Description
350-8733 Diesel Exhaust Fluid 9.5 L (2.5 US gal) bottle
350-8734 Diesel Exhaust Fluid 1378 L (364 US gal) tote
443-0955 Removal Tool DEF filter removal tool Dispensing Equipment
Three different dispensing kits are offered to protect DEF quality. Optional flow meter and coupler are also available.
Table 2
Tool Part Number Description
422-1185 Pump Adapter (DEF DISPENSER) 12 V dispenser unit
423-7843 Pump Adapter (DEF DISPENSER) 110 V dispenser unit
423-7844 Pump Adapter (DEF DISPENSER) 230 V dispenser unit with"smart start"tote base
423-7795 Flow Meter In line DEF flow meter
423-7799 Coupler MicroMatic coupler Dispenser Unit Repair Parts
Table 3
Tool Part Number Description
436-6643 Repair Kit 12 V dispenser unit
436-6646 Diesel Exhaust Fluid Pump 12 V repair group
436-6642 Hose 20'/4'
436-6644 Swivel
436-6645 Repair Kit 1/2 hp pump
436-6647 Nozzle (DIESEL EXHAUST FLUID) Dispensing nozzle Storage and Transportation
Preventing DEF contamination does not stop at the pump. Protect your DEF supply with climate-specific enclosures and transportation tanks.
Table 4
Part Number Description
435-8671 Dispenser Warm-weather enclosure
435-8672 Dispenser Cold-weather enclosure
460-4077 Tank 121 L (32 US gal)
460-4078 Tank 269 L (71 US gal) Fast Fill Vehicle Interface
Illustration 1 g06516654
584-9979 Nozzle As
Table 5
584-9979 Nozzle As
Repair parts for 584-9979 Nozzle As
- 587-3371 Rear Cap
- 587-3372 Handle
- 587-3373 Hose (3/4")
- 587-3374 O-Ring Seal
- 587-3375 Handle (optional)
459-9296 Receiver As (Permanently mounted on vehicle)
For heated DEF hose repair connectors, kits, and instructions , refer to Service Magazine, M0103829, "Repair Kits for Quick Connect Diesel Exhaust Fluid (DEF) Line Fittings Are Now Available for Certain Cat® Machine Engines". Testing Equipment
Test your DEF supply and DEF injector with DEF-specific testing equipment. Complete kits or individual testing components are available for your needs.
Table 6
441-0451 Tool Gp (includes hard case, foam insert, and hardware)
- 441-0454 Container
- 443-7055 Test Kit
- 398-4985 Probe
- 398-4987 Probe
- 398-5080 Lead
- 398-5081 Lead
- 398-5083 Plug
450-1515 Tool Gp (DIESEL EXHAUST FLUID) (includes hard case, foam insert, and hardware)
- 441-0454 Container
- 398-4985 Probe
- 398-4987 Probe
- 398-5080 Lead
- 398-5081 Lead
- 398-5083 Plug
441-0454 Container
443-7055 Test Kit
431-7087 Tool Gp (REFRACTOMETER (DEF))
360-0774 Refractometer
372-5260 Test Lead Tool Group
576-6134 Test Strip

Have questions with 105455-0380?





Group cross 105455-0380 ZEXEL

105455-0300
F 019 Z1E 884

GOVERNOR
105455-0330



105455-0340
F 01G 29N 0L8
NP-EP/RSUV150-610ZWQ55/301NP21


105455-0350
F 019 Z1E 885
NP-EP/RSUV150-610ZQ31/301NP22

GOVERNOR
105455-0360
F 019 Z1E 886
NP-EP/RSUV200-770ZQ32/301NP22

GOVERNOR
105455-0370



105455-0380
F 019 Z1E 887

GOVERNOR
