105449-0000 ZEXEL F 019 Z9E 798 BOSCH GOVERNOR f019z9e798 1054490000




Information governor

BOSCH F 019 Z9E 798 f019z9e798
ZEXEL 105449-0000 1054490000
105449-0000 GOVERNOR
Rating:
22
Buy GOVERNOR 105449-0000 zexel genuine, new aftermarket engine parts with delivery

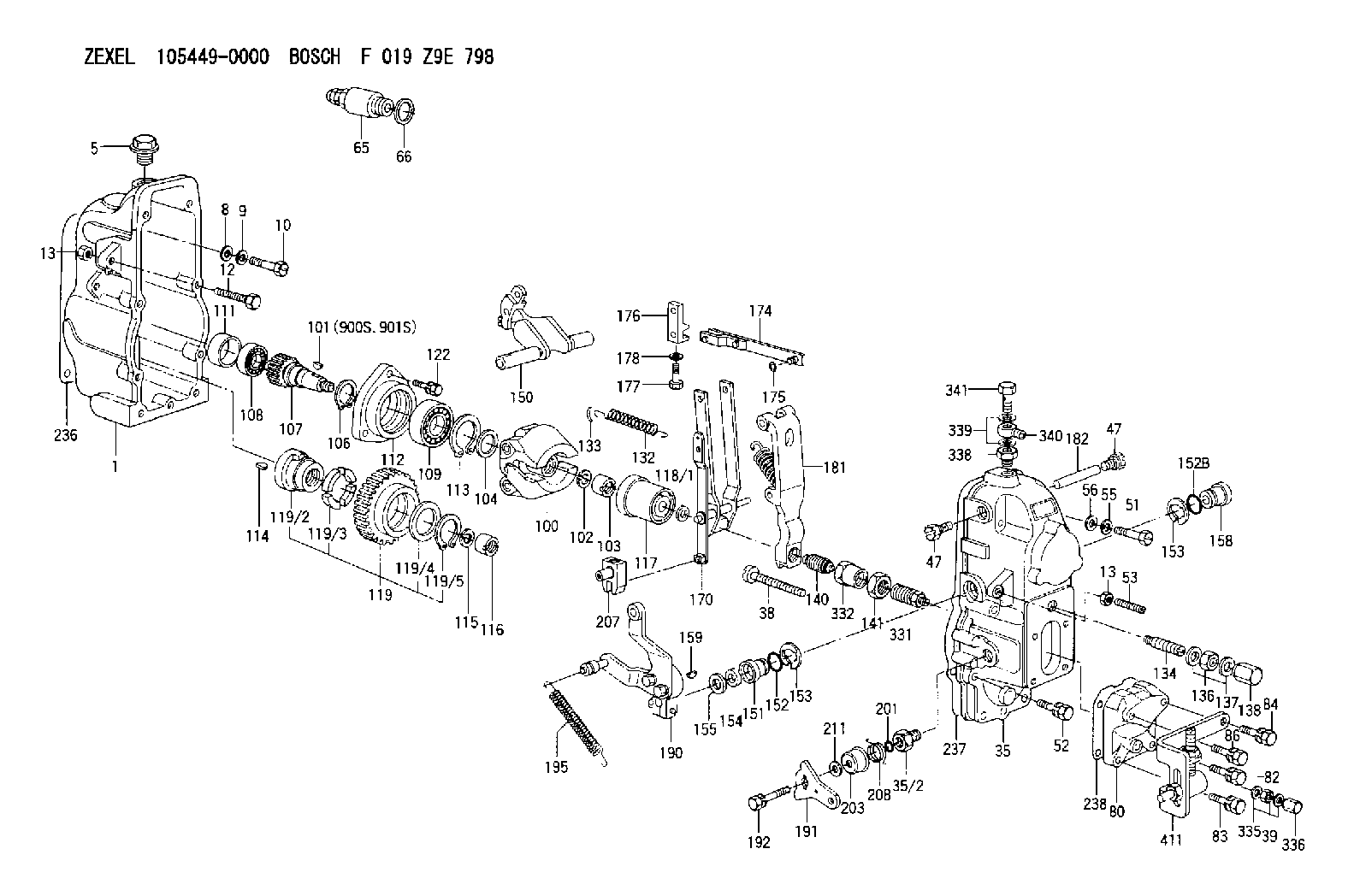

Scheme ###:

GOVERNOR HOUSING
1. [1] 154002-2920 GOVERNOR HOUSING
5. [1] 154007-1600 CAPSULE
8. [9] 029300-6040 PLAIN WASHER D11&6.4T1
9. [9] 029320-6010 LOCKING WASHER
10. [9] 029000-6490 BLEEDER SCREW M6P1.0L23
12. [1] 154010-3900 BLEEDER SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154520-7520 GOVERNOR COVER
35/2. [1] 154321-0200 BUSHING
38. [1] 154031-3800 FLAT-HEAD SCREW
39. [1] 013020-6040 UNION NUT M6P1H5
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [4] 029000-6470 BLEEDER SCREW
52. [5] 029000-6480 BLEEDER SCREW M6P1.0L35
53. [1] 154010-0200 FLAT-HEAD SCREW
55. [9] 029320-6010 LOCKING WASHER
56. [9] 029300-6040 PLAIN WASHER D11&6.4T1
65. [1] 153020-3920 STOPPING DEVICE
66. [1] 029332-0050 GASKET
80. [1] 154063-7700 COVER
82. [1] 029020-6240 BLEEDER SCREW
83. [1] 139006-2500 BLEEDER SCREW M6P1.0L23
84. [1] 029020-6290 BLEEDER SCREW
86. [1] 029020-6290 BLEEDER SCREW
100. [1] 154100-9920 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
104. [1] 154120-0100 PLAIN WASHER
106. [1] 029602-0020 LOCKING WASHER
107. [1] 154121-0500 TOOTHED GEAR
108. [1] 016610-2640 BEARING PLATE
109. [1] 028102-0010 BEARING PLATE
111. [1] 154134-0000 SPACER BUSHING
112. [1] 154122-0300 COVER
113. [1] 029614-7020 LOCKING WASHER
114. [1] 025803-1310 WOODRUFF KEY
115. [1] 029321-2020 LOCKING WASHER
116. [1] 029231-2030 UNION NUT
117. [1] 154123-1020 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
119. [1] 154130-1920 TOOTHED GEAR
119/2. [1] 154132-0320 HOLDER
119/3. [4] 153251-0600 DAMPER
119/4. [1] 139329-0000 PLAIN WASHER
119/5. [1] 016020-2810 LOCKING WASHER
122. [3] 020106-2840 BLEEDER SCREW
132. [1] 154154-2900 COILED SPRING
133. [2] 154156-0100 TUBE
134. [1] 154158-3320 HEADLESS SCREW
136. [1] 029201-2290 UNION NUT
137. [2] 026512-1640 GASKET D15.9&12.2T1
138. [1] 154159-1200 CAP NUT
140. [1] 154186-2620 HEADLESS SCREW
141. [1] 029201-6210 UNION NUT
150. [1] 154200-4520 SWIVELLING LEVER
151. [1] 154204-4100 BUSHING
152. [1] 139718-0000 O-RING
152B. [1] 029631-6110 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 029621-1070 PACKING RING
155. [1] 029311-1010 SHIM
158. [1] 154204-2200 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154211-5220 FORK LEVER
174. [1] 154230-1820 STRAP
175. [1] 016010-0540 LOCKING WASHER
176. [1] 154232-0500 CONNECTOR
177. [1] 154316-2300 BLEEDER SCREW
178. [1] 029320-6010 LOCKING WASHER
181. [1] 154236-5721 TENSIONING LEVER
182. [1] 154237-0200 BEARING PIN
190. [1] 154395-9320 CONTROL LEVER
191. [1] 154367-1320 CONTROL LEVER
192. [1] 020006-2070 BLEEDER SCREW M6P1L20 7T
195. [1] 154317-2600 COILED SPRING
201. [1] 029630-9160 O-RING
203. [1] 154322-0100 CAP
207. [1] 154326-5020 CONTROL LEVER
208. [1] 154327-7600 COILED SPRING
211. [0] 029311-0220 SHIM D18&10.3T0.2
211B. [0] 029311-0230 SHIM D18&10.3T0.5
236. [1] 154390-2900 GASKET
237. [1] 154390-3100 GASKET
238. [1] 154390-3500 GASKET
331. [1] 154178-3420 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
338. [1] 131002-3800 ADAPTOR
339. [2] 029341-2140 GASKET
340. [1] 029711-2350 INLET UNION
341. [1] 029731-2240 EYE BOLT
411. [1] 154370-2620 BRACKET
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106692-9230 as GOVERNOR
106692-9231

Cross reference number

Zexel num
Bosch num
Firm num
Name
105449-0000
F 019 Z9E 798
NP-EP/RSUV210-1250PDP40A302

GOVERNOR
K




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
Improved Diesel Exhaust Fluid (DEF) cooling line clamps are adaptable to the product within the listed serial numbers and are effective with all the product after the listed serial numbers.
Table 1
Required Parts
Item Qty Part Number Part Name Former Part Number(1)
1 10 577-7966 Clamp 520-7003
(1) The former part number listed is for reference only and mayΠdiffer.
Table 2
Required Tool
Qty Part Number Part Name
1 522-3730 Pliers
Illustration 1 g06408909
View of 398-6108 Cooling Lines Gp
(1) 577-7966 ClampInstall new clamps (1) in 398-6108 Cooling Lines Gp.Note: Ensure 522-3730 Pliers tool is used to install new clamp.
Illustration 2 g06408916
(1) 577-7966 Clamp
(A) Hose
(D1) 5 mm (0.20 inch)Position clamp (1) within 5 mm (0.20 inch) of the bead and perpendicular to the hose axis. If the hose insertion length permits, another clamp can be installed to ensure fluid retention.

Have questions with 105449-0000?





Group cross 105449-0000 ZEXEL

105449-0000
F 019 Z9E 798
NP-EP/RSUV210-1250PDP40A302

GOVERNOR
