105448-9980 ZEXEL 9 420 610 212 BOSCH GOVERNOR 9420610212 1054489980

Information governor

BOSCH 9 420 610 212 9420610212

ZEXEL 105448-9980 1054489980

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105448-9980 zexel genuine, new aftermarket engine parts with delivery

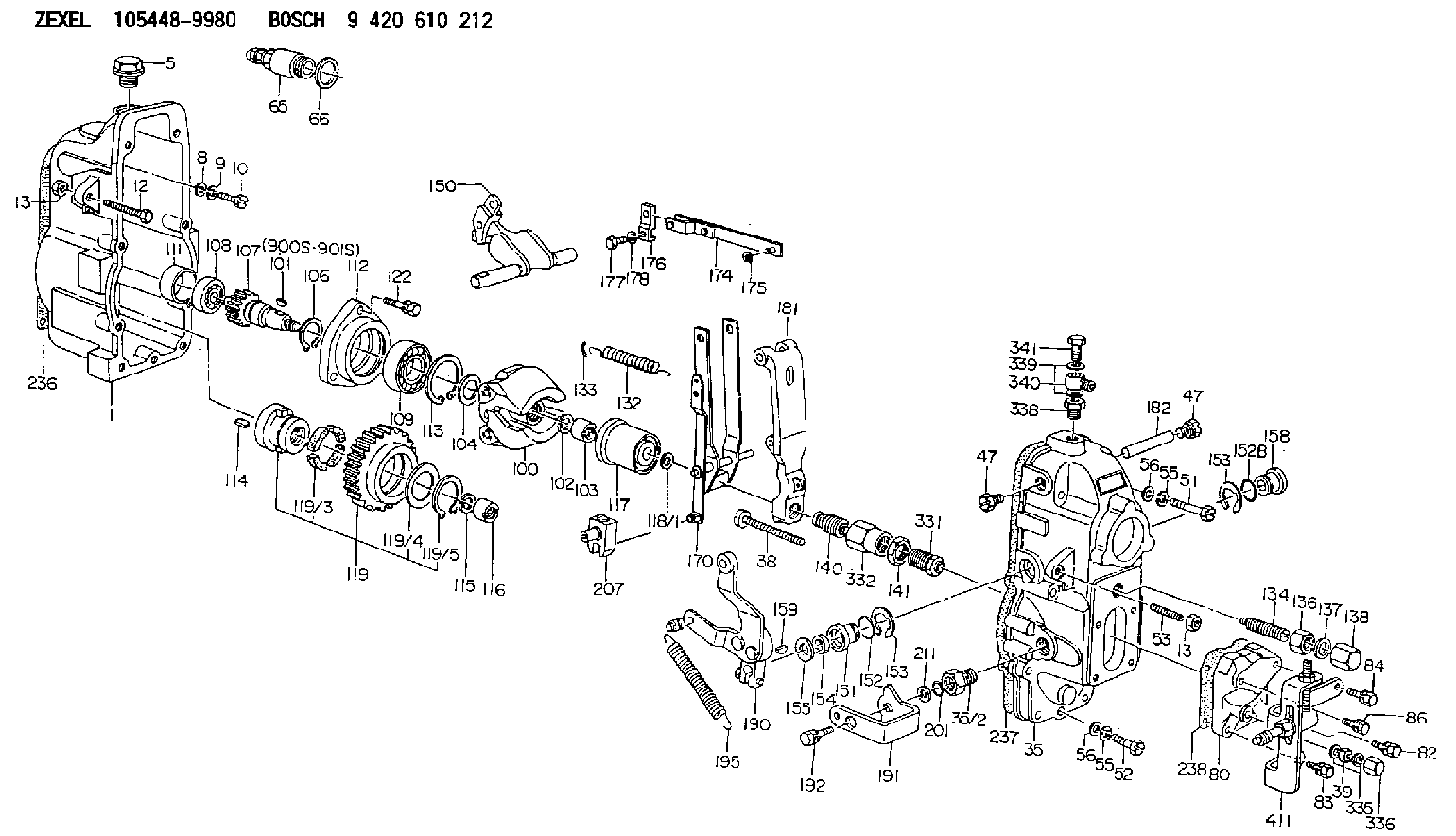

Scheme ###:

1.	[1]	154002-2920	GOVERNOR HOUSING
5.	[1]	154007-1600	CAPSULE
8.	[9]	029300-6040	PLAIN WASHER D11&6.4T1
9.	[9]	029320-6010	LOCKING WASHER
10.	[9]	029000-6490	BLEEDER SCREW M6P1.0L23
12.	[1]	154010-3900	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154520-7520	GOVERNOR COVER
35/2.	[1]	154321-0200	BUSHING
35/2.	[1]	154321-0200	BUSHING
38.	[1]	154031-3800	FLAT-HEAD SCREW
39.	[1]	013020-6040	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[4]	029000-6470	BLEEDER SCREW
52.	[5]	029000-6480	BLEEDER SCREW M6P1.0L35
53.	[1]	154010-0200	FLAT-HEAD SCREW
55.	[9]	029320-6010	LOCKING WASHER
55.	[9]	029320-6010	LOCKING WASHER
56.	[9]	029300-6040	PLAIN WASHER D11&6.4T1
56.	[9]	029300-6040	PLAIN WASHER D11&6.4T1
65.	[1]	153020-3920	STOPPING DEVICE
66.	[1]	029332-0050	GASKET
80.	[1]	154063-7700	COVER
82.	[1]	029020-6240	BLEEDER SCREW
83.	[1]	139006-2500	BLEEDER SCREW M6P1.0L23
84.	[1]	029020-6290	BLEEDER SCREW
86.	[1]	029020-6290	BLEEDER SCREW
100.	[1]	154100-9920	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0500	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0300	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1610	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1020	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1820	TOOTHED GEAR
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
132.	[1]	154154-2900	COILED SPRING
133.	[2]	154156-0100	TUBE
134.	[1]	154158-3320	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1640	GASKET D15.9&12.2T1
138.	[1]	154159-1200	CAP NUT
140.	[1]	154186-0420	HEADLESS SCREW
141.	[1]	029201-6210	UNION NUT
150.	[1]	154200-4520	SWIVELLING LEVER
151.	[1]	154204-4100	BUSHING
152.	[1]	139718-0200	O-RING
152B.	[1]	139716-0100	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0200	PACKING RING
155.	[1]	029311-1010	SHIM
158.	[1]	154204-2200	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154211-5220	FORK LEVER
174.	[1]	154230-1820	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0500	CONNECTOR
177.	[1]	154316-2300	BLEEDER SCREW
178.	[1]	029320-6010	LOCKING WASHER
181.	[1]	154236-5721	TENSIONING LEVER
182.	[1]	154237-0200	BEARING PIN
190.	[1]	154395-9320	CONTROL LEVER
191.	[1]	154366-5500	CONTROL LEVER
192.	[1]	020006-2070	BLEEDER SCREW M6P1L20 7T
195.	[1]	154317-2600	COILED SPRING
201.	[1]	139710-0400	O-RING
207.	[1]	154326-5020	CONTROL LEVER
211.	[0]	029311-0220	SHIM D18&10.3T0.2
211B.	[0]	029311-0230	SHIM D18&10.3T0.5
236.	[1]	154390-2900	GASKET
237.	[1]	154390-3100	GASKET
238.	[1]	154390-3500	GASKET
331.	[1]	154178-3420	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
338.	[1]	131002-3800	ADAPTOR
339.	[2]	029341-2140	GASKET
340.	[1]	029711-2350	INLET UNION
341.	[1]	029731-2240	EYE BOLT
411.	[1]	154370-2620	BRACKET
900S.	[1]	025803-1310	WOODRUFF KEY
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106692-4357 as GOVERNOR

106692-4358

Cross reference number

Zexel num

Bosch num

Firm num

Name

105448-9980

9 420 610 212
NP-EP/RSUV210-1250PDP40A302

GOVERNOR
K

Information:

Table 1
Repair Kit Part Numbers for Quick Connect DEF Line Fittings
473-2053 5/16"-90 Degree Kit
473-2055 5/16"- Straight Kit
473-2056 3/8"-90 Degree Kit
473-2057 3/8"- Straight Kit Rework Procedure
Table 2
Required Tools
Part Number Part Name
1U-7648 Tube Cutter
Illustration 1 g06433660
Cut the connector end on the corrugated section with the cutter.
Illustration 2 g06433665
Cut the two wires with a tie cutter.
Illustration 3 g06433668
Use a knife or sharp blade to cut the outer sheathing off. Ensure not to cut or damage the inner fluid hose.
Illustration 4 g06433669
Install the hose clamp provided first before installing the connector. Use appropriate size (3/8th or 5/16th) and type (90 degree or straight) fitting.
Illustration 5 g06433672
Fasten the clamp until the two jaws are either in contact or about 2 to 3 mm (0.08 to 0.1 inch) apart.
