Information governor
BOSCH
F 019 Z9E 502
f019z9e502
ZEXEL
105448-9860
1054489860

Rating:

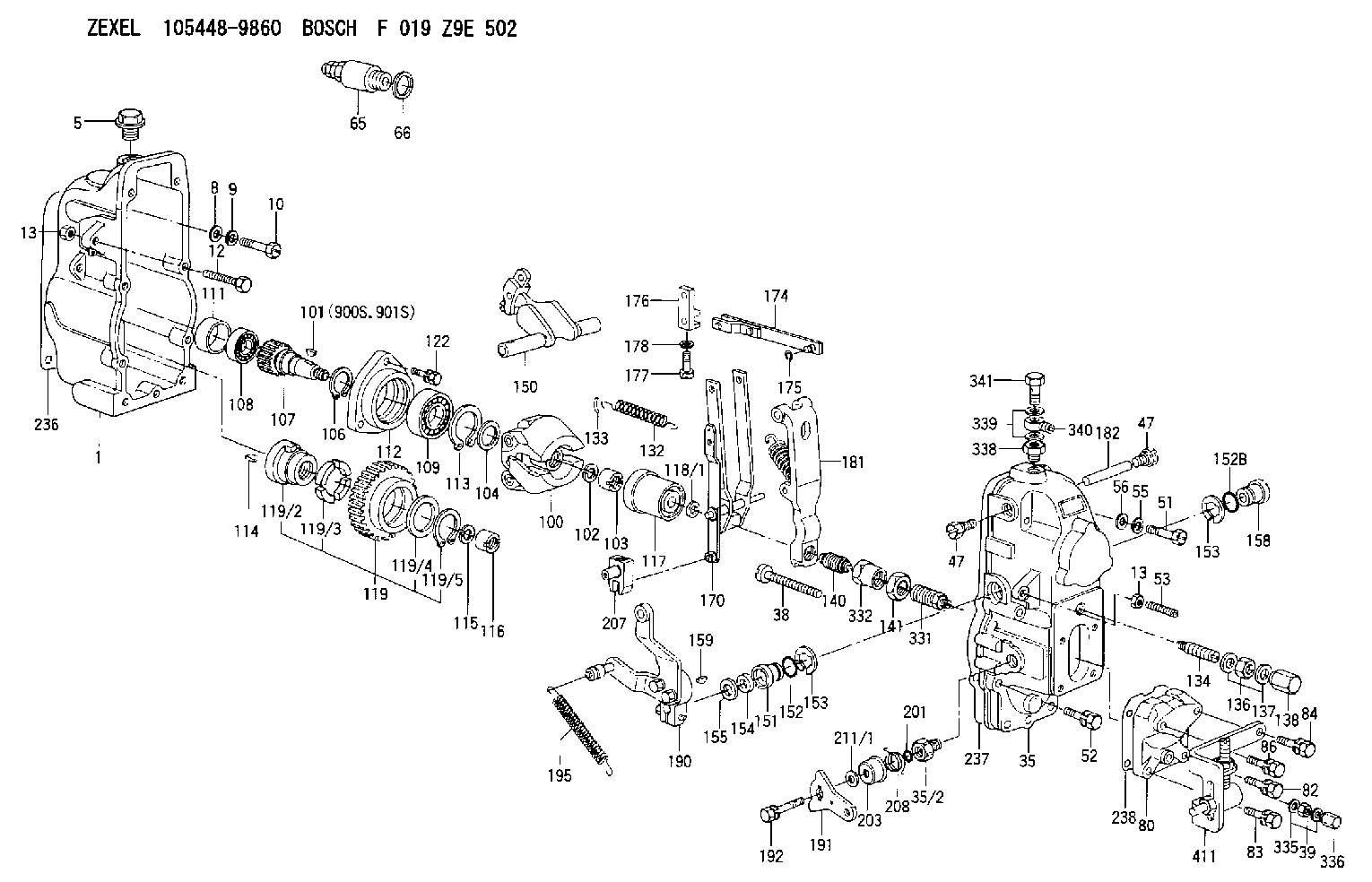

Scheme ###:
1. | [1] | 154002-2920 | GOVERNOR HOUSING |
5. | [1] | 154007-1600 | CAPSULE |
8. | [9] | 029300-6040 | PLAIN WASHER D11&6.4T1 |
9. | [9] | 029320-6010 | LOCKING WASHER |
10. | [9] | 029000-6490 | BLEEDER SCREW M6P1.0L23 |
12. | [1] | 154010-3900 | BLEEDER SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154520-7520 | GOVERNOR COVER |
35/2. | [1] | 154321-0200 | BUSHING |
38. | [1] | 154031-3800 | FLAT-HEAD SCREW |
39. | [1] | 013020-6040 | UNION NUT M6P1H5 |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
51. | [4] | 029000-6470 | BLEEDER SCREW |
52. | [5] | 029000-6480 | BLEEDER SCREW M6P1.0L35 |
53. | [1] | 154010-0200 | FLAT-HEAD SCREW |
55. | [9] | 029320-6010 | LOCKING WASHER |
56. | [9] | 029300-6040 | PLAIN WASHER D11&6.4T1 |
65. | [1] | 153020-3920 | STOPPING DEVICE |
66. | [1] | 029332-0050 | GASKET |
80. | [1] | 154063-7700 | COVER |
82. | [1] | 029020-6240 | BLEEDER SCREW |
83. | [1] | 139006-2500 | BLEEDER SCREW M6P1.0L23 |
84. | [1] | 029020-6290 | BLEEDER SCREW |
86. | [1] | 029020-6290 | BLEEDER SCREW |
100. | [1] | 154100-9920 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
104. | [1] | 154120-0100 | PLAIN WASHER |
106. | [1] | 029602-0020 | LOCKING WASHER |
107. | [1] | 154121-0500 | TOOTHED GEAR |
108. | [1] | 016610-2640 | BEARING PLATE |
109. | [1] | 028102-0010 | BEARING PLATE |
111. | [1] | 154134-0000 | SPACER BUSHING |
112. | [1] | 154122-0300 | COVER |
113. | [1] | 029614-7020 | LOCKING WASHER |
114. | [1] | 025803-1310 | WOODRUFF KEY |
115. | [1] | 029321-2020 | LOCKING WASHER |
116. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-1020 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
119. | [1] | 154130-1920 | TOOTHED GEAR |
119/2. | [1] | 154132-0320 | HOLDER |
119/3. | [4] | 153251-0600 | DAMPER |
119/4. | [1] | 139329-0000 | PLAIN WASHER |
119/5. | [1] | 016020-2810 | LOCKING WASHER |
122. | [3] | 020106-2840 | BLEEDER SCREW |
132. | [1] | 154154-2900 | COILED SPRING |
133. | [2] | 154156-0100 | TUBE |
134. | [1] | 154158-3320 | HEADLESS SCREW |
136. | [1] | 154159-1200 | CAP NUT |
137. | [2] | 026512-1640 | GASKET D15.9&12.2T1 |
138. | [1] | 154159-0100 | CAP NUT |
140. | [1] | 154185-4920 | HEADLESS SCREW |
141. | [1] | 029201-6080 | UNION NUT |
150. | [1] | 154200-4520 | SWIVELLING LEVER |
151. | [1] | 154204-4100 | BUSHING |
152. | [1] | 139718-0000 | O-RING |
152B. | [1] | 029631-6110 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 029621-1070 | PACKING RING |
155. | [1] | 029311-1010 | SHIM |
158. | [1] | 154204-2200 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
170. | [1] | 154211-5220 | FORK LEVER |
174. | [1] | 154230-1820 | STRAP |
175. | [1] | 016010-0540 | LOCKING WASHER |
176. | [1] | 154232-0500 | CONNECTOR |
177. | [1] | 154316-2300 | BLEEDER SCREW |
178. | [1] | 029320-6010 | LOCKING WASHER |
181. | [1] | 154236-5721 | TENSIONING LEVER |
182. | [1] | 154237-0200 | BEARING PIN |
190. | [1] | 154347-9520 | CONTROL LEVER |
191. | [1] | 154367-1320 | CONTROL LEVER |
192. | [1] | 020006-2070 | BLEEDER SCREW M6P1L20 7T |
195. | [1] | 154317-2600 | COILED SPRING |
201. | [1] | 029630-9160 | O-RING |
203. | [1] | 154322-0100 | CAP |
207. | [1] | 154326-5020 | CONTROL LEVER |
208. | [1] | 154327-7600 | COILED SPRING |
211/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
211/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
211/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
211/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
211/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
211/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
236. | [1] | 154390-2900 | GASKET |
237. | [1] | 154390-3100 | GASKET |
238. | [1] | 154390-3500 | GASKET |
331. | [1] | 154179-0720 | HEADLESS SCREW |
332. | [1] | 029201-6010 | UNION NUT |
335. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
336. | [1] | 154035-1600 | CAP NUT |
338. | [1] | 131002-3800 | ADAPTOR |
339. | [2] | 029341-2140 | GASKET |
340. | [1] | 029711-2350 | INLET UNION |
341. | [1] | 029731-2240 | EYE BOLT |
411. | [1] | 154370-2620 | BRACKET |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105448-9860
GOVERNOR
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
K 14JN MECHANICAL GOVERNOR GOV RFD GOV
