Information governor
BOSCH
9 420 610 211
9420610211
ZEXEL
105448-9721
1054489721
Rating:

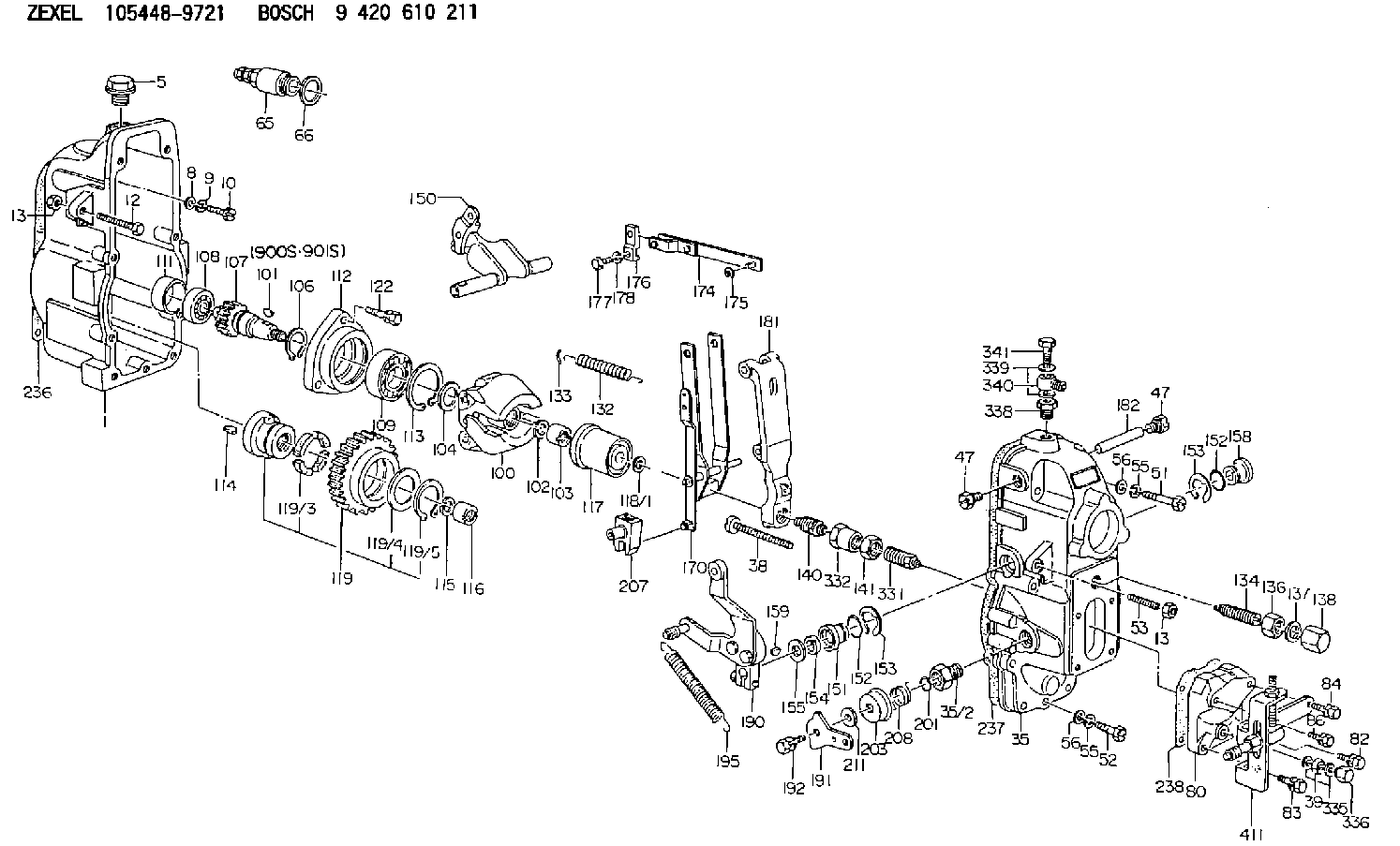

Scheme ###:
| 1. | [1] | 154002-2920 | GOVERNOR HOUSING |
| 5. | [1] | 154007-1600 | CAPSULE |
| 8. | [9] | 029300-6040 | PLAIN WASHER D11&6.4T1 |
| 9. | [9] | 029320-6010 | LOCKING WASHER |
| 10. | [9] | 029000-6490 | BLEEDER SCREW M6P1.0L23 |
| 12. | [1] | 154010-3900 | BLEEDER SCREW |
| 13. | [2] | 154011-0100 | HEXAGON NUT |
| 13. | [2] | 154011-0100 | HEXAGON NUT |
| 35. | [1] | 154520-2420 | GOVERNOR COVER |
| 35/2. | [1] | 154321-0200 | BUSHING |
| 38. | [1] | 154031-3800 | FLAT-HEAD SCREW |
| 39. | [1] | 013020-6040 | UNION NUT M6P1H5 |
| 47. | [2] | 154036-0300 | CAPSULE |
| 47. | [2] | 154036-0300 | CAPSULE |
| 51. | [4] | 029000-6470 | BLEEDER SCREW |
| 52. | [5] | 029000-6480 | BLEEDER SCREW M6P1.0L35 |
| 53. | [1] | 154010-0200 | FLAT-HEAD SCREW |
| 55. | [9] | 029320-6010 | LOCKING WASHER |
| 55. | [9] | 029320-6010 | LOCKING WASHER |
| 56. | [9] | 029300-6040 | PLAIN WASHER D11&6.4T1 |
| 56. | [9] | 029300-6040 | PLAIN WASHER D11&6.4T1 |
| 65. | [1] | 153020-3920 | STOPPING DEVICE |
| 66. | [1] | 029332-0050 | GASKET |
| 80. | [1] | 154063-7700 | COVER |
| 82. | [1] | 029020-6240 | BLEEDER SCREW |
| 83. | [1] | 139006-2500 | BLEEDER SCREW M6P1.0L23 |
| 84. | [1] | 029020-6290 | BLEEDER SCREW |
| 86. | [1] | 029020-6290 | BLEEDER SCREW |
| 100. | [1] | 154100-9920 | FLYWEIGHT ASSEMBLY |
| 101. | [1] | 025803-1310 | WOODRUFF KEY |
| 102. | [1] | 029321-2020 | LOCKING WASHER |
| 103. | [1] | 029231-2030 | UNION NUT |
| 104. | [1] | 154120-0100 | PLAIN WASHER |
| 106. | [1] | 029602-0020 | LOCKING WASHER |
| 107. | [1] | 154121-0500 | TOOTHED GEAR |
| 108. | [1] | 016610-2640 | BEARING PLATE |
| 109. | [1] | 028102-0010 | BEARING PLATE |
| 111. | [1] | 154134-0000 | SPACER BUSHING |
| 112. | [1] | 154122-0300 | COVER |
| 113. | [1] | 029614-7020 | LOCKING WASHER |
| 114. | [1] | 025803-1610 | WOODRUFF KEY |
| 115. | [1] | 029321-2020 | LOCKING WASHER |
| 116. | [1] | 029231-2030 | UNION NUT |
| 117. | [1] | 154123-1020 | SLIDING PIECE |
| 118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
| 118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
| 118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
| 118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
| 118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
| 118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
| 118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
| 118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
| 118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
| 119. | [1] | 154130-1820 | TOOTHED GEAR |
| 119/3. | [4] | 153251-0100 | DAMPER |
| 119/4. | [1] | 139329-0000 | PLAIN WASHER |
| 119/5. | [1] | 016020-2810 | LOCKING WASHER |
| 122. | [3] | 020106-2840 | BLEEDER SCREW |
| 132. | [1] | 154154-2900 | COILED SPRING |
| 133. | [2] | 154156-0100 | TUBE |
| 134. | [1] | 154158-3320 | HEADLESS SCREW |
| 136. | [1] | 029201-2290 | UNION NUT |
| 137. | [2] | 026512-1640 | GASKET D15.9&12.2T1 |
| 138. | [1] | 154159-1200 | CAP NUT |
| 140. | [1] | 154186-0420 | HEADLESS SCREW |
| 141. | [1] | 029201-6210 | UNION NUT |
| 150. | [1] | 154200-4520 | SWIVELLING LEVER |
| 151. | [1] | 154204-2100 | BUSHING |
| 152. | [2] | 139716-0100 | O-RING |
| 152. | [2] | 139716-0100 | O-RING |
| 153. | [2] | 016010-1640 | LOCKING WASHER |
| 153. | [2] | 016010-1640 | LOCKING WASHER |
| 154. | [1] | 139611-0200 | PACKING RING |
| 155. | [1] | 029311-1010 | SHIM |
| 158. | [1] | 154204-2200 | BUSHING |
| 159. | [1] | 025803-1310 | WOODRUFF KEY |
| 170. | [1] | 154211-5220 | FORK LEVER |
| 174. | [1] | 154230-1820 | STRAP |
| 175. | [1] | 016010-0540 | LOCKING WASHER |
| 176. | [1] | 154232-0500 | CONNECTOR |
| 177. | [1] | 154316-2300 | BLEEDER SCREW |
| 178. | [1] | 029320-6010 | LOCKING WASHER |
| 181. | [1] | 154236-5721 | TENSIONING LEVER |
| 182. | [1] | 154237-0200 | BEARING PIN |
| 190. | [1] | 154395-9320 | CONTROL LEVER |
| 191. | [1] | 154367-1320 | CONTROL LEVER |
| 192. | [1] | 020006-2070 | BLEEDER SCREW M6P1L20 7T |
| 195. | [1] | 154317-2600 | COILED SPRING |
| 201. | [1] | 139710-0400 | O-RING |
| 203. | [1] | 154322-0100 | CAP |
| 207. | [1] | 154326-5020 | CONTROL LEVER |
| 208. | [1] | 154327-7600 | COILED SPRING |
| 211. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
| 211B. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
| 236. | [1] | 154390-2900 | GASKET |
| 237. | [1] | 154390-3100 | GASKET |
| 238. | [1] | 154390-3500 | GASKET |
| 331. | [1] | 154178-3420 | HEADLESS SCREW |
| 332. | [1] | 029201-6010 | UNION NUT |
| 335. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
| 336. | [1] | 154035-1600 | CAP NUT |
| 338. | [1] | 131002-3800 | ADAPTOR |
| 339. | [2] | 029341-2140 | GASKET |
| 340. | [1] | 029711-2350 | INLET UNION |
| 341. | [1] | 029731-2240 | EYE BOLT |
| 411. | [1] | 154370-2620 | BRACKET |
| 900S. | [1] | 025803-1310 | WOODRUFF KEY |
| 900S. | [1] | 025803-1310 | WOODRUFF KEY |
| 901S. | [1] | 025803-1610 | WOODRUFF KEY |
| 901S. | [1] | 025803-1610 | WOODRUFF KEY |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105448-9721
GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
