105447-5790 ZEXEL 9 420 610 715 BOSCH GOVERNOR 9420610715 1054475790 35a6503130

Information governor

BOSCH 9 420 610 715 9420610715

ZEXEL 105447-5790 1054475790

MITSUBISHI-HEAV 35A6503130 35a6503130

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-5790 zexel genuine, new aftermarket engine parts with delivery

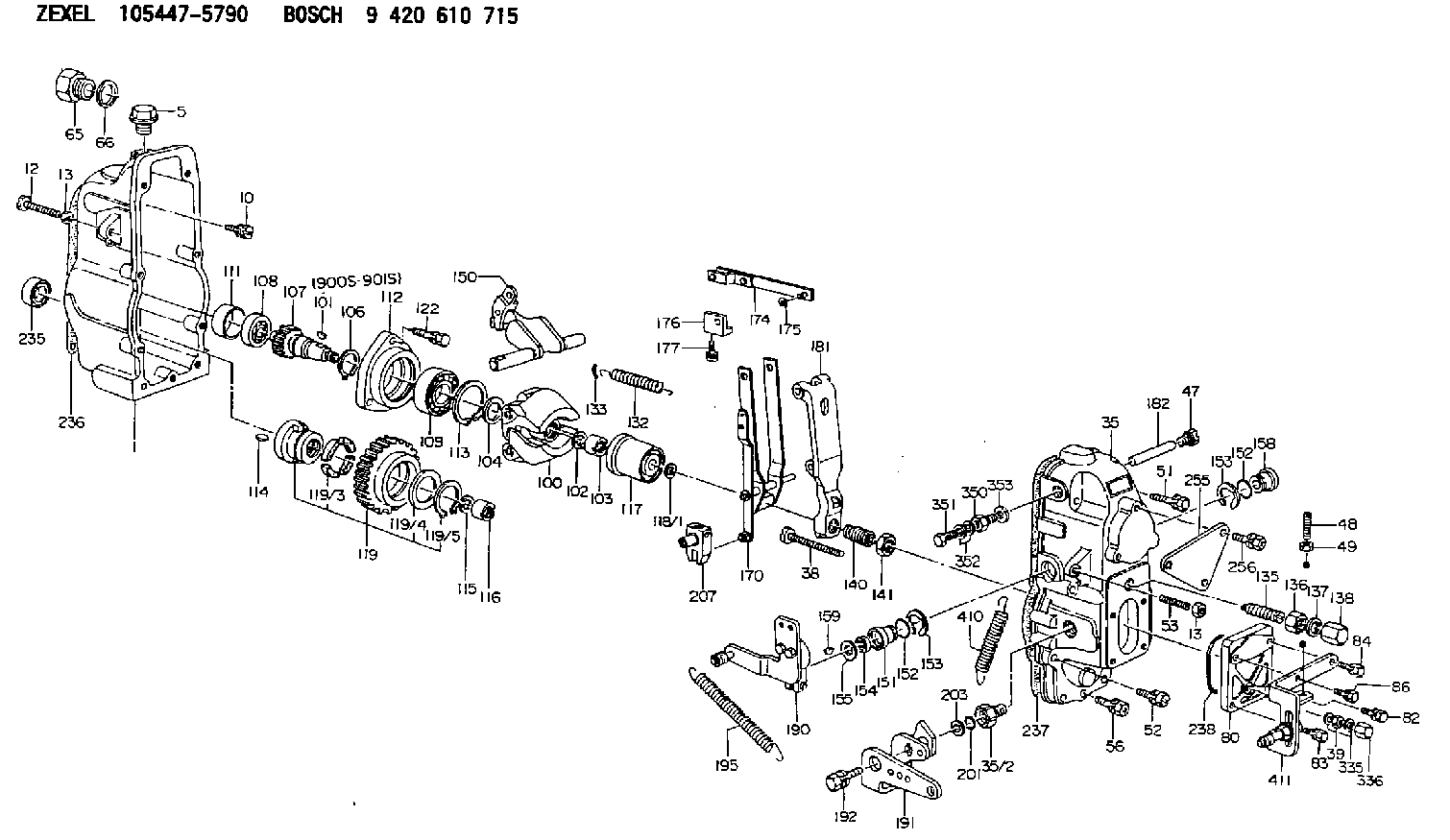

Scheme ###:

1.	[1]	154002-4020	GOVERNOR HOUSING
5.	[1]	154007-1600	CAPSULE
10.	[8]	139006-4100	BLEEDER SCREW
12.	[1]	154034-0800	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154023-4421	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[1]	154036-0300	CAPSULE
48.	[1]	154037-2300	FLAT-HEAD SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[3]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154034-0800	BLEEDER SCREW
56.	[1]	029010-6080	BLEEDER SCREW M6P1.0L50
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154063-8200	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	029020-6260	BLEEDER SCREW
86.	[1]	029020-6260	BLEEDER SCREW
100.	[1]	154100-6320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0500	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0100	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1610	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1920	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1820	TOOTHED GEAR
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
132.	[1]	154154-0900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154157-6020	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154176-3620	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-4520	SWIVELLING LEVER
151.	[1]	154204-2100	BUSHING
152.	[2]	139716-0100	O-RING
152.	[2]	139716-0100	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0200	PACKING RING
155.	[1]	029311-1010	SHIM
158.	[1]	154204-2200	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154211-7620	FORK LEVER
174.	[1]	154230-0220	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0400	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
181.	[1]	154236-8620	TENSIONING LEVER
182.	[1]	154237-1500	BEARING PIN
190.	[1]	154349-6520	CONTROL LEVER
191.	[1]	154382-1520	CONTROL LEVER
192.	[1]	020006-3040	BLEEDER SCREW
195.	[1]	154314-1800	COILED SPRING
201.	[1]	139710-0500	O-RING
203.	[0]	029311-0220	SHIM D18&10.3T0.2
203B.	[0]	029311-0230	SHIM D18&10.3T0.5
207.	[1]	154326-5420	CONTROL LEVER
235.	[1]	029621-7010	PACKING RING
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	154390-3500	GASKET
255.	[1]	154373-5820	BRACKET
256.	[2]	020006-1240	BLEEDER SCREW M6P1L12 4T
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
350.	[1]	154036-1600	ADAPTOR
351.	[1]	139806-0000	EYE BOLT
352.	[2]	029340-6120	GASKET
353.	[1]	026510-1340	GASKET D13.4&10.2T1
410.	[1]	154332-3100	COILED SPRING
411.	[1]	154373-3720	BRACKET
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106681-4200 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-5790
105447-5791

9 420 610 715

35A6503130 MITSUBISHI-HEAV

GOVERNOR
* K 14JC GOV RSUV(D) GOV

105447-5790
105447-5791

9 420 610 715

35A6503130 NISSAN-DIESEL

GOVERNOR
* K 14JC GOV RSUV(D) GOV

Information:

Installation Procedure
Table 1
Required Parts
Item Qty Part Number Description
1 1 285-1163 Cable
2 1 493-6051 Cover
3 1 5P-7958 Cable Splice Sleeve
Prepare the machine for maintenance. Refer to Operation and Maintenance Manual, "Prepare the Machine for Maintenance".
Illustration 1 g06048101
View of the Diesel Exhaust Fluid (DEF) tank
(A) Bolt
(1) 285-1163 Cable
Remove and retain bolt (A) that secures the cover to the fuel tank.
Secure cable (1) around bolt (A) and reinstall bolt (A).
Illustration 2 g06048083
View of the Diesel Exhaust Fluid (DEF) tank
(1) 285-1163 Cable
(2) 493-6051 Cover
(3) 5P-7958 Cable Splice Sleeve
Slide cover (2) over the fill tube on the tank.Insert the loose end of cable (1) through the hole of cover (2).Secure cable (1) with cable splice sleeve (3).
