105447-5671 ZEXEL 9 420 612 797 BOSCH GOVERNOR 9420612797 1054475671 3266513071

Information governor

BOSCH 9 420 612 797 9420612797

ZEXEL 105447-5671 1054475671

MITSUBISHI-HEAV 3266513071 3266513071

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-5671 zexel genuine, new aftermarket engine parts with delivery

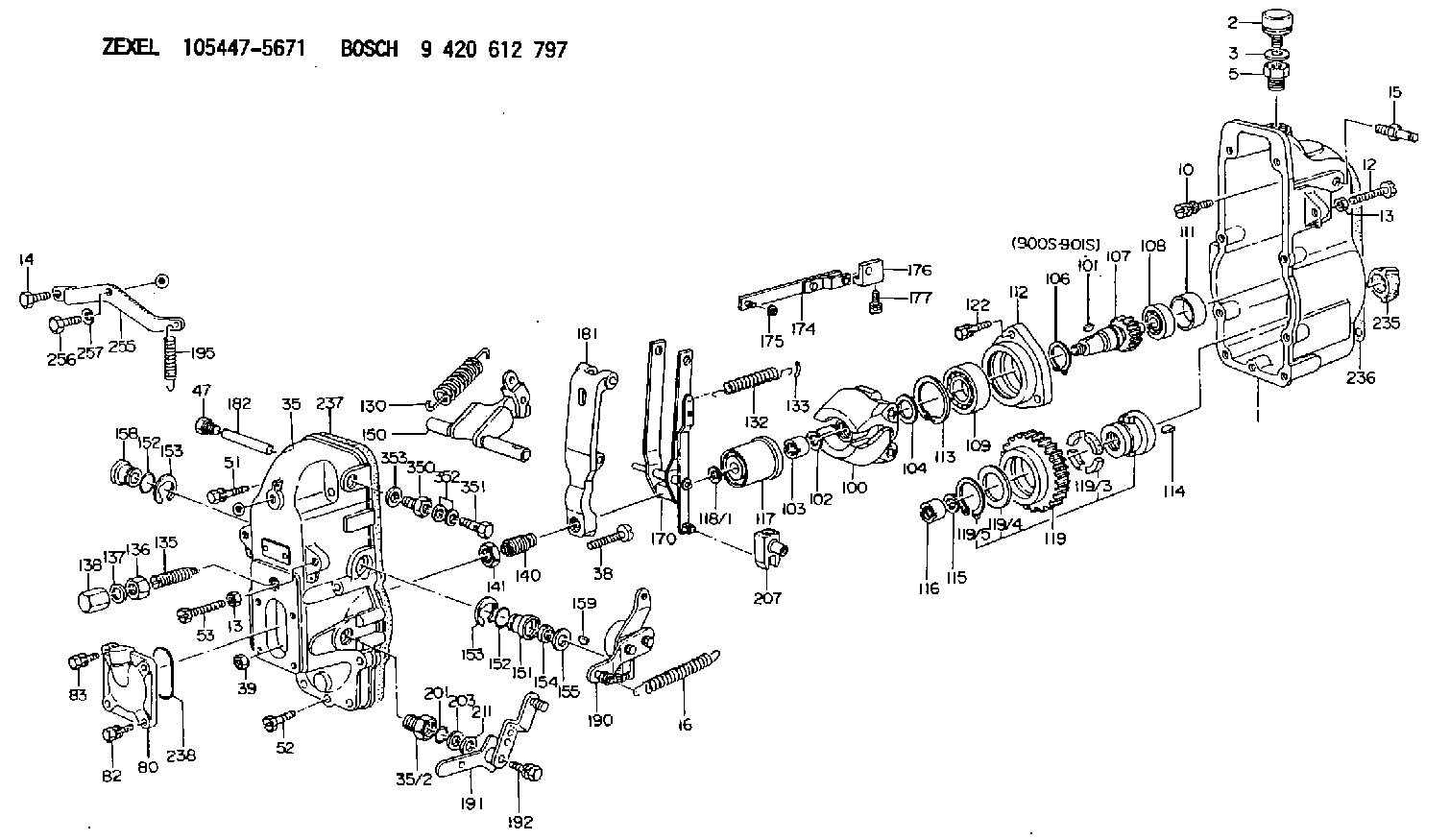

Scheme ###:

1.	[1]	154002-3620	GOVERNOR HOUSING
2.	[1]	155406-5820	AIR FILTER
3.	[1]	026512-1540	GASKET D15.4&12.2T1.50
5.	[1]	154007-0100	ADAPTOR
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154034-0800	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	020006-1440	BLEEDER SCREW M6P1L14
15.	[1]	154012-4520	BLEEDER SCREW
16.	[1]	154332-1900	COILED SPRING
35.	[1]	154520-5620	GOVERNOR COVER
35/2.	[1]	154321-0200	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[1]	154036-0300	CAPSULE
51.	[4]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154034-0800	BLEEDER SCREW
80.	[1]	154060-3800	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-6320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0500	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0100	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1610	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1920	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1820	TOOTHED GEAR
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
130.	[1]	154150-5100	GOVERNOR SPRING
132.	[1]	154154-0900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154157-5020	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154176-3620	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6721	SWIVELLING LEVER
151.	[1]	154204-2901	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139612-0100	PACKING RING
155.	[1]	139411-0500	SHIM
158.	[1]	154204-3700	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154211-5420	FORK LEVER
174.	[1]	154230-0220	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0400	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
181.	[1]	154236-2800	TENSIONING LEVER
182.	[1]	154237-1500	BEARING PIN
190.	[1]	154349-1420	CONTROL LEVER
191.	[1]	154368-8520	CONTROL LEVER
192.	[1]	020006-2840	BLEEDER SCREW M6P1L28
195.	[1]	154314-1800	COILED SPRING
201.	[1]	139710-0400	O-RING
203.	[0]	029311-0220	SHIM D18&10.3T0.2
203B.	[0]	029311-0230	SHIM D18&10.3T0.5
207.	[1]	154326-5520	CONTROL LEVER
211.	[3]	029310-4060	SHIM
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	029635-5010	O-RING
255.	[1]	154213-0800	BRACKET
256.	[1]	010038-1640	BLEEDER SCREW M8P1.25L16
257.	[1]	014110-8440	LOCKING WASHER
350.	[1]	154036-1600	ADAPTOR
351.	[1]	139806-0000	EYE BOLT
352.	[2]	029340-6120	GASKET
353.	[1]	026510-1340	GASKET D13.4&10.2T1
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-4511 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-5671

9 420 612 797
NP-EP/RSUV175-1050PQ35/301

3266513071 MITSUBISHI-HEAV

GOVERNOR
K

Information:

Table 1
Special-Purpose Cat Lubricants
Item Size
6V-4876 Lubricant(1) 500 g (17.6 oz)
5P-3931 Thread Compound(2) 150 g (5.3 oz)
(1) Recommended for use on typical components such as head bolt threads and washers.
(2) Recommended for mating connectors such as exhaust manifold studs and exhaust manifold nuts.
Table 2
UV Visible Dyes for Leak Detection
Part Number Description Size Dosage
To detect oil leaks in engines, transmissions, hydraulic systems
1U-5572 Oil Glo 22 Additive 28.4 gram (1 ounce) bottle 28.4 gram (1 ounce) per 7.58 L (2 US gal) of oil
1U-5573 Oil Glo 22 Additive 0.47 L (1 pint) bottle 28.4 gram (1 ounce) per 7.58 L (2 US gal) of oil
To detect fuel leaks or suspected fuel dilution
1U-5574 Gas Glo 32 Additive 28.4 gram (1 ounce) bottle 28.4 gram (1 ounce) per 37.9 L (10 US gal) of gasoline or diesel fuel
1U-5575 Gas Glo 32 Additive 0.47 L (1 pint) bottle 28.4 gram (1 ounce) per 37.9 L (10 US gal) of gasoline or diesel fuel
To detect cooling system leaks
1U-5576 Water Glo 23 Additive 28.4 gram (1 ounce) bottle 28.4 gram (1 ounce) per 151.5 L (40 US gal) of water
1U-5577 Water Glo 23 Additive 0.47 L (1 pint) bottle 28.4 gram (1 ounce) per 151.5 L (40 US gal) of water The dyes must be used with a special Glo Gun to detect the leaks. Consult with your local Cat dealer for availability.
