105447-5655 ZEXEL 9 420 612 796 BOSCH GOVERNOR 9420612796 1054475655 3256503352

Information governor

BOSCH 9 420 612 796 9420612796

ZEXEL 105447-5655 1054475655

MITSUBISHI-HEAV 3256503352 3256503352

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-5655 zexel genuine, new aftermarket engine parts with delivery

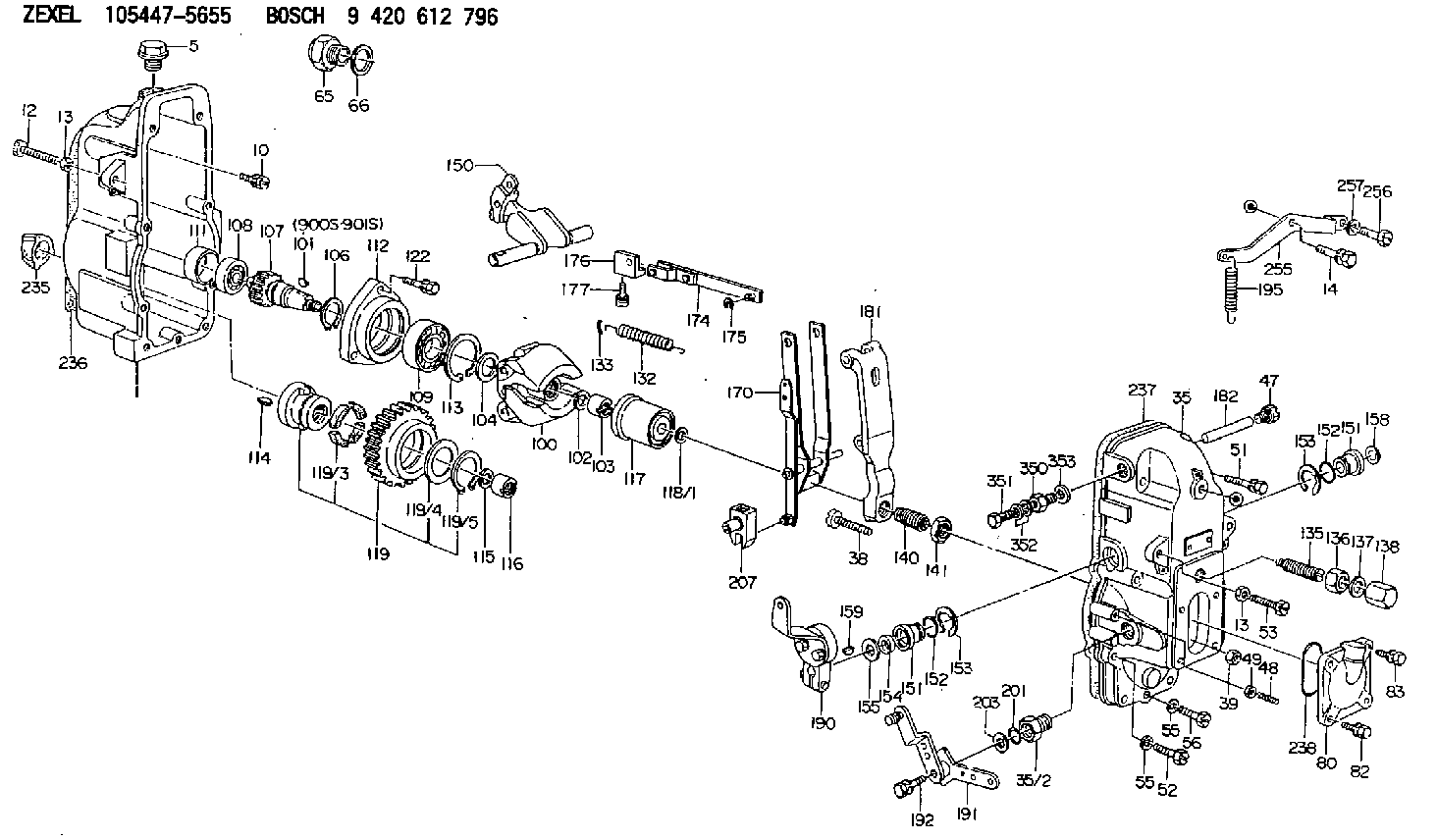

Scheme ###:

1.	[1]	154002-3220	GOVERNOR HOUSING
5.	[1]	154007-1600	CAPSULE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154034-0800	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	020006-1440	BLEEDER SCREW M6P1L14
35.	[1]	154520-6220	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[1]	154036-0300	CAPSULE
48.	[1]	154037-2300	FLAT-HEAD SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[3]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154034-0800	BLEEDER SCREW
55.	[4]	029320-6010	LOCKING WASHER
55.	[4]	029320-6010	LOCKING WASHER
56.	[1]	029010-6080	BLEEDER SCREW M6P1.0L50
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154060-3800	COVER
82.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[2]	029020-6210	BLEEDER SCREW
100.	[1]	154100-6320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0500	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0100	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1610	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1920	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1820	TOOTHED GEAR
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
132.	[1]	154154-0900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154157-5020	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154186-1120	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6321	SWIVELLING LEVER
151.	[1]	154204-2901	BUSHING
151.	[1]	154204-2901	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139612-0100	PACKING RING
155.	[1]	139411-0500	SHIM
158.	[1]	154204-3700	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154211-7620	FORK LEVER
174.	[1]	154230-0220	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0400	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
181.	[1]	154236-8620	TENSIONING LEVER
182.	[1]	154237-1500	BEARING PIN
190.	[1]	154349-1020	CONTROL LEVER
191.	[1]	154367-5620	CONTROL LEVER
192.	[1]	020006-2840	BLEEDER SCREW M6P1L28
195.	[1]	154314-1800	COILED SPRING
201.	[1]	139710-0500	O-RING
203.	[0]	029311-0220	SHIM D18&10.3T0.2
203B.	[0]	029311-0230	SHIM D18&10.3T0.5
207.	[1]	154326-5420	CONTROL LEVER
235.	[1]	029621-7010	PACKING RING
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	029635-5010	O-RING
255.	[1]	154213-5100	BRACKET
256.	[1]	020308-1640	BLEEDER SCREW M8P1.25L16
257.	[1]	014110-8440	LOCKING WASHER
350.	[1]	154036-1600	ADAPTOR
351.	[1]	139806-0000	EYE BOLT
352.	[2]	029340-6120	GASKET
353.	[1]	026510-1340	GASKET D13.4&10.2T1
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-4414 as GOVERNOR

106671-4730

106672-9207

106672-9880

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-5655

9 420 612 796
NP-EP/RSUVD175-1050PQ35/302

3256503352 MITSUBISHI-HEAV

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV

Information:

Introduction
Do not perform any procedure in this Special Instruction until you have read this information and you understand this information.Required Parts
Table 1
Required Parts
Item Qty New Part Number Part Name
1 2 137-8101 O-Ring Seal
2 2 286-5030 Elbow
3 1 289-3891 Clip
4 1 294-6118 Pressure Sensor
5 1 356-0920 Bracket
6 2 3J-7352 Connector
7 2 6V-5048 O-Ring Seal
8 2 8T-0267 Bolt
9 2 9X-8267 Washer
10 108-9656 Cable Straps
11 2 5P-1717 Hose Clamp
12 1 356-6802 Sensor Harness As
13 1 289-3891 Clip
14 2 5P-3860 Hose Clamp Procedure
Illustration 1 g02082554
Example of a vertical filter group (1) Connection for the pressure sensor group (2) New bypass wiring harness (3) Connection for the mounted sensor group (4) OEM wiring harness connection (5) OEM wiring harness (6) Wire for the probe of the outlet temperature is secured to the new P1 tube. (7) Support bracket for the new P1 tube (8) New P1 tube (9) The wire for the probe for the inlet temperature is secured to new P1 tube. (10) New P2 tubeNote: Avoid placing
