Information governor
BOSCH
F 019 Z2F 589
f019z2f589
ZEXEL
105447-5560
1054475560

Rating:

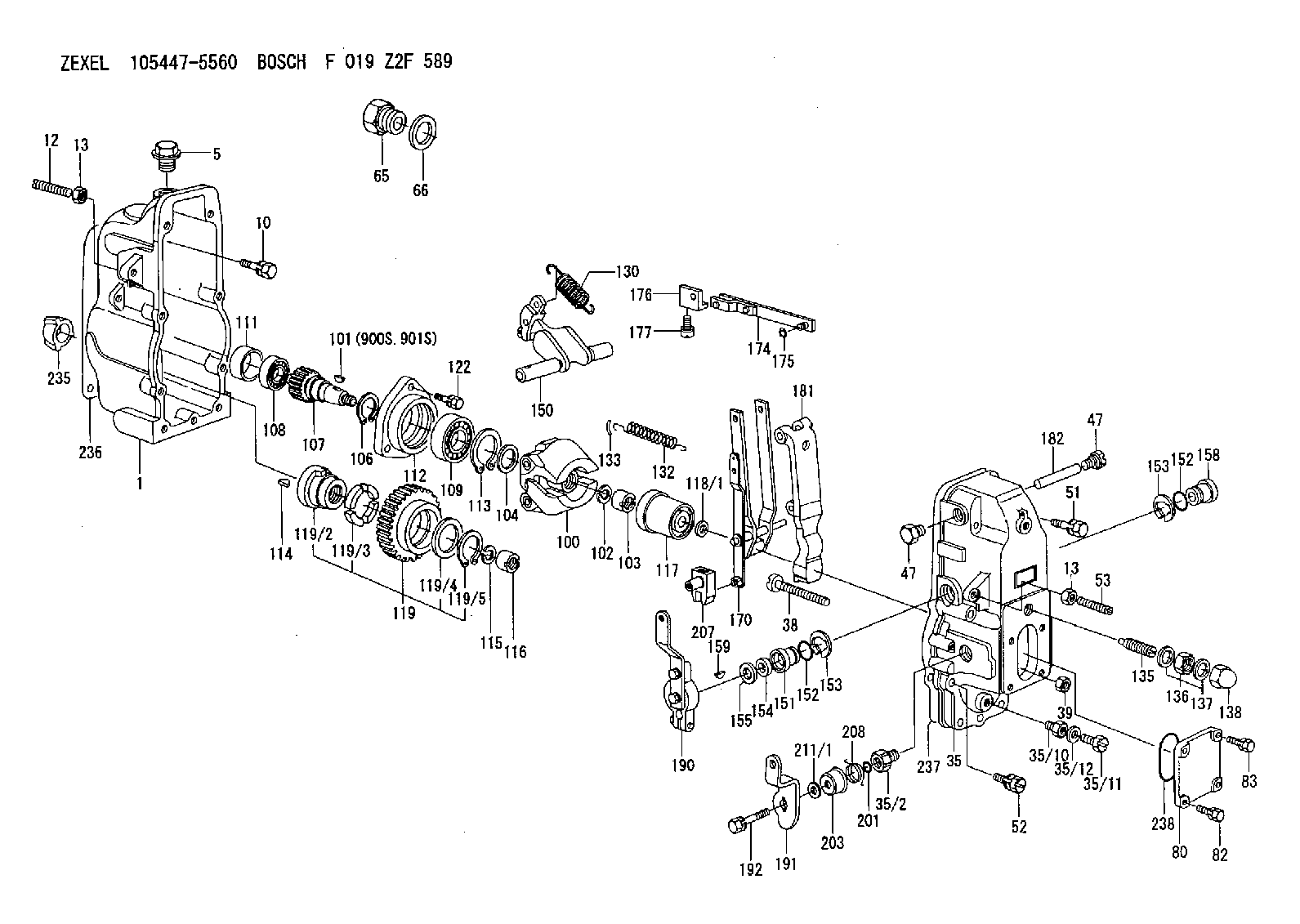

Scheme ###:
1. | [1] | 154002-2820 | GOVERNOR HOUSING |
5. | [1] | 154007-1600 | CAPSULE |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
12. | [1] | 154010-0100 | FLAT-HEAD SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154520-2020 | GOVERNOR COVER |
35/2. | [1] | 154321-0200 | BUSHING |
35/10. | [1] | 155012-0700 | ADAPTOR |
35/11. | [1] | 029010-6010 | CAPSULE M6P1.0L7 |
35/12. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
38. | [1] | 154031-0100 | FLAT-HEAD SCREW |
39. | [1] | 013020-6020 | UNION NUT M6P1H5 |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
51. | [4] | 020106-5040 | BLEEDER SCREW |
52. | [3] | 020106-2840 | BLEEDER SCREW |
53. | [1] | 154010-0300 | FLAT-HEAD SCREW |
65. | [1] | 155404-1700 | CAP |
66. | [1] | 026524-3040 | GASKET |
80. | [1] | 154060-4200 | COVER |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154100-6520 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
104. | [1] | 154120-0100 | PLAIN WASHER |
106. | [1] | 029602-0020 | LOCKING WASHER |
107. | [1] | 154121-0400 | TOOTHED GEAR |
108. | [1] | 016610-2640 | BEARING PLATE |
109. | [1] | 028102-0010 | BEARING PLATE |
111. | [1] | 154134-0000 | SPACER BUSHING |
112. | [1] | 154122-0100 | COVER |
113. | [1] | 029614-7020 | LOCKING WASHER |
114. | [1] | 025803-1310 | WOODRUFF KEY |
115. | [1] | 029321-2020 | LOCKING WASHER |
116. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-1020 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
119. | [1] | 154130-1720 | TOOTHED GEAR |
119/2. | [1] | 154132-0320 | HOLDER |
119/3. | [4] | 153251-0100 | DAMPER |
119/4. | [1] | 139329-0000 | PLAIN WASHER |
119/5. | [1] | 016020-2810 | LOCKING WASHER |
122. | [3] | 020106-2840 | BLEEDER SCREW |
130. | [1] | 154150-5100 | GOVERNOR SPRING |
132. | [1] | 154154-3100 | COILED SPRING |
133. | [2] | 154156-0100 | TUBE |
135. | [1] | 154157-5020 | HEADLESS SCREW |
136. | [1] | 029201-2130 | UNION NUT M12P1.0H6 |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-0100 | CAP NUT |
150. | [1] | 154200-0621 | SWIVELLING LEVER |
151. | [1] | 154204-0201 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 029621-1010 | PACKING RING |
155. | [1] | 029311-1010 | SHIM |
158. | [1] | 154204-3600 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
170. | [1] | 154211-7620 | FORK LEVER |
174. | [1] | 154230-0220 | STRAP |
175. | [1] | 016010-0540 | LOCKING WASHER |
176. | [1] | 154232-0400 | CONNECTOR |
177. | [2] | 029050-5040 | FLAT-HEAD SCREW M5P0.8L9 |
181. | [1] | 154236-1400 | TENSIONING LEVER |
182. | [1] | 154237-0200 | BEARING PIN |
190. | [1] | 154345-3320 | CONTROL LEVER |
191. | [1] | 154304-4300 | CONTROL LEVER |
192. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
201. | [1] | 029630-9050 | O-RING |
203. | [1] | 154322-0100 | CAP |
207. | [1] | 154326-6320 | CONTROL LEVER |
208. | [1] | 154327-7600 | COILED SPRING |
211/1. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
211/1. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
211/1. | [0] | 029311-0430 | SHIM D18&10.3T0.30 |
211/1. | [0] | 029311-0440 | SHIM D18&10.3T0.40 |
211/1. | [0] | 029311-0450 | SHIM D18&10.3T0.25 |
211/1. | [0] | 029311-0460 | SHIM D18&10.3T0.35 |
211/1. | [0] | 139410-3300 | SHIM D18&10.3T0.6 |
211/1. | [0] | 139410-3400 | SHIM D18&10.3T0.8 |
211/1. | [0] | 139410-3500 | SHIM D18&10.3T0.9 |
235. | [1] | 155412-5200 | IMPELLER WHEEL |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154371-3500 | GASKET |
238. | [1] | 029635-5010 | O-RING |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106682-4280
as GOVERNOR
