105447-5520 ZEXEL F 019 Z1E 880 BOSCH GOVERNOR f019z1e880 1054475520

Information governor

BOSCH F 019 Z1E 880 f019z1e880

ZEXEL 105447-5520 1054475520

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-5520 zexel genuine, new aftermarket engine parts with delivery

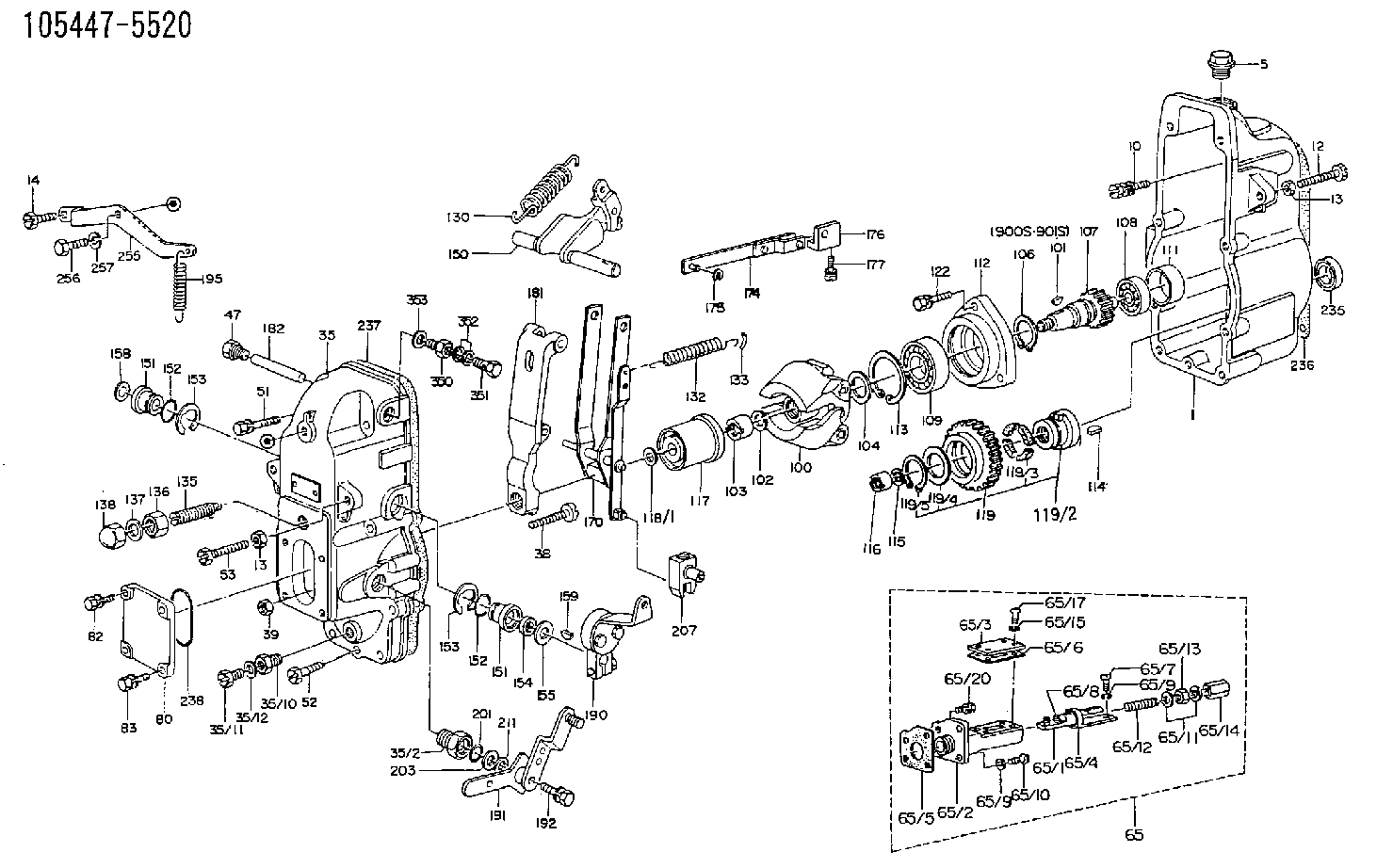

Scheme ###:

1.	[1]	154002-3220	GOVERNOR HOUSING
5.	[1]	154007-1600	CAPSULE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154034-0800	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	020006-1440	BLEEDER SCREW M6P1L14
35.	[1]	154520-3120	GOVERNOR COVER
35/2.	[1]	154321-0200	BUSHING
35/10.	[1]	155012-0700	ADAPTOR
35/11.	[1]	029010-6010	CAPSULE M6P1.0L7
35/12.	[1]	026506-1040	GASKET D9.9&6.2T1
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[1]	154036-0300	CAPSULE
51.	[4]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154034-0800	BLEEDER SCREW
65.	[1]	154050-7120	CONNECTOR
65/1.	[1]	154355-6400	CONNECTOR
65/2.	[1]	154050-6500	ADAPTOR
65/3.	[1]	154357-6100	CAP
65/4.	[1]	154355-6600	SCALE PLATE
65/5.	[1]	154355-6700	GASKET
65/6.	[1]	154355-6800	GASKET
65/7.	[1]	012154-0640	FLAT-HEAD SCREW M4P0.7L6
65/8.	[2]	010533-0640	FLAT-HEAD SCREW
65/9.	[5]	014110-4440	LOCKING WASHER
65/9.	[5]	014110-4440	LOCKING WASHER
65/10.	[3]	012154-1440	FLAT-HEAD SCREW M4P0.7L14
65/11.	[2]	026506-1040	GASKET D9.9&6.2T1
65/12.	[1]	154034-1600	FLAT-HEAD SCREW L30
65/13.	[1]	029240-6010	UNION NUT M6P1.0H5*
65/14.	[1]	154035-1600	CAP NUT
65/15.	[4]	139504-0000	GASKET D8&4.2T1
65/17.	[4]	012154-0640	FLAT-HEAD SCREW M4P0.7L6
65/20.	[1]	139004-0100	BLEEDER SCREW M4P0.7L14
80.	[1]	154060-4200	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-5620	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0500	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0100	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1310	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1920	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1820	TOOTHED GEAR
119/2.	[1]	154132-0320	HOLDER
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
130.	[1]	154150-4600	GOVERNOR SPRING
132.	[1]	154154-0900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154157-5020	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-0100	CAP NUT
150.	[1]	154200-0521	SWIVELLING LEVER
151.	[1]	154204-0201	BUSHING
151.	[1]	154204-0201	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	029621-1010	PACKING RING
155.	[1]	029311-1010	SHIM
158.	[1]	154204-3600	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154211-5420	FORK LEVER
174.	[1]	154230-0220	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0400	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
181.	[1]	154236-0200	TENSIONING LEVER
182.	[1]	154237-1500	BEARING PIN
190.	[1]	154345-5420	CONTROL LEVER
191.	[1]	154304-6820	CONTROL LEVER
192.	[1]	020006-2840	BLEEDER SCREW M6P1L28
195.	[1]	154314-1800	COILED SPRING
201.	[1]	029630-9050	O-RING
203.	[0]	029311-0220	SHIM D18&10.3T0.2
203B.	[0]	029311-0230	SHIM D18&10.3T0.5
207.	[1]	154326-6120	CONTROL LEVER
235.	[1]	029621-7010	PACKING RING
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	029635-5010	O-RING
255.	[1]	154213-0800	BRACKET
256.	[1]	010038-1640	BLEEDER SCREW M8P1.25L16
257.	[1]	014110-8440	LOCKING WASHER
350.	[1]	154036-1600	ADAPTOR
351.	[1]	139806-0000	EYE BOLT
352.	[2]	029340-6120	GASKET
353.	[1]	026510-1340	GASKET D13.4&10.2T1
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-4030 as GOVERNOR

106671-4031

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-5520

F 019 Z1E 880
NP-EP/RSUV210-1250PP20/301NP66

GOVERNOR
K

Information:

Table 1
Revision Summary of Changes
01 Added serial number prefixes Description Of Change: The improved Diesel Exhaust Fluid (DEF) filters have updated material to reduce debris passing to the DEF pump.Adaptable To:
Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are adaptable to the products within the listed serial numbers, and are effective with all products after the listed serial numbers.The new and former DEF filter part numbers are listed in Table 2.
Table 2
Required Parts
Qty New Part Number Part Name Former Part Numbers(1)
1 584-8135 Diesel Exhaust Fluid Filter Gp 453-1604
1 584-8136 Diesel Exhaust Fluid Filter Gp 453-1605
1 584-8137 Diesel Exhaust Fluid Filter Gp 453-1606
(1) The former part number listed is for reference only and may differ.
