105447-5471 ZEXEL F 019 Z1E 827 BOSCH GOVERNOR f019z1e827 1054475471

Information governor

BOSCH F 019 Z1E 827 f019z1e827

ZEXEL 105447-5471 1054475471

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-5471 zexel genuine, new aftermarket engine parts with delivery

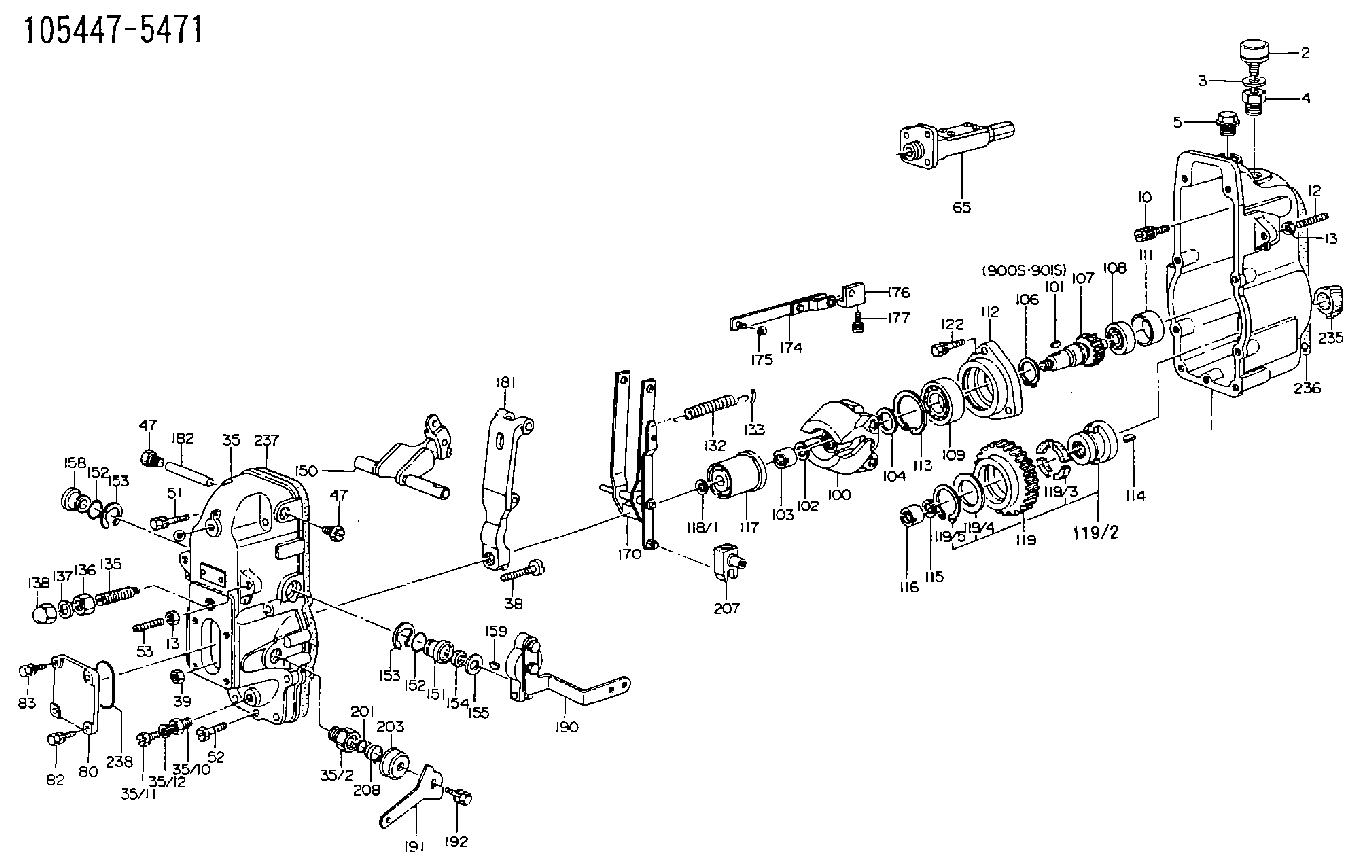

Scheme ###:

1.	[1]	154002-3020	GOVERNOR HOUSING
2.	[1]	155406-5820	AIR FILTER
3.	[1]	026512-1540	GASKET D15.4&12.2T1.50
4.	[1]	154007-2700	ADAPTOR
5.	[1]	154007-1600	CAPSULE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0200	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154520-3020	GOVERNOR COVER
35/2.	[1]	154321-0200	BUSHING
35/10.	[1]	155012-0700	ADAPTOR
35/11.	[1]	029010-6010	CAPSULE M6P1.0L7
35/12.	[1]	026506-1040	GASKET D9.9&6.2T1
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[4]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154010-0300	FLAT-HEAD SCREW
65.	[1]	154050-6520	CONNECTOR
80.	[1]	154060-4200	COVER
82.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[2]	029020-6210	BLEEDER SCREW
100.	[1]	154100-9720	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0500	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0100	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1310	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1620	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1820	TOOTHED GEAR
119/2.	[1]	154132-0320	HOLDER
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
132.	[1]	154154-0900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154157-5020	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-0100	CAP NUT
150.	[1]	154200-5921	SWIVELLING LEVER
151.	[1]	154204-0201	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	029621-1010	PACKING RING
155.	[1]	029311-1010	SHIM
158.	[1]	154204-3600	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154216-9620	FORK LEVER
174.	[1]	154230-9020	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0400	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
181.	[1]	154236-7920	TENSIONING LEVER
182.	[1]	154237-0200	BEARING PIN
190.	[1]	154342-3520	CONTROL LEVER
191.	[1]	154307-5100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029630-9050	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-6020	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	029635-5010	O-RING
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106672-4952 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-5471

F 019 Z1E 827
NP-EP/RSUV175-1050PQ35/301

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
