105447-5461 ZEXEL F 019 Z1E 826 BOSCH GOVERNOR f019z1e826 1054475461




Information governor

BOSCH F 019 Z1E 826 f019z1e826
ZEXEL 105447-5461 1054475461
105447-5461 GOVERNOR
Rating:
81
Buy GOVERNOR 105447-5461 zexel genuine, new aftermarket engine parts with delivery

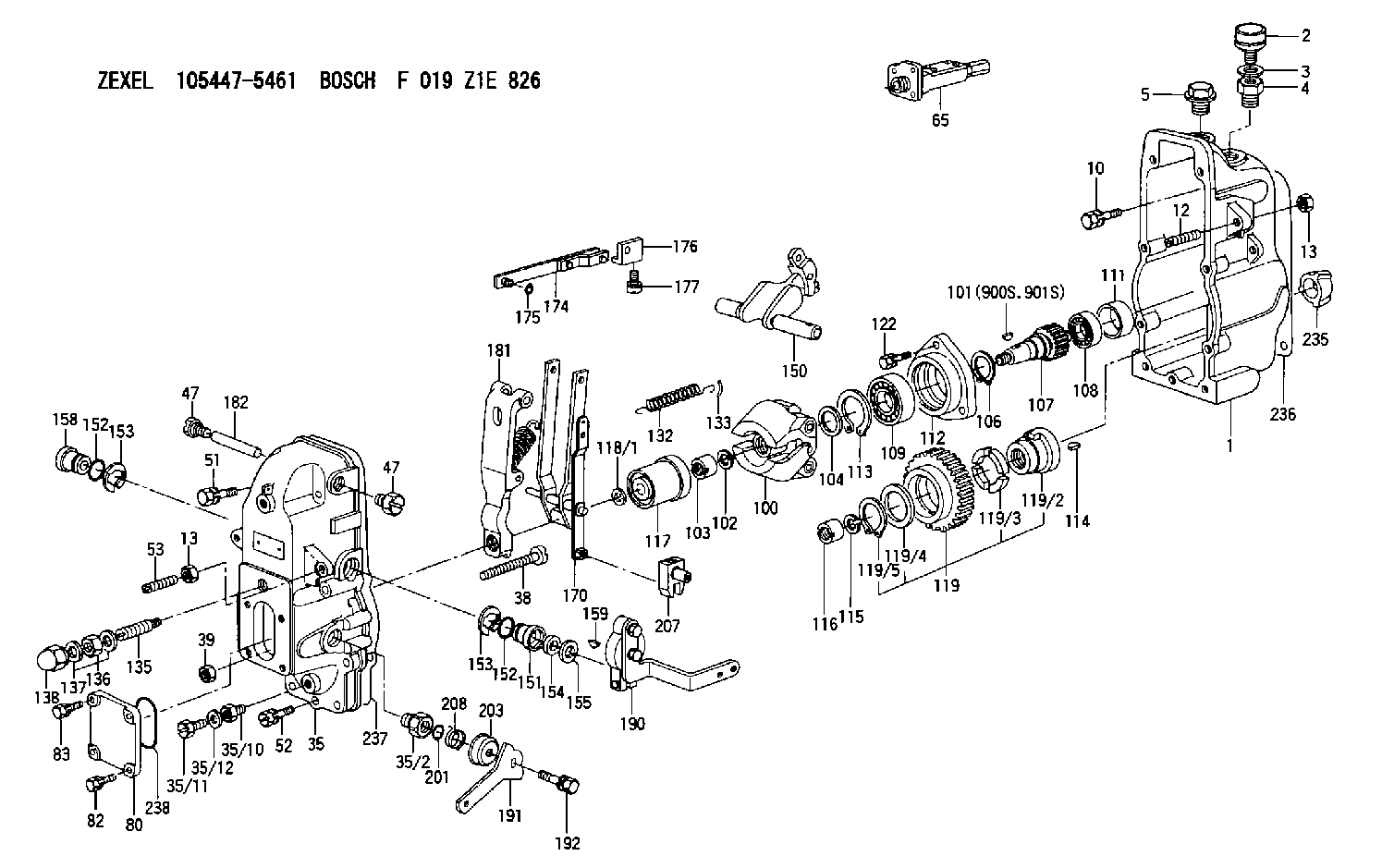

Scheme ###:

GOVERNOR HOUSING
1. [1] 154002-3020 GOVERNOR HOUSING
1. [1] 154002-3020 GOVERNOR HOUSING
2. [1] 155406-0220 AIR FILTER
2. [1] 155406-0220 AIR FILTER
3. [1] 026512-1540 GASKET D15.4&12.2T1.50
3. [1] 026512-1540 GASKET D15.4&12.2T1.50
4. [1] 154007-2700 ADAPTOR
4. [1] 154007-2700 ADAPTOR
5. [1] 154007-1600 CAPSULE
5. [1] 154007-1600 CAPSULE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-0200 FLAT-HEAD SCREW
12. [1] 154010-0200 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154520-3020 GOVERNOR COVER
35. [1] 154520-3020 GOVERNOR COVER
35/2. [1] 154321-0200 BUSHING
35/2. [1] 154321-0200 BUSHING
35/10. [1] 155012-0700 ADAPTOR
35/10. [1] 155012-0700 ADAPTOR
35/11. [1] 029010-6010 CAPSULE M6P1.0L7
35/11. [1] 029010-6010 CAPSULE M6P1.0L7
35/12. [1] 026506-1040 GASKET D9.9&6.2T1
35/12. [1] 026506-1040 GASKET D9.9&6.2T1
38. [1] 154031-0100 FLAT-HEAD SCREW
38. [1] 154031-0100 FLAT-HEAD SCREW
39. [1] 013020-6020 UNION NUT M6P1H5
39. [1] 013020-6020 UNION NUT M6P1H5
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [4] 020106-5040 BLEEDER SCREW
51. [4] 020106-5040 BLEEDER SCREW
52. [3] 020106-2840 BLEEDER SCREW
52. [3] 020106-2840 BLEEDER SCREW
53. [1] 154010-0300 FLAT-HEAD SCREW
53. [1] 154010-0300 FLAT-HEAD SCREW
65. [1] 154050-6520 CONNECTOR
65. [1] 154050-6520 CONNECTOR
80. [1] 154060-4200 COVER
80. [1] 154060-4200 COVER
82. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
82. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [2] 029020-6210 BLEEDER SCREW
83. [2] 029020-6210 BLEEDER SCREW
100. [0] 154100-3220
100. [1] 154100-9720 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
103. [1] 029231-2030 UNION NUT
104. [1] 154120-0100 PLAIN WASHER
104. [1] 154120-0100 PLAIN WASHER
106. [1] 029602-0020 LOCKING WASHER
106. [1] 029602-0020 LOCKING WASHER
107. [1] 154121-0400 TOOTHED GEAR
107. [1] 154121-0400 TOOTHED GEAR
108. [1] 016610-2640 BEARING PLATE
108. [1] 016610-2640 BEARING PLATE
109. [1] 028102-0010 BEARING PLATE
109. [1] 028102-0010 BEARING PLATE
111. [1] 154134-0000 SPACER BUSHING
111. [1] 154134-0000 SPACER BUSHING
112. [1] 154122-0100 COVER
112. [1] 154122-0100 COVER
113. [1] 029614-7020 LOCKING WASHER
113. [1] 029614-7020 LOCKING WASHER
114. [1] 025803-1310 WOODRUFF KEY
114. [1] 025803-1310 WOODRUFF KEY
115. [1] 029321-2020 LOCKING WASHER
115. [1] 029321-2020 LOCKING WASHER
116. [1] 029231-2030 UNION NUT
116. [1] 029231-2030 UNION NUT
117. [1] 154123-1620 SLIDING PIECE
117. [1] 154123-1620 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
119. [1] 154130-1720 TOOTHED GEAR
119. [1] 154130-1720 TOOTHED GEAR
119/2. [1] 154132-0320 HOLDER
119/2. [1] 154132-0320 HOLDER
119/3. [4] 153251-0100 DAMPER
119/3. [4] 153251-0100 DAMPER
119/4. [1] 139329-0000 PLAIN WASHER
119/4. [1] 139329-0000 PLAIN WASHER
119/5. [1] 016020-2810 LOCKING WASHER
119/5. [1] 016020-2810 LOCKING WASHER
122. [3] 020106-2840 BLEEDER SCREW
122. [3] 020106-2840 BLEEDER SCREW
132. [1] 154154-0900 COILED SPRING
132. [1] 154154-0900 COILED SPRING
133. [2] 154156-0100 TUBE
133. [2] 154156-0100 TUBE
135. [1] 154157-5020 HEADLESS SCREW
135. [1] 154157-5020 HEADLESS SCREW
136. [1] 029201-2030 UNION NUT M12P1.0H4
136. [1] 029201-2030 UNION NUT M12P1.0H4
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-0100 CAP NUT
138. [1] 154159-0100 CAP NUT
150. [1] 154200-5921 SWIVELLING LEVER
150. [1] 154200-5921 SWIVELLING LEVER
151. [1] 154204-0201 BUSHING
151. [1] 154204-0201 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 029621-1010 PACKING RING
154. [1] 029621-1010 PACKING RING
155. [1] 029311-1010 SHIM
155. [1] 029311-1010 SHIM
158. [1] 154204-3600 BUSHING
158. [1] 154204-3600 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154216-9620 FORK LEVER
170. [1] 154216-9620 FORK LEVER
174. [1] 154230-9020 STRAP
174. [1] 154230-9020 STRAP
175. [1] 016010-0540 LOCKING WASHER
175. [1] 016010-0540 LOCKING WASHER
176. [1] 154232-0400 CONNECTOR
176. [1] 154232-0400 CONNECTOR
177. [2] 029050-5040 FLAT-HEAD SCREW M5P0.8L9
177. [2] 029050-5040 FLAT-HEAD SCREW M5P0.8L9
181. [1] 154236-7420 TENSIONING LEVER
181. [1] 154236-7420 TENSIONING LEVER
182. [1] 154237-0200 BEARING PIN
182. [1] 154237-0200 BEARING PIN
190. [1] 154342-3520 CONTROL LEVER
190. [1] 154342-3520 CONTROL LEVER
191. [1] 154307-5100 CONTROL LEVER
191. [1] 154307-5100 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
201. [1] 029630-9050 O-RING
201. [1] 029630-9050 O-RING
203. [1] 154322-0100 CAP
203. [1] 154322-0100 CAP
207. [1] 154326-6020 CONTROL LEVER
207. [1] 154326-6020 CONTROL LEVER
208. [1] 154327-7300 COILED SPRING
208. [1] 154327-7300 COILED SPRING
235. [1] 155412-5300 IMPELLER WHEEL
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
236. [1] 154371-5600 GASKET
237. [1] 154371-3500 GASKET
237. [1] 154371-3500 GASKET
238. [1] 029635-5010 O-RING
238. [1] 029635-5010 O-RING
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106682-4042 as GOVERNOR
106682-4043
106682-4061
106682-4062
106682-4111
106682-4141
106682-4142

Cross reference number

Zexel num
Bosch num
Firm num
Name
105447-5461
F 019 Z1E 826
NP-EP/RSUV150-910PQ34/301

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV




Information:

Removal Procedure
Contact with high pressure fuel may cause fluid penetration and burn hazards. High pressure fuel spray may cause a fire hazard. Failure to follow these inspection, maintenance and service instructions may cause personal injury or death.
Ensure that all adjustments and repairs that are carried out to the fuel system are performed by authorised personnel that have the correct training.Before begining ANY work on the fuel system, refer to Operation and Maintenance Manual, "General Hazard Information and High Pressure Fuel Lines" for safety information.Refer to Systems Operation, Testing and Adjusting Manual, "Cleanliness of Fuel System Components" for detailed information on the standards of cleanliness that must be observed during ALL work on the fuel system.
Care must be taken to ensure that fluids are contained during performance of inspection, maintenance, testing, adjusting and repair of the product. Be

Have questions with 105447-5461?





Group cross 105447-5461 ZEXEL

105447-5401
F 01G 29N 0K3
NP-EP/RSUV150-910PQ34/301


105447-5422
F 019 Z1E 825
NP-EP/RSUV110-750PQ33/301

GOVERNOR
105447-5441
9 420 610 319
NP-EP/RSUV175-1050PQ35/301

GOVERNOR
105447-5451



105447-5461
F 019 Z1E 826
NP-EP/RSUV150-910PQ34/301

GOVERNOR
105447-5471
F 019 Z1E 827
NP-EP/RSUV175-1050PQ35/301

GOVERNOR
105447-5481



105447-5491
