105447-5221 ZEXEL F 019 Z1E 552 BOSCH GOVERNOR f019z1e552 1054475221

Information governor

BOSCH F 019 Z1E 552 f019z1e552

ZEXEL 105447-5221 1054475221

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-5221 zexel genuine, new aftermarket engine parts with delivery

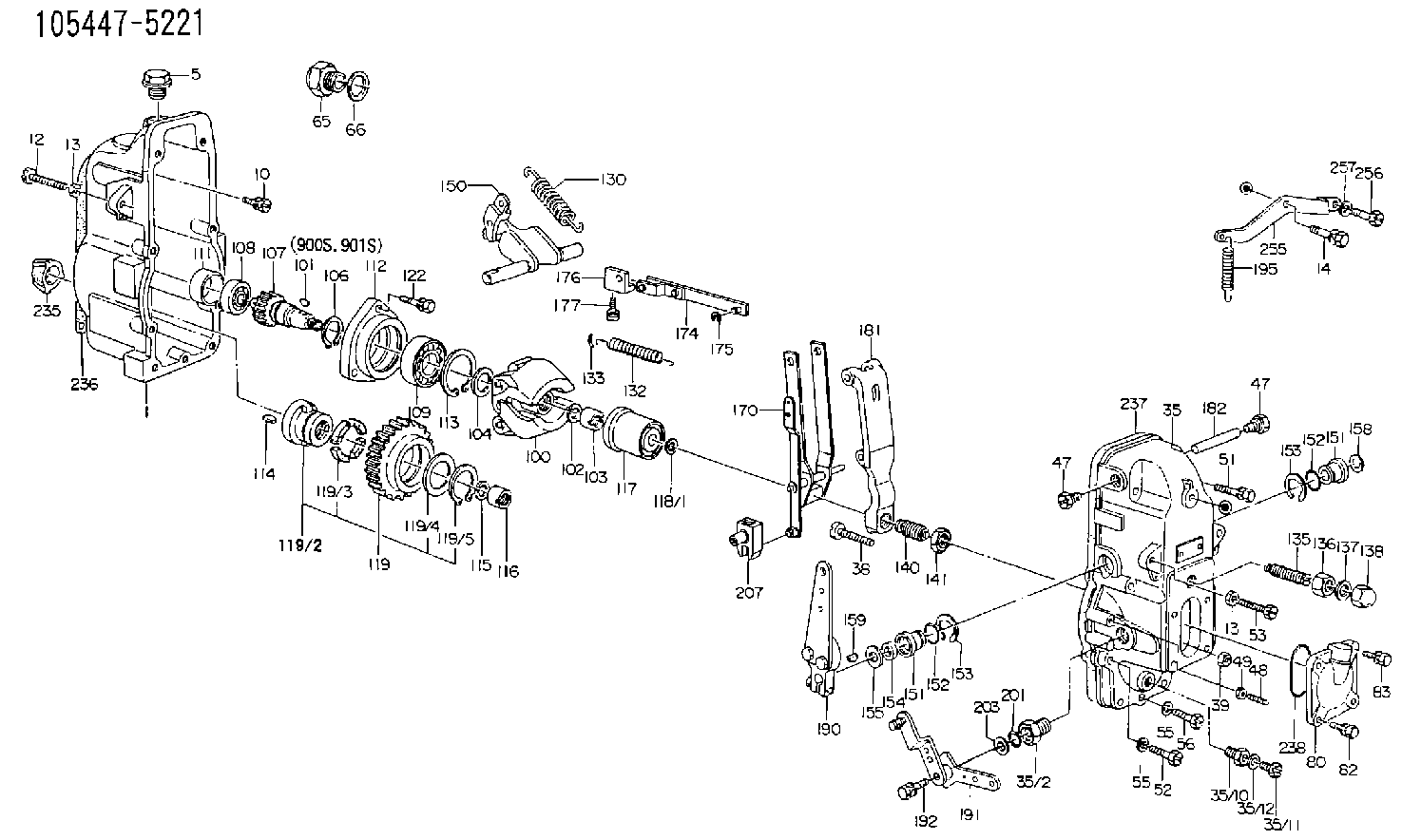

Scheme ###:

1.	[1]	154002-2820	GOVERNOR HOUSING
5.	[1]	154007-1600	CAPSULE
10.	[8]	020106-2040	BLEEDER SCREW
12.	[1]	154034-0800	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	020006-1440	BLEEDER SCREW
35.	[1]	154520-5420	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
35/10.	[1]	155012-0700	ADAPTOR
35/11.	[1]	029010-6010	CAPSULE M6P1.0L7
35/12.	[1]	026506-1040	GASKET
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-2300	FLAT-HEAD SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[3]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154034-0800	BLEEDER SCREW
55.	[4]	029320-6010	LOCKING WASHER
55.	[4]	029320-6010	LOCKING WASHER
56.	[1]	029010-6080	BLEEDER SCREW
65.	[1]	155404-1700	CAP
66.	[1]	026524-3040	GASKET
80.	[1]	154060-3800	COVER
82.	[2]	020006-1640	BLEEDER SCREW
83.	[2]	029020-6210	BLEEDER SCREW
100.	[1]	154100-6320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY 16 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0400	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0100	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1310	WOODRUFF KEY 13 MM
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1920	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1720	TOOTHED GEAR
119/2.	[1]	154132-0320	HOLDER
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
130.	[1]	154150-5100	GOVERNOR SPRING
132.	[1]	154154-0900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154157-5020	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT
137.	[2]	026512-1540	GASKET
138.	[1]	154159-0100	CAP NUT
140.	[1]	154176-3620	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-0621	SWIVELLING LEVER
151.	[1]	154204-0201	BUSHING
151.	[1]	154204-0201	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	029621-1010	PACKING RING
155.	[1]	029311-1010	SHIM
158.	[1]	154204-3600	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
170.	[1]	154211-7620	FORK LEVER
174.	[1]	154230-0220	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0400	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW
181.	[1]	154236-2800	TENSIONING LEVER
182.	[1]	154237-0200	BEARING PIN
190.	[1]	154309-6320	CONTROL LEVER
191.	[1]	154381-0320	CONTROL LEVER
192.	[1]	020006-2840	BLEEDER SCREW
195.	[1]	154314-1800	COILED SPRING
201.	[1]	029631-0030	O-RING
203.	[0]	029311-0220	SHIM D18&10.3T0.2
203B.	[0]	029311-0230	SHIM D18&10.3T0.5
207.	[1]	154326-8720	LEVER GROUP
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	029635-5010	O-RING
255.	[1]	154213-5100	BRACKET
256.	[1]	020308-1640	BLEEDER SCREW
257.	[1]	014110-8440	LOCKING WASHER D15.4&8.2T2
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106671-2321 as GOVERNOR

106672-2251

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-5221

F 019 Z1E 552
NP-EP/RSUVD150-910PQ34/302NP20

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV

Information:

Introduction
The problem that is identified below does not have a known permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
The fuel fill nozzle is being deactivated before the tank is full. The early deactivation causes the technician to hold the nozzle active in order to fill the fuel tank completely.Solution
Illustration 1 g03818479
773G / 775G (1) 308-0415 Vent As (2) 8J-6875 Shuttle Valve Gp (3) 252-5806 Shutoff Valve Assembly (4) 376-1308 Receiver As (5) 376-6616 Hose As
Illustration 2 g03818481
777G (1) 308-0415 Vent As (2) 8J-6875 Shuttle Valve Gp (3) 252-5806 Shutoff Valve Assembly (4) 376-1308 Receiver As (5) 376-6616 Hose As Perform the procedure in Troubleshooting, UENR2276, "Fluids Service System Troubleshooting". Report all failures through the DSN and replace with current parts as needed.
