105447-5051 ZEXEL 9 420 610 336 BOSCH GOVERNOR 9420610336 1054475051




Information governor

BOSCH 9 420 610 336 9420610336
ZEXEL 105447-5051 1054475051
105447-5051 GOVERNOR
Rating:
53
Buy GOVERNOR 105447-5051 zexel genuine, new aftermarket engine parts with delivery

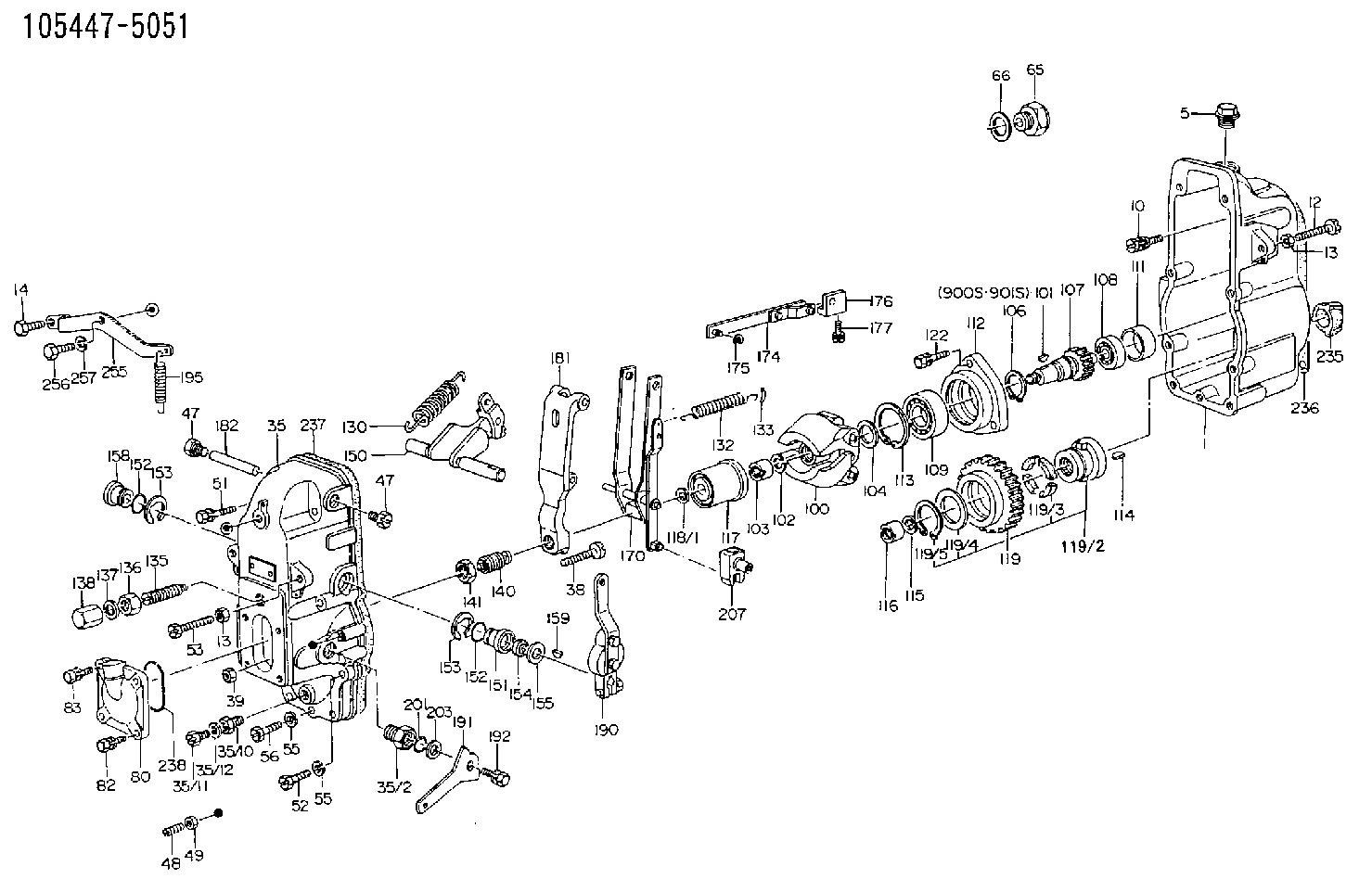

Scheme ###:

GOVERNOR HOUSING
1. [1] 154002-2820 GOVERNOR HOUSING
5. [1] 154007-1600 CAPSULE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154034-0800 BLEEDER SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
14. [1] 020006-1440 BLEEDER SCREW M6P1L14
35. [1] 154520-5220 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
35/10. [1] 155012-0700 ADAPTOR
35/11. [1] 029010-6010 CAPSULE M6P1.0L7
35/12. [1] 026506-1040 GASKET D9.9&6.2T1
38. [1] 154031-0100 FLAT-HEAD SCREW
39. [1] 013020-6020 UNION NUT M6P1H5
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
48. [1] 154037-2300 FLAT-HEAD SCREW
49. [1] 154038-0200 HEXAGON NUT
51. [3] 020106-5040 BLEEDER SCREW
52. [3] 020106-2840 BLEEDER SCREW
53. [1] 154034-0700 BLEEDER SCREW
55. [4] 029320-6010 LOCKING WASHER
55. [4] 029320-6010 LOCKING WASHER
56. [1] 029010-6080 BLEEDER SCREW M6P1.0L50
65. [1] 155404-1700 CAP
66. [1] 026524-3040 GASKET
80. [1] 154060-3800 COVER
82. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [2] 029020-6210 BLEEDER SCREW
100. [1] 154100-6320 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY 16 MM
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
104. [1] 154120-0100 PLAIN WASHER
106. [1] 029602-0020 LOCKING WASHER
107. [1] 154121-0200 TOOTHED GEAR
108. [1] 016610-2640 BEARING PLATE
109. [1] 028102-0010 BEARING PLATE
111. [1] 154134-0000 SPACER BUSHING
112. [1] 154122-0100 COVER
113. [1] 029614-7020 LOCKING WASHER
114. [1] 025803-1310 WOODRUFF KEY
115. [1] 029321-2020 LOCKING WASHER
116. [1] 029231-2030 UNION NUT
117. [1] 154123-1920 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
119. [1] 154130-1520 TOOTHED GEAR
119/2. [1] 154132-0320 HOLDER
119/3. [4] 153251-0100 DAMPER
119/4. [1] 139329-0000 PLAIN WASHER
119/5. [1] 016020-2810 LOCKING WASHER
122. [3] 020106-2840 BLEEDER SCREW
130. [1] 154150-5100 GOVERNOR SPRING
132. [1] 154154-0900 COILED SPRING
133. [2] 154156-0100 TUBE
135. [1] 154157-5020 HEADLESS SCREW
136. [1] 029201-2030 UNION NUT M12P1.0H4
136. [1] 029201-2030 UNION NUT M12P1.0H4
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-0100 CAP NUT
140. [1] 154176-3320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-0521 SWIVELLING LEVER
151. [1] 154204-0201 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 029621-1010 PACKING RING
155. [1] 029311-1010 SHIM
158. [1] 154204-3600 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154211-5420 FORK LEVER
174. [1] 154230-0220 STRAP
175. [1] 016010-0540 LOCKING WASHER
176. [1] 154232-0400 CONNECTOR
177. [2] 029050-5040 FLAT-HEAD SCREW M5P0.8L9
181. [1] 154236-2800 TENSIONING LEVER
182. [1] 154237-0200 BEARING PIN
190. [1] 154303-1220 CONTROL LEVER
191. [1] 154308-5400 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
195. [1] 154314-1800 COILED SPRING
201. [1] 029631-0030 O-RING &9.8W2.3
203. [0] 029311-0220 SHIM D18&10.3T0.2
203B. [0] 029311-0230 SHIM D18&10.3T0.5
207. [1] 154326-8720 LEVER GROUP
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154371-3500 GASKET
238. [1] 029635-5010 O-RING
255. [1] 154213-0800 BRACKET
256. [1] 010038-1640 BLEEDER SCREW M8P1.25L16
257. [1] 014110-8440 LOCKING WASHER
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106672-2000 as GOVERNOR
106672-2001

Cross reference number

Zexel num
Bosch num
Firm num
Name
105447-5051
9 420 610 336
NP-EP/RSUVD90-600PQ32/301NP10

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV




Information:

Installation Instructions
Using the PC, copy the file called amupdate.img to the USB stick. Make sure that the file is located directly on the USB stick and not saved in any directory on the USB stick.
Take note of the current Kernel version of the unit (if possible).
Disconnect the supply power to the unit to be upgraded.
Insert the USB stick at the back of the unit.
Reconnect the supply power to the unit and observe brief block of text message on the display, as the new kernel is being uploaded and installed. (This message is only shown for a few seconds.)
Wait for the unit to start up fully. Dismiss the USB Storage form, if shown, and remove the USB stick from the unit.
Check the Kernel version and verify that Kernel version is "180820".

Have questions with 105447-5051?





Group cross 105447-5051 ZEXEL

105447-5001
F 019 Z1F 961
NP-EP/RSUVD90-600PQ32/302NP8

GOVERNOR
105447-5011



105447-5021



105447-5041



105447-5051
9 420 610 336
NP-EP/RSUVD90-600PQ32/301NP10

GOVERNOR
105447-5061
